Description

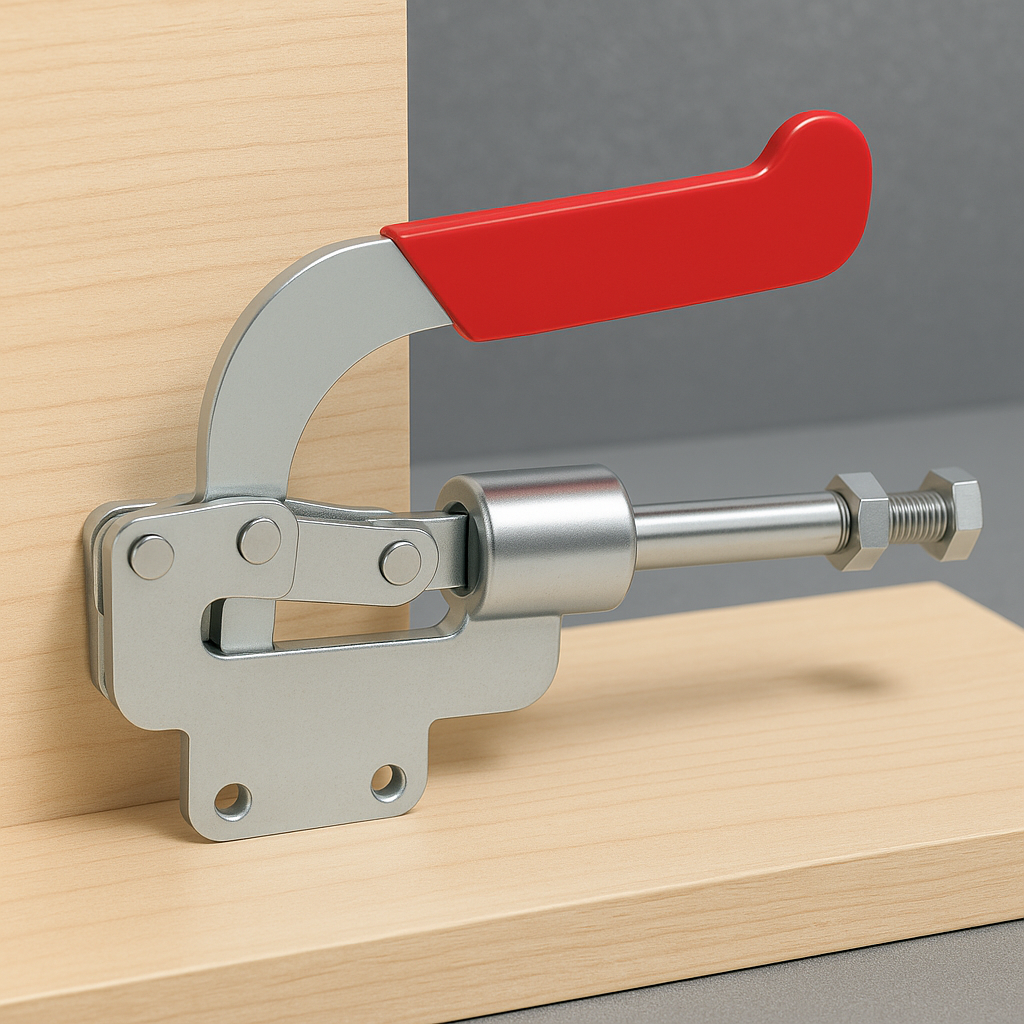

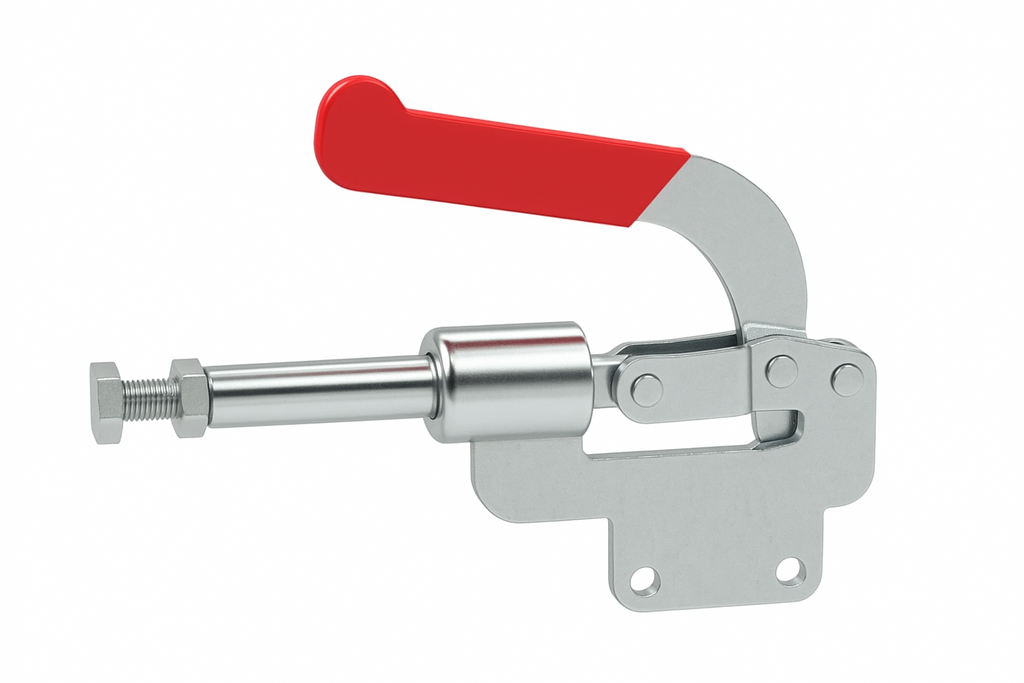

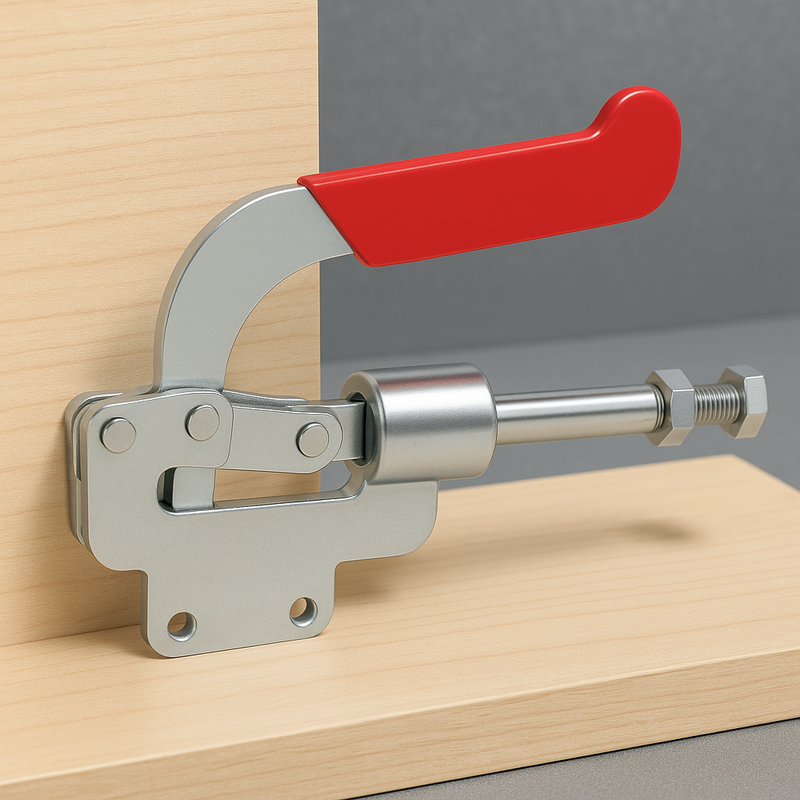

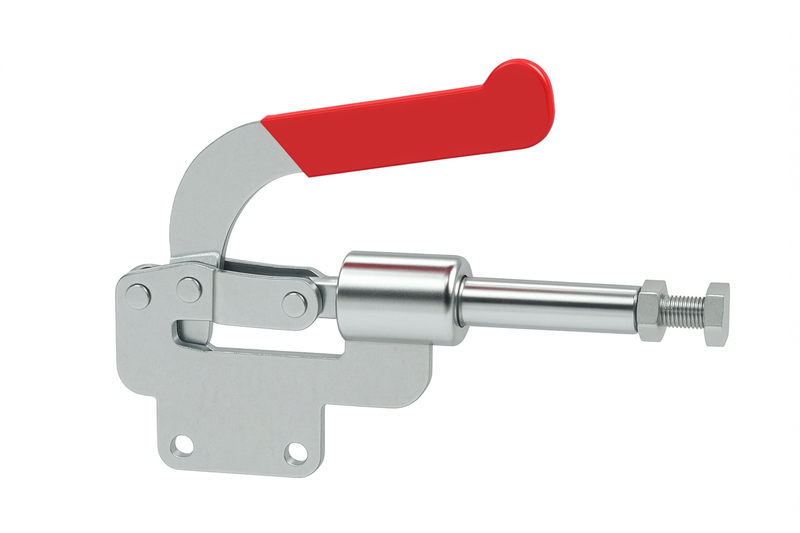

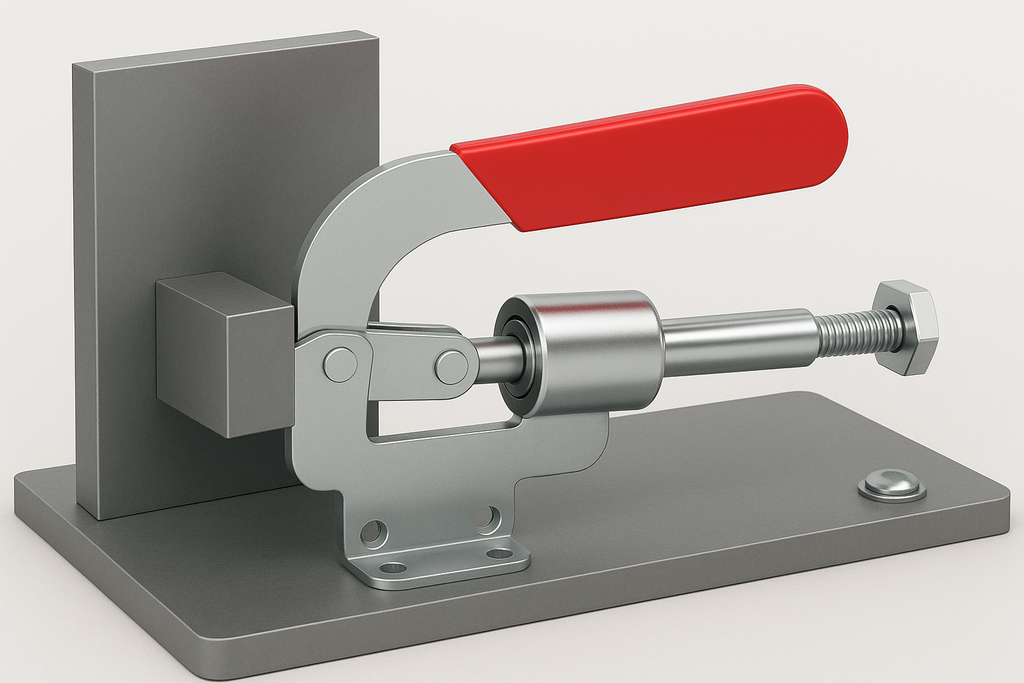

Engineered for precision and strength, the Heavy-Duty Push Pull Toggle Clamp with flange mounting is designed to deliver reliable clamping in demanding industrial applications. Built from mild steel with zinc plating, it resists corrosion and wear, ensuring long-term durability even in rugged environments.
This clamp features a push-pull action mechanism for fast, secure locking and release, ideal for jigs, fixtures, testing, welding, and assembly lines. The ergonomic handle is covered with oil-resistant red vinyl to provide a secure and comfortable grip, enhancing operator safety and efficiency.
Specifications
-
Material: Mild Steel – Zinc Plated
-
Handle Grip: Oil-resistant red vinyl
-
Unit Type: Metric
-
Weight: 0.737 kg
-
Holding Capacity: 360 kg

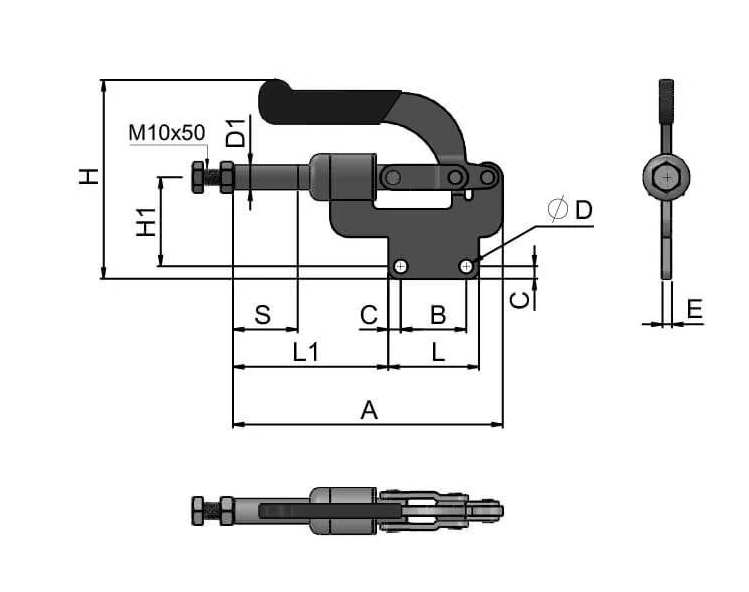

Dimensional Chart (mm)
| Parameter | Value |
|---|---|
| A | 171 |
| B | 41.3 |
| C | 7.9 |
| D | 8.7 |
| D1 | 15.5 |
| E | 6 |
| H | 127 |
| H1 | 56.1 |
| L | 57.5 |
| L1 | 98 |
| S | 40.9 |
Applications
-

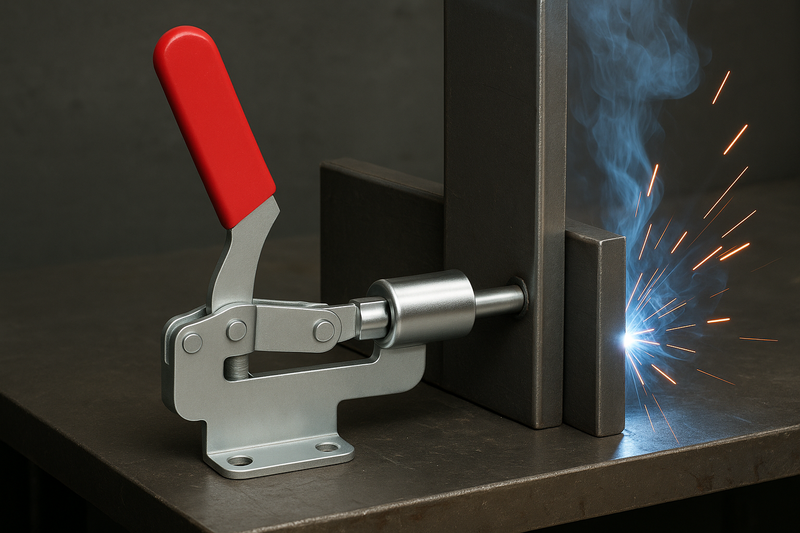

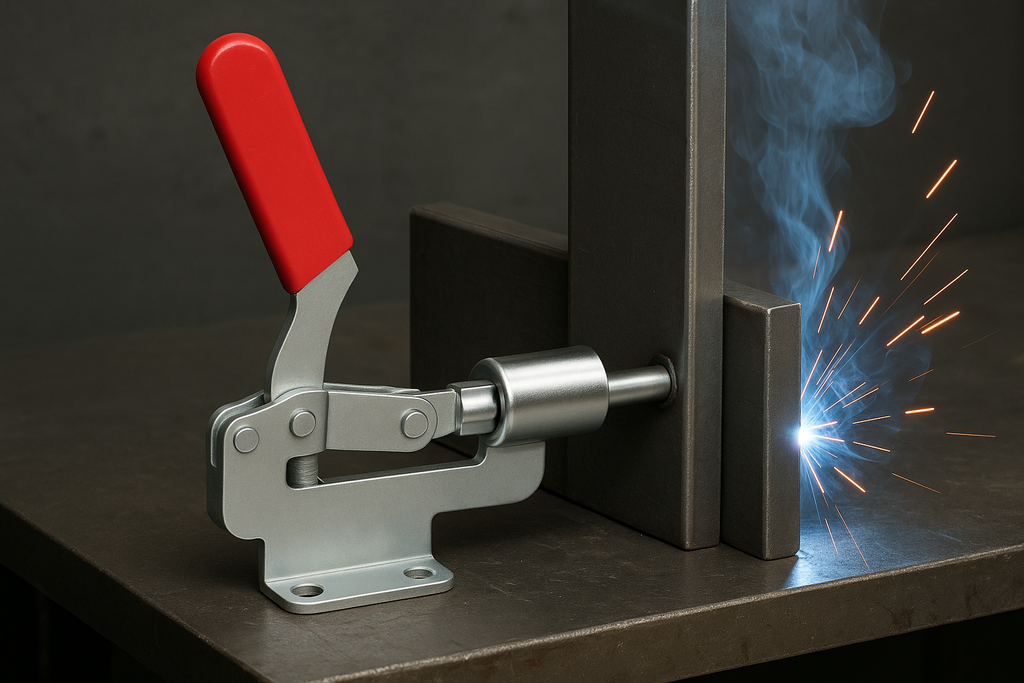

Welding Fixtures
-
Inspection Jigs
-
Assembly Lines
-
Woodworking & Metalworking
-
Mold Handling and Tool Clamping
With its high holding force and robust design, this toggle clamp is a trusted solution where stability and quick setup are critical. Choose this heavy-duty clamp to streamline your workflow with confidence.
