Description

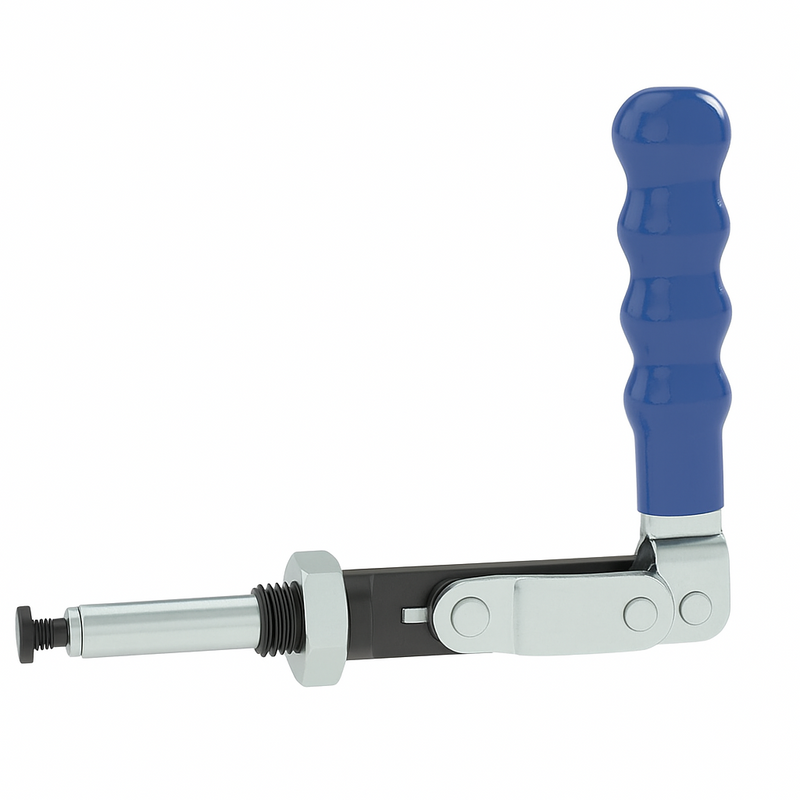

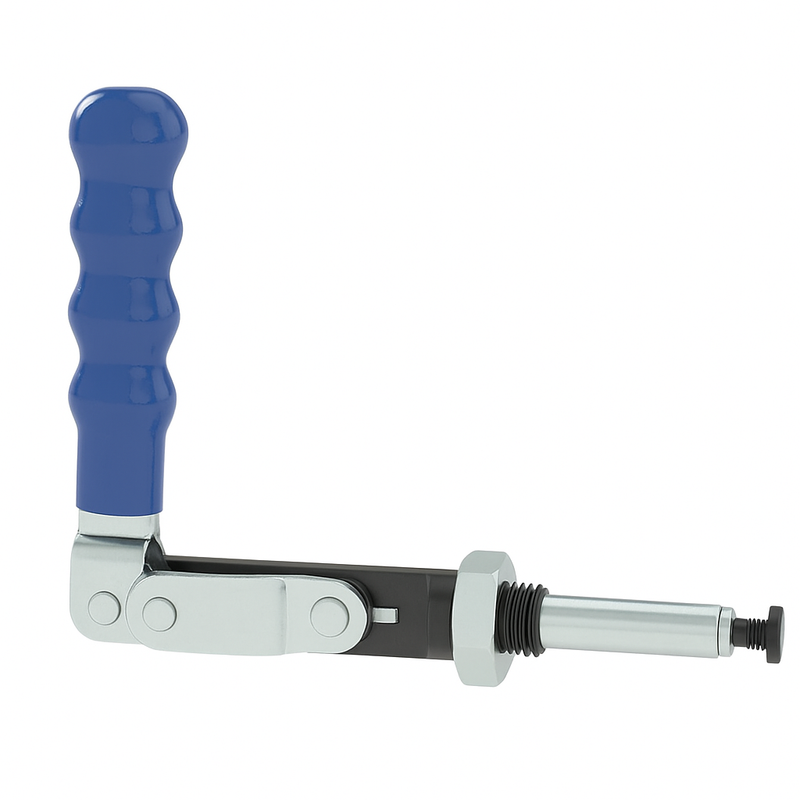

The Heavy Duty Push-Pull Toggle Clamp is an essential component in industrial and manufacturing setups requiring secure clamping and consistent holding force. Designed for durability and adaptability, this clamp is ideal for a wide range of applications.
Material & Construction
-
Body & Piston: Constructed from chemically blackened steel, offering robust corrosion resistance and a sleek finish.
-
Link & Handle: Made of zinc-plated steel for enhanced durability and mechanical strength.
-
Supplied Accessories: Each clamp comes with a set screw and nut for immediate use and easy installation.
This clamp is engineered for hole mounting, allowing it to be screwed directly into fixtures for a secure and stable hold during operation.
Applications
Perfect for:
-
Workholding in machining and welding processes
-
Assembly fixtures
-
Mould clamping
-
Repetitive clamping setups in manufacturing environments
Its heavy-duty construction ensures reliability in both static and dynamic clamping scenarios.

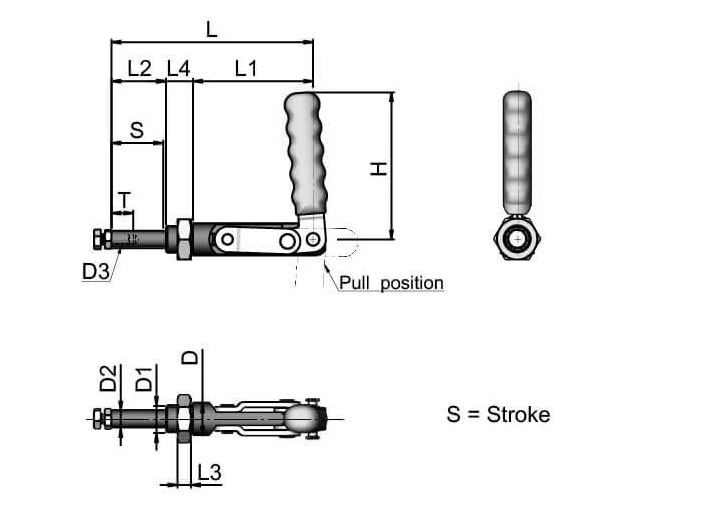

Size Chart & Parameters
| Parameter | Size 1 | Size 2 | Size 3 |
|---|---|---|---|
| Weight (kg) | 0.25 | 0.40 | 1.00 |
| D (mm) | 19 | 24 | 30 |
| D1 | M16x1.5 | M20x1.5 | M24x1.5 |
| D2 (mm) | 10 | 13 | 16 |
| D3 (mm) | M6 | M8 | M10 |
| H (mm) | 95 | 110 | 130 |
| Holding Force (kg) | 354 | 606 | 758 |
| L (mm) | 116 | 148 | 223 |
| L1 (mm) | 67 | 89 | 131 |
| L2 (mm) | 33 | 38 | 70 |
| L3 (mm) | 8 | 10 | 12 |
| L4 (mm) | 16 | 20 | 23 |
| S (mm) | 25 | 38 | 66 |
| T (mm) | 14 | 16 | 18 |
Key Benefits
-
Versatility: Multiple size options meet varying load and fixture requirements.
-
Ease of Use: Direct screw-in design reduces setup time.
-
High Performance: Exceptional holding force to weight ratio enhances operational efficiency.
This Heavy Duty Push-Pull Toggle Clamp delivers robust, repeatable performance across industrial clamping applications. Its quality construction and practical design make it a go-to solution for engineers and machinists seeking reliability and strength.
