Price:
£135.59

In stock, ready to ship

In stock, ready to ship

Trusted by Industry Professionals

Rated 4.5 stars Rated 4.5 on Trustpilot
Trustpilot

Our Clients

Description

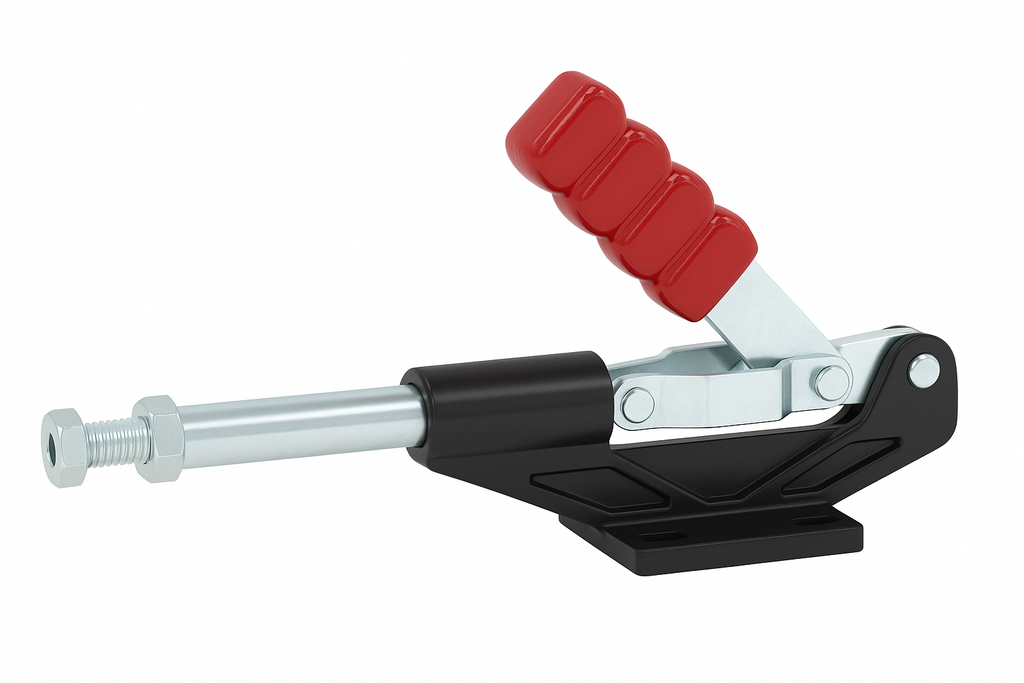

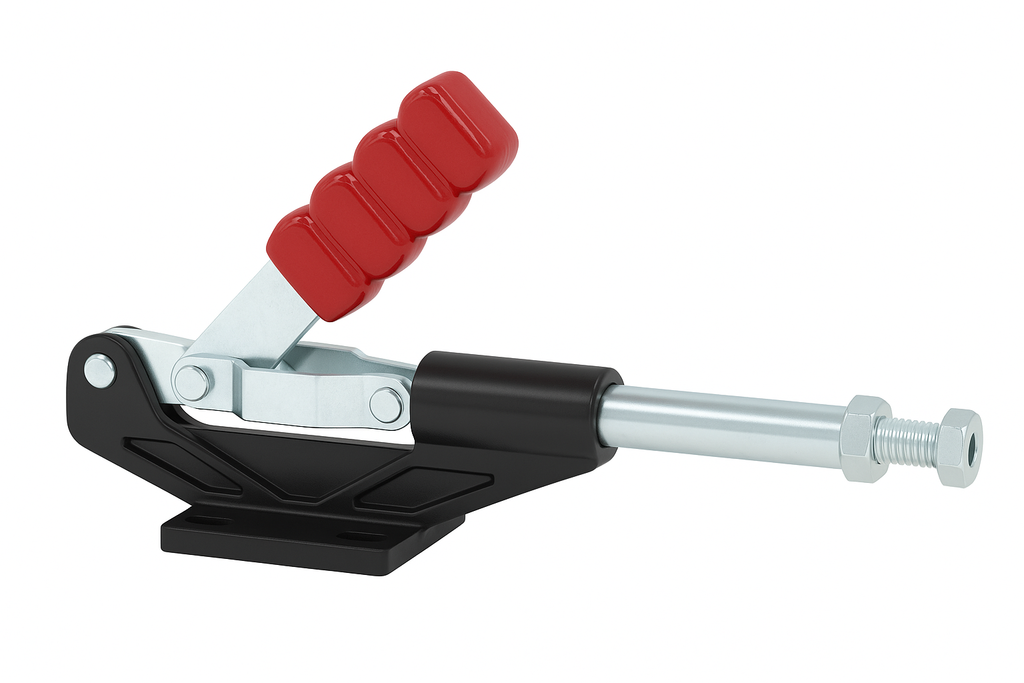

The Heavy Duty Push-Pull Toggle Clamp is engineered for robust industrial performance, combining strength, durability, and ergonomic operation in a compact form. Featuring a black-painted cast iron base and a corrosion-resistant steel mechanism, this clamp is a reliable choice for securing workpieces in demanding environments.

🔩 Material Composition

  • Base: Made from rugged cast iron, finished in black paint for added durability.

  • Clamp Arm & Linkage: Crafted from zinc-plated steel, providing excellent resistance to wear and corrosion.

  • Handle: Fitted with a red oil-resistant vinyl grip, ergonomically designed for comfort and control in repetitive operations.

⚙️ Design Features

  • Push-Pull Action: Enables linear motion in both directions with positive locking.

  • Full Stroke Requirement: To achieve maximum stroke and locking strength, the handle must open 180°.

  • Metric Unit System: All sizing and measurements are based on the metric standard for international compatibility.

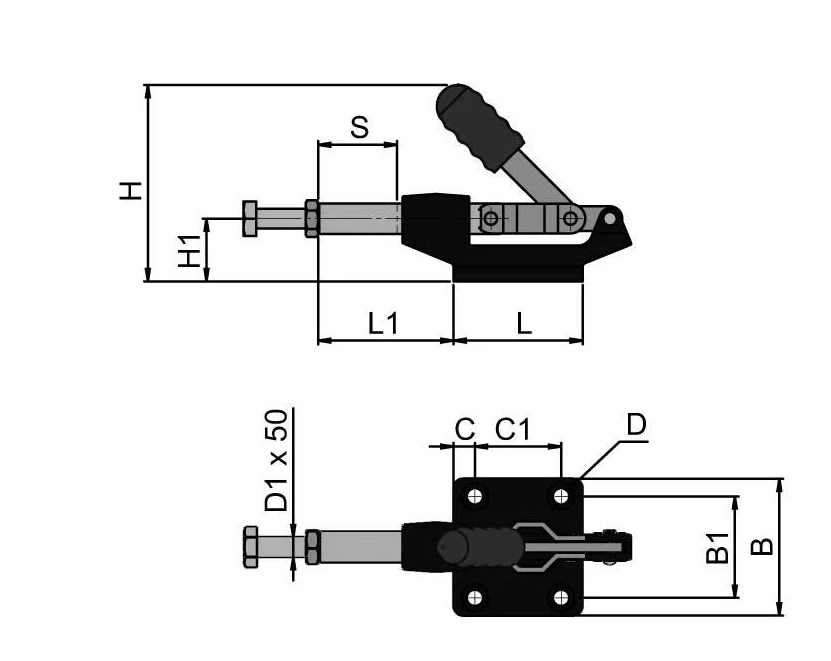

📐 Size & Technical Parameters

Weight (kg) B B1 C C1 D D1 H H1 Capacity (kg) L L1 S
1.48 71.4 50.8 11.2 50.8 8.5 M12 138 44.4 680 73.2 119 62
0.36 56 41.1 8.7 35 6.7 M8 79 25.4 225 52.4 54.8 32
0.01 57 41.1 8.8 41.1 8.3 M10 91 31.8 386 58 76 42

🛠️ Typical Applications

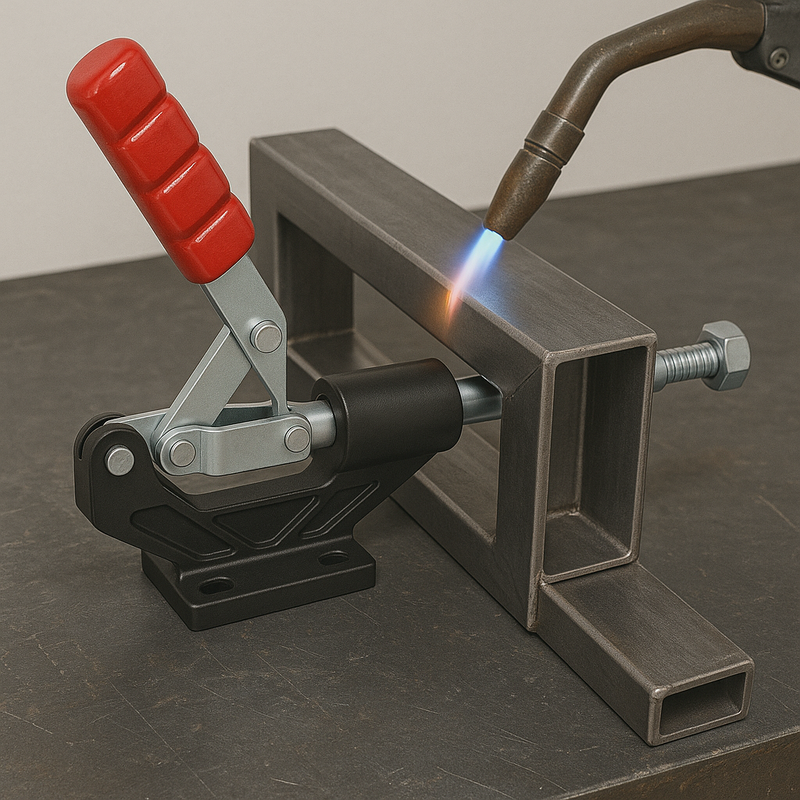

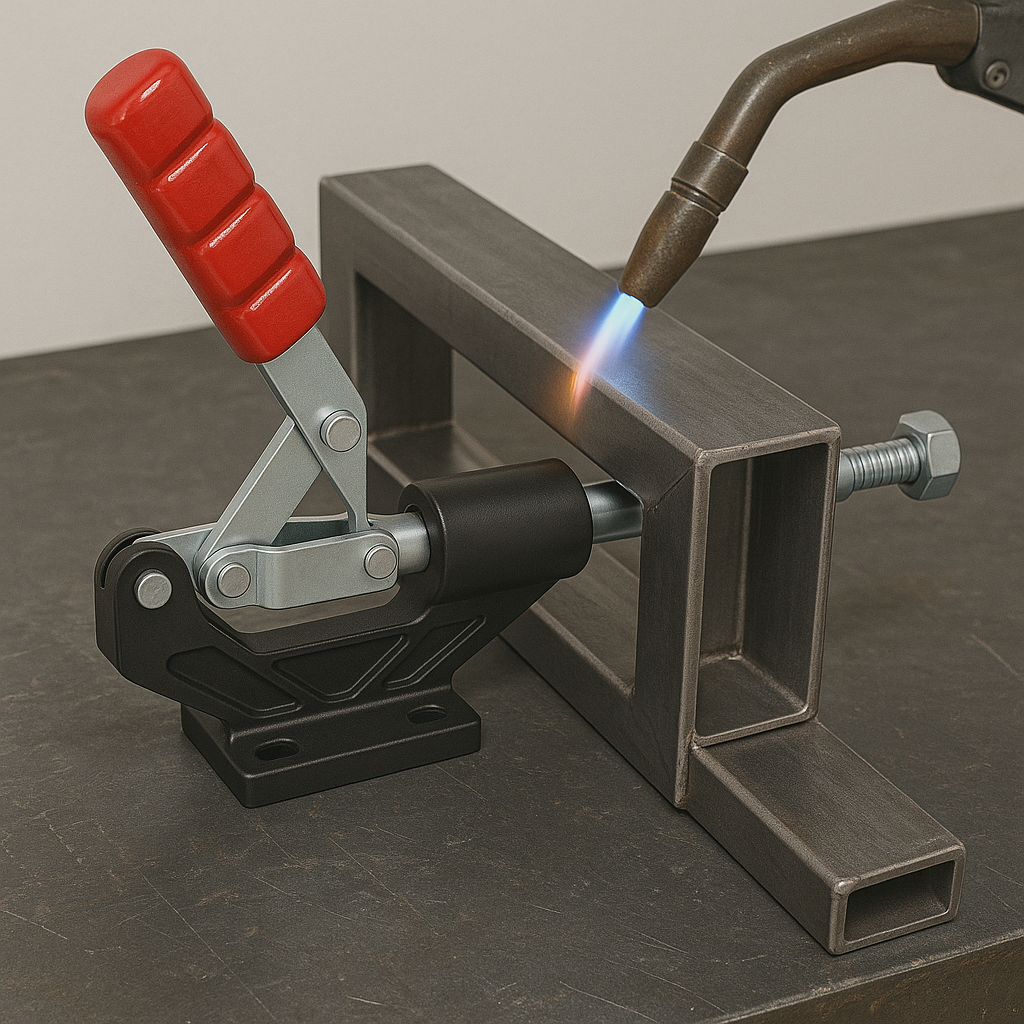

  • Welding Fixtures: Hold steel components rigidly during fabrication.

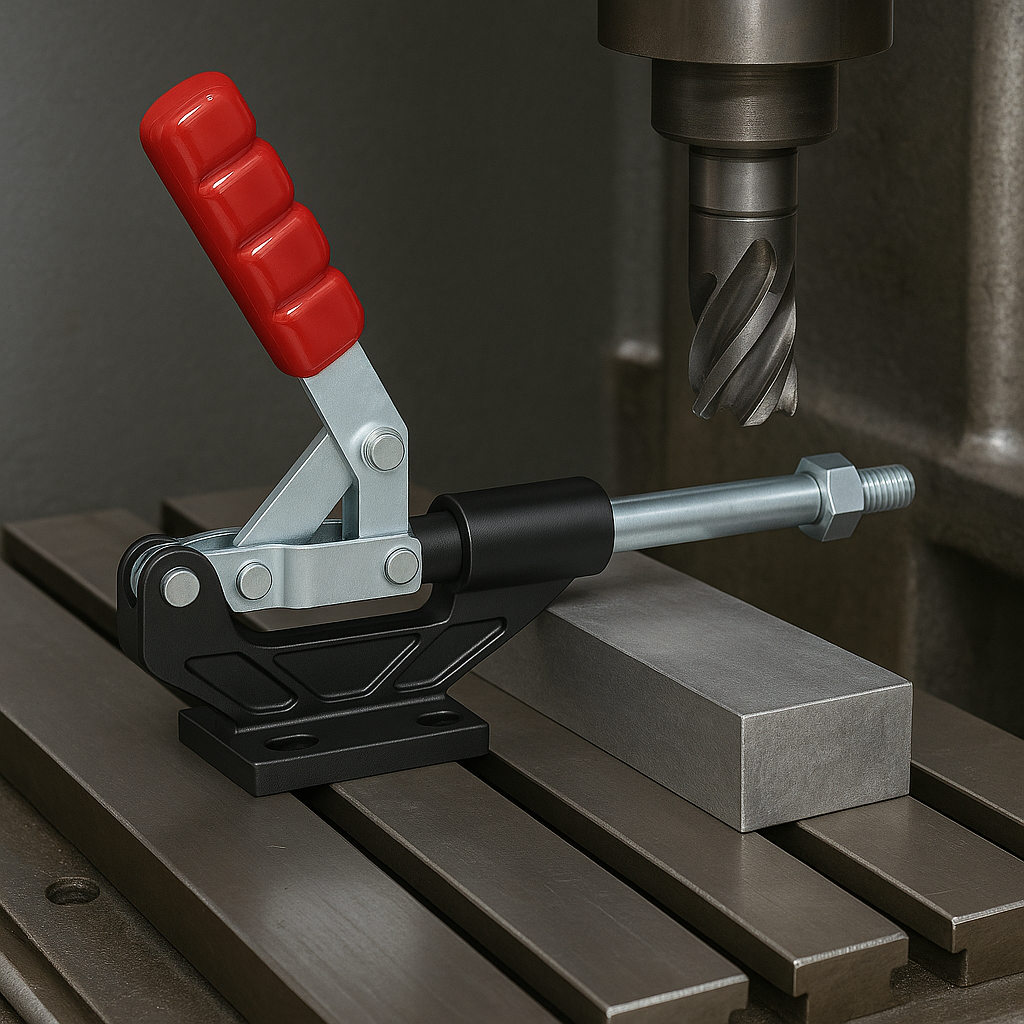

  • Machining Jigs: Secure parts in CNC or milling operations.

  • Assembly Fixtures: Maintain alignment in high-speed production lines.

  • Packaging and Molding: Clamp frames and molds during cutting, gluing, or thermoforming.

Whether in an industrial, mechanical, or fabrication setting, this push-pull toggle clamp delivers secure holding power, ease of use, and rugged reliability where precision matters most. Let me know if you'd like a printable datasheet version or catalog layout.
