Description

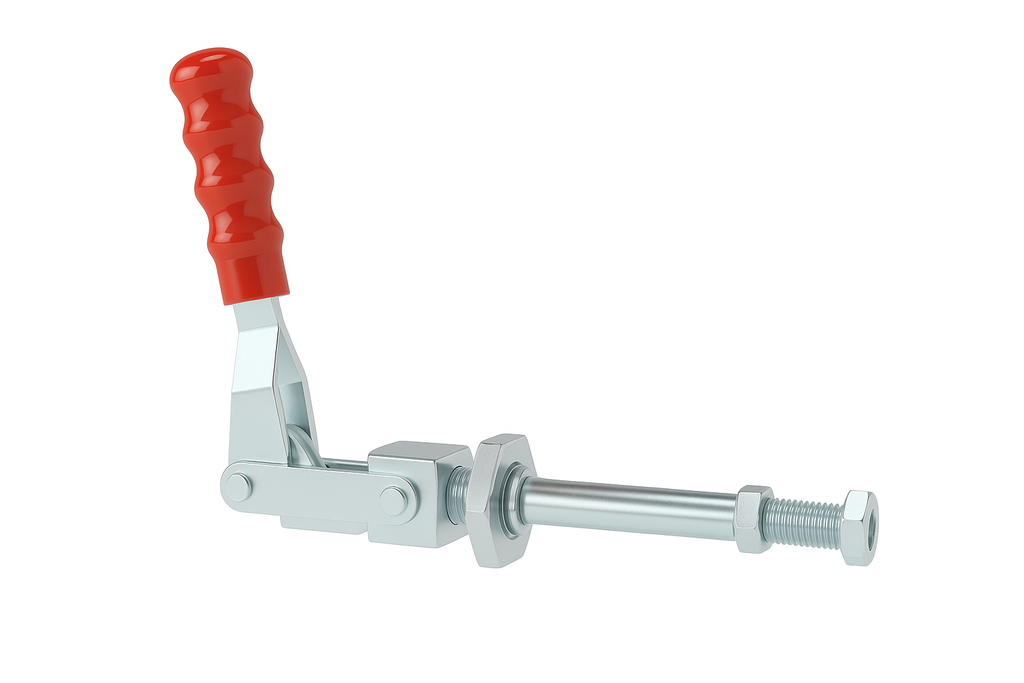

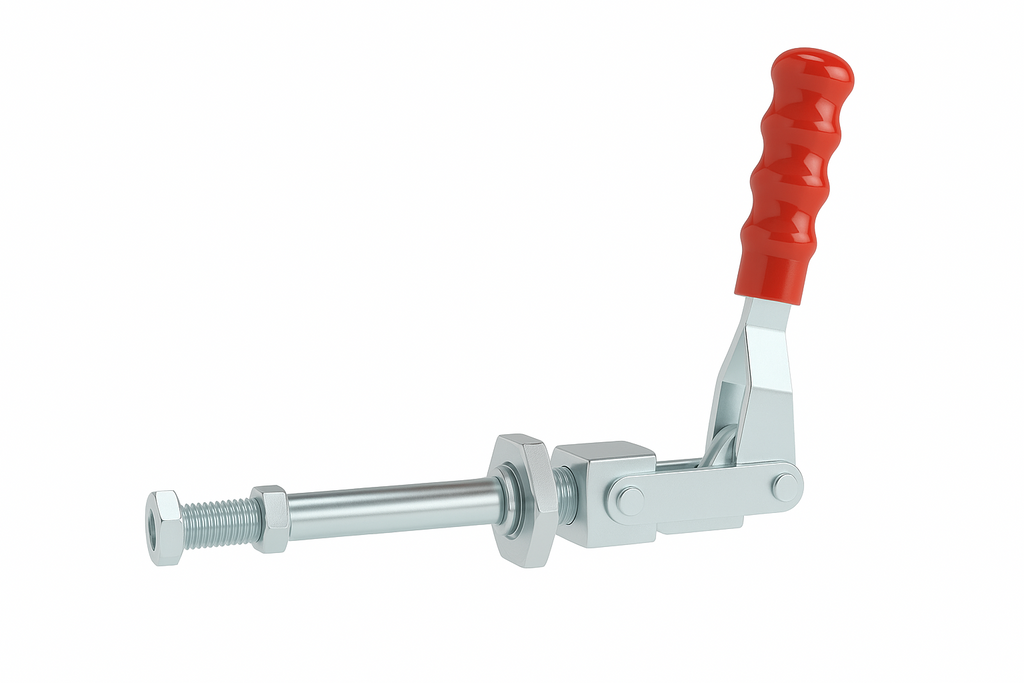

The Push-Pull Toggle Clamp – Hole Mounting is a robust and efficient clamping solution widely used in welding applications. Designed to securely hold components in place during fabrication, these clamps offer a high holding force, repeatable accuracy, and durable performance even under harsh shop-floor conditions.
⚙️ Material Construction
-
Body: Manufactured from mild steel and finished with zinc plating, the clamp resists corrosion, ensuring long-term performance in demanding environments.
-
Hand Grip: Equipped with a red vinyl grip that is oil-resistant, offering a comfortable and non-slip hold during repetitive tasks.
📏 Unit Type: Metric
These clamps are engineered with precision in metric units to align with international industrial standards and compatibility.

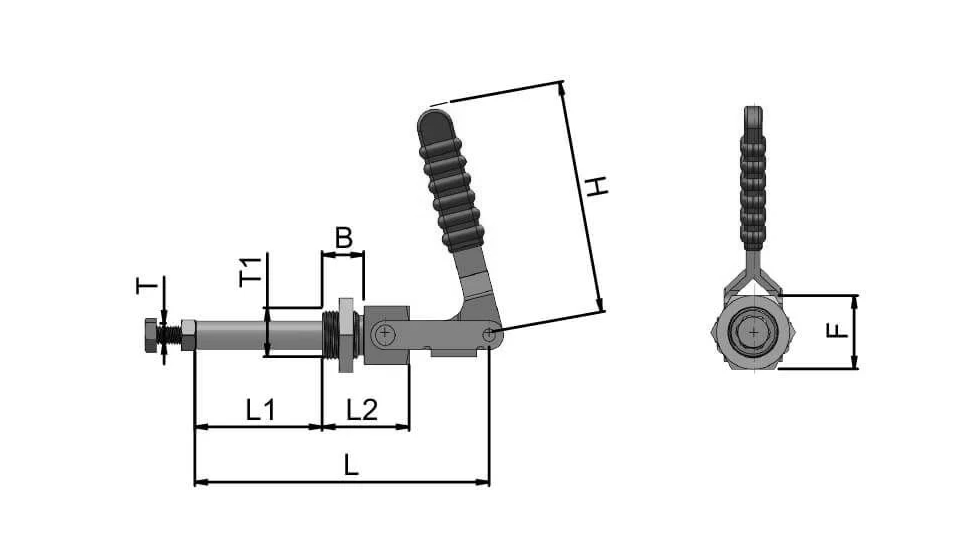

📐 Size Chart
| Weight (kg) | B (mm) | F (mm) | H (mm) | Holding Capacity (kg) | L (mm) | L1 (mm) | L2 (mm) | Stroke (mm) | T | T1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.13 | 12 | 24 | 67 | 91 | 63 | 21 | 21 | 20 | M6 | M16x1.5 |
| 0.29 | 16 | 30 | 90 | 136 | 104.3 | 39.7 | 33.6 | 39 | M8 | M20x1.5 |
| 0.77 | 22.3 | 41 | 137 | 318 | 162.5 | 70.3 | 48 | 66 | M10 | M27x2.0 |
🛠️ Applications
Push-Pull Toggle Clamps with hole mounting are ideal for:
-

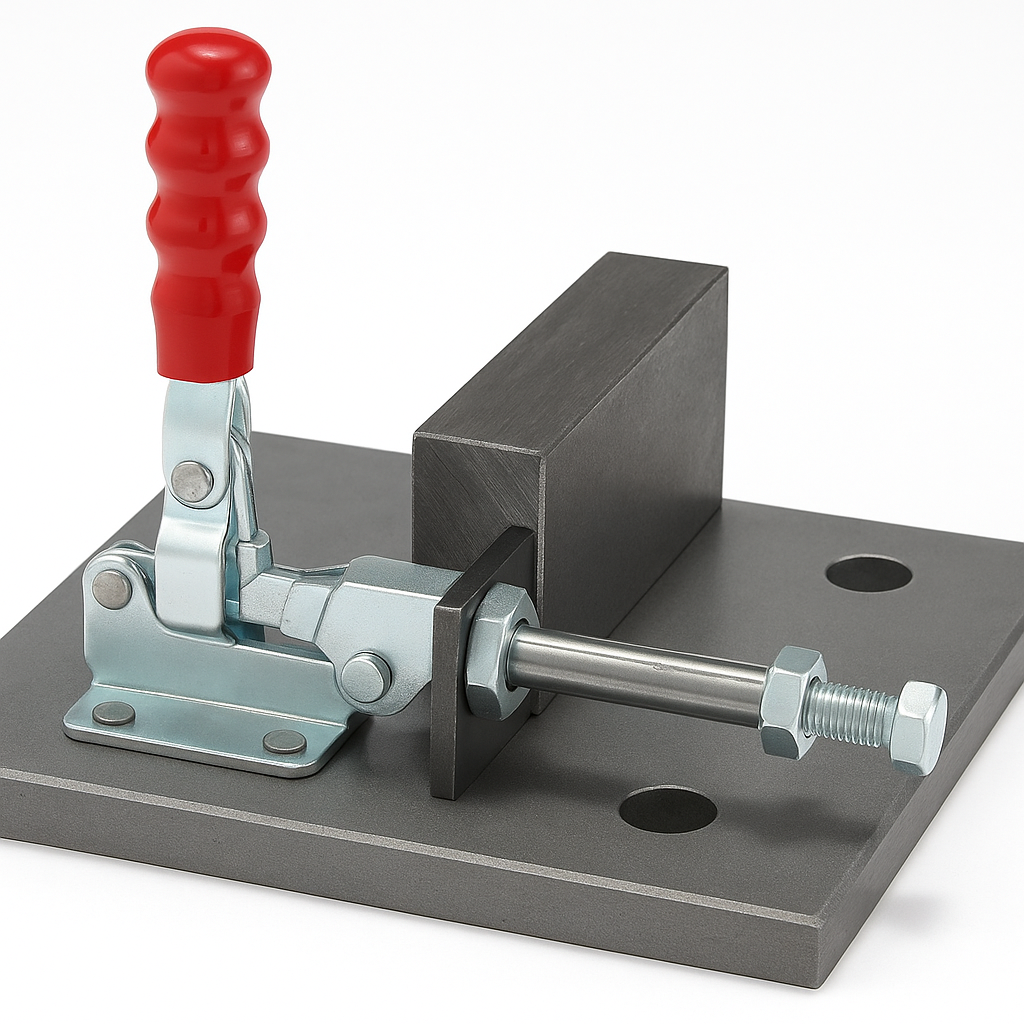

Welding Fixtures – Holding metal parts securely during tack or full welding.
-
Assembly Lines – Assisting in repeatable, high-precision clamping tasks.
-
Machining & Drilling – Fixing workpieces firmly for accurate operations.
-
Fabrication Jigs – Ensuring alignment and stability during component assembly.
These clamps are essential for boosting efficiency, safety, and precision in any welding or fabrication process. Their quick action and stable locking make them a staple in both manual and automated setups.
