Description

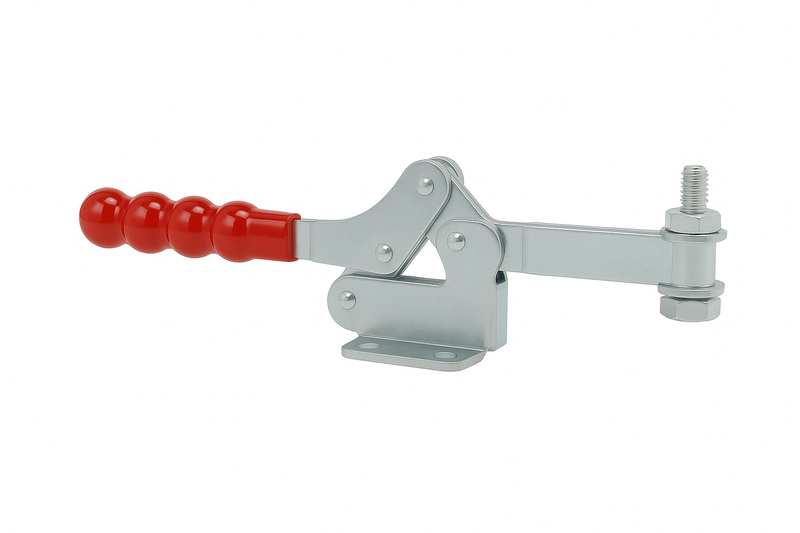

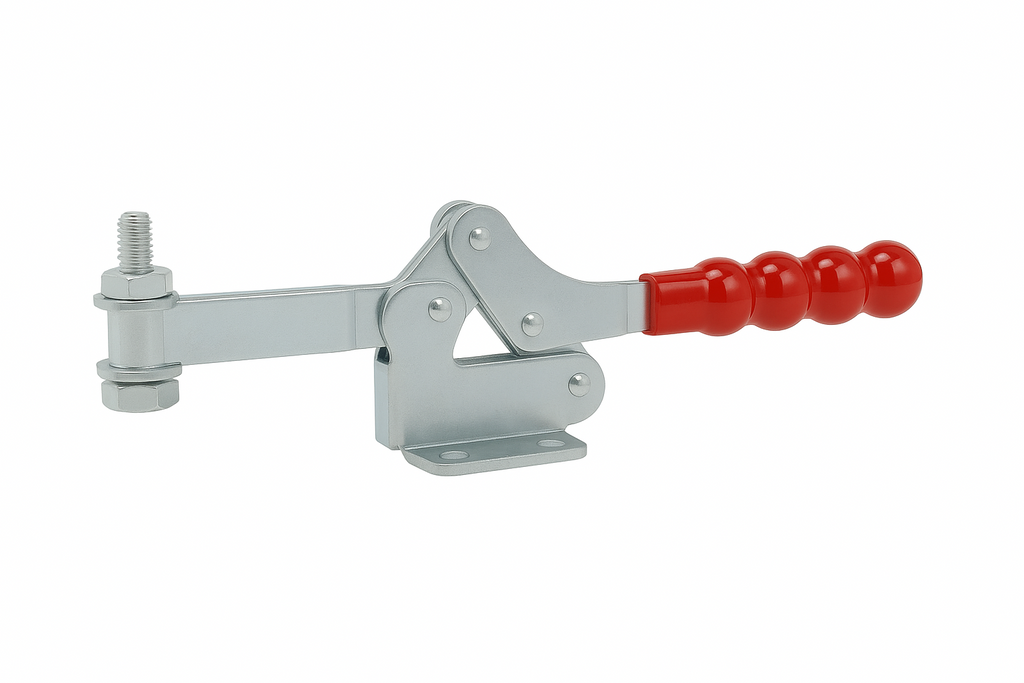

The Horizontal Toggle Clamp with Adjustable Spindle is a high-performance clamping solution designed for demanding industrial environments. Built for reliability, repeatability, and operator comfort, it ensures secure workpiece positioning in a variety of production, fabrication, and assembly setups.
Key Features
-
Material Construction
-
Body: Precision die-stamped steel, zinc-plated to resist corrosion in harsh environments.
-
Hand Grip: Ergonomic oil-resistant red vinyl grip ensures a non-slip, fatigue-reducing hold for repetitive tasks.
-
-
Clamping Mechanism
-
Horizontal handle movement locks the spindle down onto the workpiece with a low profile design—ideal for fixtures where overhead clearance is limited.
-
Quick-action toggle mechanism offers consistent clamping pressure with fast release, improving productivity on assembly lines or welding jigs.
-

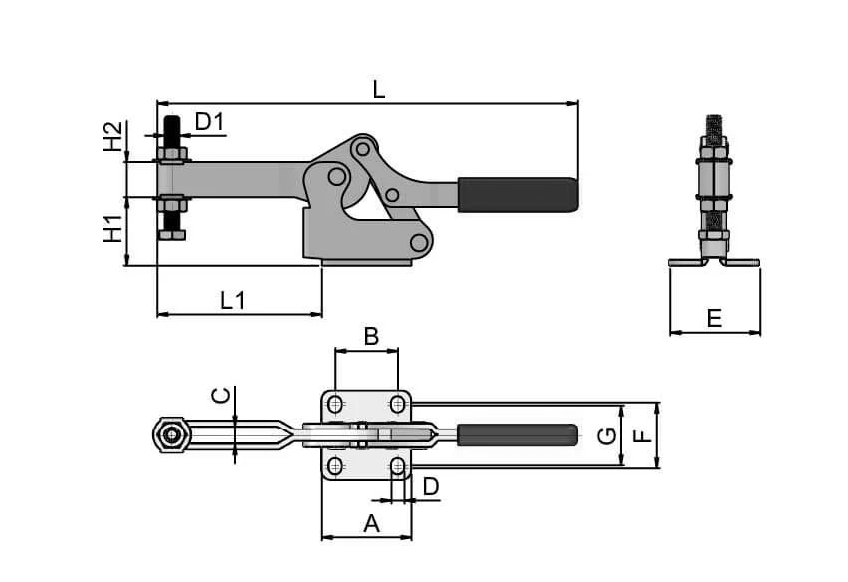

Toggle Clamp Size Chart
| Parameter | Size 1 | Size 2 | Size 3 | Size 4 | Size 5 |
|---|---|---|---|---|---|
| Weight (kg) | 0.09 | 0.22 | 0.42 | 0.86 | 1.42 |
| A (Arm Opens) | 25 | 38 | 42 | 59 | 66 |
| B (Opening Angle) | 94° | 94° | 94° | 94° | 94° |
| C | 13.2 | 26 | 26 | 41.2 | 41.2 |
| Clamp Opens | 94° | 94° | 94° | 94° | 94° |
| D | 5.2 | 5.5 | 6.6 | 8.7 | 8.7 |
| D1 (Spindle Size) | M5x30 | M6x40 | M8x50 | M10x75 | M12x100 |
| E | 27 | 40 | 47 | 59 | 66 |
| F | 16.8 | 28 | 31 | 42.9 | 41.3 |
| G | – | 22 | 26 | 39 | – |
| H1 | 19 | 25 | 34 | 45 | 59 |
| H2 | 9.5 | 14 | 17.5 | 23 | 26 |
| Holding Capacity (kg) | 75 | 150 | 250 | 350 | 450 |
| Force Range (kg) | 0–100 (Light Duty) | 101–300 (Medium) | 101–300 (Medium) | 300–999 (Heavy) | 300–999 (Heavy) |
| L | 109 | 171 | 219 | 274 | 303 |
| L1 | 37 | 61 | 79 | 108 | 128 |
Industrial Applications
The horizontal toggle clamp is widely used across multiple industries:
-

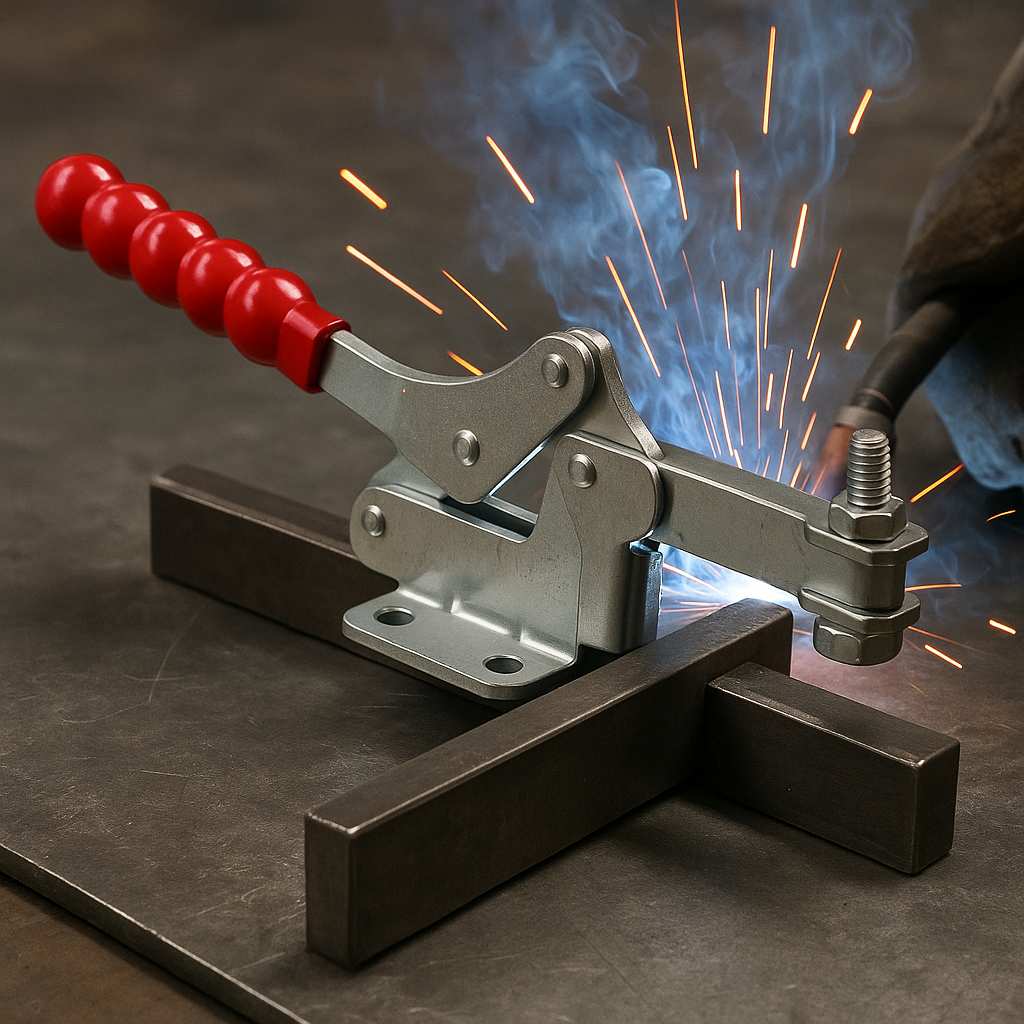

Welding & Fabrication – Secure metal workpieces with consistent downforce for high-quality welds.
-

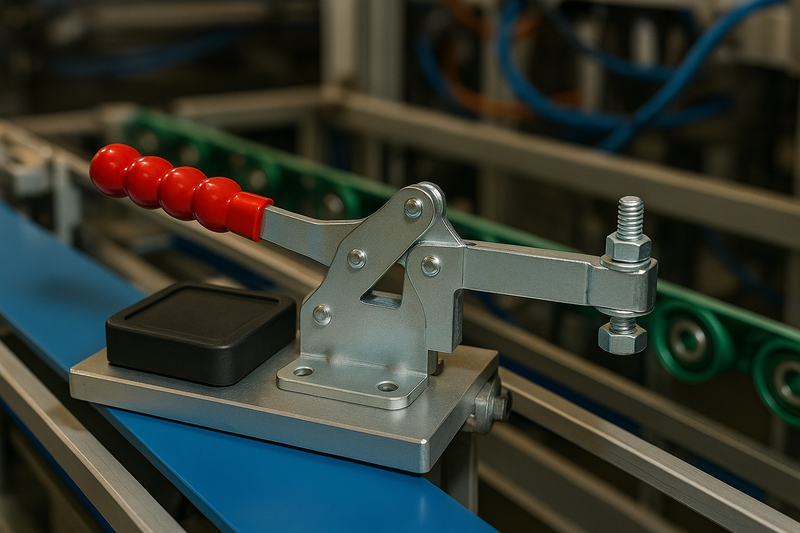

Assembly Lines – Ideal for repetitive part holding in electronics, plastic molding, or appliance assembly.
-
CNC & Machining – Hold jigs and fixtures in place for precision milling and routing operations.
-
Woodworking – Fix panels and parts to templates or guides in cabinetry and furniture manufacturing.
-
Inspection Fixtures – Quickly and reliably clamp parts for dimensional and visual inspection processes.
This robust clamp combines strength, precision, and ease of use, making it a go-to solution for industrial operators seeking high-duty, ergonomic holding tools.
