Description

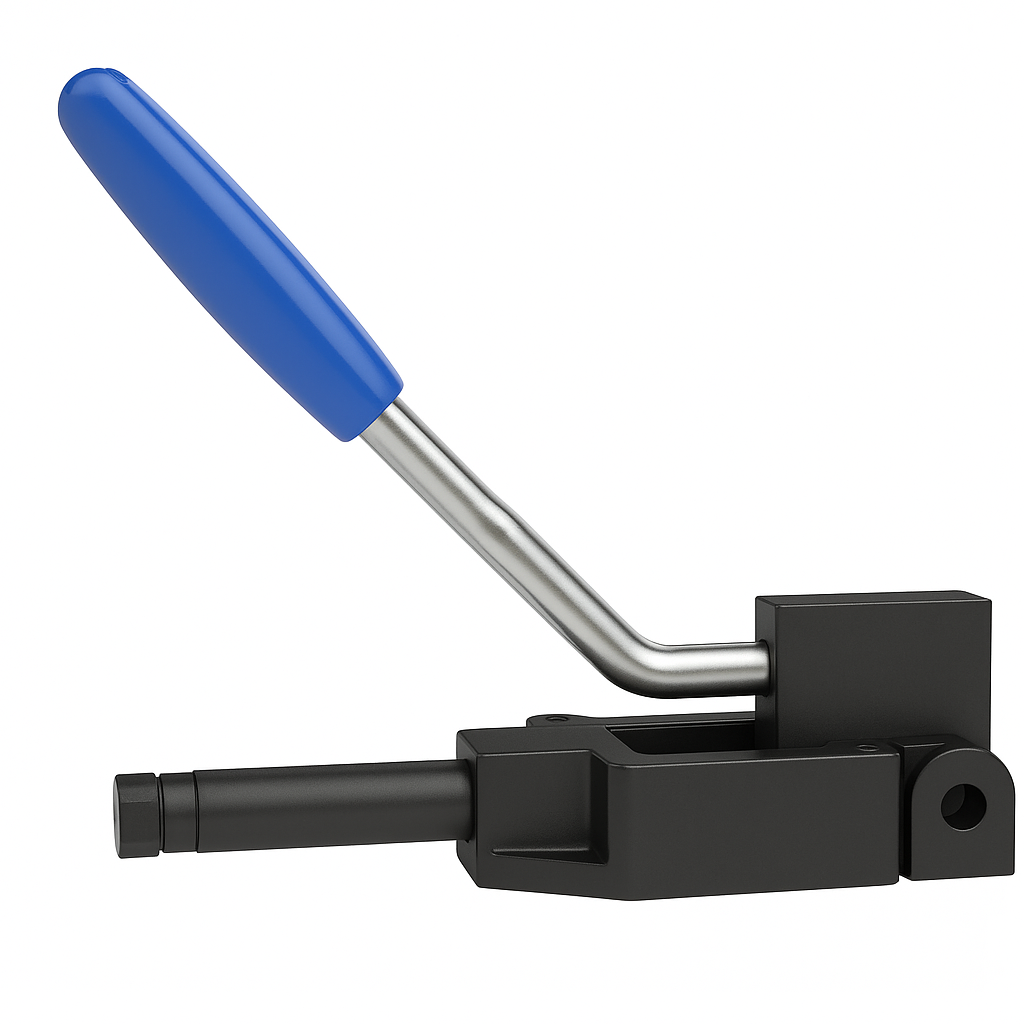

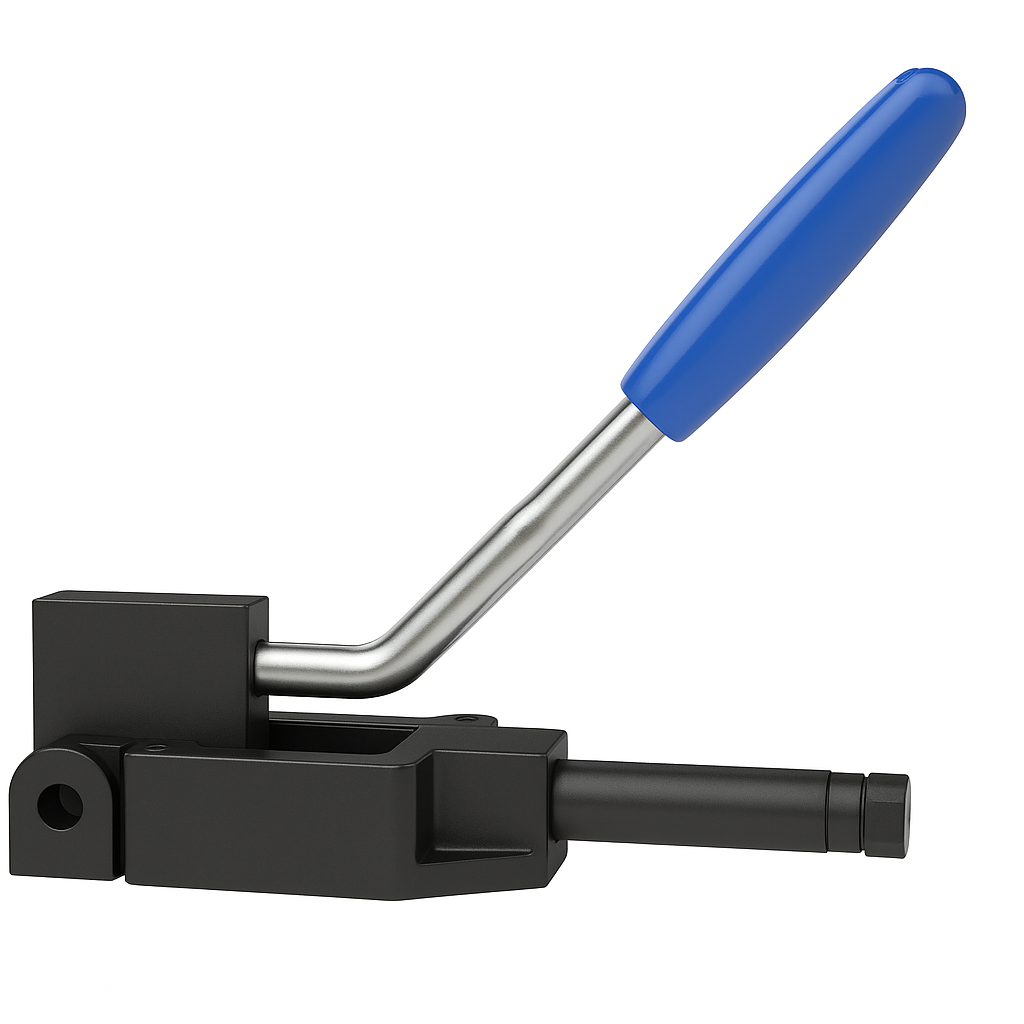

The Heavy Duty Push-Pull Toggle Clamp with Long Handle is engineered for high-performance clamping in industrial and manufacturing environments. Designed for stability, durability, and high holding force, it is a reliable solution for securing workpieces during machining, welding, and automated assembly.

🔧 Material Construction

  • Handle & Piston: Made of high-grade steel, providing exceptional strength and resistance to wear, even in demanding operations.

  • Body: Crafted from malleable iron, known for its durability and vibration absorption, ideal for industrial-grade clamping systems.

📐 Design & Movement

To achieve full stroke, the handle swings through 180°. This requires adequate clearance in the fixture design to accommodate the handle and its mounting block during operation. The ergonomic long handle ensures minimal operator effort with maximum clamping force.

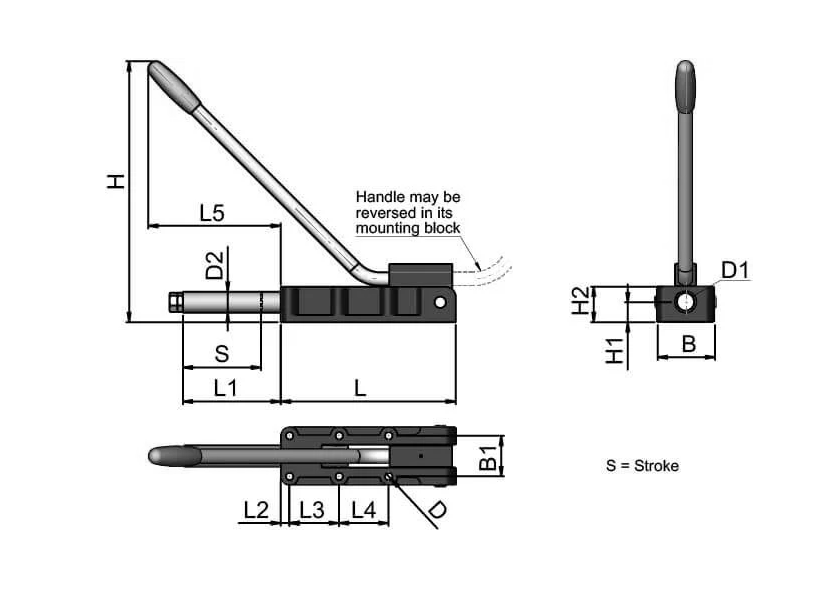

📏 Size Chart Table

Parameter Size 1 Size 2 Size 3 Size 4
Weight (kg) 0.60 1.70 4.20 7.20
B 47 62 80 84
B1 33.3 41 54 57
D 5.5 8.6 10.3 10.3
D1 M8x30 M10x40 M12x60 M16x60
D2 14 20 25 30
H 140 235 285 380
H1 12 18 22 28
H2 22 32 40 50
Holding Force (kg) 600 1200 2500 5000
L 89 133 193 247
L1 38 55 102 138
L2 25 8 12 12
L3 36.5 35 45 70
L4 – 41 45 70
L5 70 100 130 180
S 32 50 75 100

🛠️ Applications

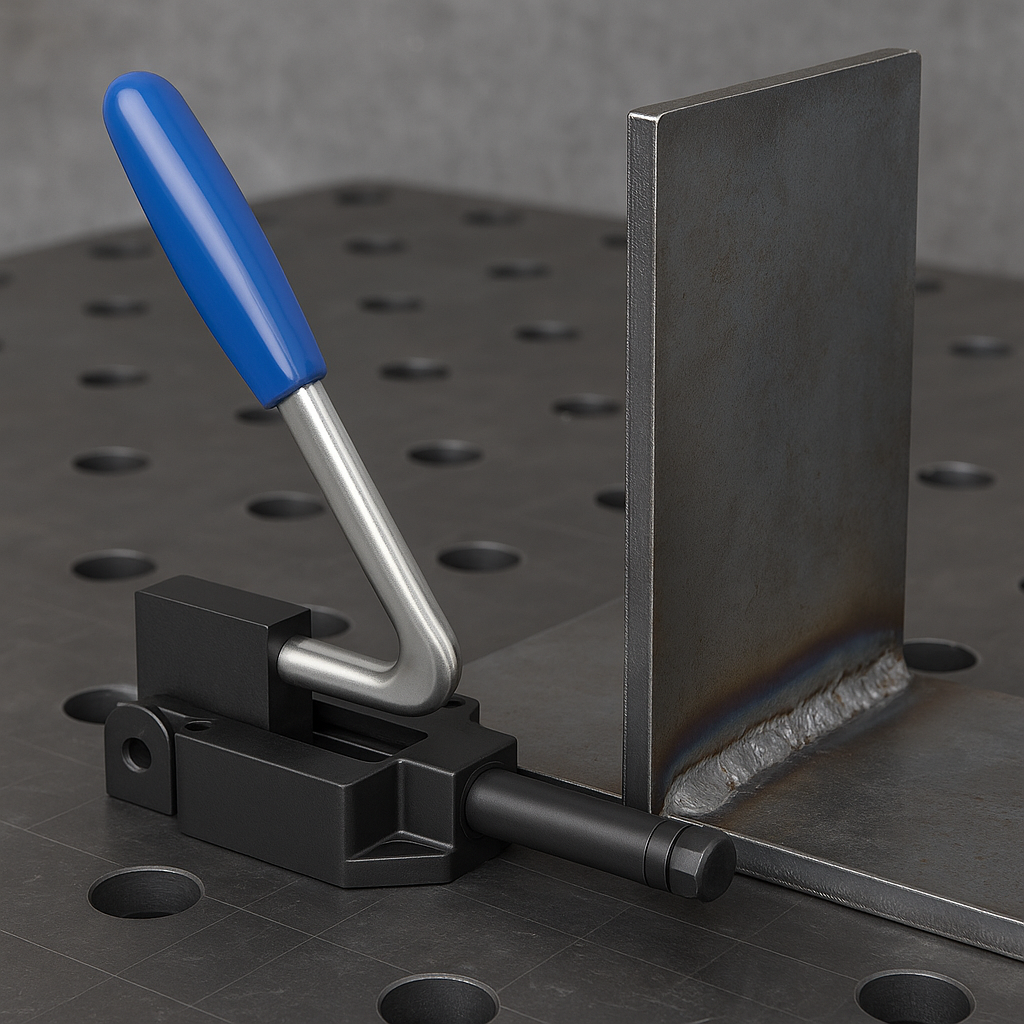

  • Welding Fixtures: Securely holds metal components during manual or robotic welding.

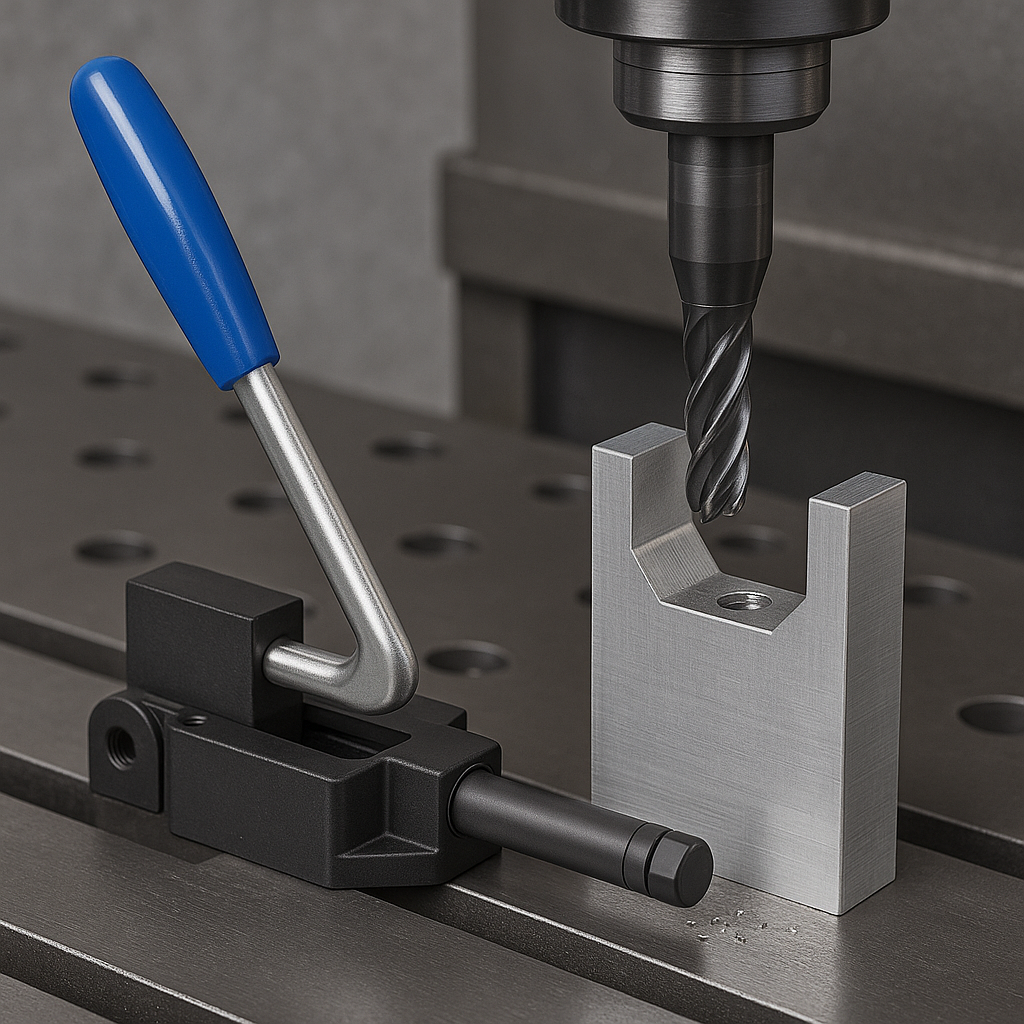

  • CNC Machining & Milling: Provides rigid holding of parts for high-precision tasks.

  • Assembly Jigs: Essential in fast-paced assembly lines for repeatable clamping.

  • Automotive & Aerospace Fixtures: Commonly integrated into robotic arm setups or component alignment systems.

  • Testing Rigs & Inspection: Holds parts securely for quality assurance processes.

This toggle clamp is ideal for professionals who need powerful holding, durability, and repeatable performance in industrial and heavy-duty environments.
