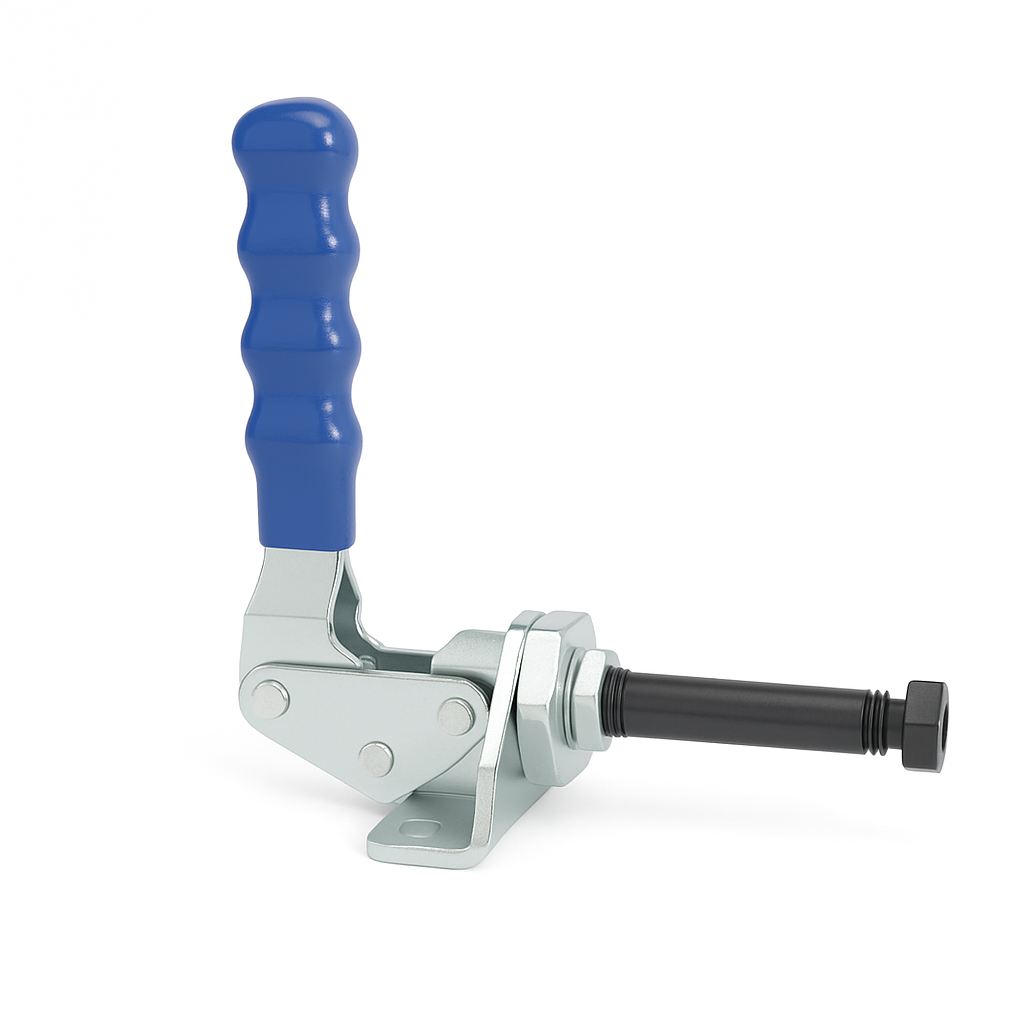

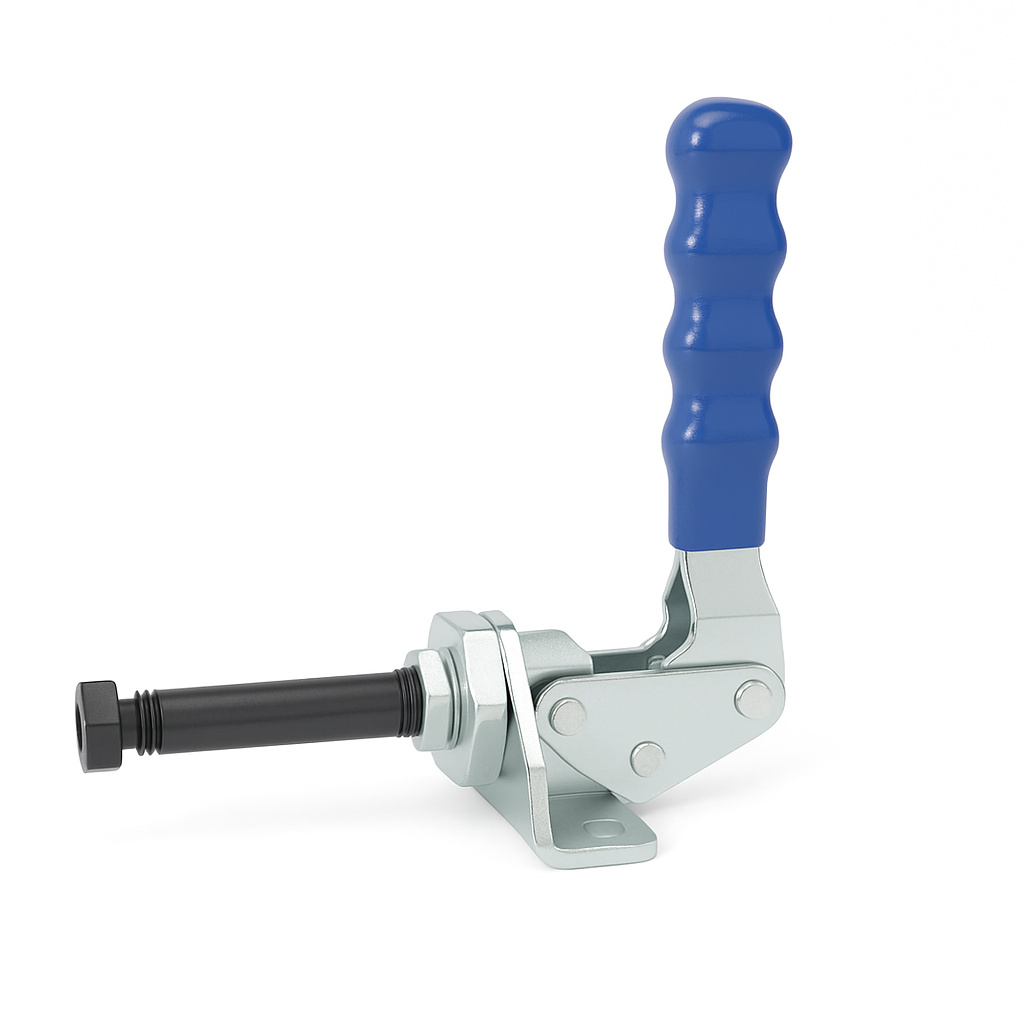

The Push-Pull Toggle Clamp – Medium Duty with Flanged Base is a robust, versatile clamping tool engineered for secure, repeatable holding of workpieces in demanding industrial applications. This clamp is an essential fixture component in welding setups, CNC operations, assembly lines, and other fabrication environments where stability and precision are critical.
Material & Construction
Crafted from high-quality steel, the clamp is zinc-plated and passivated, ensuring excellent corrosion resistance and long-term durability even under continuous industrial use. It comes supplied with a set screw and nut for quick installation and fine adjustment of clamping pressure.
Applications
This medium-duty push-pull clamp is ideal for:
-

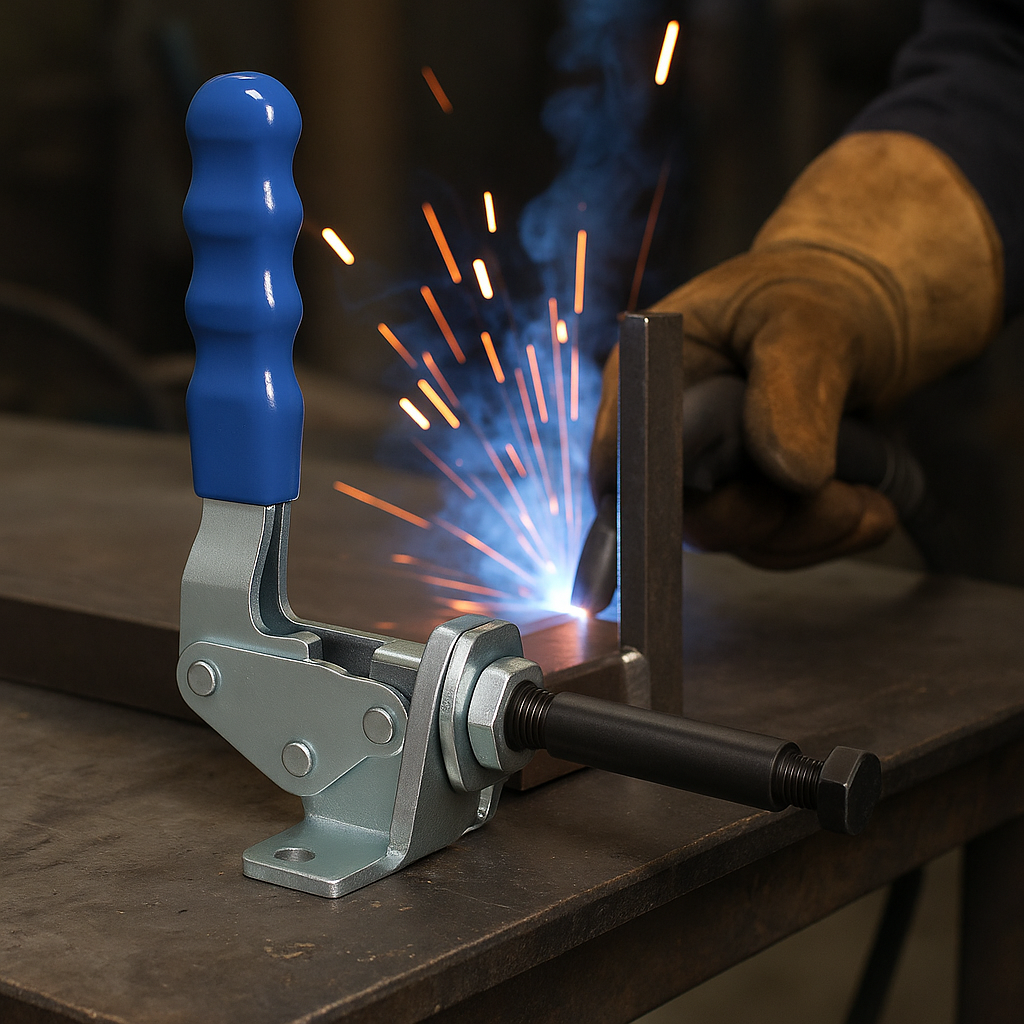

Welding fixtures
-

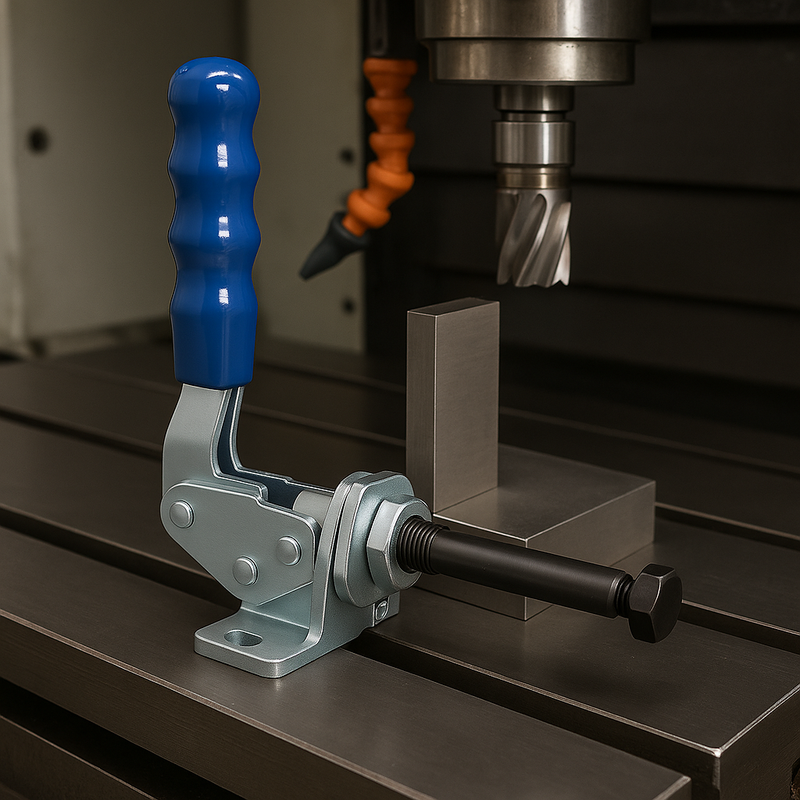

CNC machining setups
-
Inspection jigs
-
Woodworking
-
Assembly and testing stations
The flanged base allows for easy mounting on flat surfaces, ensuring a secure and rigid foundation during clamping operations. Its ergonomic handle enables quick engagement and release with minimal operator effort.
Technical Specifications

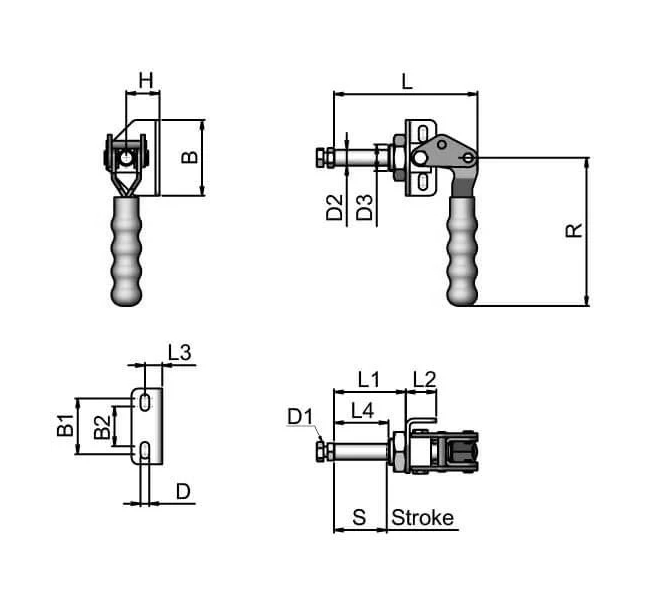

| Parameter | Metric Unit |
|---|---|
| Total Length (L) | 110 mm |
| Handle Length (L1) | 54 mm |
| Plunger Length (L2) | 23 mm |
| Lever Arm (L3) | 13 mm |
| Grip Section (L4) | 41 mm |
| Mounting Hole Ø (D) | 6.5 mm |
| Spindle Thread (D1) | M8 x 25 mm |
| Body Bore (D2) | 12 mm |
| Threaded Bushing (D3) | M20 x 1.5 mm |
| Base Width (B) | 57 mm |
| Mounting Slot (B1) | 42 mm |
| Flange Width (B2) | 30 mm |
| Plunger Stroke (S) | 40 mm |
| Overall Reach (R) | 112 mm |
| Clamp Height (H) | 25 mm |
| Holding Force | 200 kg |
| Weight | 0.35 kg |
Conclusion
This medium-duty Push-Pull Toggle Clamp offers a compact, ergonomic design with reliable holding strength up to 200 kg, making it suitable for a wide range of medium-load applications. Its precision components, corrosion-resistant finish, and easy setup make it a go-to choice for manufacturers and fabricators seeking efficient and repeatable clamping performance.
