Description

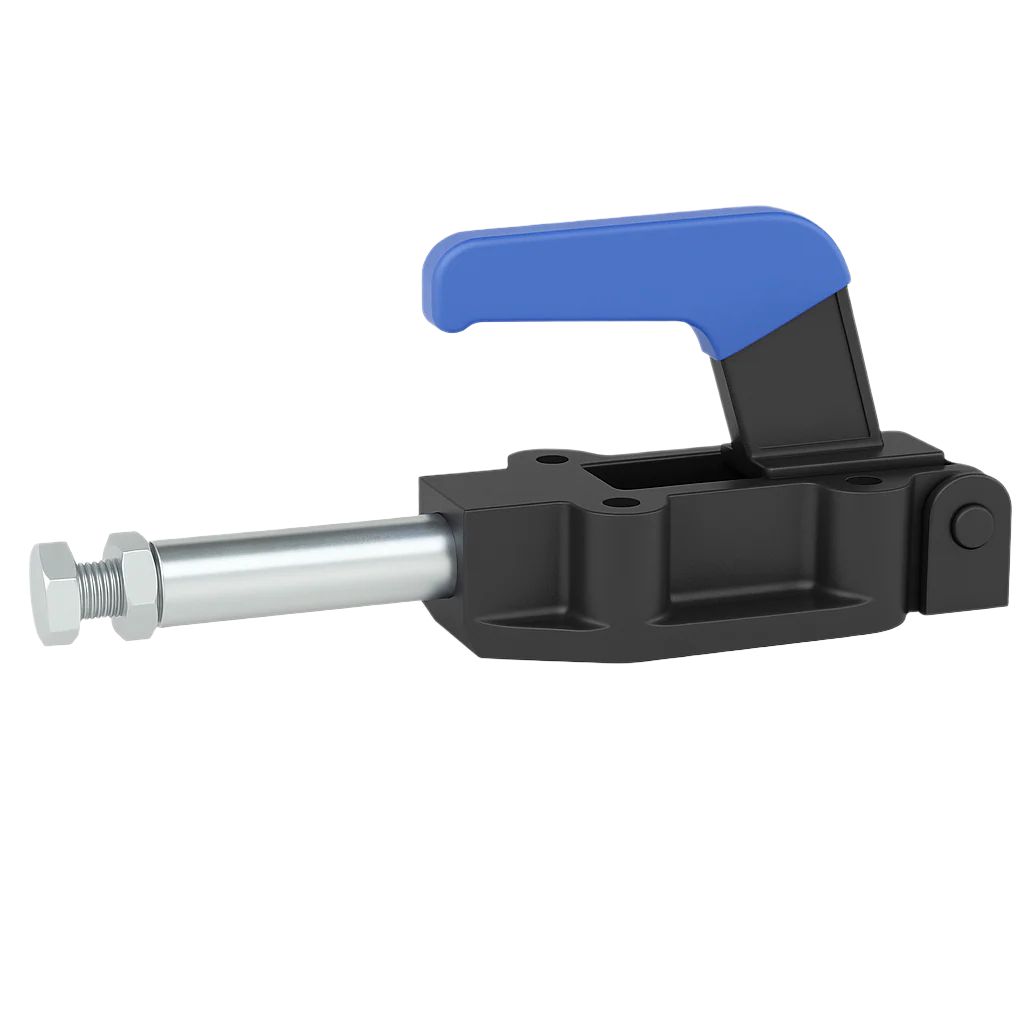

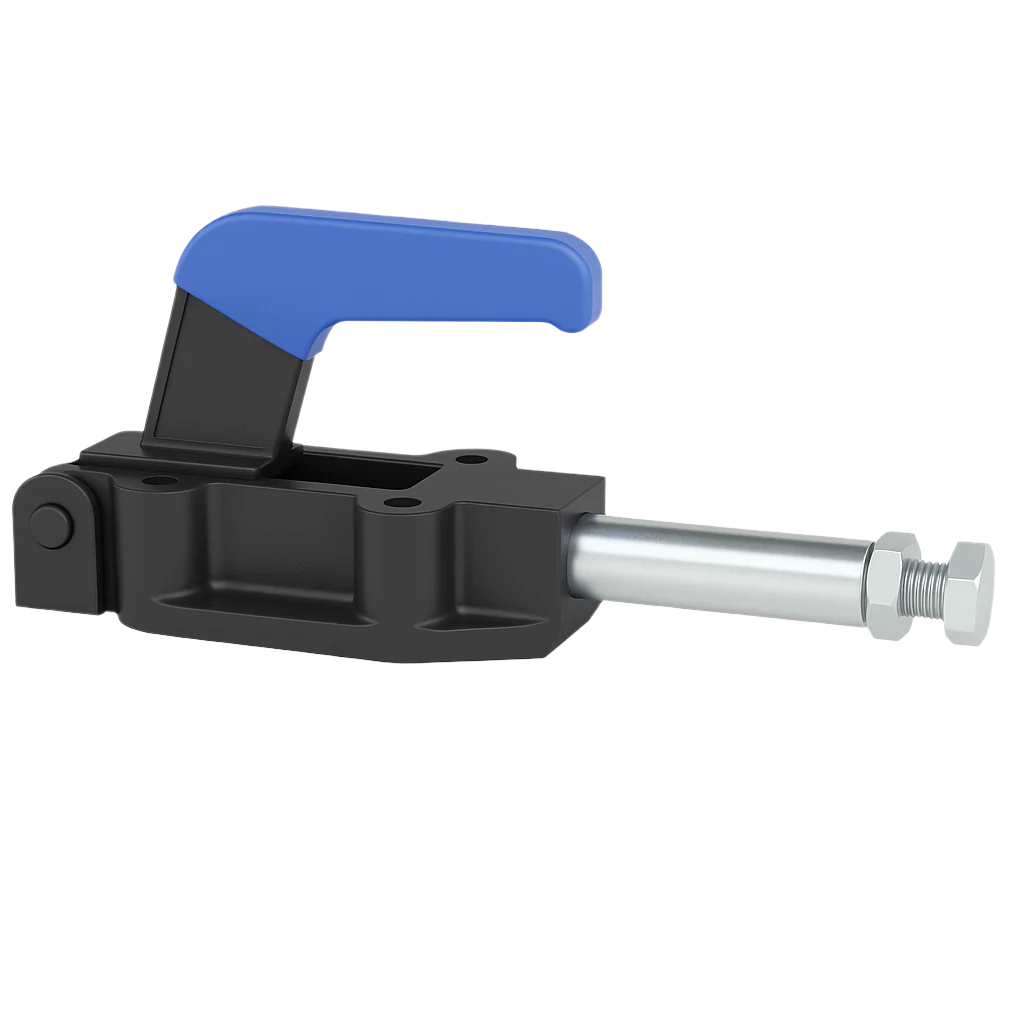

The Heavy Duty Push Pull Toggle Clamp with a cast base is engineered for superior stability, high clamping force, and durability under extreme industrial applications. Ideal for fixturing, welding, and machining setups, this clamp provides reliable holding power and ease of use in demanding environments.

Key Material Specifications

  • Piston: Hardened Steel – ensures durability and wear resistance.

  • Body & Handle: Malleable Iron – offers excellent strength while resisting deformation under load.

Applications

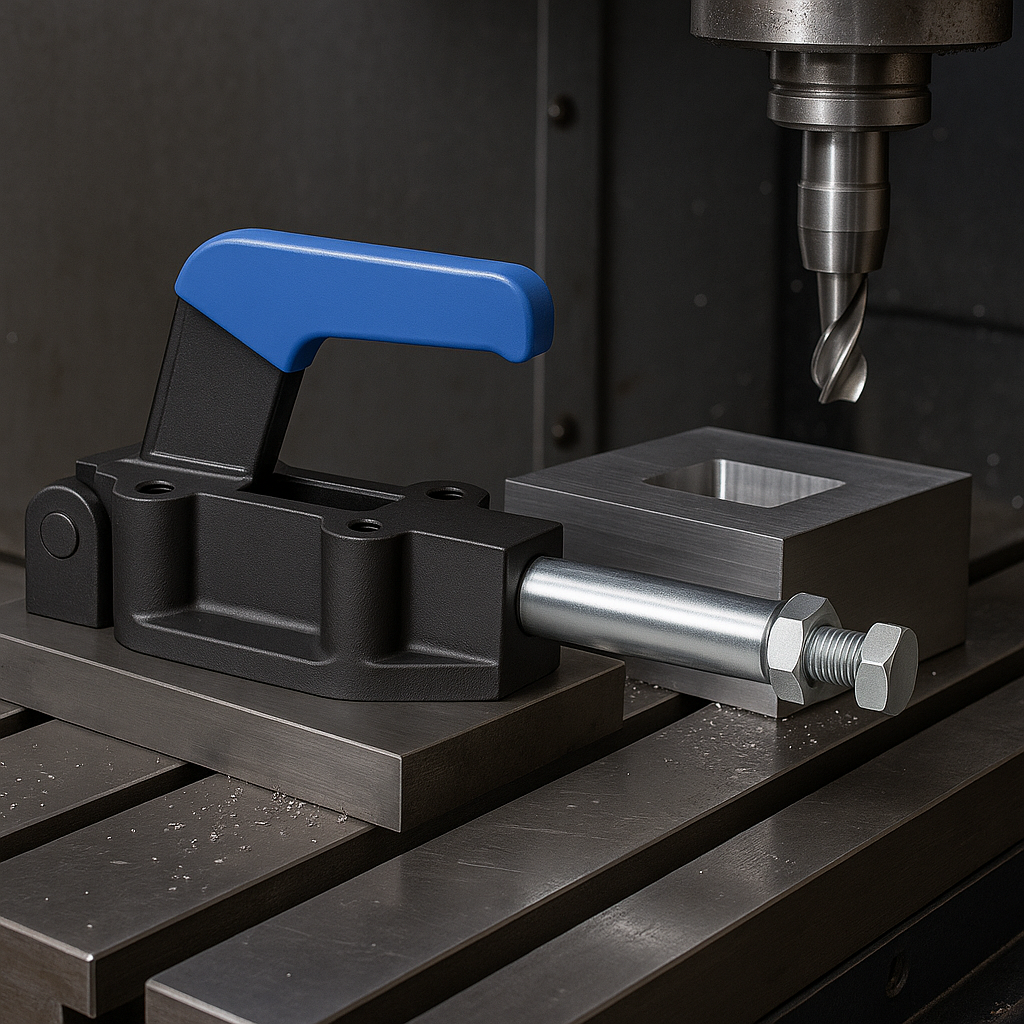

This clamp is ideal for:

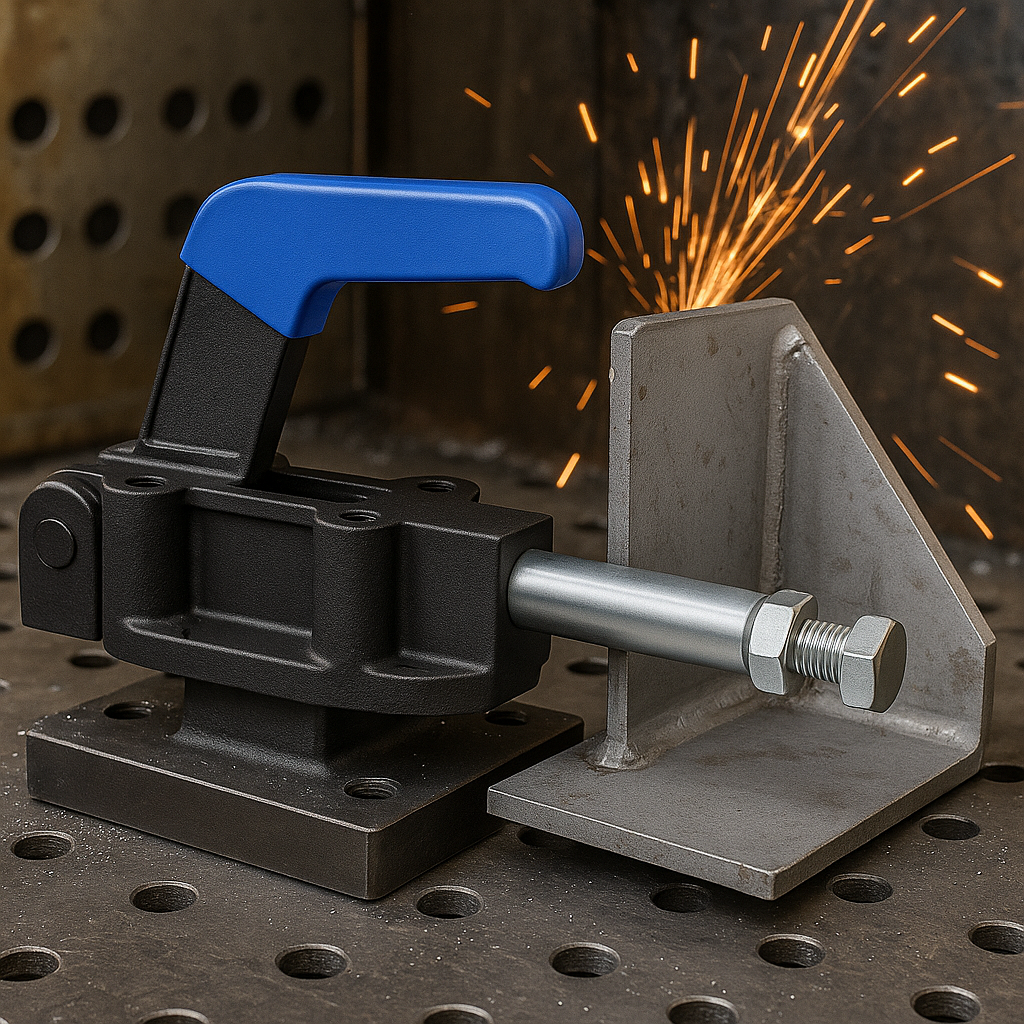

  • Welding fixtures

  • Machining centers

  • Assembly lines

  • Testing and inspection jigs

Its push-pull mechanism allows quick operation and secure locking, making it perfect for repetitive tasks and high-precision setups.

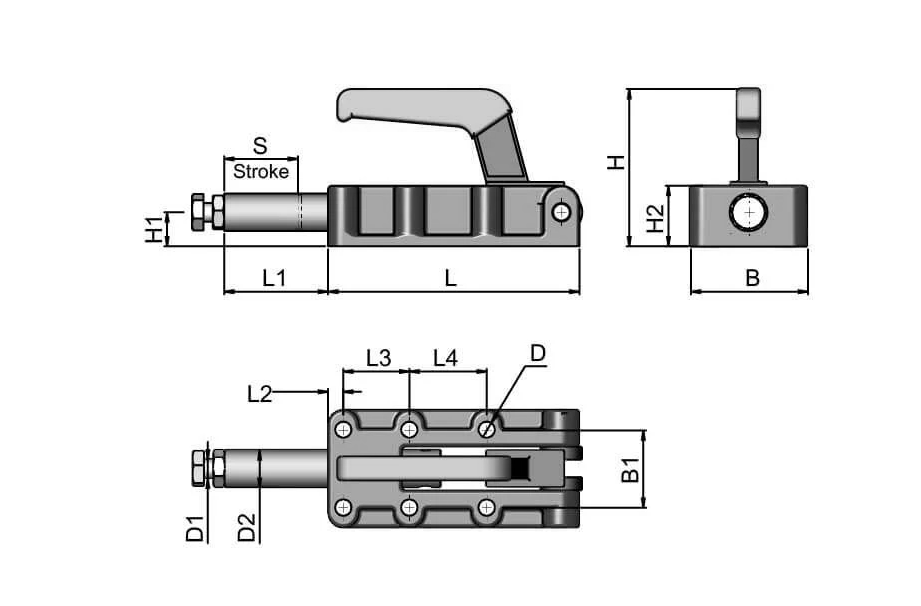

Technical Size Chart

Parameter Size 1 Size 2 Size 3 Size 4
Weight (kg) 0.56 1.50 3.77 6.20
B (mm) 47 62 80 84
B1 (mm) 33.3 41 54 57
D (mm) 5.5 8.6 10.3 10.3
D1 (mm) M8x30 M10x40 M12x60 M16x60
D2 (mm) 14 20 25 30
H (mm) 64 85 105 125
H1 (mm) 12 18 22 28
H2 (mm) 22 32 40 50
Holding Force (kg) 600 1200 2500 5000
L (mm) 89 133 193 247
L1 (mm) 38 55 102 138
L2 (mm) 25 8 12 12
L3 (mm) 36.5 35 45 70
L4 (mm) - 41 45 70
S (mm) 32 50 75 100

Conclusion

Whether you're assembling jigs or conducting high-force operations, this clamp offers reliable alignment, high endurance, and secure locking. Choose the appropriate size based on your holding force and space requirements for optimal performance.
