Description

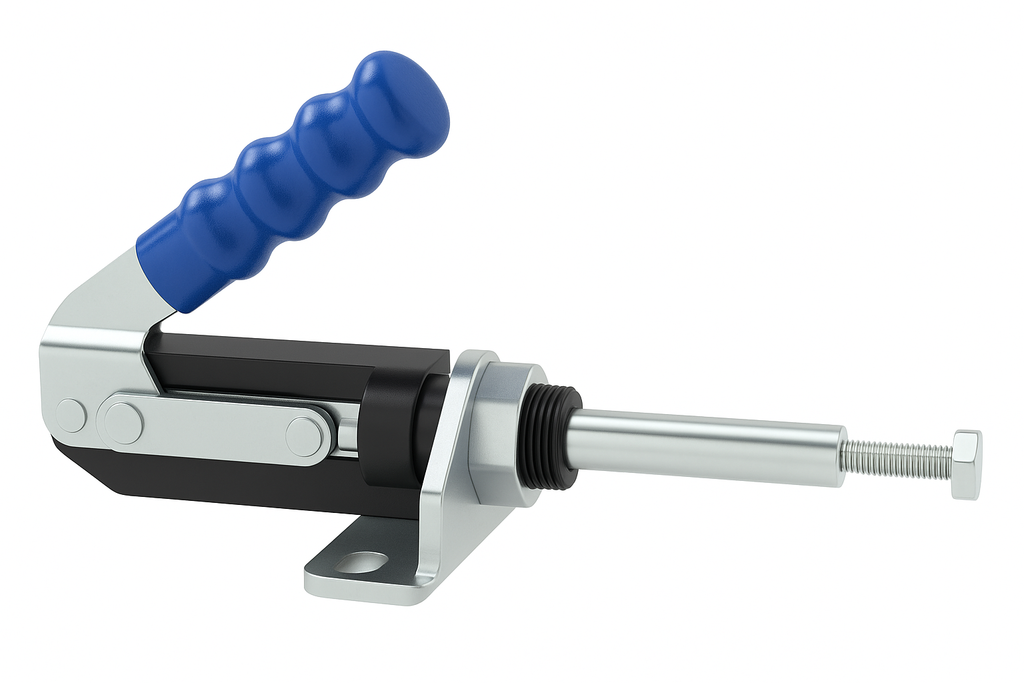

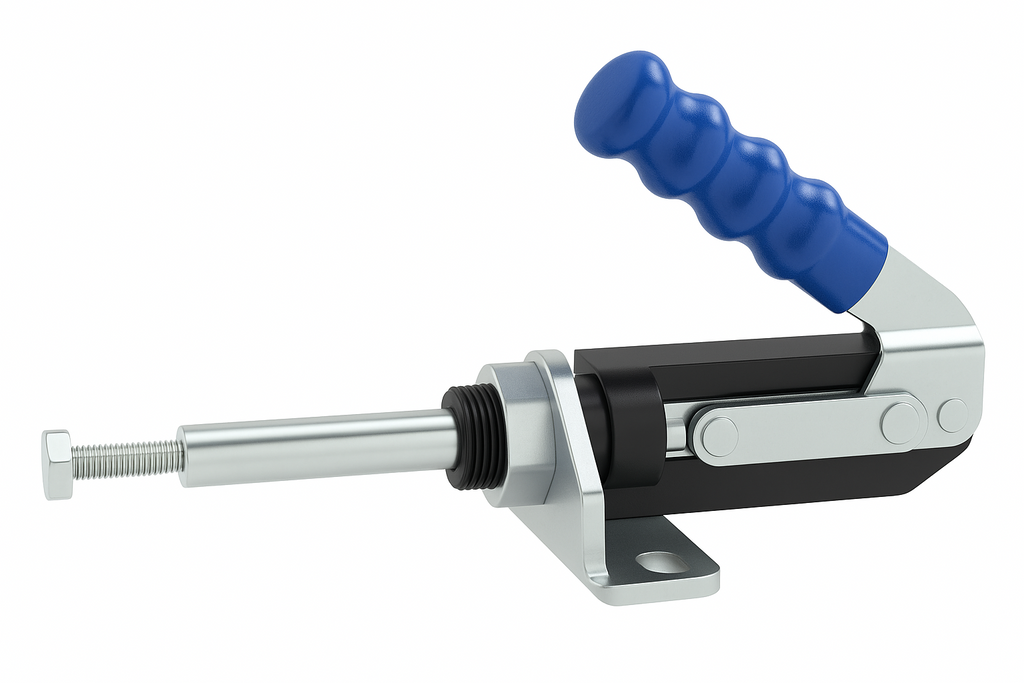

The Light Duty Push Pull Toggle Clamp with a flange base is a versatile clamping solution ideal for quick, repetitive holding in jigs, fixtures, and light assembly setups. Designed for efficiency and durability, this clamp offers precise motion and reliable holding power, making it a popular choice in workshops, quality inspection stations, and light-duty manufacturing lines.
Material & Construction
-
Body: Steel, zinc plated and passivated for enhanced corrosion resistance
-
Finish: Select parts feature a chemical black finish for contrast and wear resistance
-
Accessories: Comes supplied with a set screw and nut, ready for installation
The flange-mounted design ensures easy and stable surface attachment, while the ergonomic handle allows for smooth actuation in both push and pull directions.
Applications
This clamp is suitable for:
-

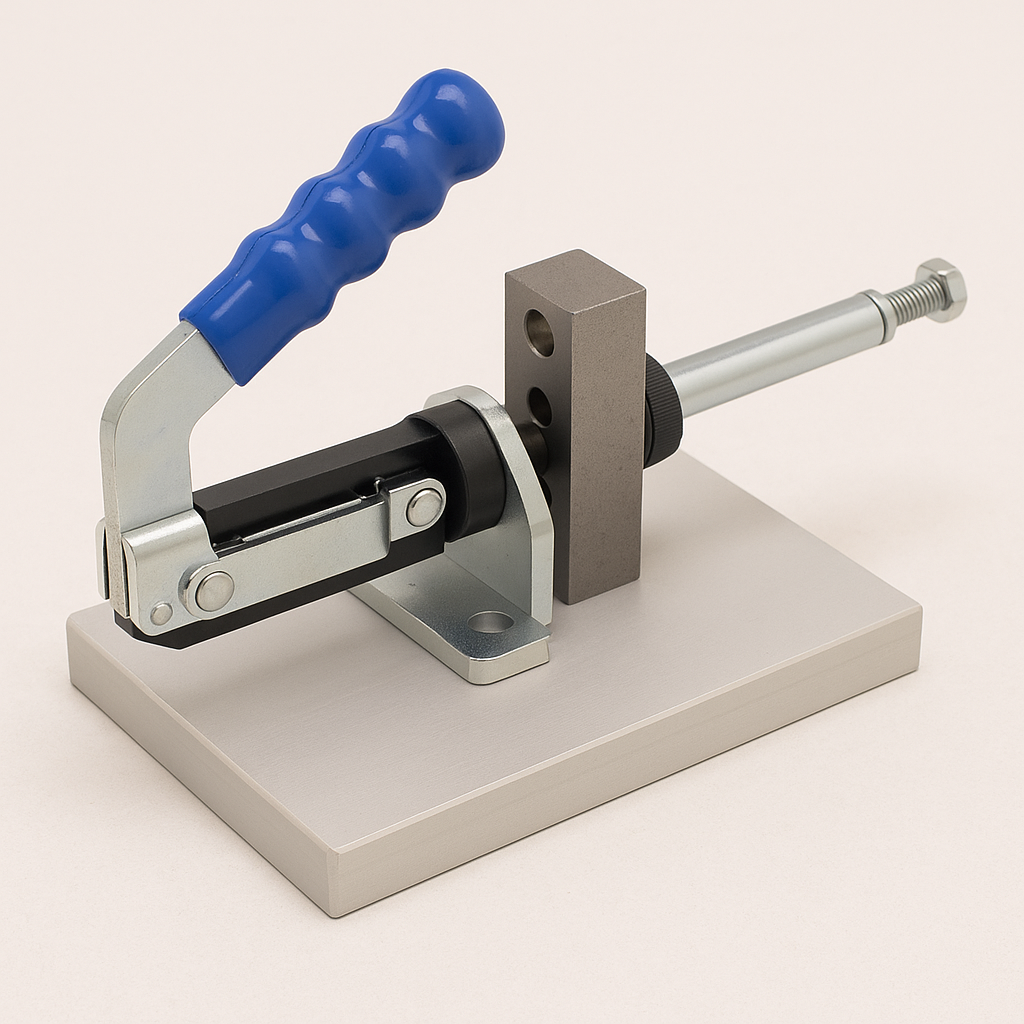

Inspection jigs
-
Light assembly stations
-

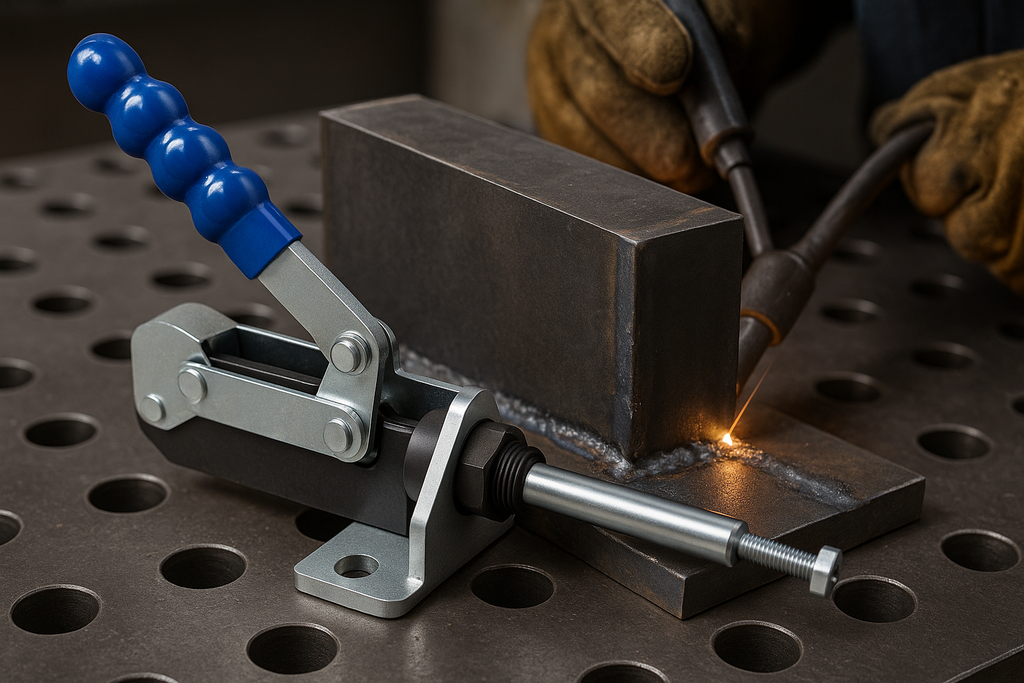

Welding fixtures
-
Positioning and holding tasks in fabrication setups

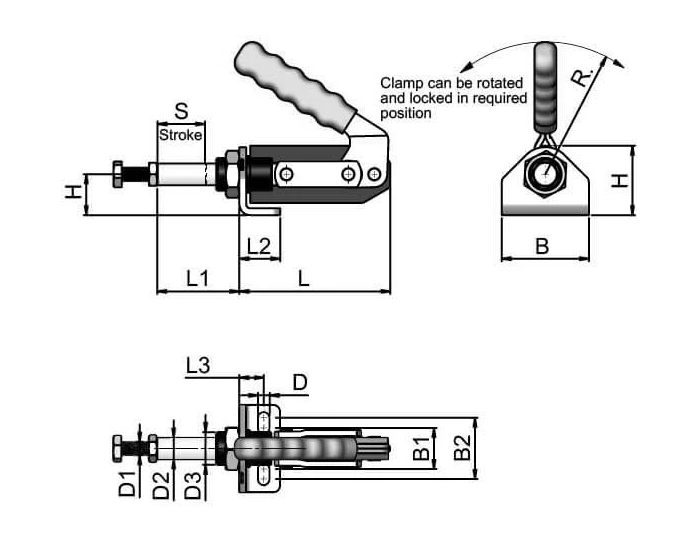

Size Chart & Technical Parameters
| Parameter | Size 1 | Size 2 |
|---|---|---|
| Weight (kg) | 0.35 | 0.76 |
| B (mm) | 57 | 64 |
| B1 (mm) | 30 | 30 |
| B2 (mm) | 42 | 45 |
| D (mm) | 6.5 | 8.5 |
| D1 (Thread) | M6×12 | M10×20 |
| D2 (mm) | 11.1 | 15.9 |
| D3 (Thread) | M20×1.5 | M24×1.5 |
| H (mm) | 25 | 30 |
| Holding Force (kg) | 250 | 450 |
| L (mm) | 82 | 112 |
| L1 (mm) | 53 | 64 |
| L2 (mm) | 24 | 30 |
| L3 (mm) | 14 | 18 |
| R (mm) | 60 | 82 |
| S (mm) | 32 | 38 |
This clamp provides high reliability with minimal maintenance, making it an essential fixture in any tooling or inspection setup where light but firm holding is critical.
