Heavy Duty Steel Bracket 16 Dia – Toggle Clamps | 3-Pack

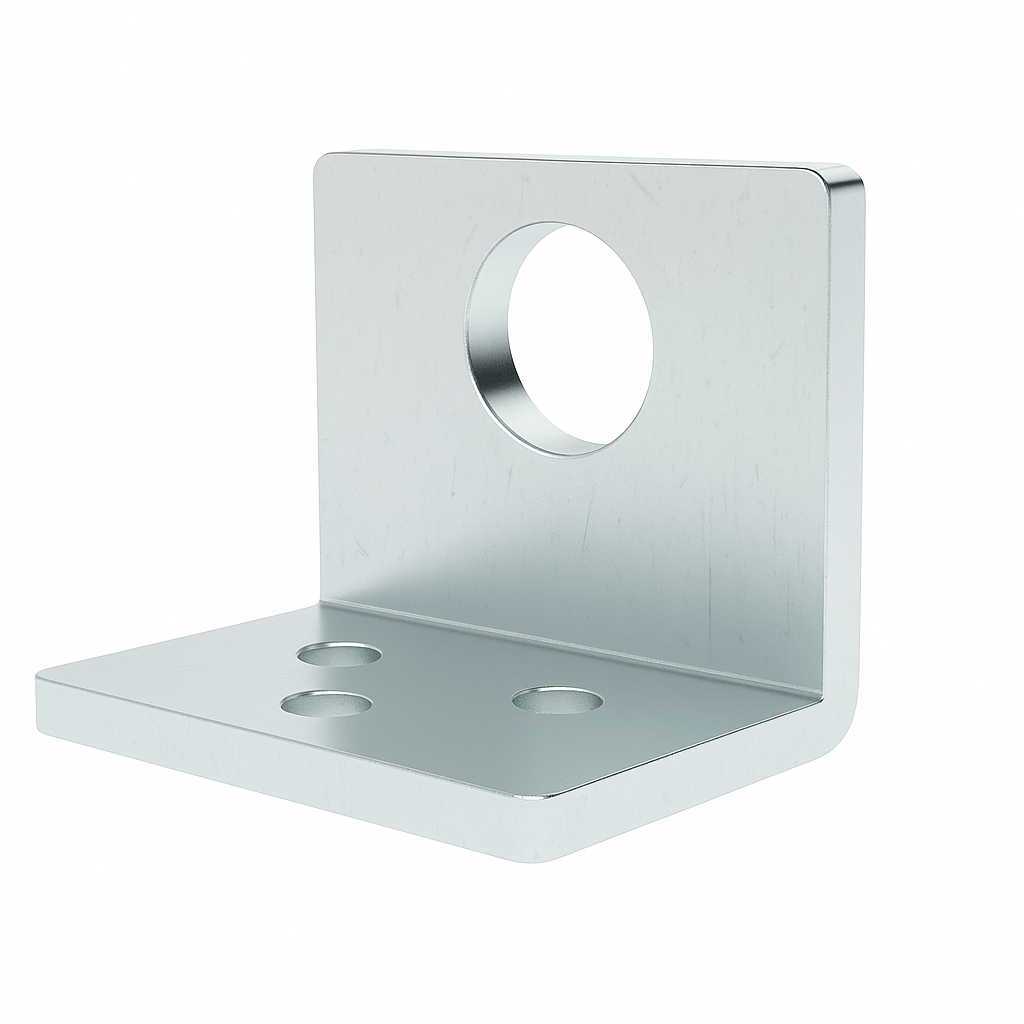

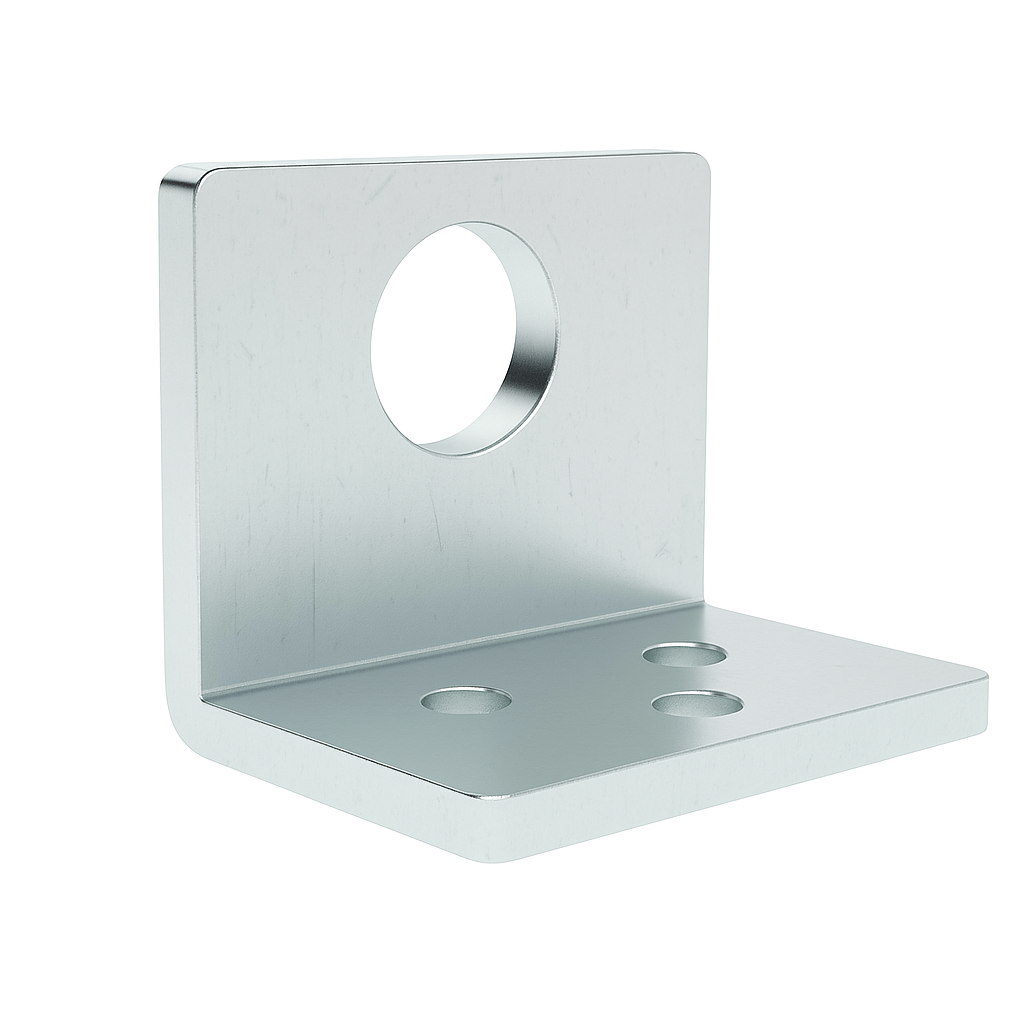

The Heavy Duty Steel Bracket 16 Dia is a robust and reliable mounting accessory designed specifically for securing toggle clamps in high-force applications. This 3-pack bracket set is engineered to deliver superior strength, alignment, and stability—perfect for industrial jigs, fixtures, and fabrication setups.

Material & Construction

Manufactured from steel plated material, the bracket offers excellent strength and corrosion resistance. The rugged build and 4 mm thickness (T) ensure dependable clamping support, even under constant stress in workshop or factory conditions.

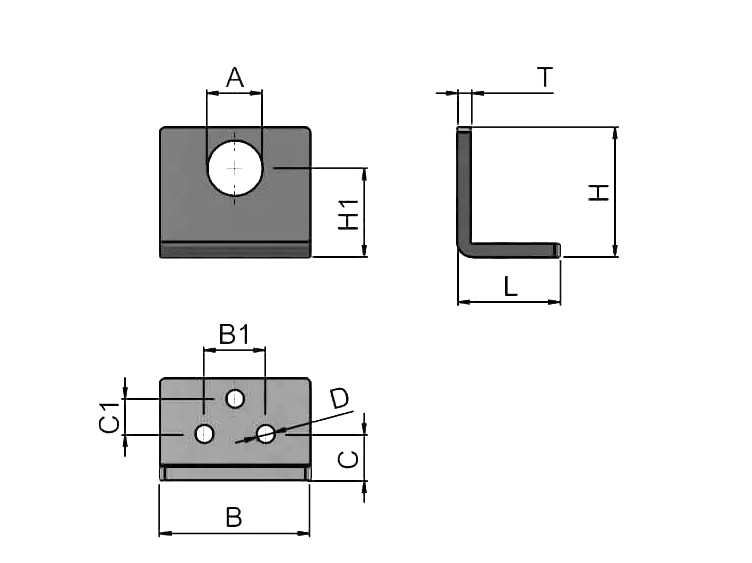

Technical Specifications

• Material: Steel Plated

• Unit Type: Metric

• Weight: 0.070 kg

• Hole Diameter (A): 16 mm

• Mount Hole Dia (D): 5.2 mm

• Thickness (T): 4 mm

• Bracket Height (H): 38 mm

• Height to Hole Center (H1): 26 mm

• Bracket Length (L): 30 mm

• Hole Offset 1 (C1): 10.5 mm

• Hole Offset 2 (C): 13.5 mm

• Base Width (B): 44 mm

• Mounting Hole Distance (B1): 18 mm

Applications

This bracket is designed for:

• Toggle Clamp Mounting in heavy-duty jigs and fixtures

• Automotive & Aerospace Assembly Fixtures

• Welding Tables & Positioning Systems

• Precision CNC and Milling Clamping Setups

• Assembly Lines and Automation Fixtures

• Metalworking & Fabrication Holding Tools

Whether used in manual or automated environments, the Heavy Duty Steel Bracket 16 Dia (3-Pack) delivers the performance and resilience needed for professional clamping systems.
