Description

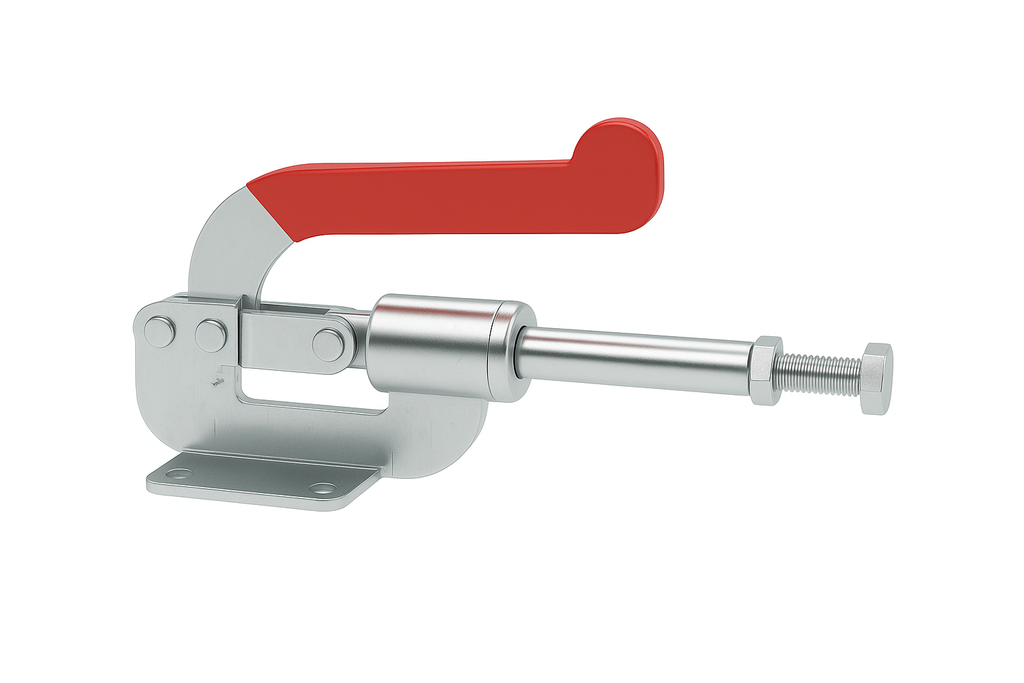

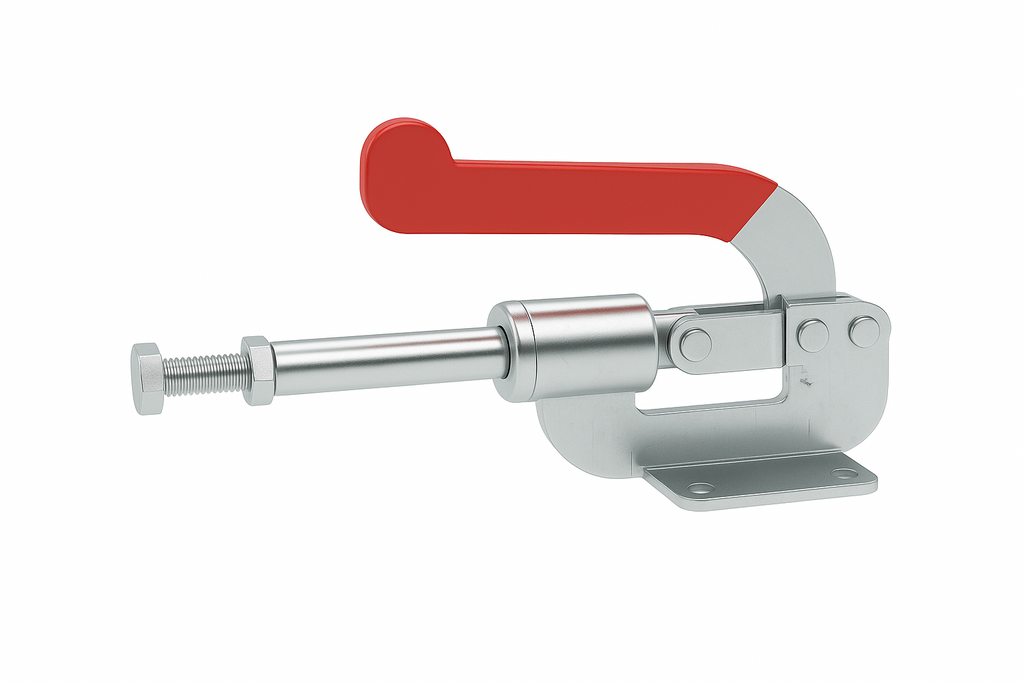

The Push-Pull Toggle Clamp with Steel Flanged Base is a rugged and reliable solution engineered for demanding clamping tasks in machining and welding environments. Designed for quick operation and high repeatability, this clamp excels where stability, strength, and compact design are critical.
⚙️ Product Highlights
-
Body Material: Constructed from mild steel with zinc plating for excellent corrosion resistance, even in industrial settings.
-
Handle Grip: Ergonomically designed with oil-resistant red vinyl, ensuring comfort and slip-free use during repetitive operations.
-
Actuation: Requires the handle to open 180° to achieve the full stroke, providing maximum control and clamping force.
-
Mounting Style: Features a steel flanged base for secure and versatile mounting on fixtures, tables, and jigs.

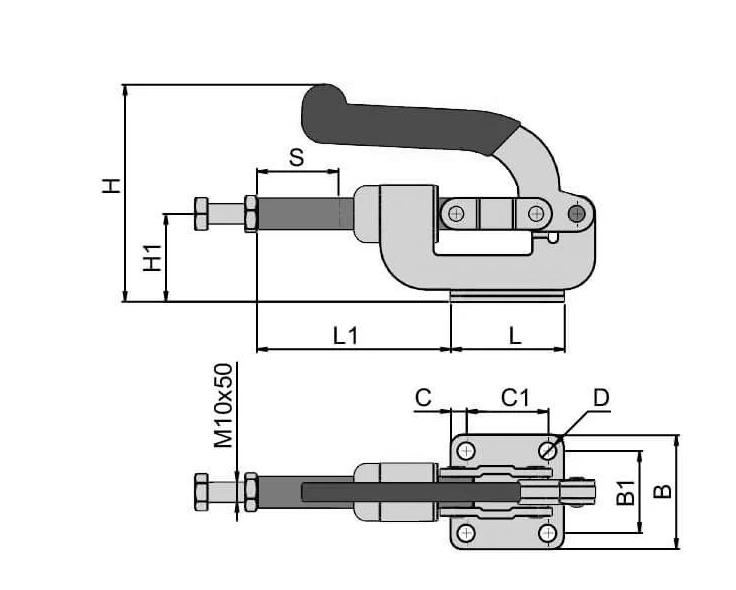

📐 Technical Specifications (Metric)
| Feature | Value (mm) |
|---|---|
| Weight | 0.8105 kg |
| L1 | 98 |
| L | 57.5 |
| S | 41.3 |
| H1 | 44.4 |
| C1 | 41.3 |
| C | 8 |
| B1 | 41.5 |
| B | 57.5 |
| D | 8.7 |
| H | 110 |
| Holding Capacity | 364 kg |
🛠️ Applications
This push-pull clamp is ideal for:
-

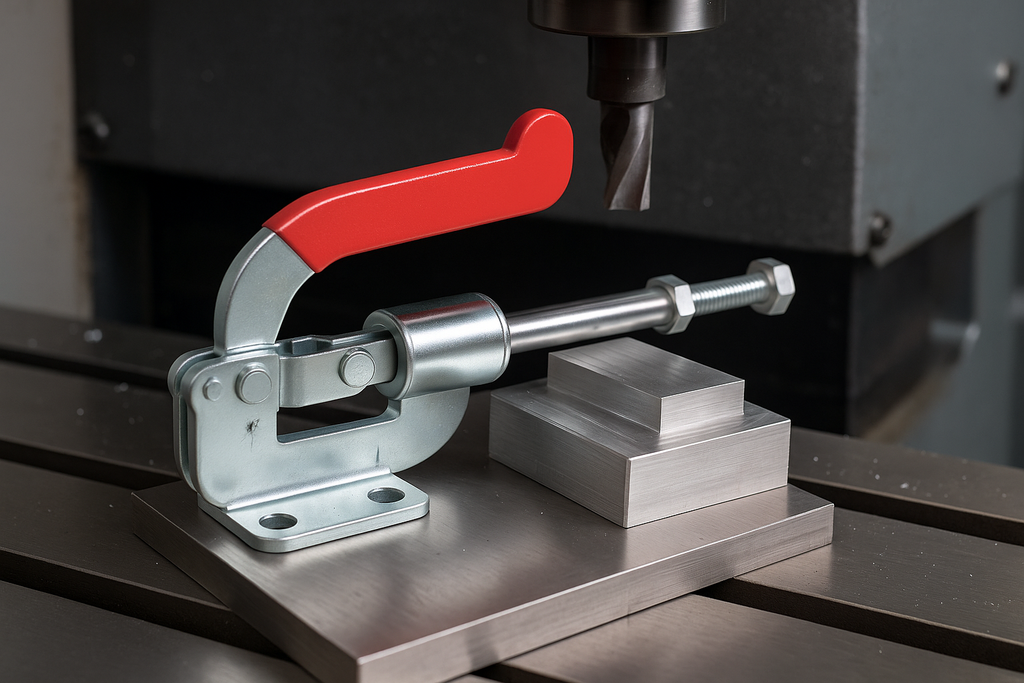

Machining setups: Secures workpieces during milling, drilling, and turning.
-

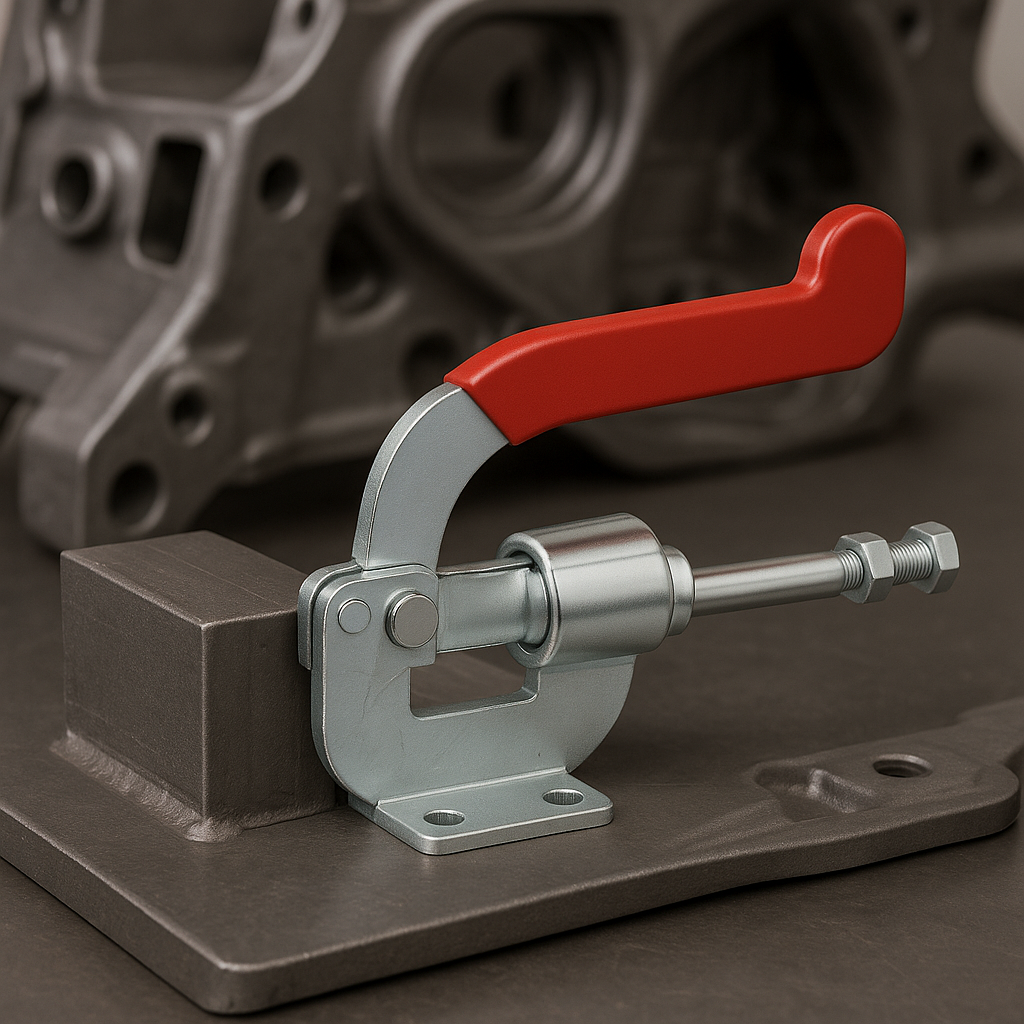

Welding fixtures: Holds metal components firmly in place during fabrication.
-
Assembly lines: Enhances consistency and efficiency in repetitive tasks.
-
Inspection jigs: Keeps parts aligned for precise measurement or testing.
-
Plastic or metal molding: Provides hold-down or positioning during cooling.
Engineered for performance, this toggle clamp is a staple in professional workshops where durability and precision are non-negotiable. Whether you're locking down a part for CNC machining or stabilizing a weld fixture, this tool delivers with industrial-grade reliability.
