Description

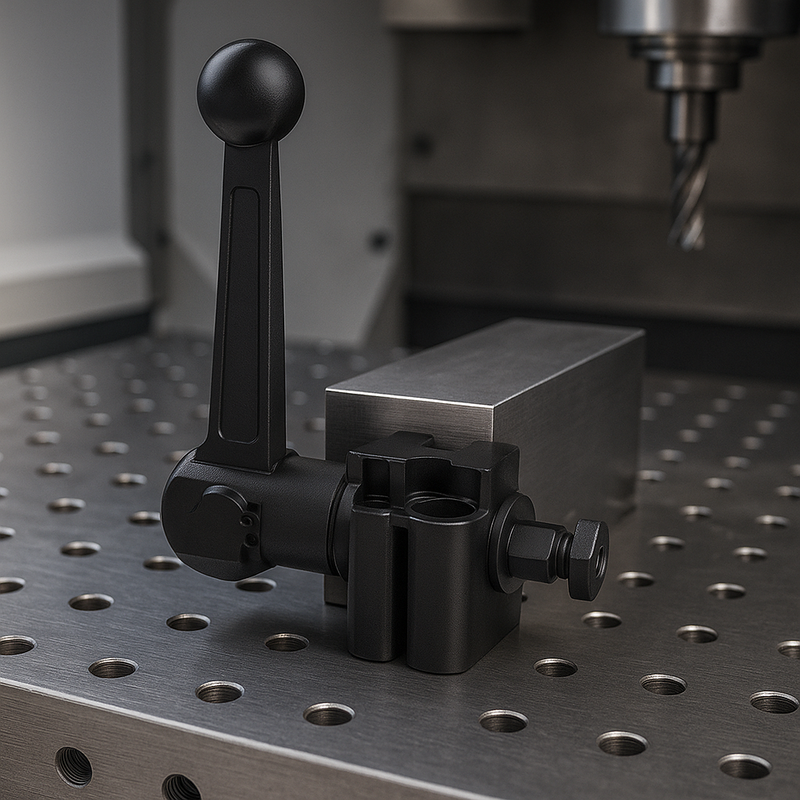

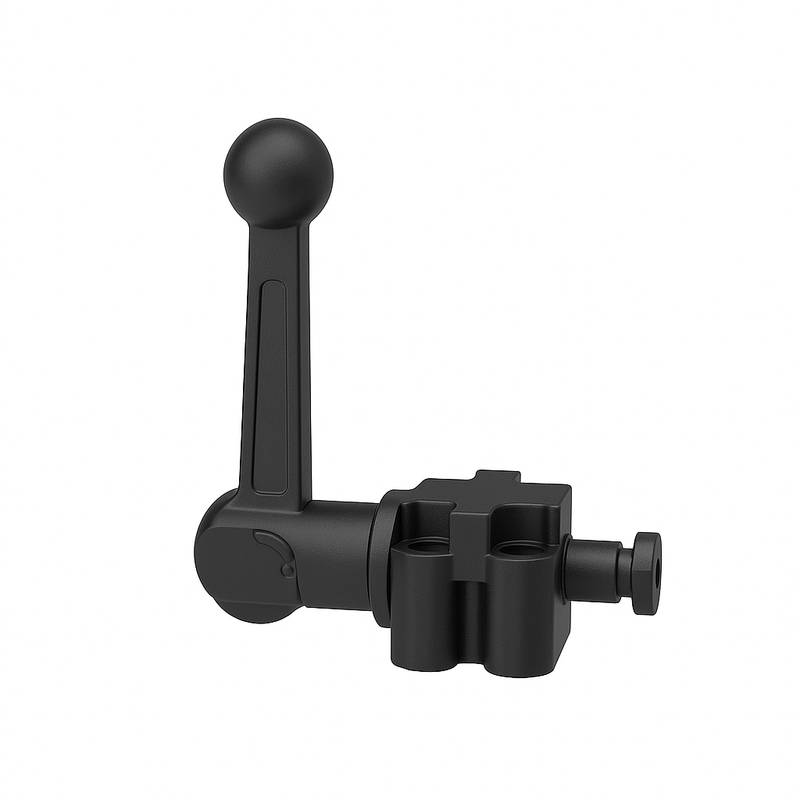

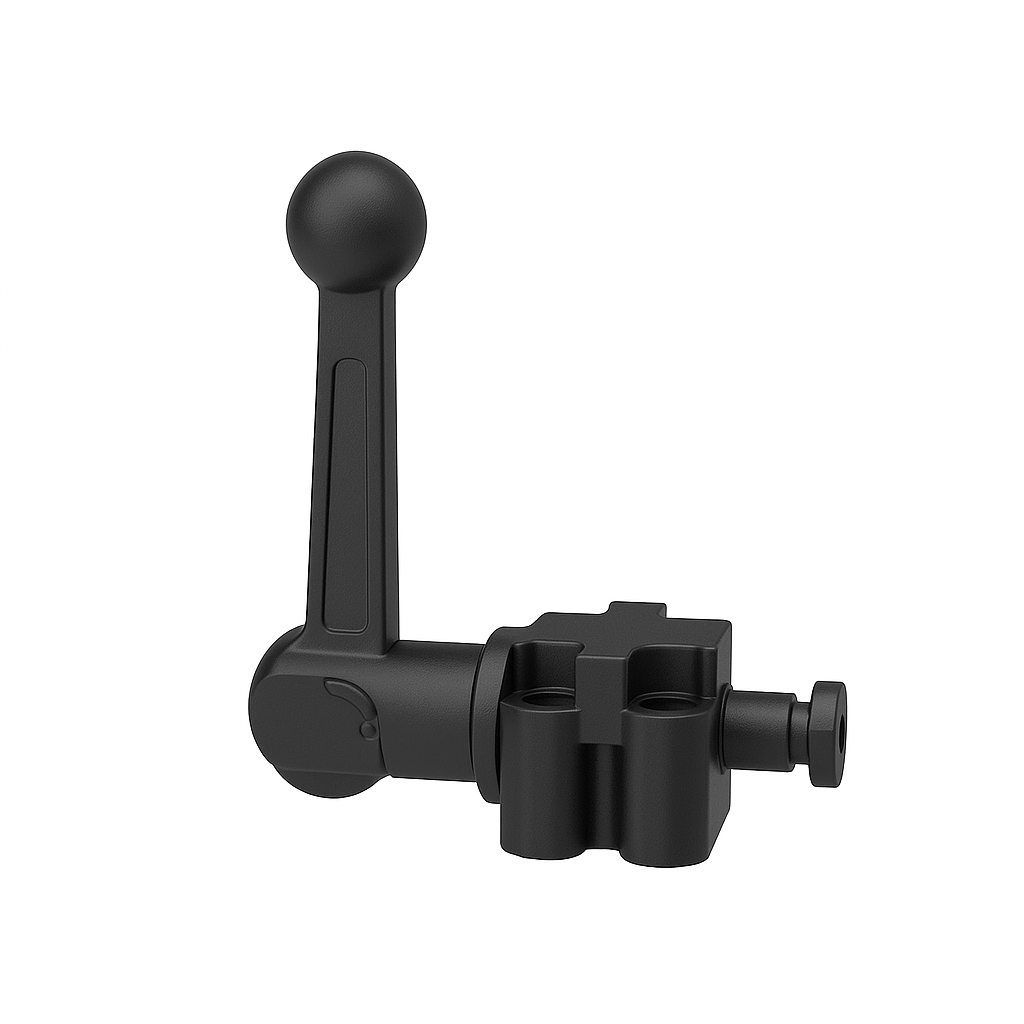

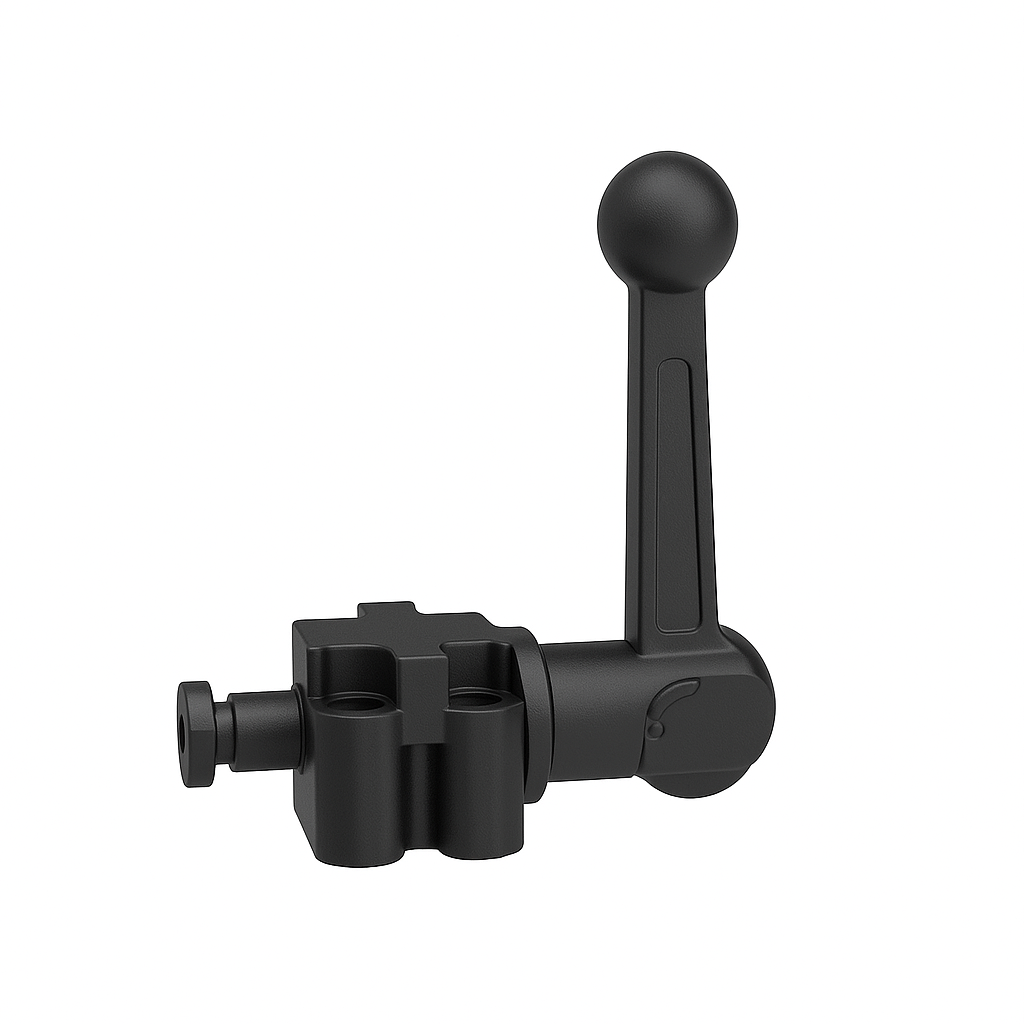

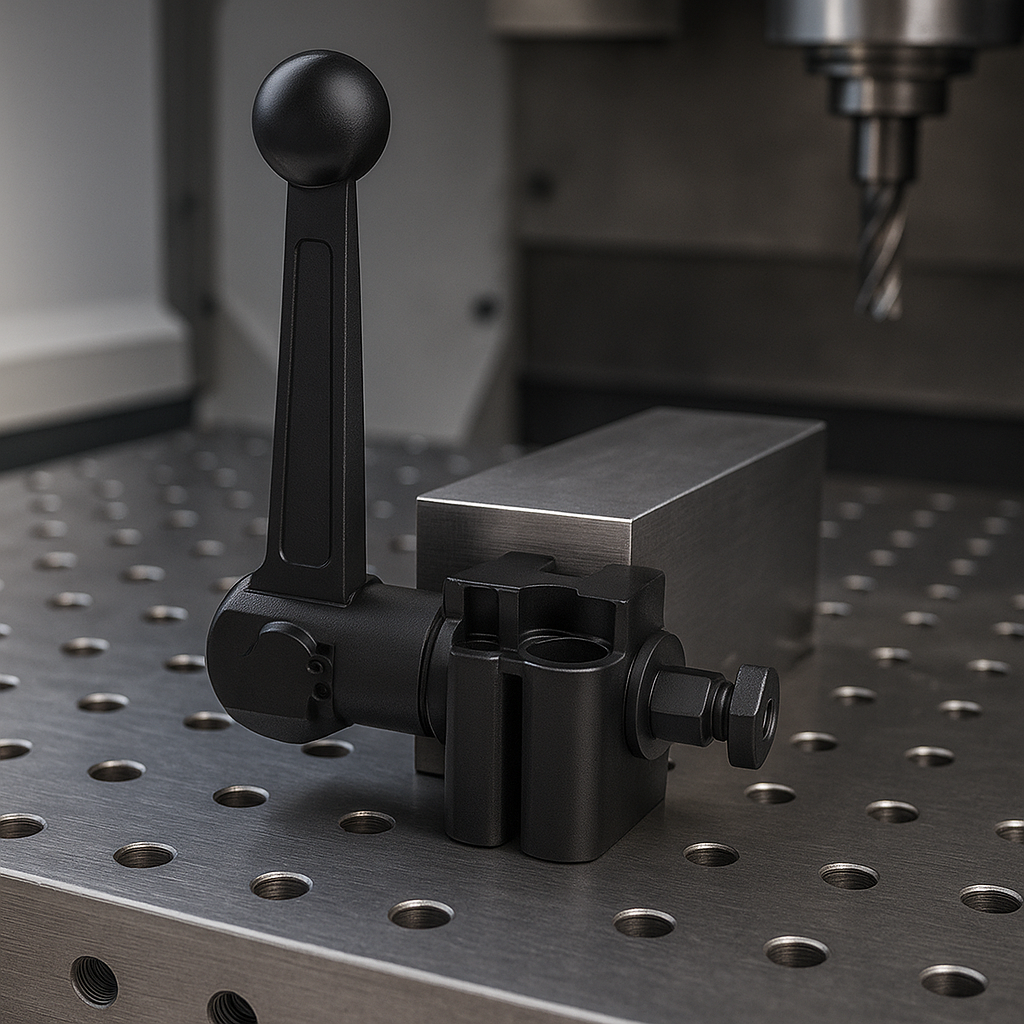

The Industrial Cam Push Clamp is a precision-engineered workholding solution designed for quick, reliable clamping in industrial environments. Known for its robust construction and ergonomic cam lever action, it is ideal for securing parts during CNC machining, welding, assembly, and inspection processes.

⚙️ Key Features

  • Material: High-strength steel components with a durable black finish

  • Wear Resistance: All contact surfaces and moving parts are hardened for extended service life

  • Mounting Ready: Supplied complete with setscrew, mounting block, and nut

  • Cam Action Mechanism: Ensures fast clamping/unclamping with consistent holding force

  • Unit Type: Metric

🛠️ Applications

This clamp is widely used in:

  • CNC machining centers

  • Assembly lines (automotive, electronics, aerospace)

  • Welding jigs and modular fixtures

  • 3D printing post-processing stations

  • Inspection setups

Its ease of use, repeatability, and compact footprint make it an essential tool for high-efficiency workstations.

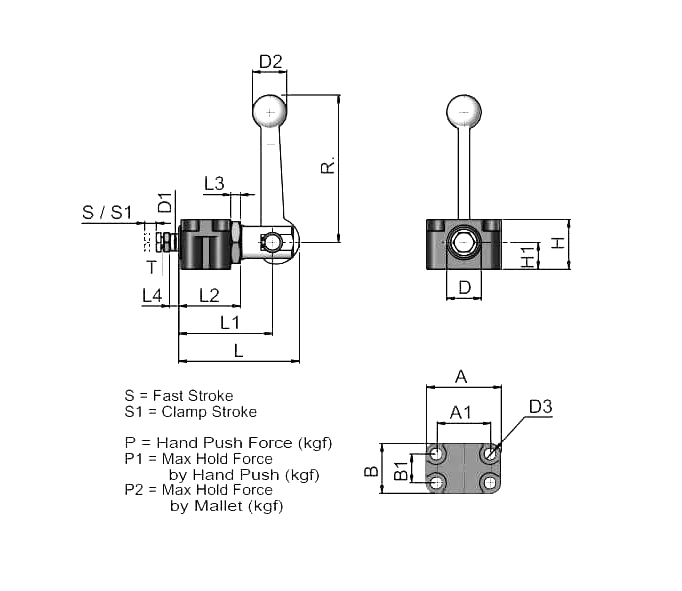

📐 Size Chart

Parameter Size 1 Size 2 Size 3
Weight (kg) 0.27 0.60 1.50
A (mm) 39 50 68
A1 28 36 50
B 26 34 43
B1 15 20 25
D M18x1.5 M24x1.5 M33x2.0
D1 9 12 16
D2 19 25 32
D3 6.3 8.3 10.3
H 26 33 45
H1 14 18 25
L 64 85 109
L1 50 68 86
L2 32 41 54
L3 5 7 9.5
L4 2 3 4
P 36 38 43
P1 (N) 600 650 650
P2 (N) 1500 2000 3000
R 77 103 140
S 5.2 7.0 11.0
S1 2.2 3.0 4.0
T (Thread) M6 M8 M12

✅ Summary

With hardened components, tool-free operation, and compact size options, the Cam Push Clamp is a versatile, industrial-grade solution for precision workholding tasks across multiple applications.
