Description

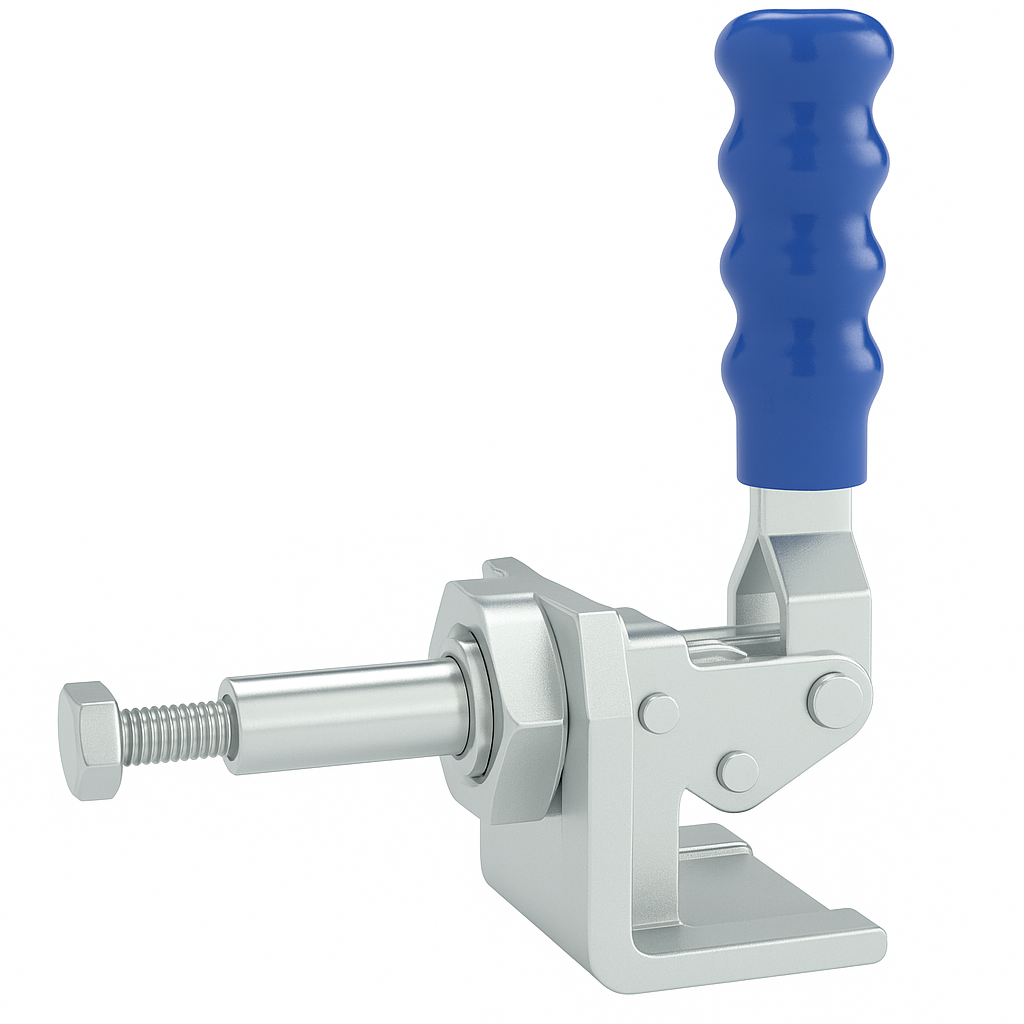

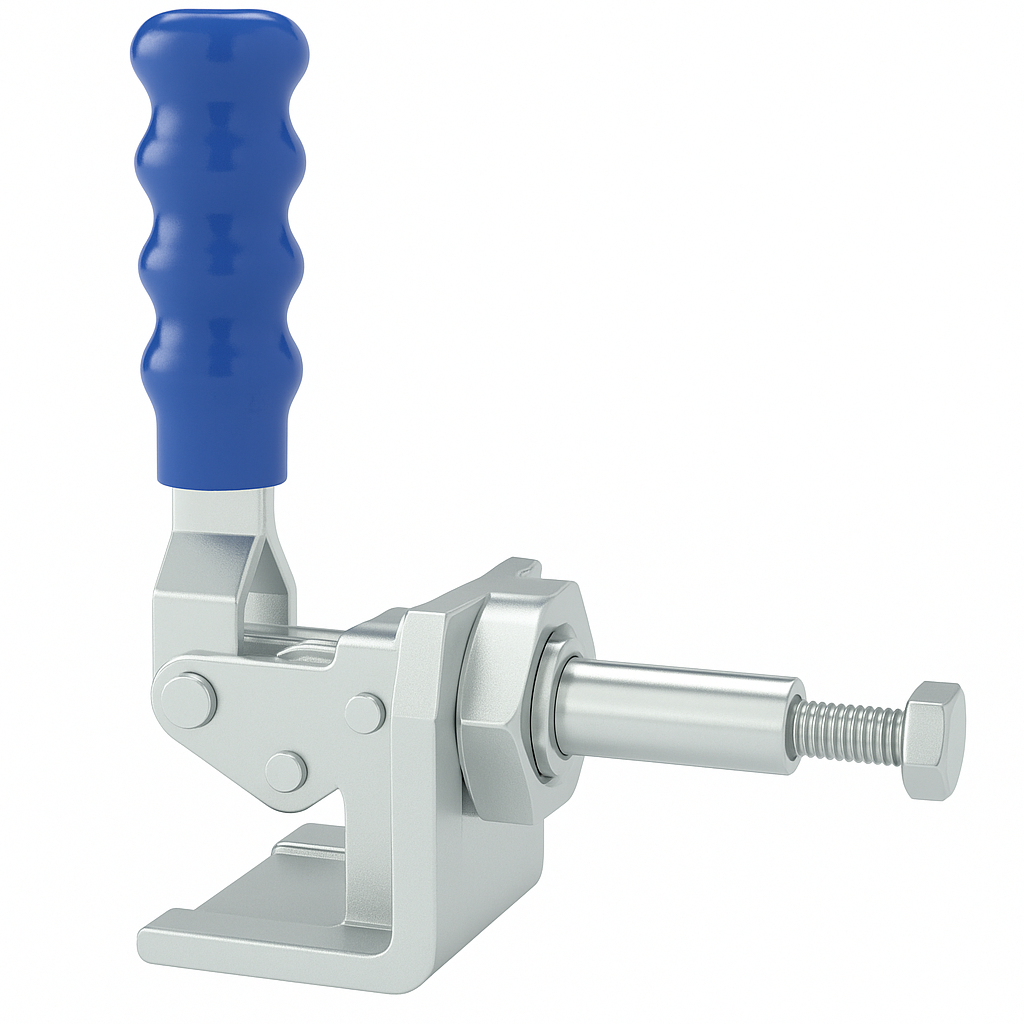

The Light Duty Push-Pull Toggle Clamp – Short Stroke is a compact, precision-engineered clamping solution designed for applications that demand secure holding with minimal space requirements. Ideal for electronics assembly, prototyping, light machining, and jig setups, this toggle clamp combines durability with ergonomic efficiency.

Robust Construction

This clamp is constructed from steel zinc-plated and passivated, offering high corrosion resistance and long-term durability. It comes supplied with a set screw, nut, and mounting bracket, ensuring quick installation and reliable operation.

Compact Yet Powerful

Despite its light-duty classification and compact size, this clamp delivers a holding force of 100 kg, making it suitable for a wide range of tasks, including securing PCBs, fixtures, and lightweight components during testing or finishing processes.

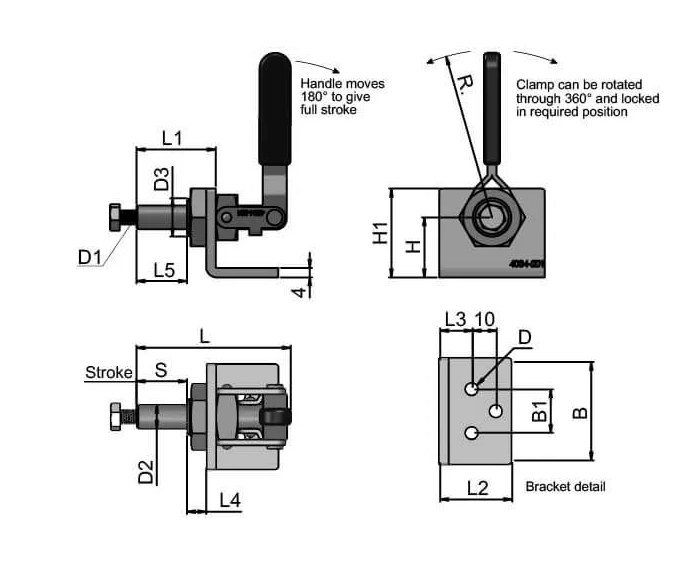

Technical Specifications

Feature Value
Unit Type Metric
Weight 0.150 kg
L (Total Length) 68 mm
L1 33 mm
L2 30 mm
L3 13.5 mm
L4 10 mm
H (Height) 26 mm
H1 38 mm
B (Base Width) 44 mm
B1 18 mm
S (Stroke) 21 mm
R (Reach) 68 mm
D (Hole Ø) 5.2 mm
D1 (Set Screw) M6x15
D2 (Rod Ø) 10 mm
D3 (Nut Thread) M16x1.5

Applications

  • PCB testing and fixture holding

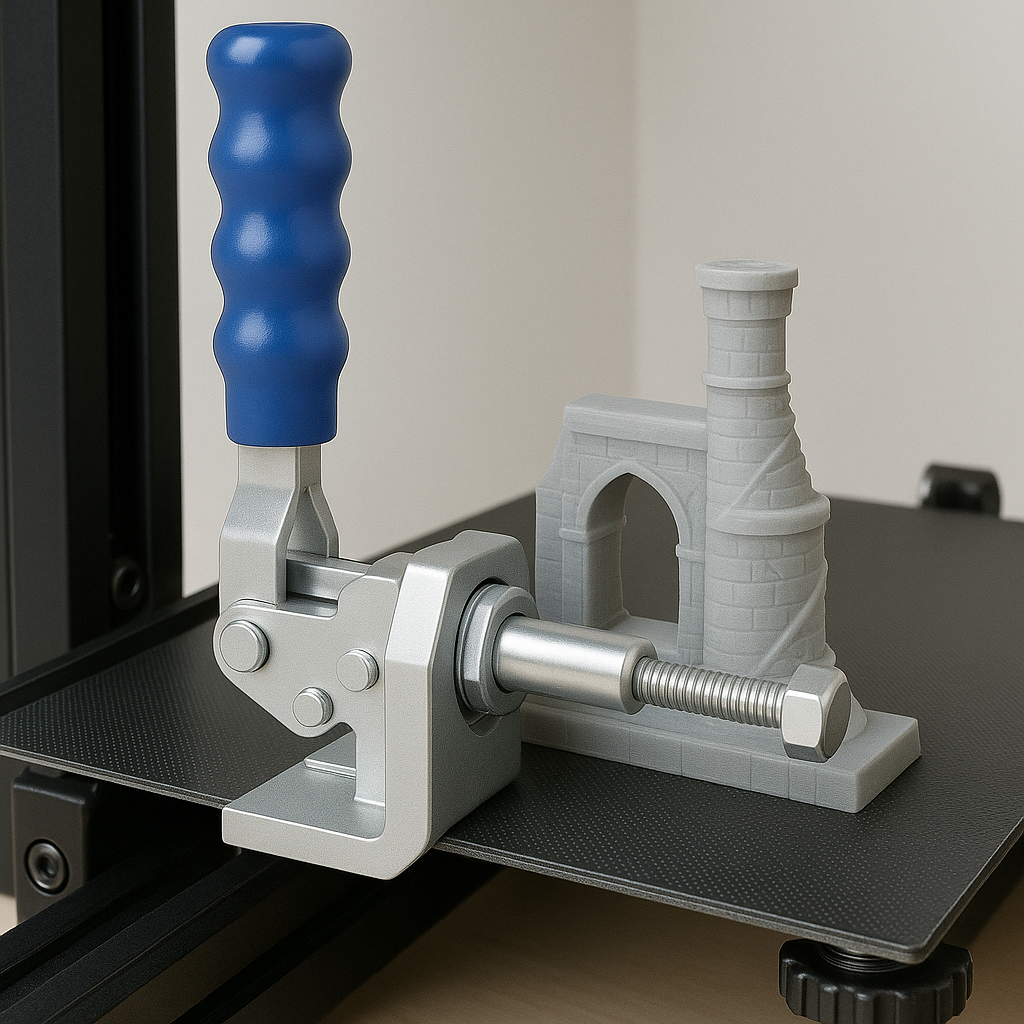

  • 3D printing post-processing

  • Medical device assembly

  • Precision lab setups

  • Small part finishing

The short stroke design makes this clamp particularly effective in confined workspaces where quick and repeatable clamping is essential. The blue handle not only provides a comfortable grip but enhances visibility in cluttered environments.
