Description

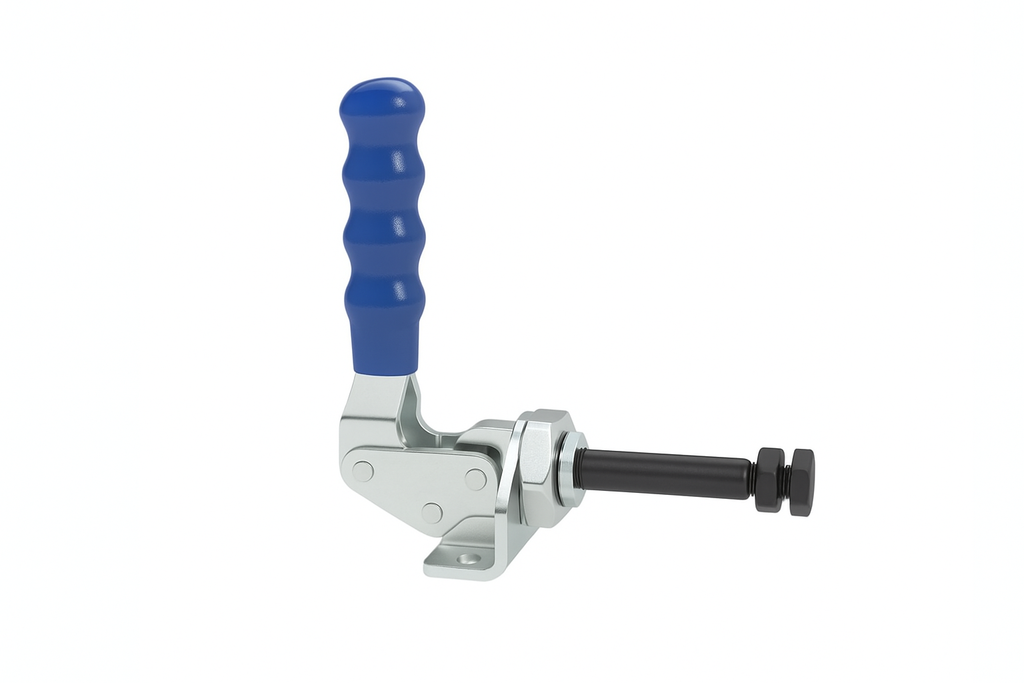

The Medium Duty Push Pull Toggle Clamp with a flanged base offers reliable and quick clamping for industrial and precision applications. Built for medium-force holding, it is ideal for tasks requiring repetitive clamping and firm alignment such as welding fixtures, CNC machining setups, inspection jigs, and light assembly stations.
🔩 Material & Finish
Crafted from zinc-plated and passivated steel, this toggle clamp resists corrosion and wear in demanding workshop environments. The unit is supplied complete with set screw and nut, making it ready for immediate installation and use.
⚙️ Technical Specifications
-
Unit Type: Metric
-
Material: Steel, zinc plated and passivated
-
Weight: 0.35 kg
-
Holding Force: 200 kg
-
Thread Size (D3): M20 × 1.5
-
Threaded Rod (D1): M8 × 25
-
Pin Hole Diameter (D2): 12 mm
-
Mount Hole Diameter (D): 6.5 mm

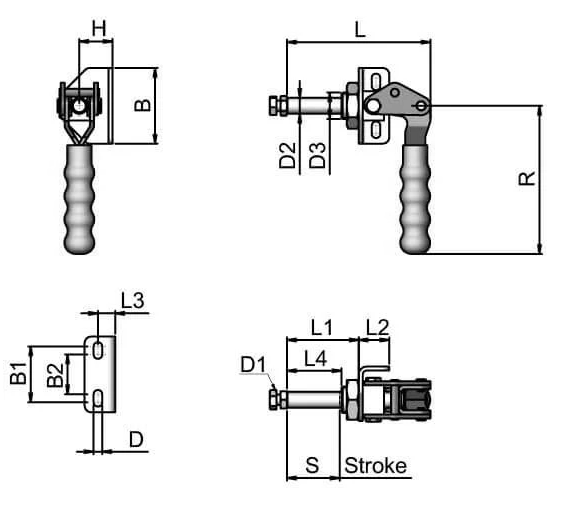

📏 Dimensional Chart (mm)
| Dimension | Value (mm) |
|---|---|
| L | 110 |
| L1 | 54 |
| L2 | 23 |
| L3 | 13 |
| L4 | 41 |
| B | 57 |
| B1 | 42 |
| B2 | 30 |
| R | 112 |
| S | 40 |
| H | 25 |
🛠 Applications
This clamp is widely used in:
-
Welding and fabrication fixtures
-
CNC and manual machining setups
-
Inspection and quality control fixtures
-
Repetitive assembly jigs
-
Woodworking and light-duty industrial automation
Its push-pull action, combined with a secure flanged base, makes it an indispensable component for engineers and fabricators seeking reliability, ease of use, and moderate holding capacity.
