Description

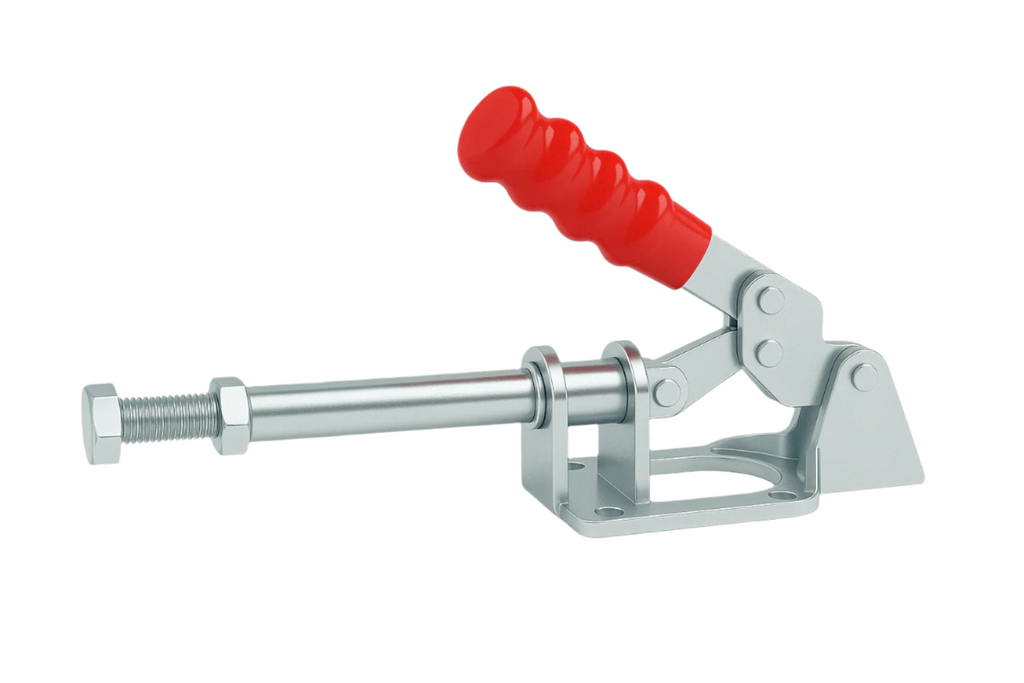

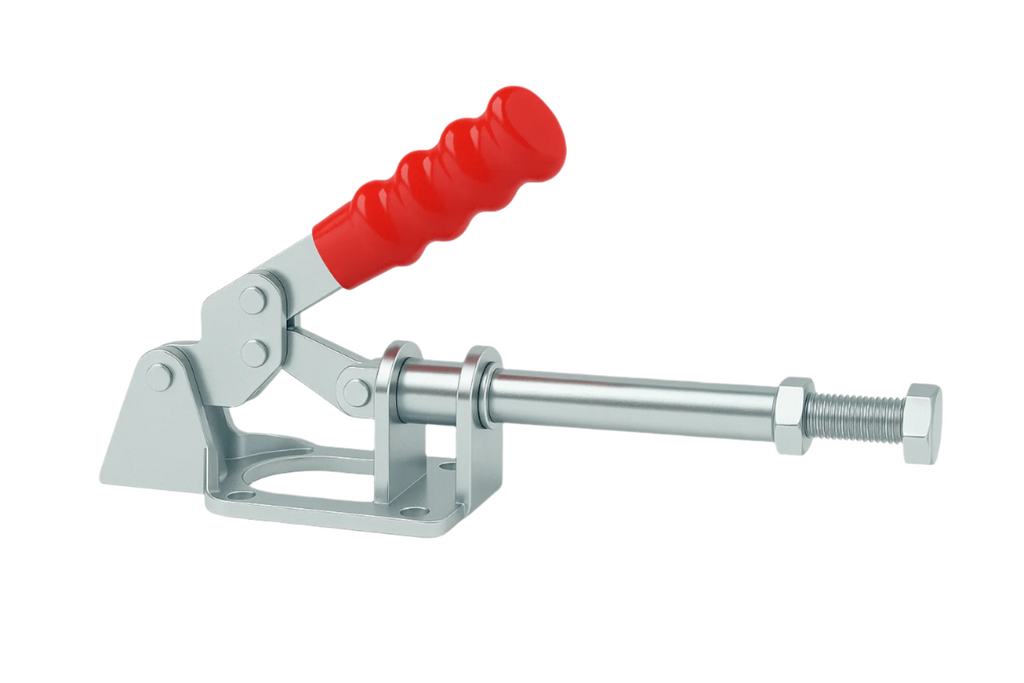

The Medium Push Pull Toggle Clamp is a compact, lightweight clamping solution built for high-efficiency assembly and positioning tasks. Designed with a focus on durability and ergonomic use, this clamp is ideal for industrial assembly fixtures where secure holding with quick release is essential.
🔧 Material & Build Quality
-
Body: Constructed from mild steel with a zinc-plated finish to provide excellent resistance against corrosion.
-
Handle Grip: Covered in oil-resistant red vinyl for improved comfort and slip resistance during frequent operation.

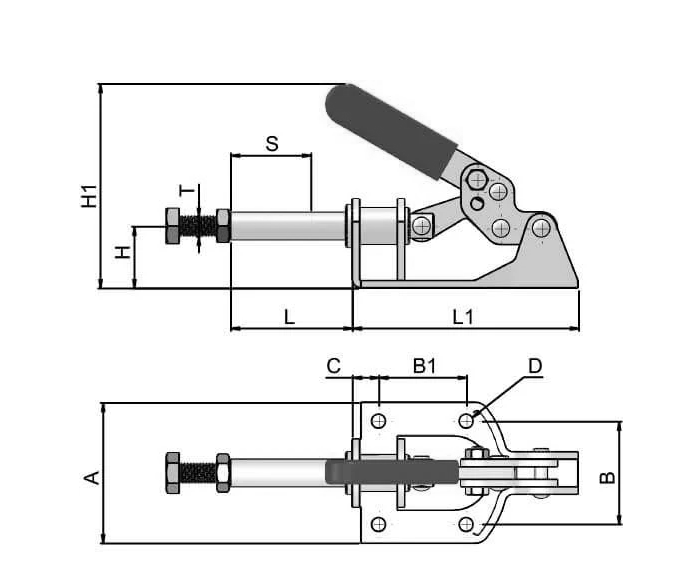

📏 Technical Specifications
| Parameter | Value |
|---|---|
| Unit Type | Metric |
| Weight | 0.302 kg |
| Holding Capacity | 135 kg |
| Thread (T) | M8 |
| Length (L1) | 139.8 mm |
| Base Length (L) | 50 mm |
| Clamp Height (H1) | 80.5 mm |
| Mount Hole Dia (D) | 5.5 mm |
| Base Width (B) | 41 mm |
| Hole Distance (B1) | 35 mm |
| Clamp Stroke (S) | 32 mm |
| Mount Width (C) | 10.5 mm |
| Clamp Height (H) | 24.6 mm |
| Mount Spacing (A) | 56 mm |
⚙️ Applications
This toggle clamp is ideally suited for:
-

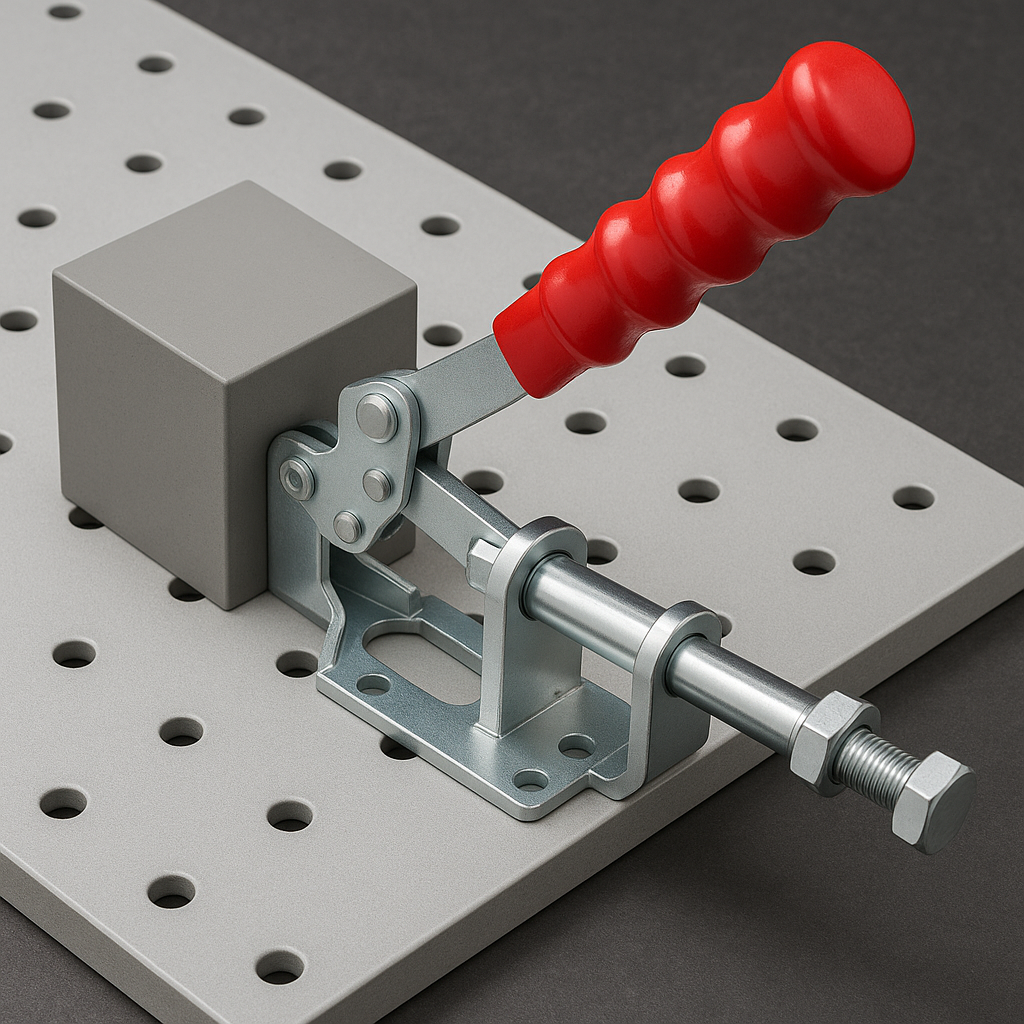

Assembly Fixtures
Secure components during mechanical or electronic assembly tasks. -
Inspection & Test Fixtures
Ensure consistent positioning for quality checks or testing. -
CNC & Milling Setup
Used as a reliable hold-down in precision machining environments. -

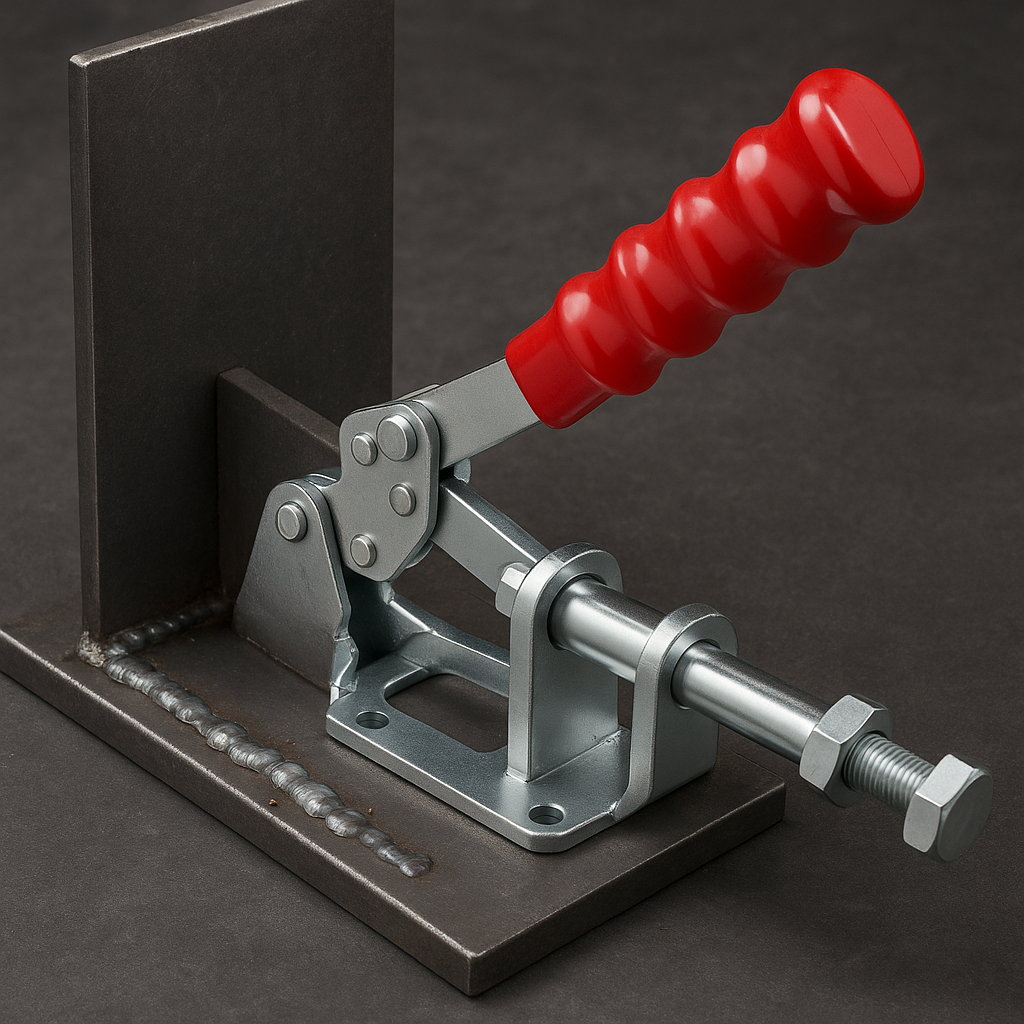

Light Welding & Fabrication
Holds workpieces tightly in place for light welding or fabrication processes.
Conclusion:
With its lightweight frame, corrosion resistance, and 135 kg holding capacity, this medium push-pull toggle clamp offers an excellent balance of strength and usability for assembly-focused operations. Whether on a production floor or in a workshop, it delivers performance you can rely on.
