Description

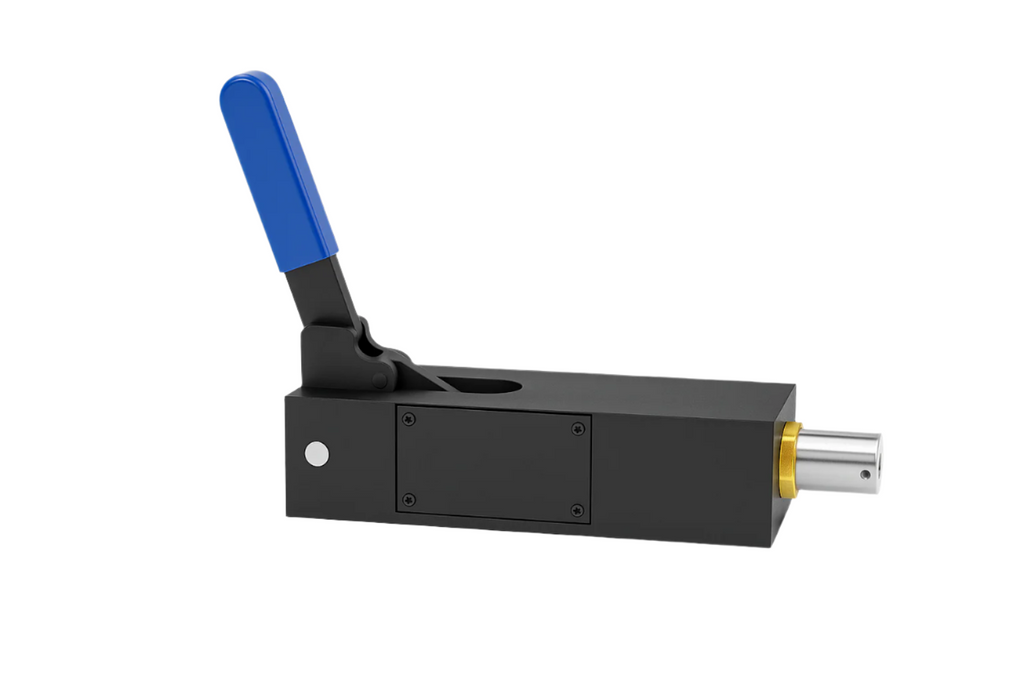

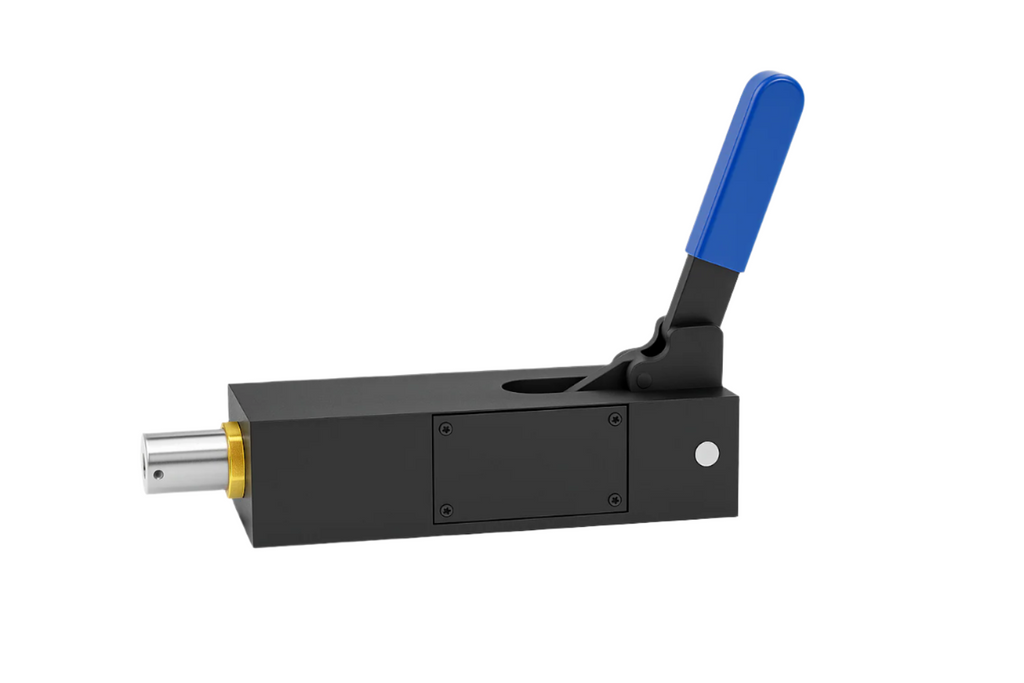

The Push Pull Precision Guided Clamp is a robust and high-performance fixture designed specifically for welding applications, where precision, repeatability, and strength are essential. Built to withstand harsh industrial environments, this clamp delivers optimal clamping force while ensuring alignment accuracy for your critical assembly tasks.

🔧 Material Construction

  • Body: Crafted from aluminium, the body is hard anodised for corrosion resistance and durability, reinforced with steel and brass bushings to support smooth linear motion and extended life.

  • Shaft: Made from hardened and ground steel, ensuring rigidity, wear resistance, and dimensional precision over time.

  • Handle: Ergonomically designed with a steel black oxide finish and a blue vinyl grip for comfortable manual operation, even in tough shop floor conditions.

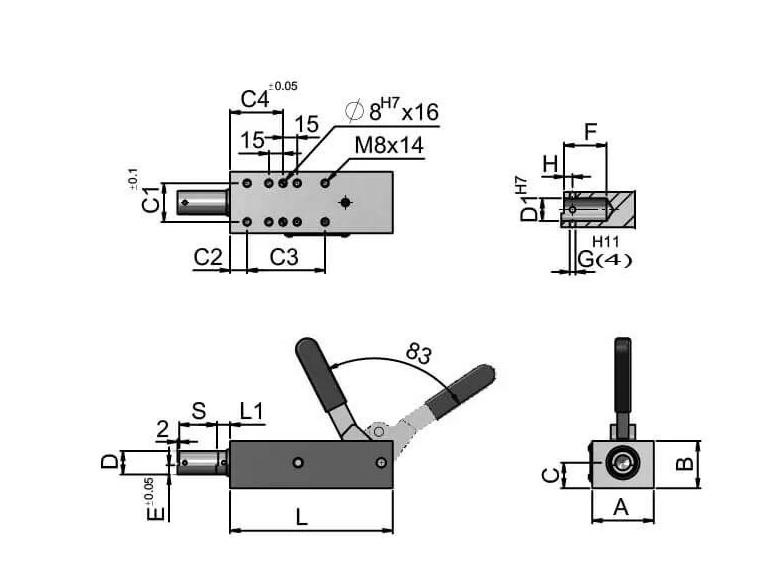

📐 Technical Specifications (Metric Unit Type)

Dimension Size (mm)
L1 14
L 172
S 40
C2 18
C1 41
C 27
B 50
A 65
C3 82.5
C4 56
D 25
H 6
G 4
F 30
E 10
D1 16
Weight 5.5 kg

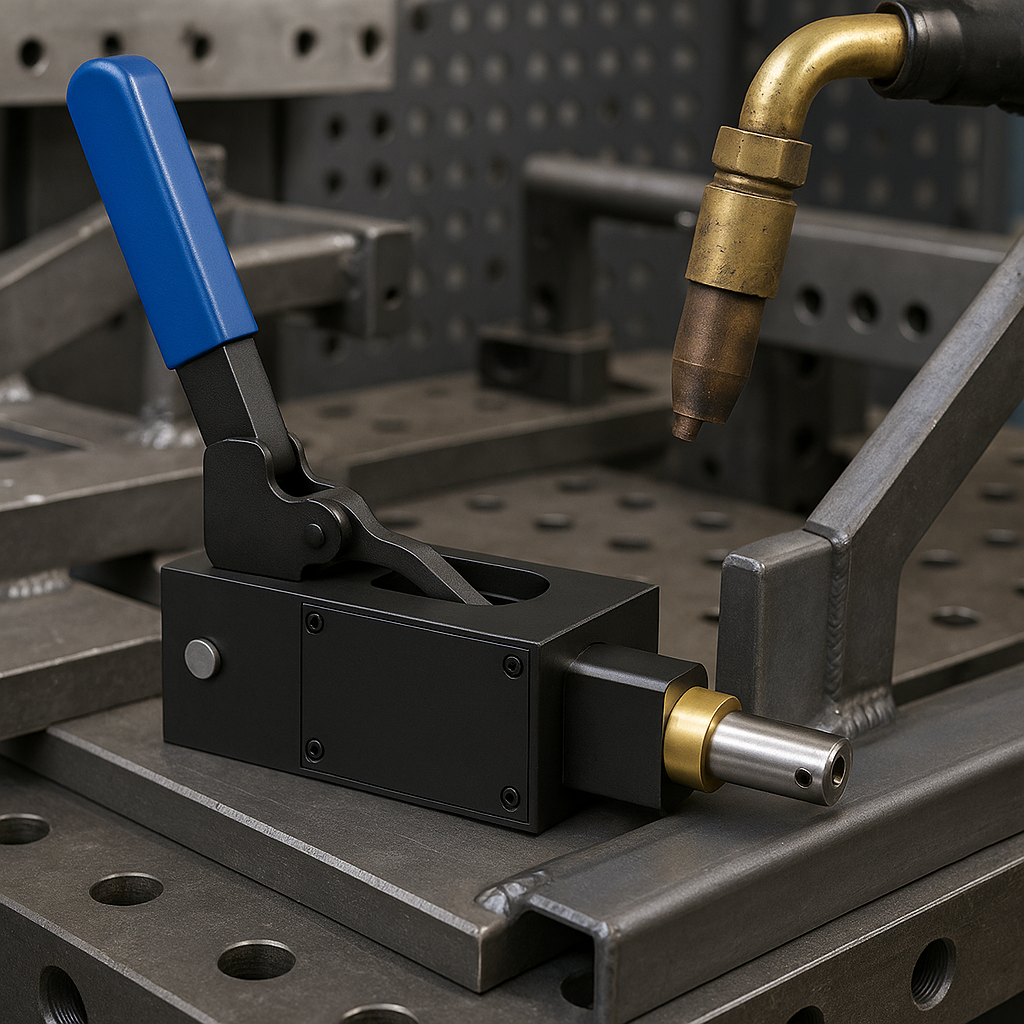

🔩 Application – Welding Excellence

Designed for welding jigs and fabrication fixtures, this clamp excels in:

  • Holding parts firmly during tack or full welding

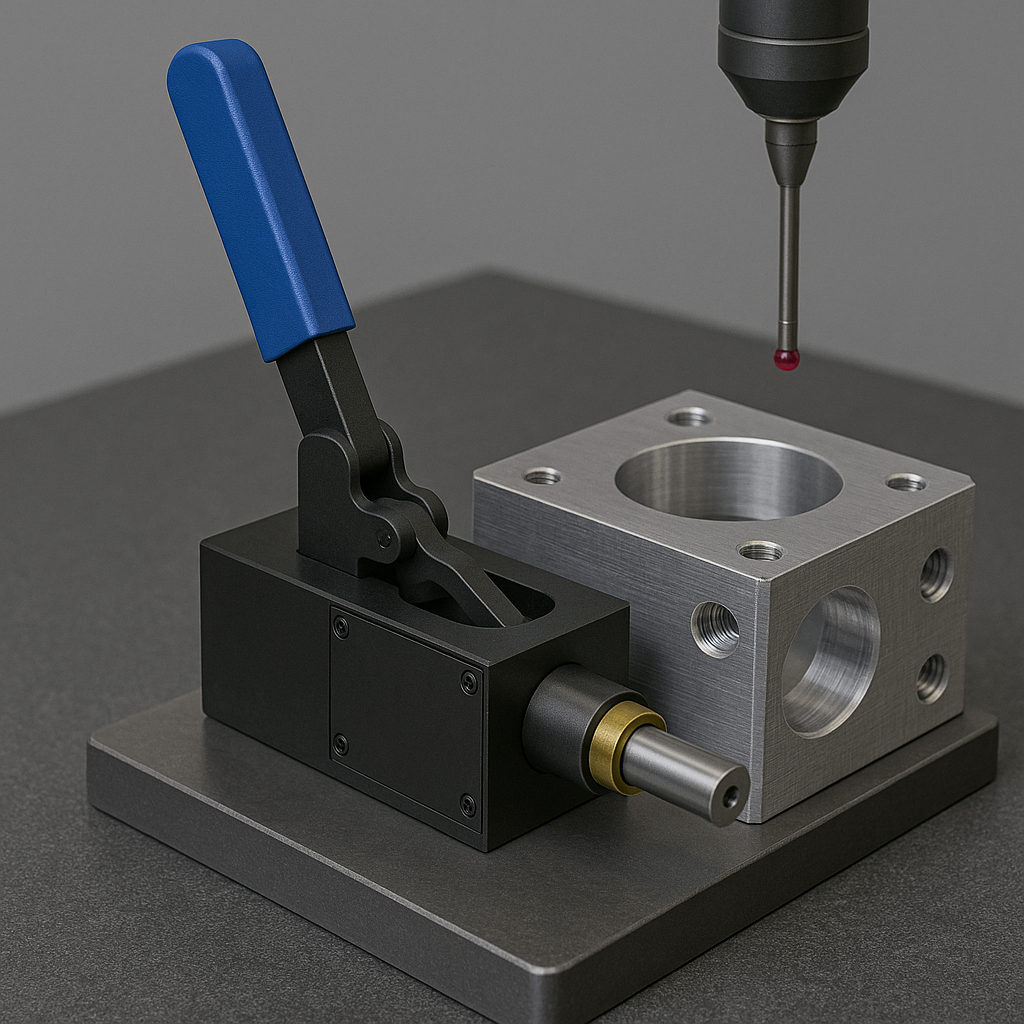

  • Precision part positioning on assembly stations

  • Repetitive operations where guided motion improves speed and accuracy

  • Preventing misalignment, slippage, or deformation during welds

Its push-pull mechanism with linear guided motion ensures that parts are held firmly and released with consistent accuracy, making it ideal for both manual and semi-automated welding environments.

This precision-guided clamp not only enhances weld quality but also boosts productivity, safety, and ergonomics—making it an essential addition to any professional welding setup.
