Description

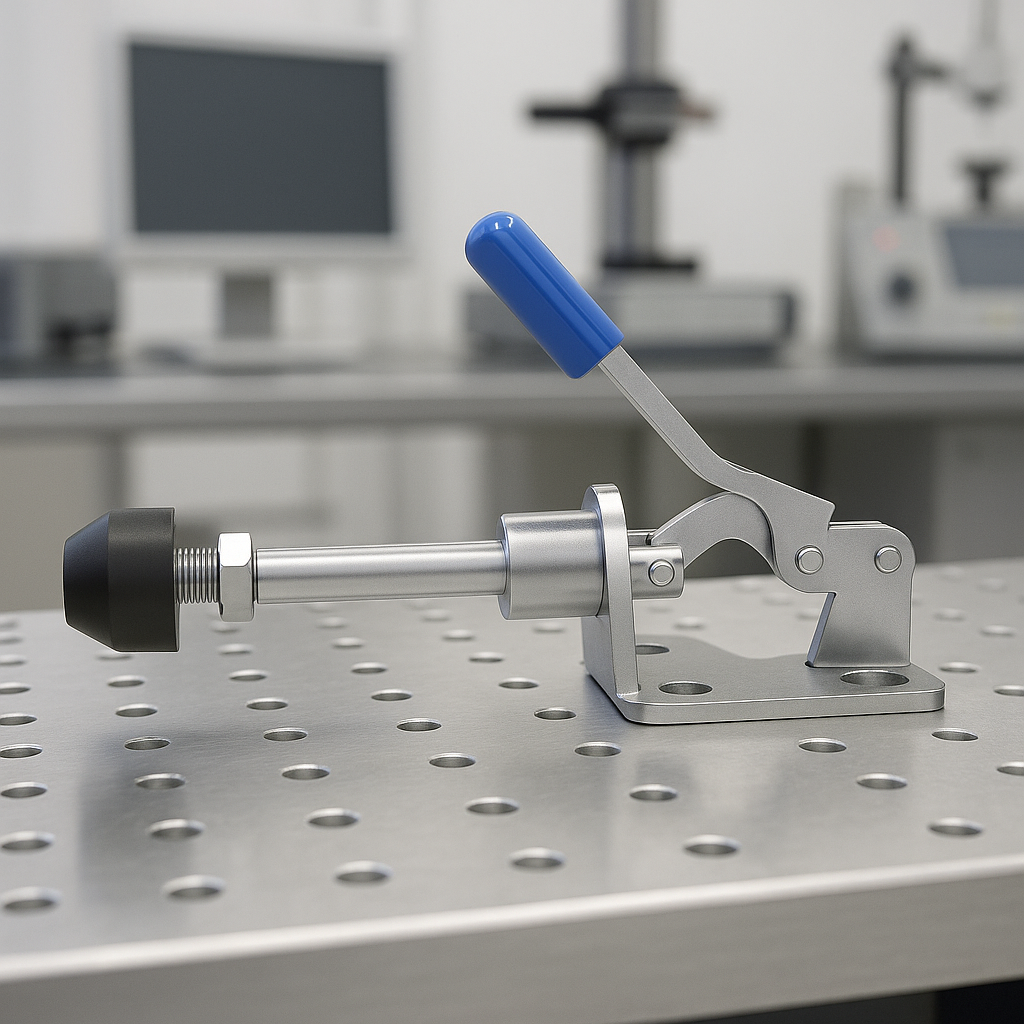

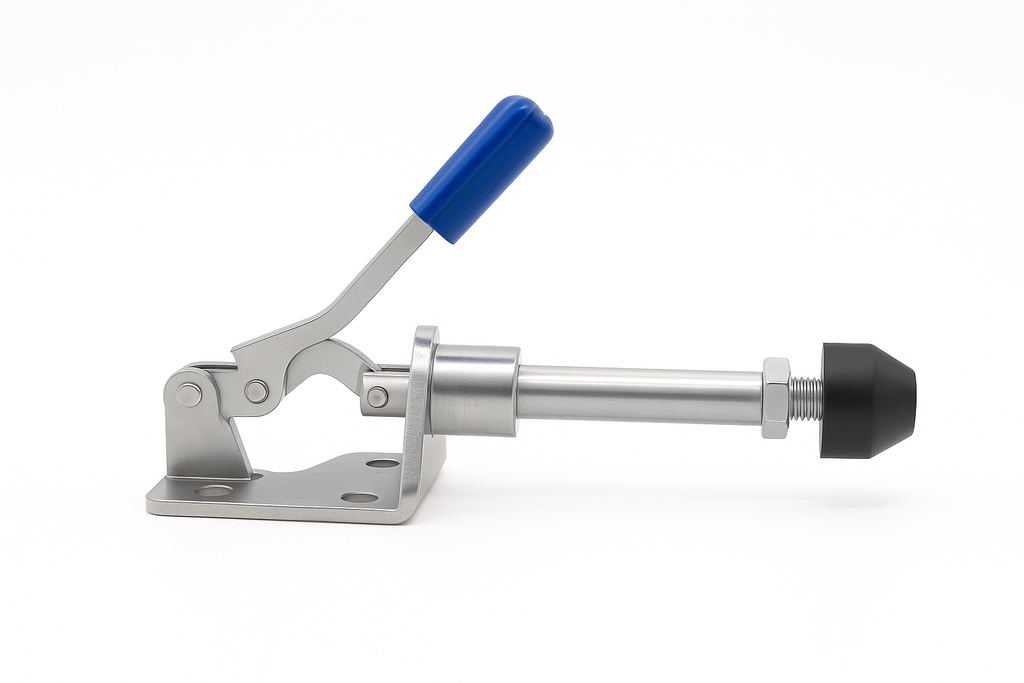

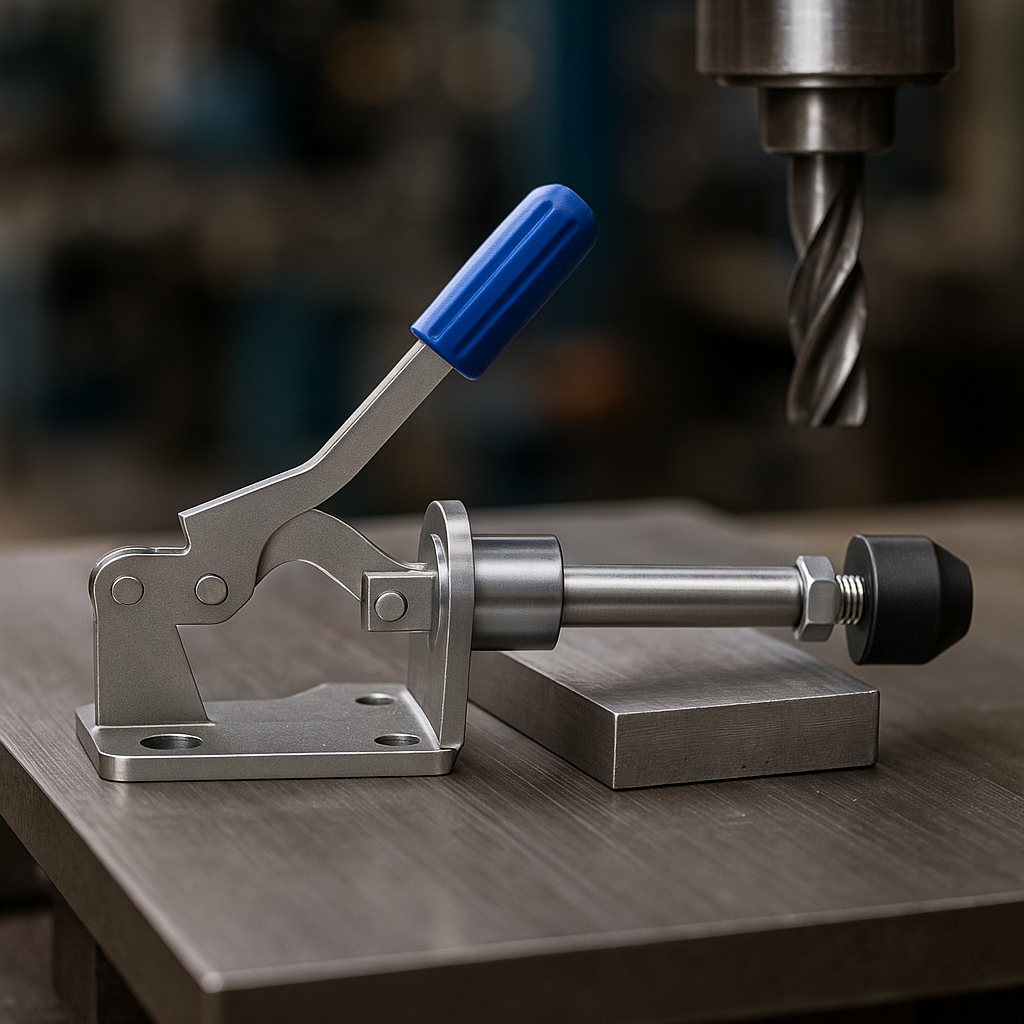

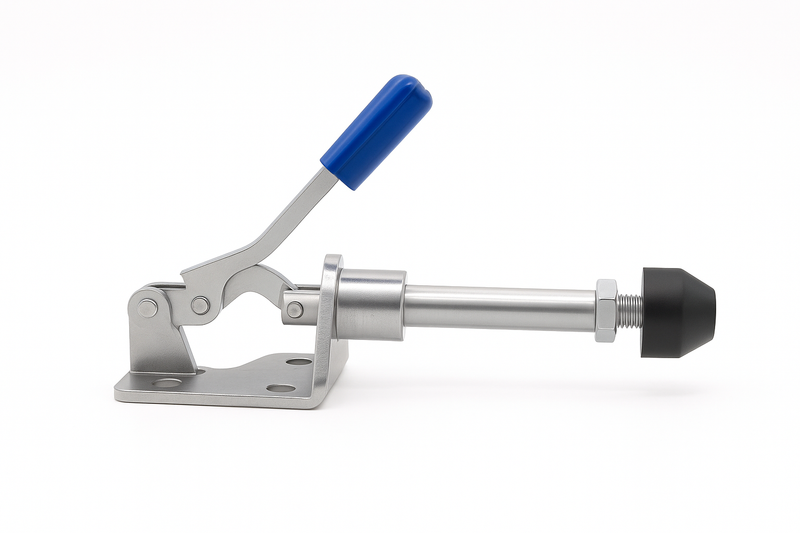

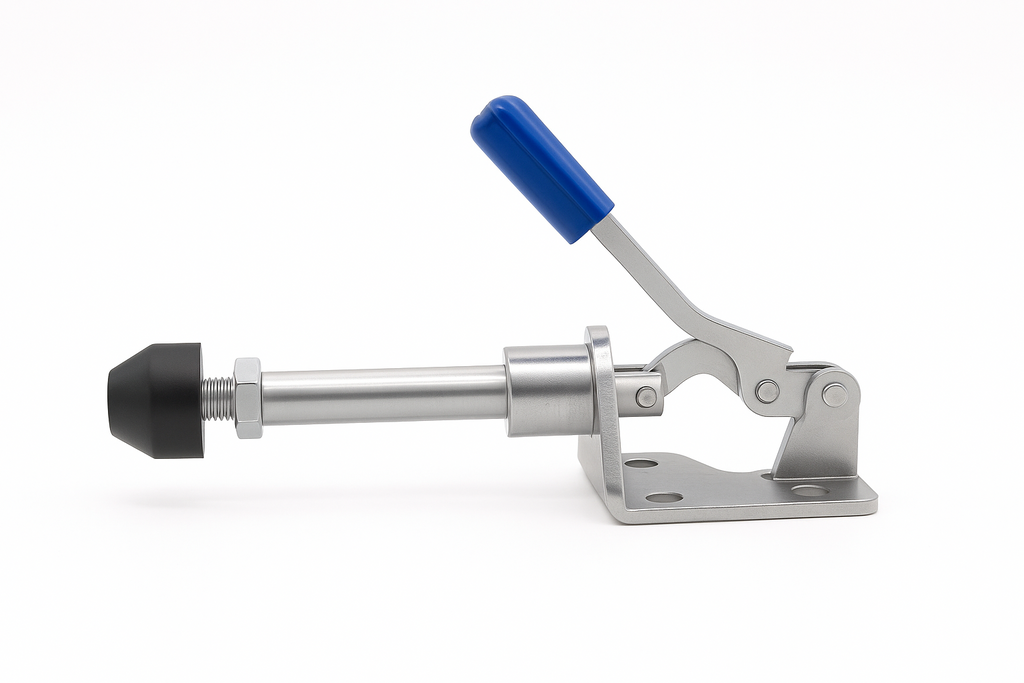

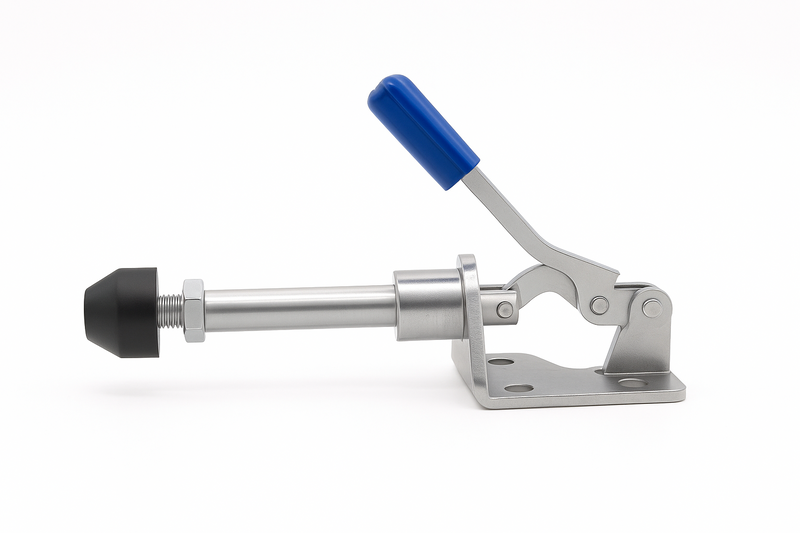

The Push Pull Toggle Clamp – Light Duty with short stroke mounting is engineered for compact, high-precision clamping in applications requiring quick setup and low to moderate holding force. Designed for flexibility and performance, this clamp is an ideal choice for light-duty jigs, fixtures, and assembly lines where fast, repeatable clamping is essential.

Material & Build Quality

Crafted from Stainless Steel BS.304 S15, this toggle clamp offers excellent resistance to corrosion, making it suitable for humid, industrial, or semi-outdoor environments. It is supplied with a set screw nut and set screw cover, ensuring secure clamping and consistent force over time.

Technical Specifications

Parameter Value
Unit Type Metric
Weight 0.050 kg
Holding Force 50 kg
Shaft Size (D) M4 x 12
Overall Height (H) 42 mm
Mounting Hole Dia (D1) 6.4 mm
Mounting Hole Dia (D2) 4.8 mm

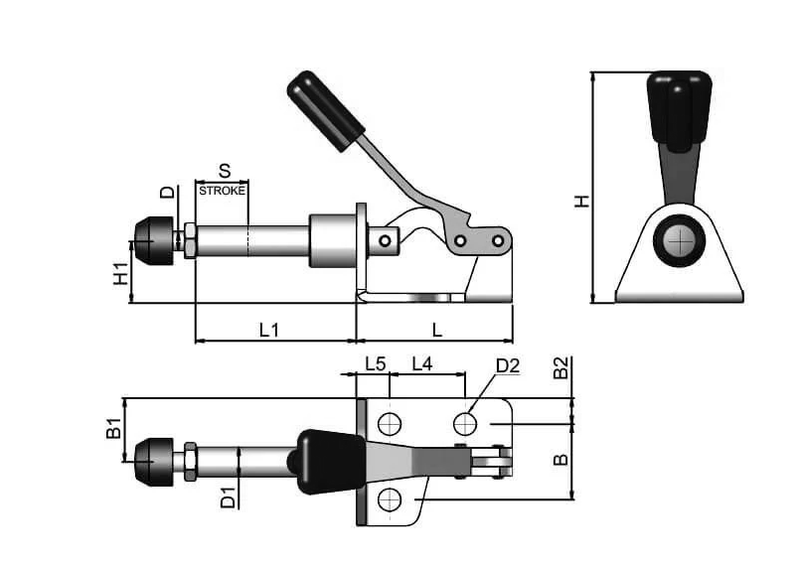

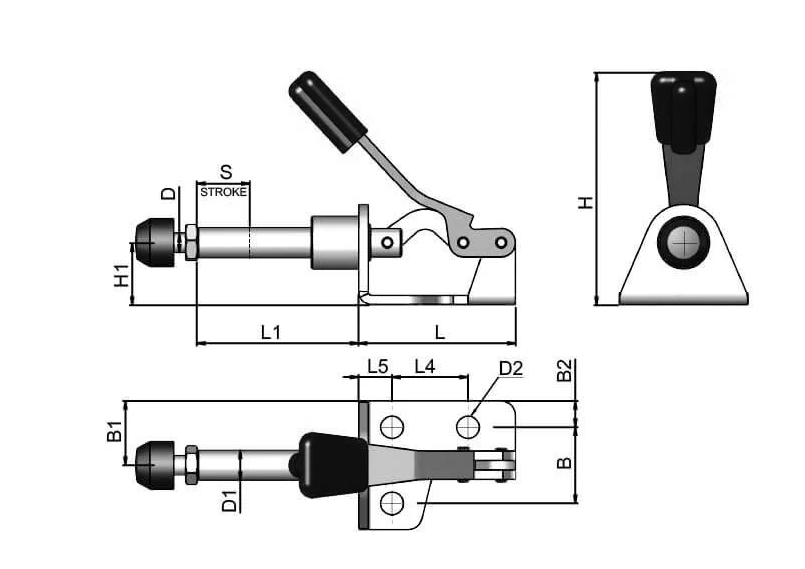

Dimensional Breakdown

Code Measurement (mm)
L 33
L1 34
L2 11
L3 8
L4 16
L5 7
H1 13
H2 7.5
S 16
B 16
B1 15.5
B2 7.5

Key Features

  • Quick Push-Pull Mechanism: Ideal for short stroke applications

  • Ergonomic Handle: Easy-grip blue handle for smooth operation

  • Compact Footprint: Efficient base mounting with minimal space usage

  • Rust-Resistant Construction: Long-lasting stainless steel body

Applications

  • Jigs & Fixtures in light machining

  • Woodworking & Plastic Fabrication

  • Inspection & Quality Control Stations

  • Small Electronics Assembly

  • Model Making and Light Crafting Tools

Whether you're setting up a CNC jig, a woodworking bench, or an electronics workstation, this Light Duty Push Pull Toggle Clamp delivers reliable clamping performance in a small, durable form.
