Description
-

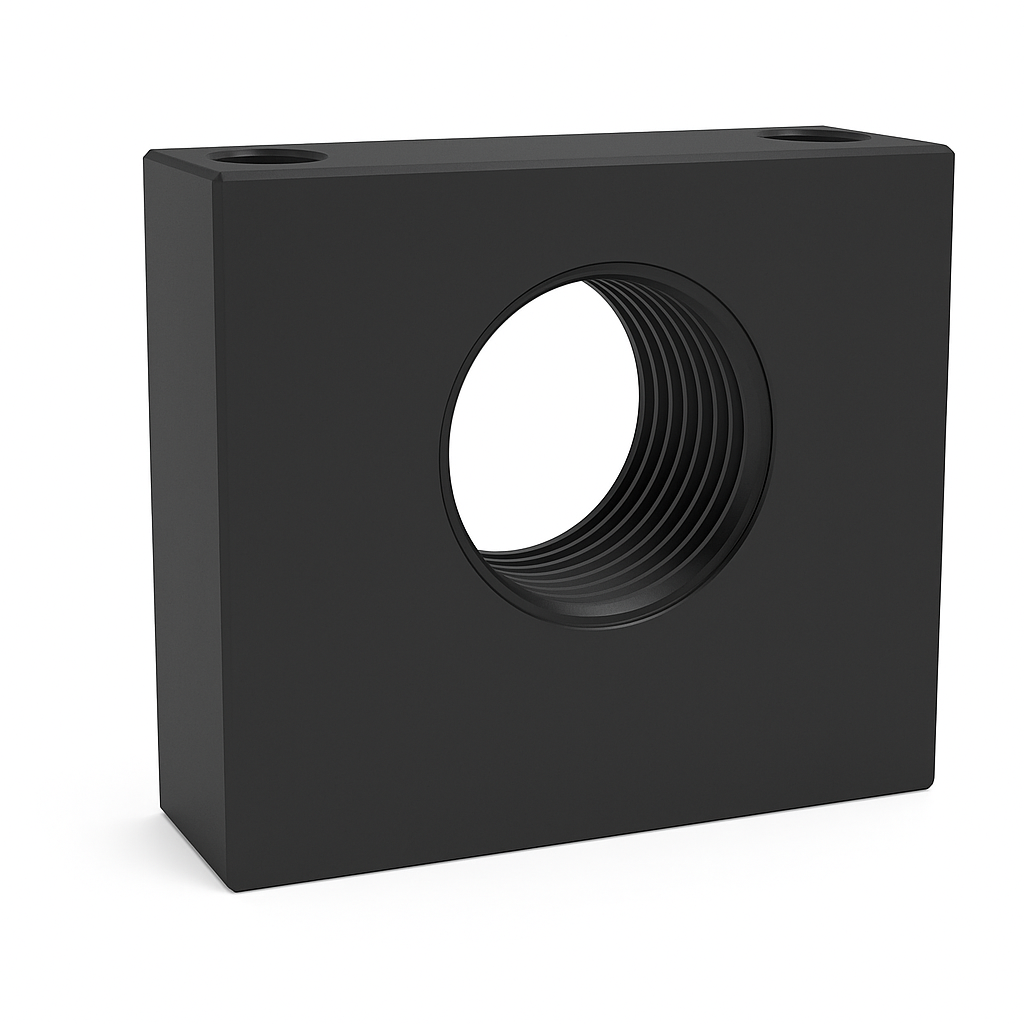

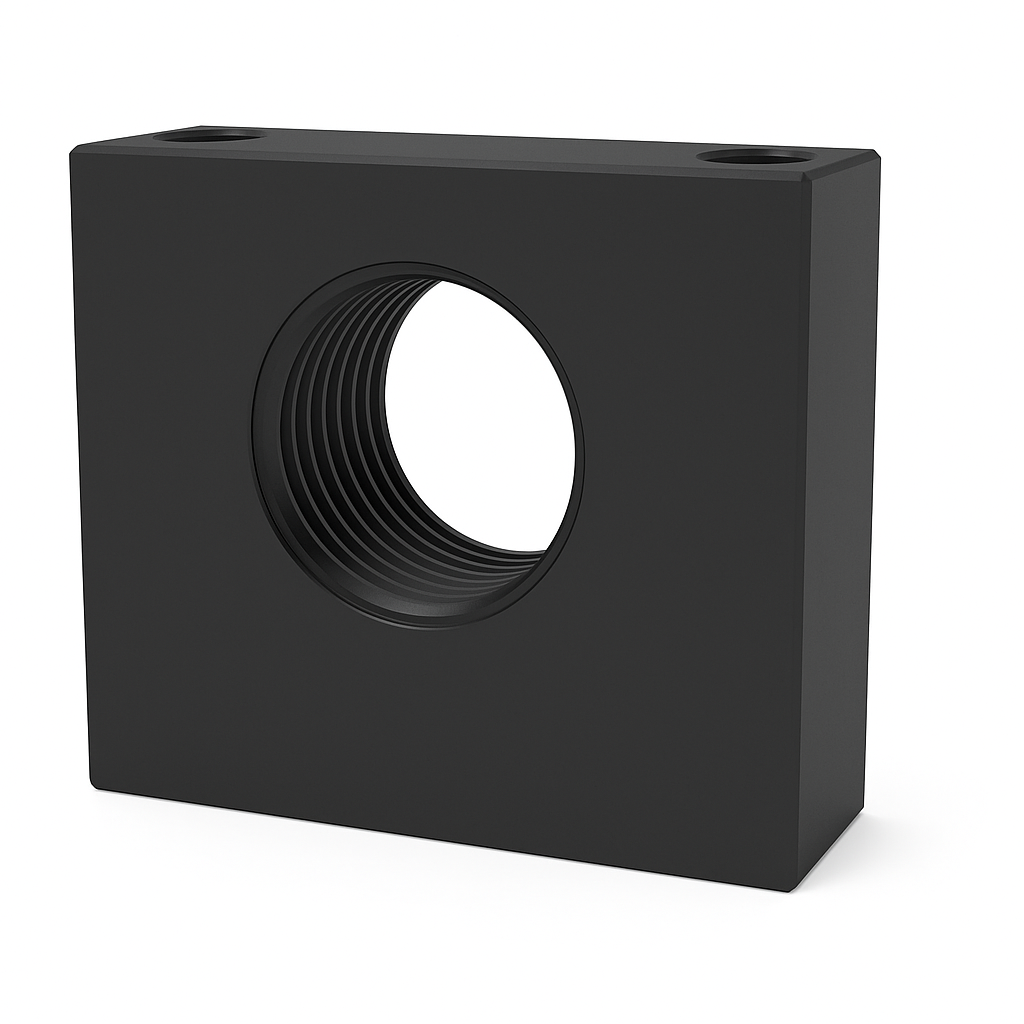

The Industrial Mounting Bracket is an essential accessory designed to support push-pull toggle clamps across a variety of workholding applications. Manufactured from chemical blackened steel, this robust bracket ensures high durability, corrosion resistance, and reliable performance in demanding industrial environments.
Material & Construction
-
Material: Steel, chemical black finish
-
Surface Treatment: Corrosion-resistant coating for long service life
-
Design: Threaded center bore (M16 or M24) to accommodate a range of clamping bolts
-
Unit System: Metric
This mounting bracket is engineered for high precision, enabling fast and stable installation of toggle clamps in CNC machining, welding jigs, automation systems, and woodworking fixtures.
Applications
-
CNC and milling fixtures
-

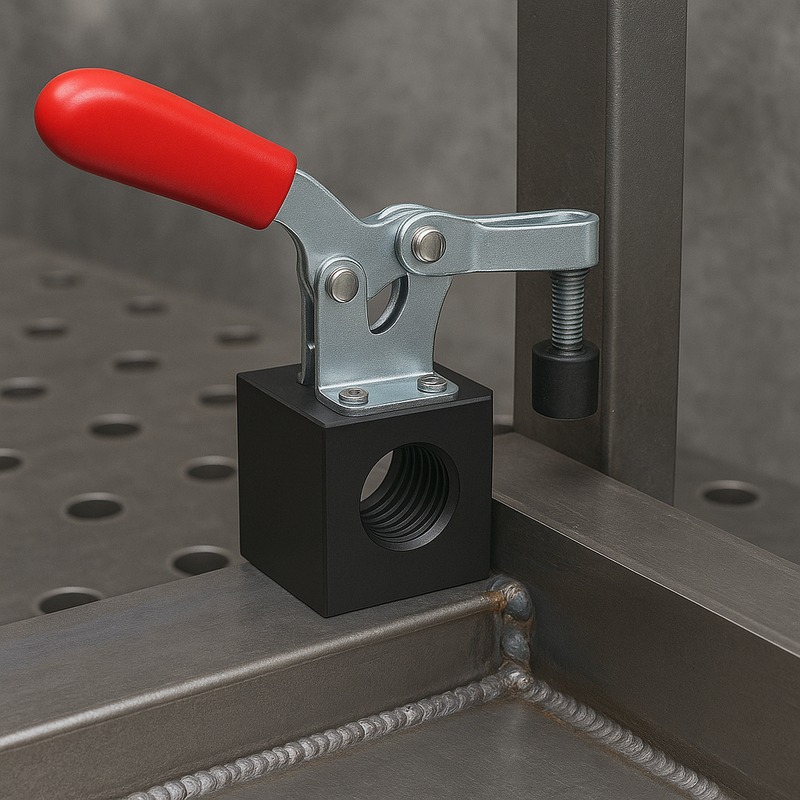

Welding and fabrication setups
-

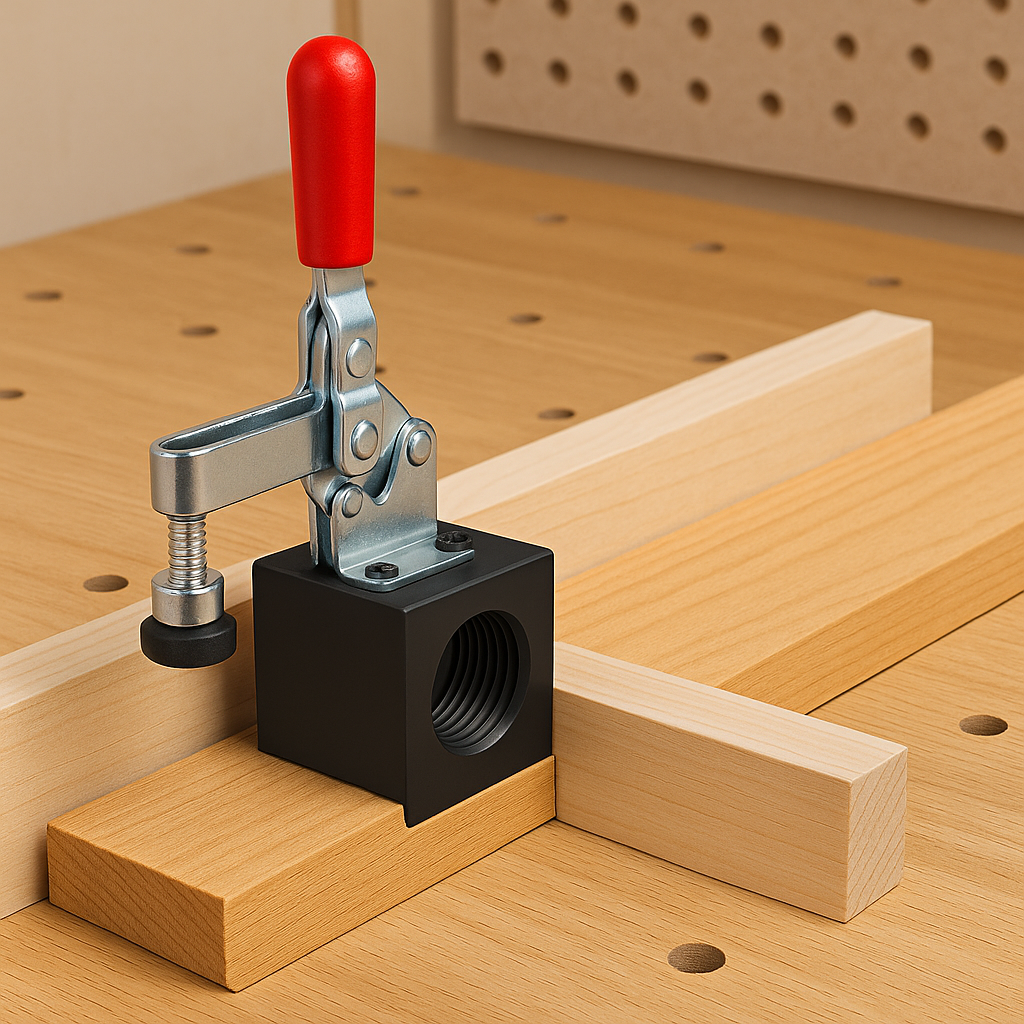

Woodworking and modular jigs
-
Packaging and robotic automation systems

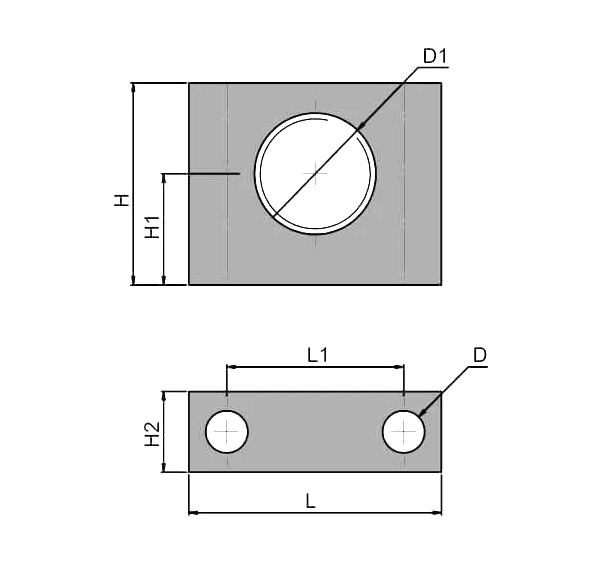

📏 Parameter Size Chart
Parameter Size 1 Size 2 L1 25 mm 35 mm L 35 mm 50 mm H2 12 mm 16 mm H1 18 mm 22 mm D 6.3 mm 8.3 mm H 30 mm 40 mm D1 M16 × 1.5 M24 × 1.5 Weight 0.030 kg 0.050 kg ✅ Conclusion
Available in two sizes, this bracket supports various clamp sizes and forces, offering maximum flexibility and reliability in industrial environments. The threaded center ensures precise alignment with clamp rods, making it an essential accessory for high-performance clamping operations.
-
