Description

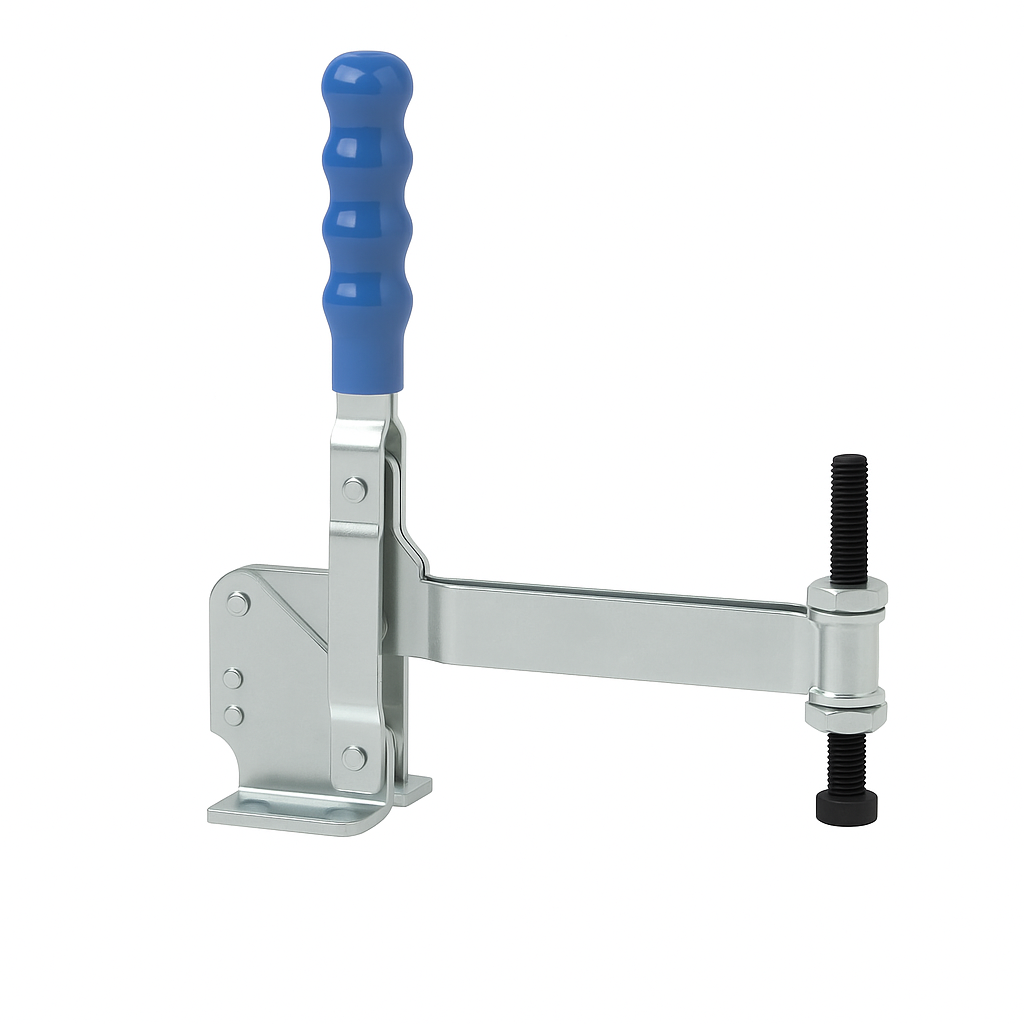

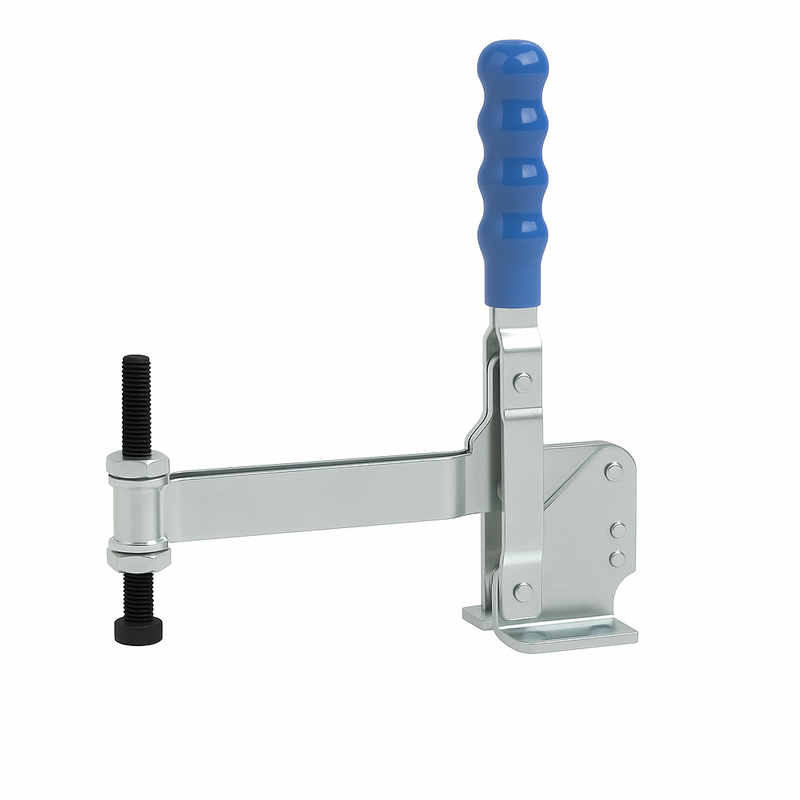

The Heavy-Duty Vertical Toggle Clamp with Adjustable Spindle is a robust and reliable clamping solution designed for high-performance industrial applications. Built for precision and repeatability, this toggle clamp is ideal for securing components in welding fixtures, CNC machining, assembly lines, and mould bases.

Material & Finish

  • Material: Mild Steel

  • Surface Treatment: Zinc Plated for enhanced corrosion resistance

  • Unit Type: Metric

Performance Specifications

  • Holding Capacity: 250 kg

  • Holding Force Range: Medium Duty (101–300 kg)

  • Arm Opening Angle: 100 degrees

  • Thread Size (Spindle): M8

  • Handle: Ergonomic grip for smooth operation

Applications

  • Welding Fixtures

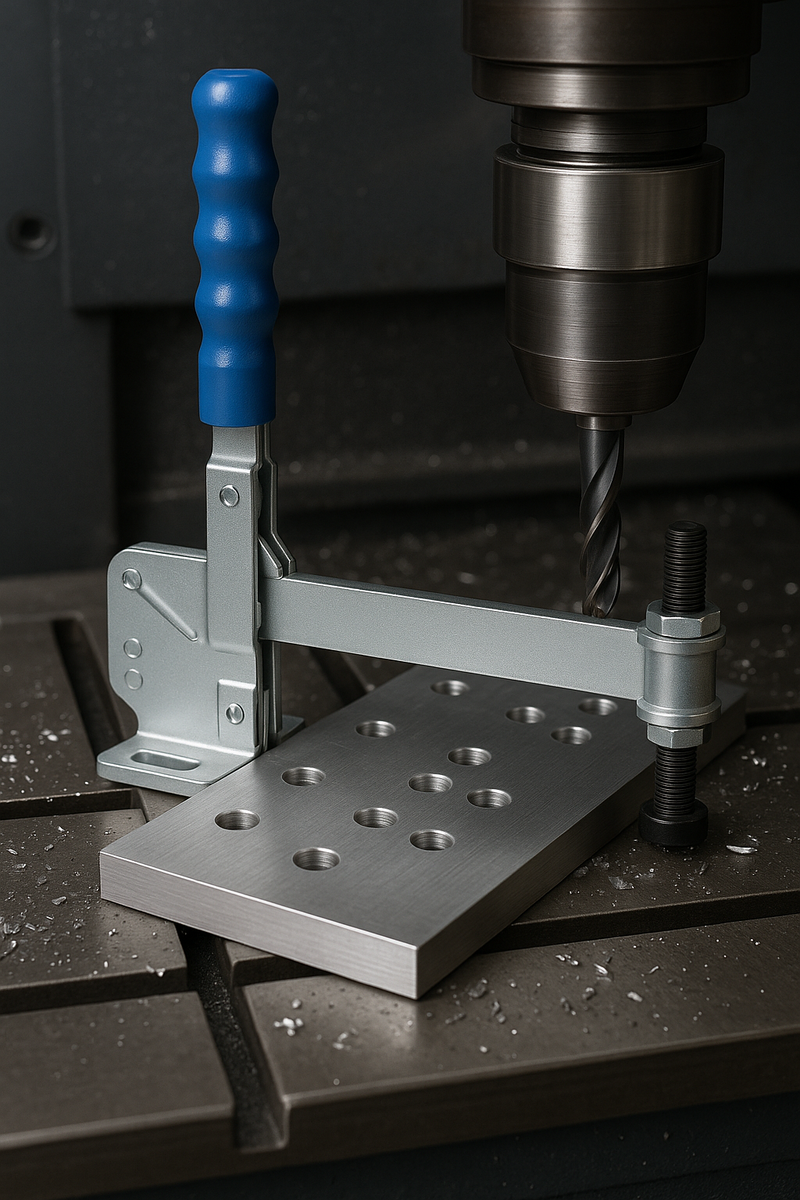

  • CNC Machining & Drilling

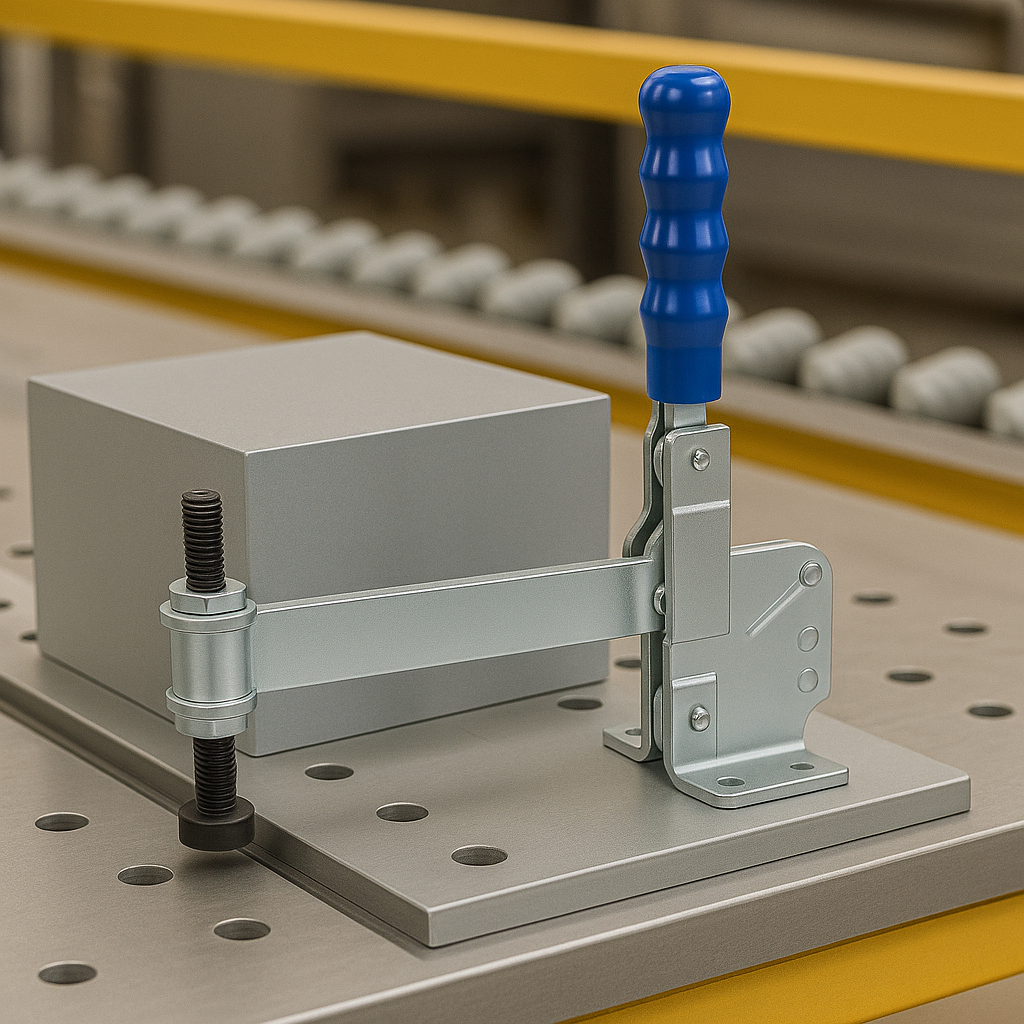

  • Assembly & Production Jigs

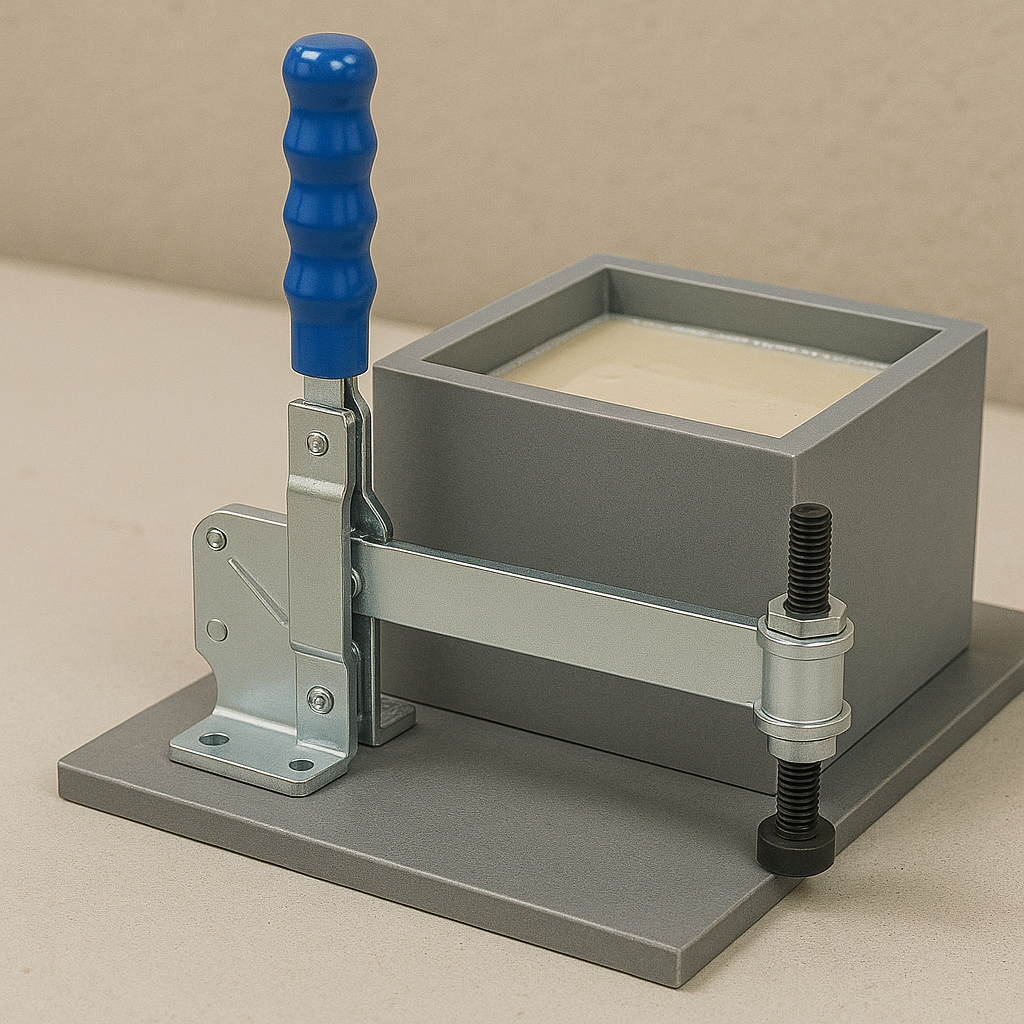

  • Moulding & Casting

  • Inspection and Testing setups

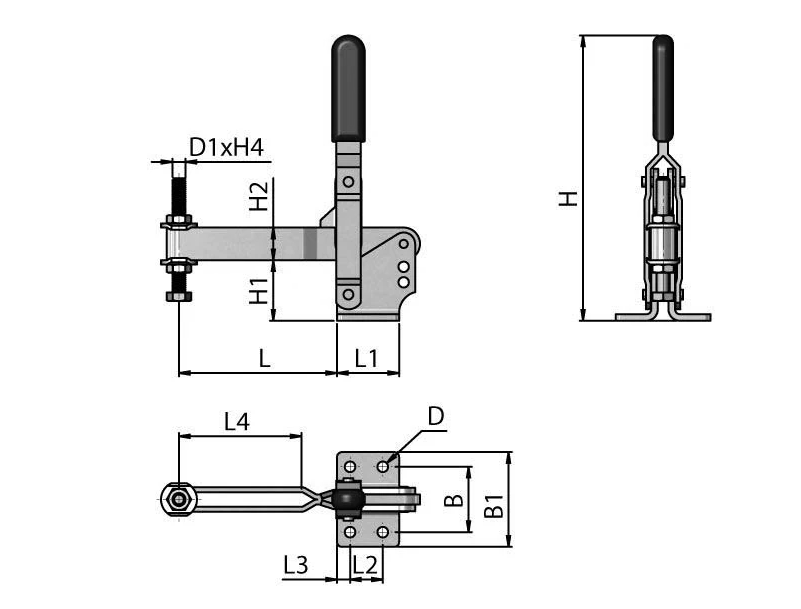

Size Chart (Dimensions in mm)

Parameter Size 1 Size 2 Size 3 Size 4
Weight (kg) 0.50 0.60 0.60 0.60
B 40 40 40 40
B1 57 57 57 57
D 7 7 7 7
D1 (Thread) M8 M8 M8 M8
H 167 167 167 167
H1 38 37 37 37
H2 20 20 20 20
H4 70 70 70 70
L — 137 187 237
L1 97 38 38 38
L2 38 20 20 20
L3 20 9.5 9.5 9.5
L4 74 75 125 175

✅ Why Choose This Clamp?

  • Reliable vertical locking force

  • Adjustable clamping spindle

  • Heavy-duty body for medium-force applications

  • Flexible size options for varied setups

  • Easy integration into jigs and production fixtures

This clamp is a go-to solution for any professional workshop or automated setup requiring secure, quick, and consistent clamping with excellent strength-to-size ratio.
