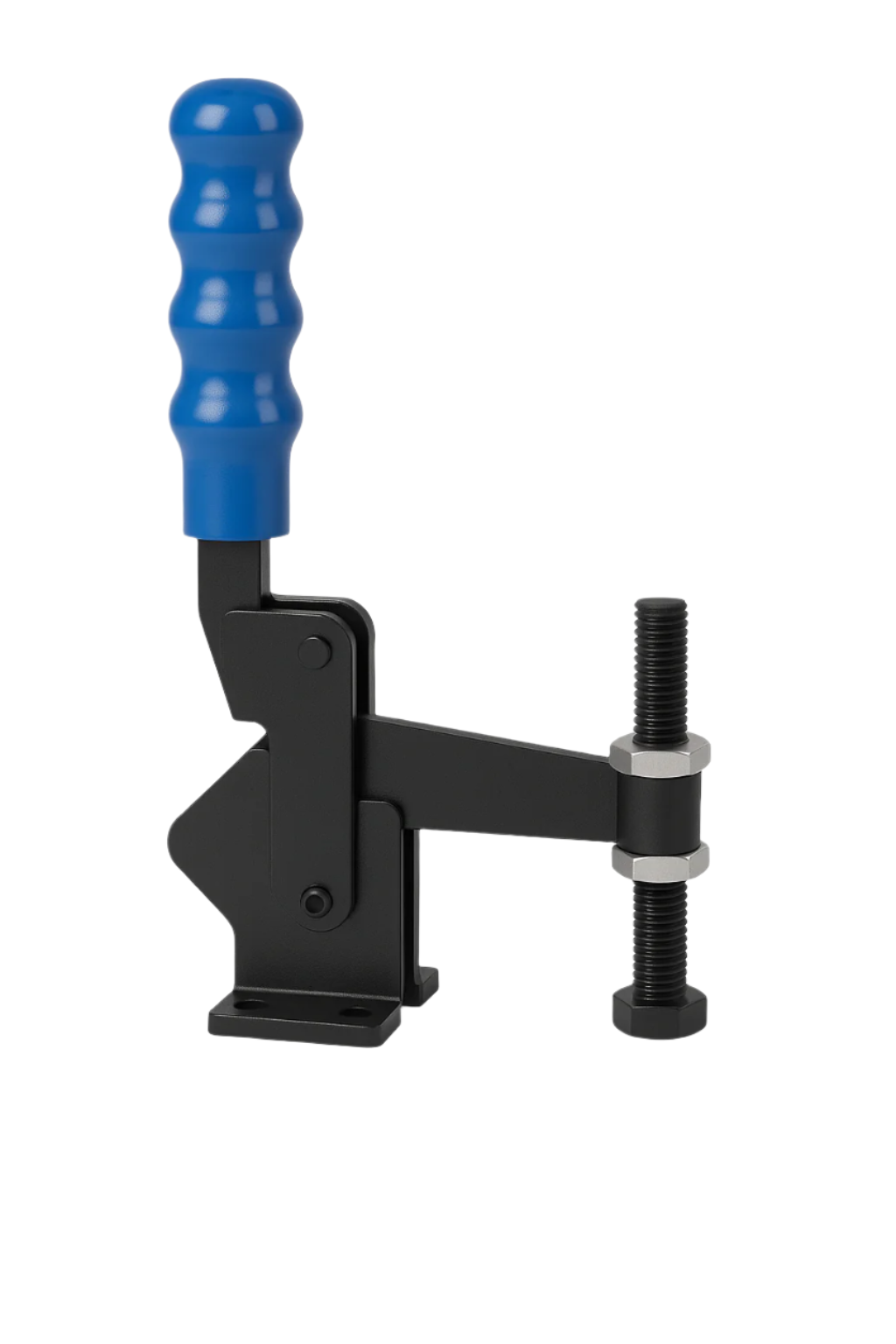

Description
The Heavy Duty Vertical Toggle Clamp with Fixed Spindle is designed for industrial-grade holding applications where strength, stability, and durability are non-negotiable. Built for heavy to very heavy duty tasks, this clamp provides a reliable, secure hold in manufacturing, assembly lines, jigs, and woodworking operations.
With a flanged base for easy mounting and a pre-positioned fixed spindle, it ensures a consistent clamping force and alignment every time. Its vertical locking action allows ergonomic operation, while the chemical black finish offers added corrosion resistance.

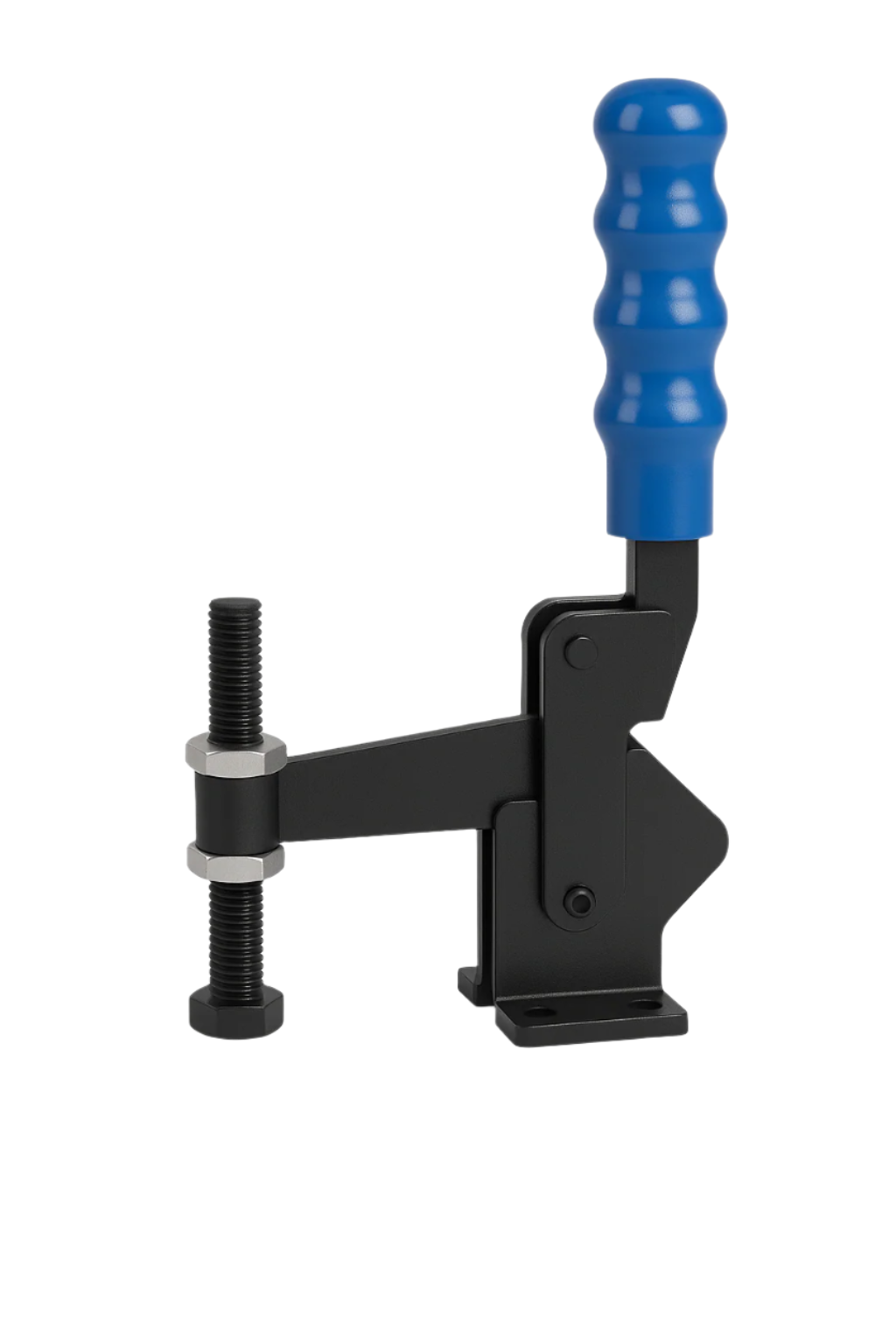

Key Features
-
Material: Premium-grade steel
-
Finish: Durable chemical black coating for corrosion protection
-
Mounting Base: Flanged base design for stability
-
Spindle: Fixed position for repeatable clamping
-
Supplied with: Set screw and nuts for easy installation
-
Arm Opening: Wide 175° range for versatile operation
Applications
-

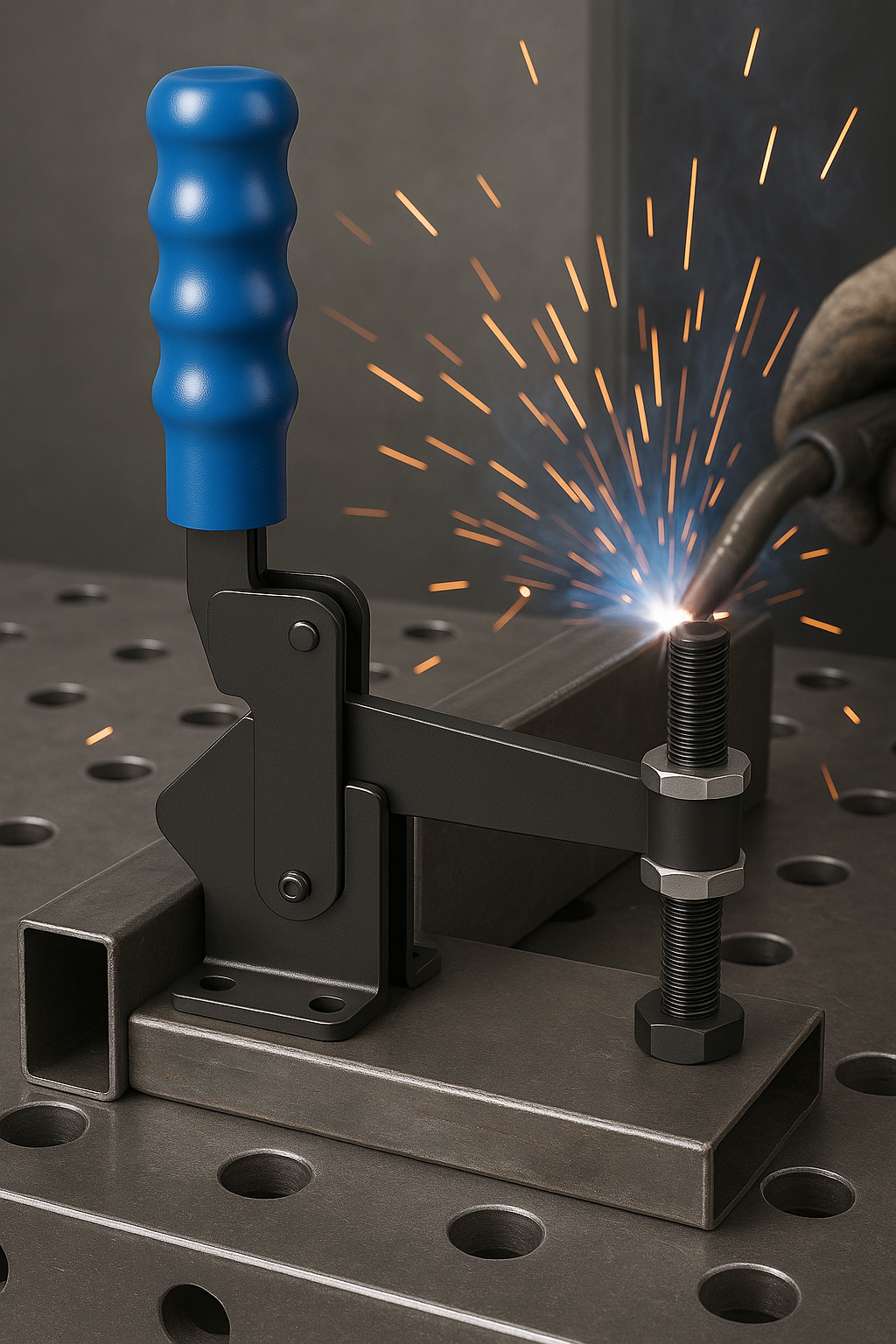

Welding and fabrication fixtures
-

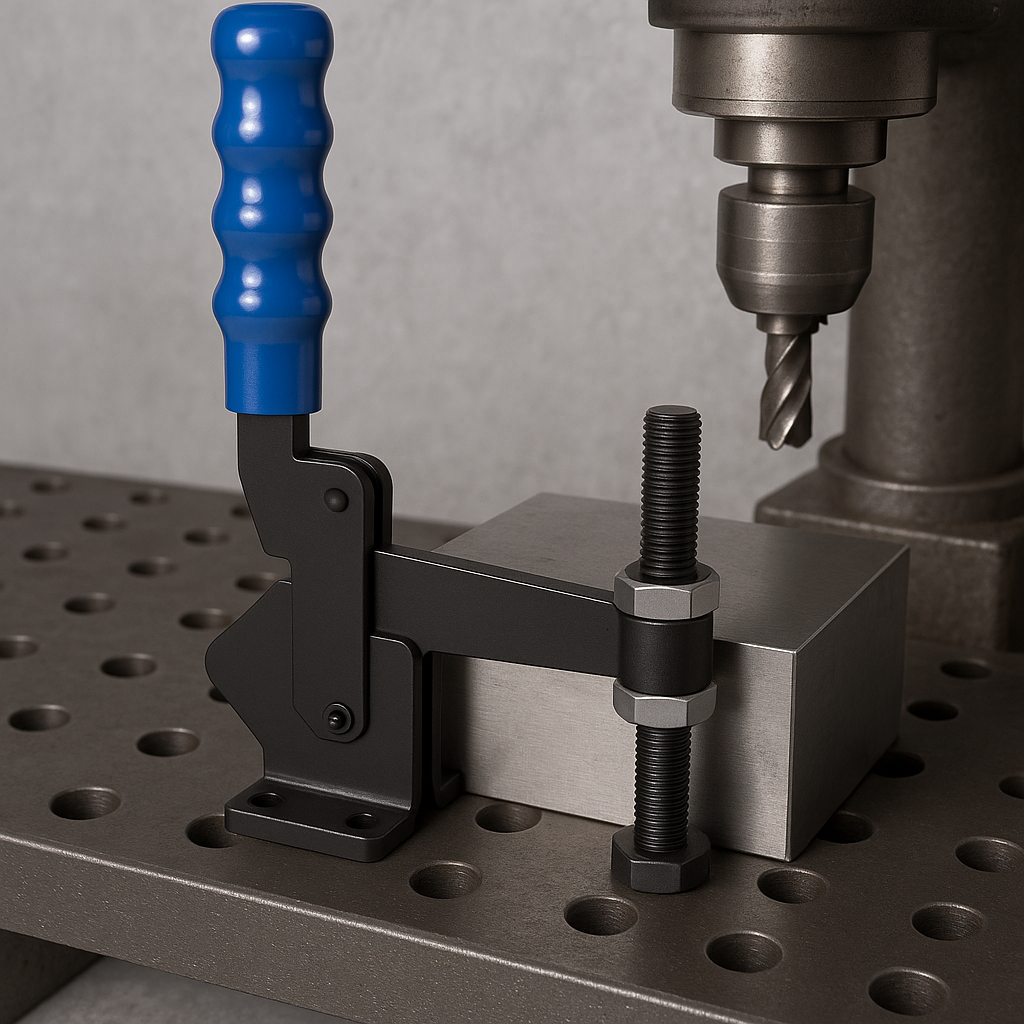

Wood and metal jig systems
-
Precision assembly stations
-
Automotive and aerospace workholding
-
Heavy-duty clamping in industrial setups
Technical Specifications

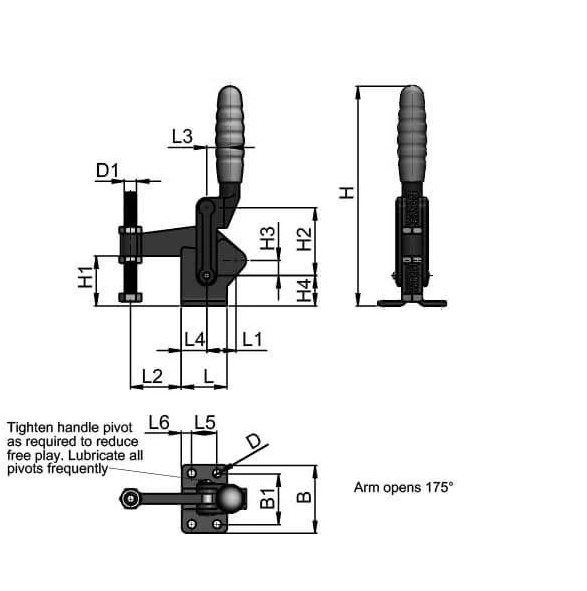

Parameter | Size 1 | Size 2 | Size 3 |
---|---|---|---|
Weight (kg) | 1.10 | 1.80 | 3.90 |
Arm Opening | 175° | 175° | 175° |
B | 67 | 88 | 100 |
B1 | 50 | 60 | 75 |
D | 8.3 | 8.3 | 10.3 |
D1 | M12 | M12 | M16 |
H | 215 | 250 | 295 |
H1 | 52 | 60 | 75 |
H2 | 67 | 82 | 105 |
H3 | 15 | 19 | 23 |
H4 | 30 | 36 | 46 |
Holding Capacity (kg) | 700 | 1200 | 2400 |
Holding Force (kg) | 700 | 1200 | 2400 |
Force Range | 300–999 kg | 1000+ kg | 1000+ kg |
L | 45 | 50 | 63 |
L1 | 29 | 36 | 44 |
L2 | 50 | 60 | 75 |
L3 | 23 | 25 | 35 |
L4 | 25 | 25 | 40 |
L5 | 25 | 30 | 40 |
L6 | 10 | 10 | 12 |
Conclusion
Whether you're clamping down heavy parts in a fixture or securing materials during production, this vertical toggle clamp delivers dependable strength and longevity. With a variety of size options, it's adaptable to light industrial setups as well as demanding, high-force environments.
