Description

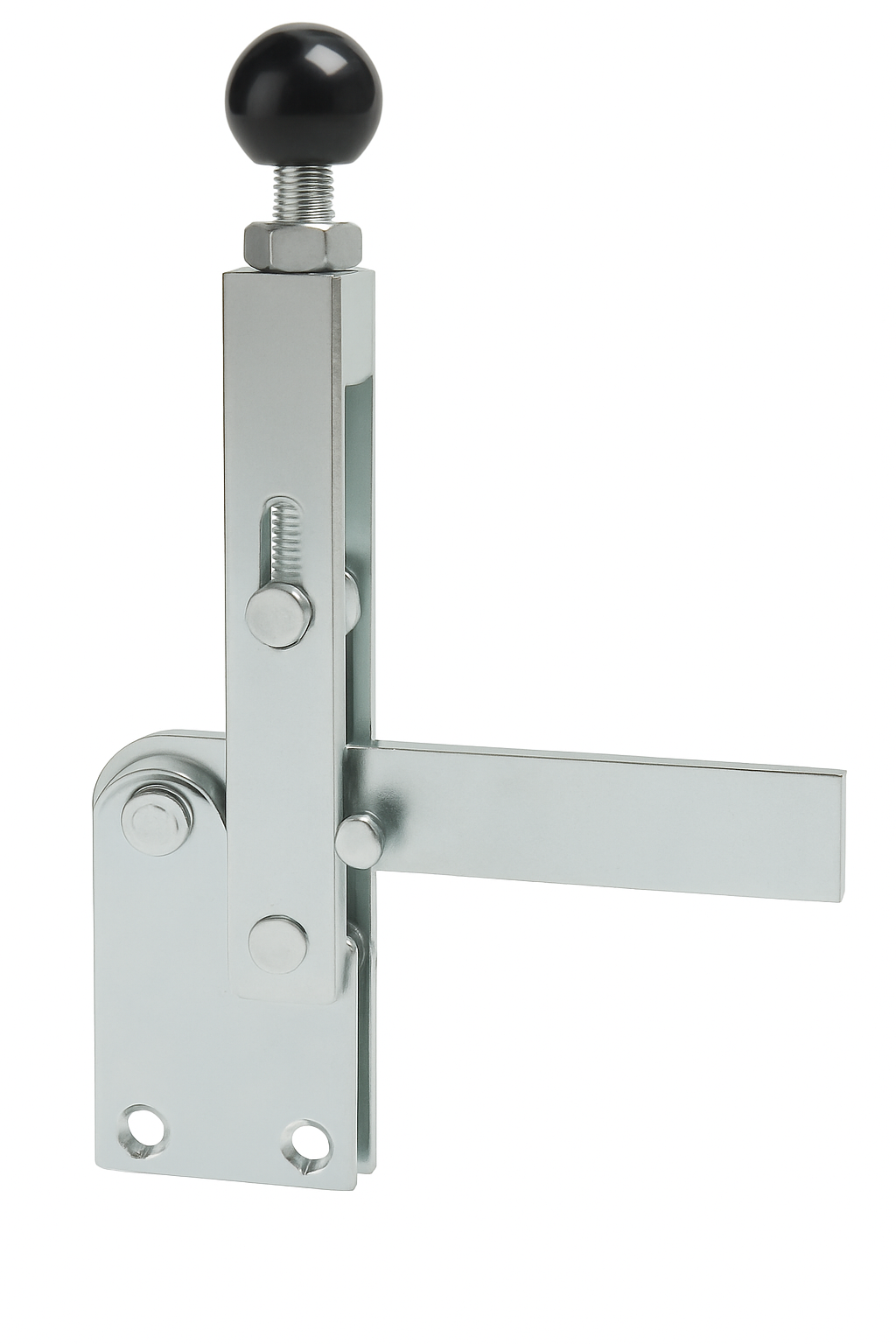

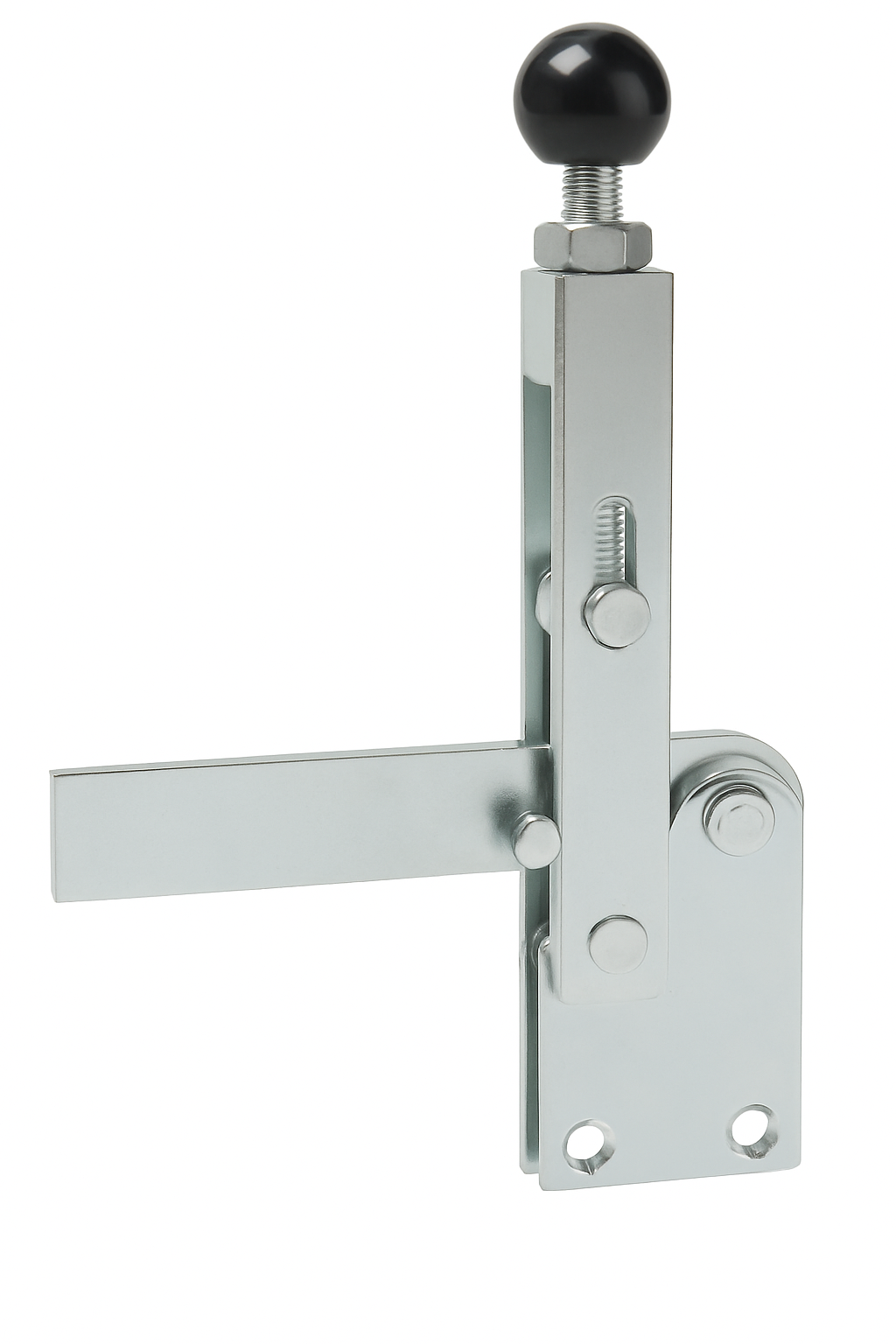

The High-Speed Toggle Clamp – Adjustable Flange Mounting is a precision-engineered tool designed for efficient and repeatable clamping across a wide variety of industrial applications. Crafted for reliability and speed, this medium-duty clamp delivers exceptional holding strength with a compact footprint, making it ideal for operations requiring fast cycle times and consistent pressure.

🏗️ Material & Construction

  • Material: Mild Steel

  • Finish: Zinc Plated (for corrosion resistance and durability)

  • Mounting Style: Flange Mount

  • Unit Type: Metric

  • Stock Availability: Fewer than 10 units – limited stock

Built with zinc-plated mild steel, this clamp combines strength and resilience while resisting oxidation in demanding environments such as welding shops and fabrication lines.

⚙️ Holding Force & Capacity

  • Duty Class: Medium Duty

  • Holding Force Range: 101 - 300 Kg

  • Adjustability: Vertical travel via threaded spindle and sliding bar

These clamps are engineered for consistent and secure holding, minimizing workpiece shift during welding, machining, or assembly.

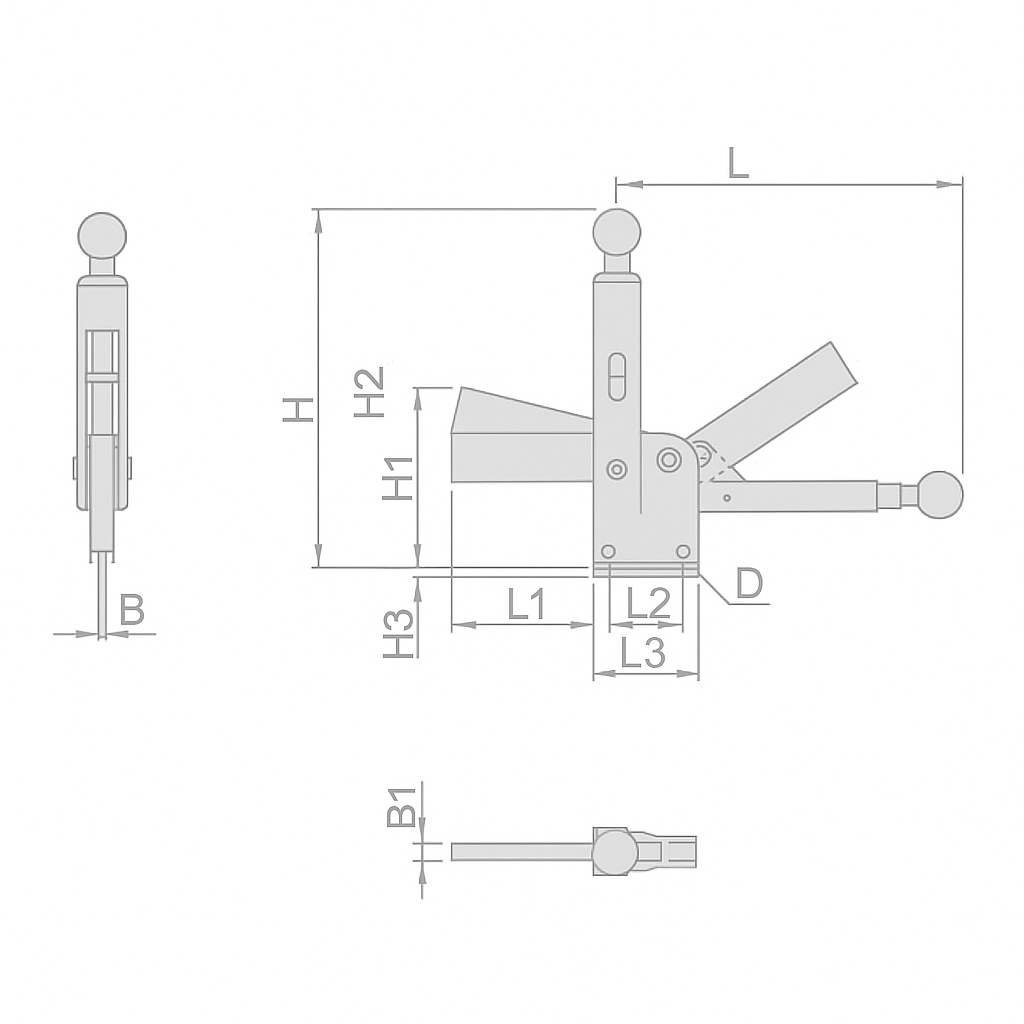

📐 Parameter Size Chart

Parameter Size 1 Size 2 Size 3 Size 4
Weight (kg) 0.34 0.35 0.50 0.50
B (mm) 6.35 6.35 6.35 6.35
B1 (mm) 4.8 4.8 4.8 4.8
D (mm) 6.5 6.5 7.0 7.0
H (mm) 166.5 166.5 204 204
H1 (mm) 37.3 37.3 36.5 36.5
H2 (mm) 19 19 25.4 25.4
H3 (mm) 5.5 5.5 11.1 11.1
Holding Capacity (kg) 175 150 233 208
Holding Force (kg) 175 150 233 208
L (mm) 145 145 176 176
L1 (mm) 65 122 65 122
L2 (mm) 25.4 25.4 50.8 50.8
L3 (mm) 38.1 38.1 70 70

Each size variant offers distinct reach and force profiles, providing users with flexible solutions for different clamping scenarios.

🧰 Applications

The clamp is ideal for the following industries and tasks:

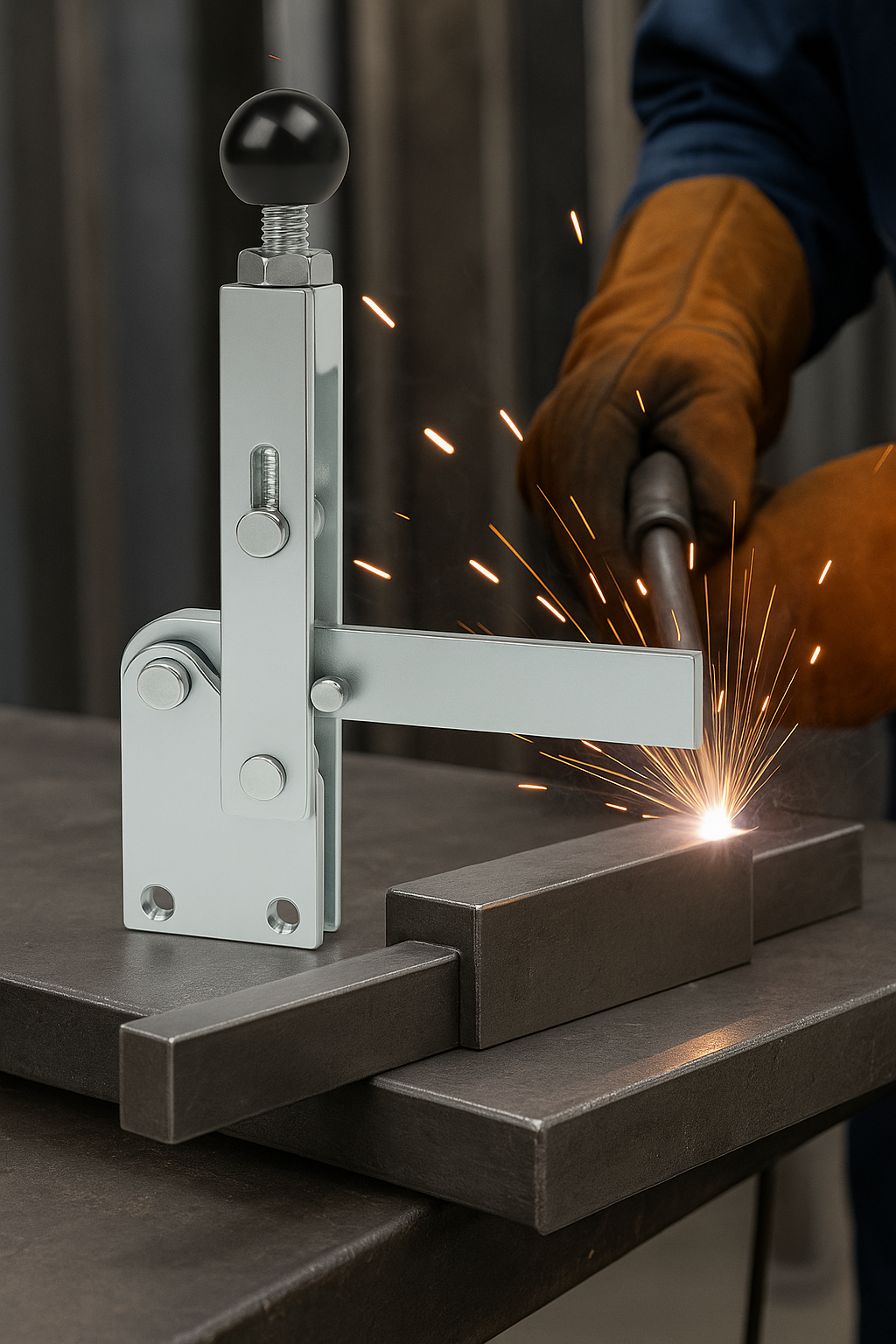

  • Welding Fixtures: Holds metal components in precise alignment for welding joints.

  • Fabrication Jigs: Assists in repeated fabrication and cutting operations.

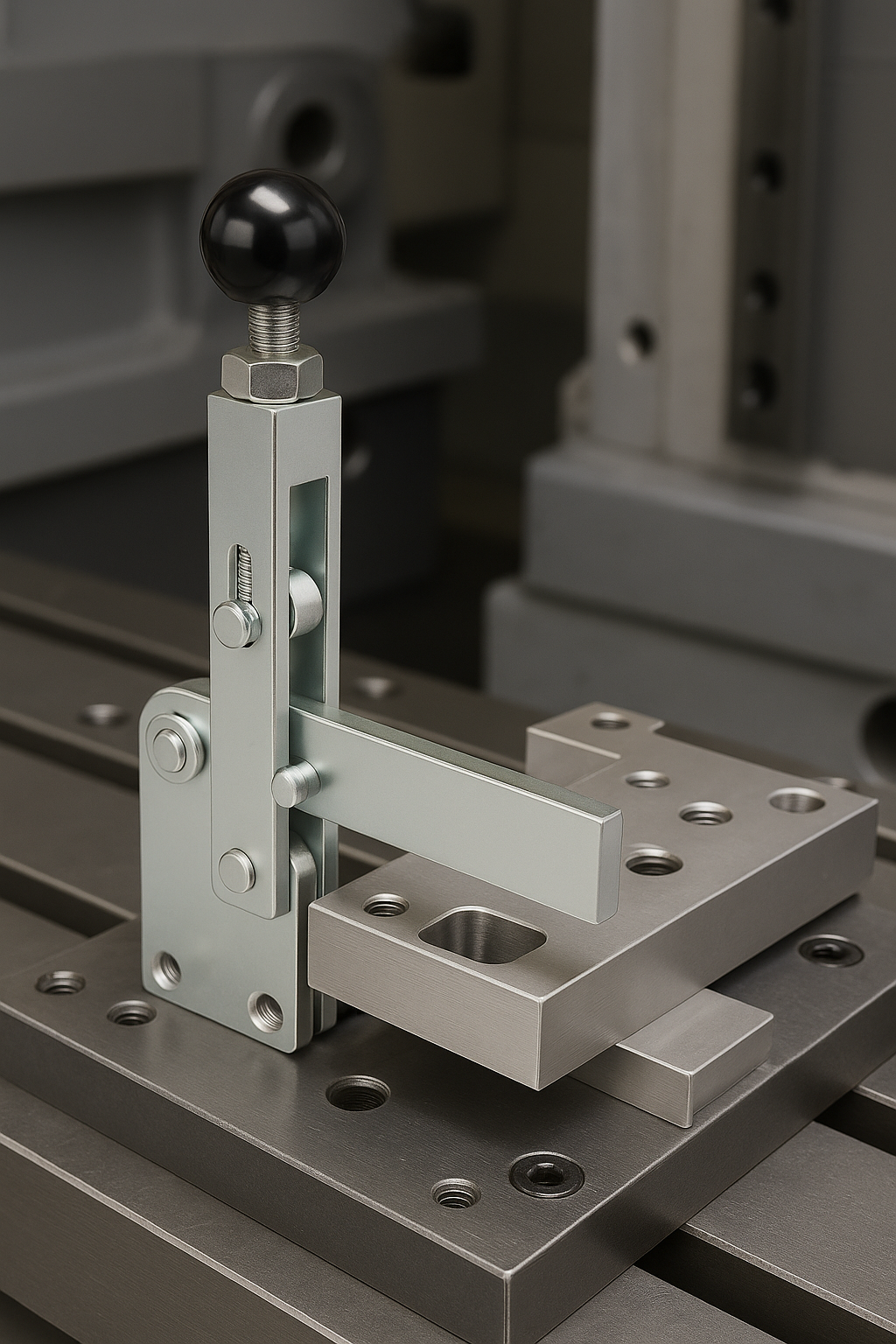

  • Machining & Milling Setups: Ensures stable workholding on CNC or manual machines.

  • Assembly Lines: Perfect for batch production and rapid part positioning.

  • Woodworking Fixtures: Provides rigid and flat hold-down during glue-ups or cutting.

This clamp merges performance with adaptability, making it a preferred choice among professionals in metalworking, woodworking, automotive assembly, and precision fabrication. Due to its limited stock, early ordering is highly recommended.
