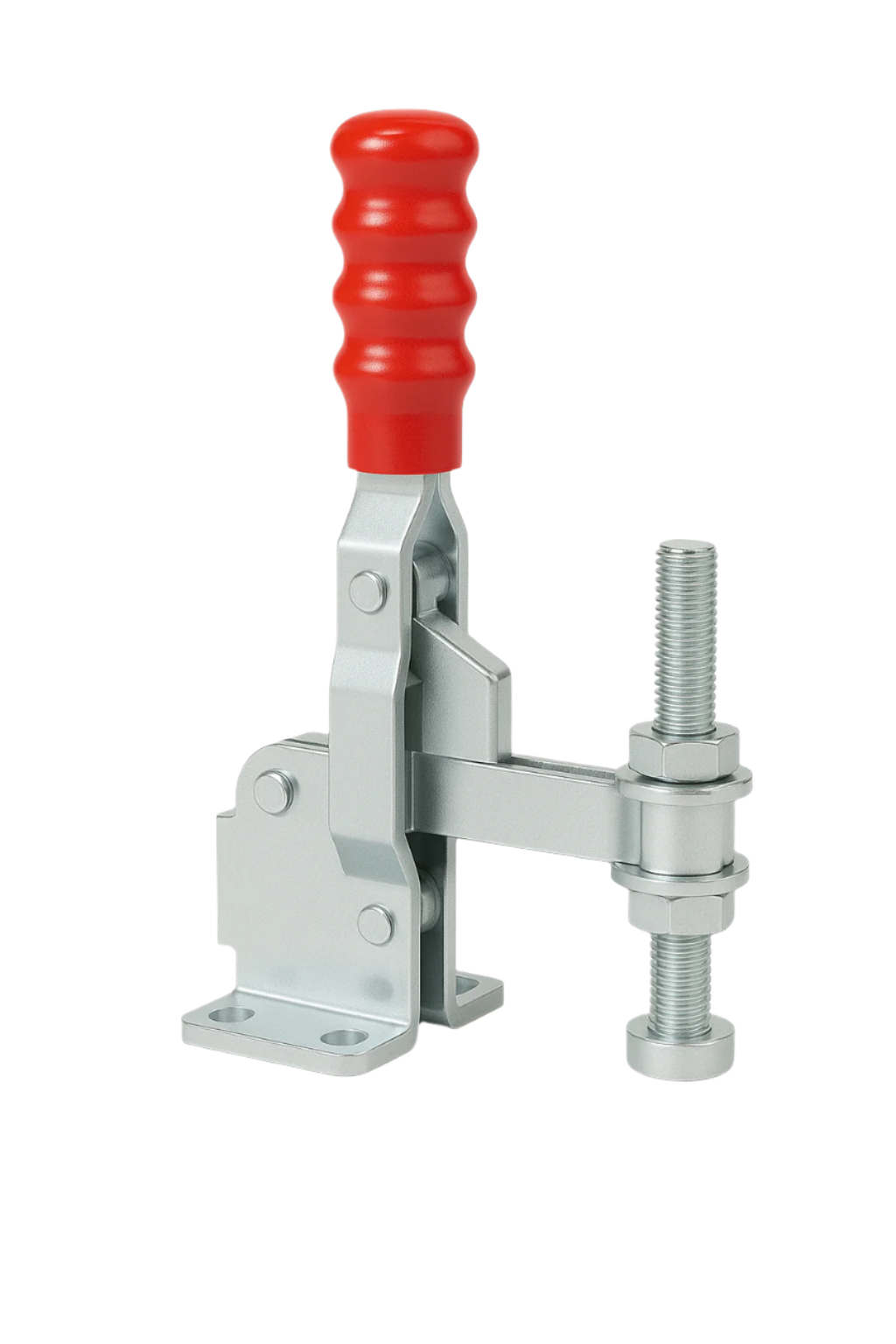

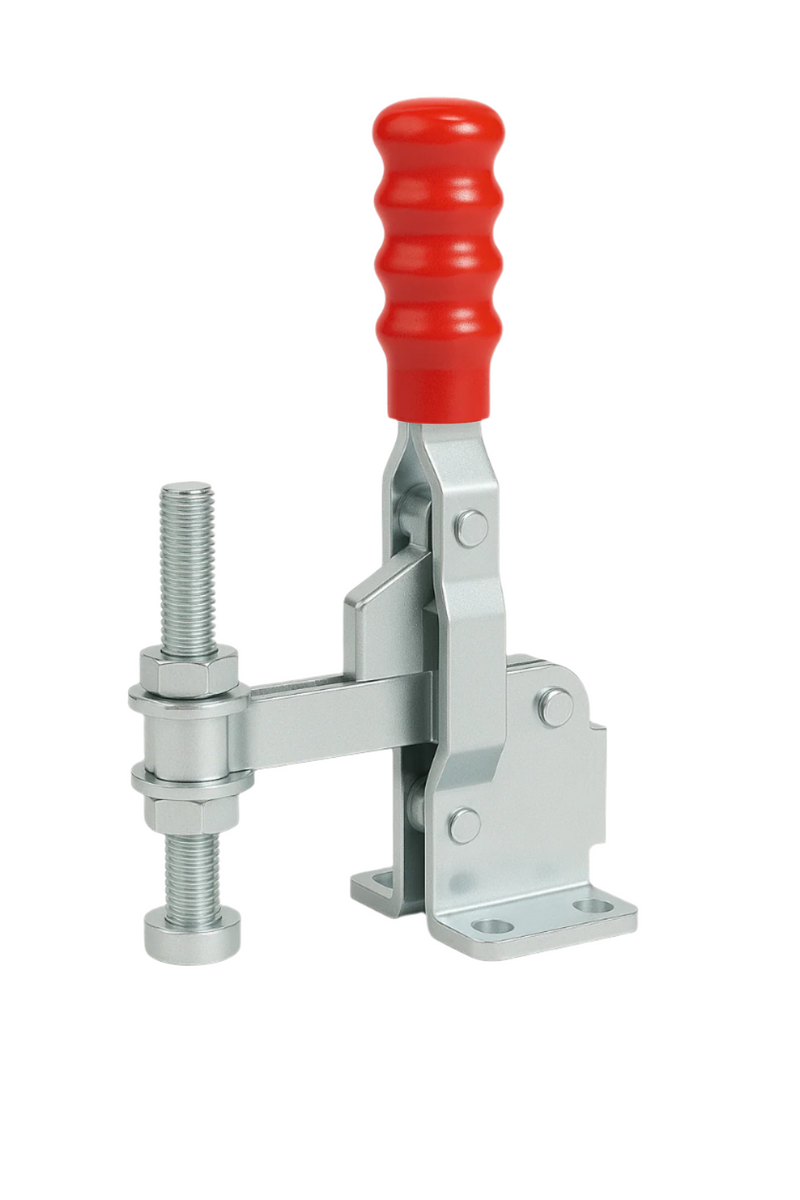

Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Roll over image to zoom in Click on image to zoom
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle
Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle

Industrial Vertical Toggle Clamp – Red Handle, Fixed Base Spindle

Price:
£18.99

In stock, ready to ship

In stock, ready to ship

Trusted by Industry Professionals

Rated 4.5 stars Rated 4.5 on Trustpilot
Trustpilot

Our Clients

Description

The Industrial Vertical Toggle Clamp with a red oil-resistant handle, zinc-plated steel body, and fixed base spindle offers a reliable and efficient solution for clamping in industrial, workshop, and assembly line environments. Designed for both light and medium-duty tasks, it ensures high clamping force with ergonomic handling.

🧱 Material & Build Quality

  • Body: Made of mild steel, zinc-plated to resist corrosion and ensure long-term durability.

  • Handle Grip: Covered with red vinyl, designed to resist oil and enhance grip comfort and control.

📏 Unit Type

  • Metric System – Ideal for global industrial use and consistent fitting with M6 or M8 fasteners depending on size.

⚙️ Applications

This toggle clamp is commonly used in:

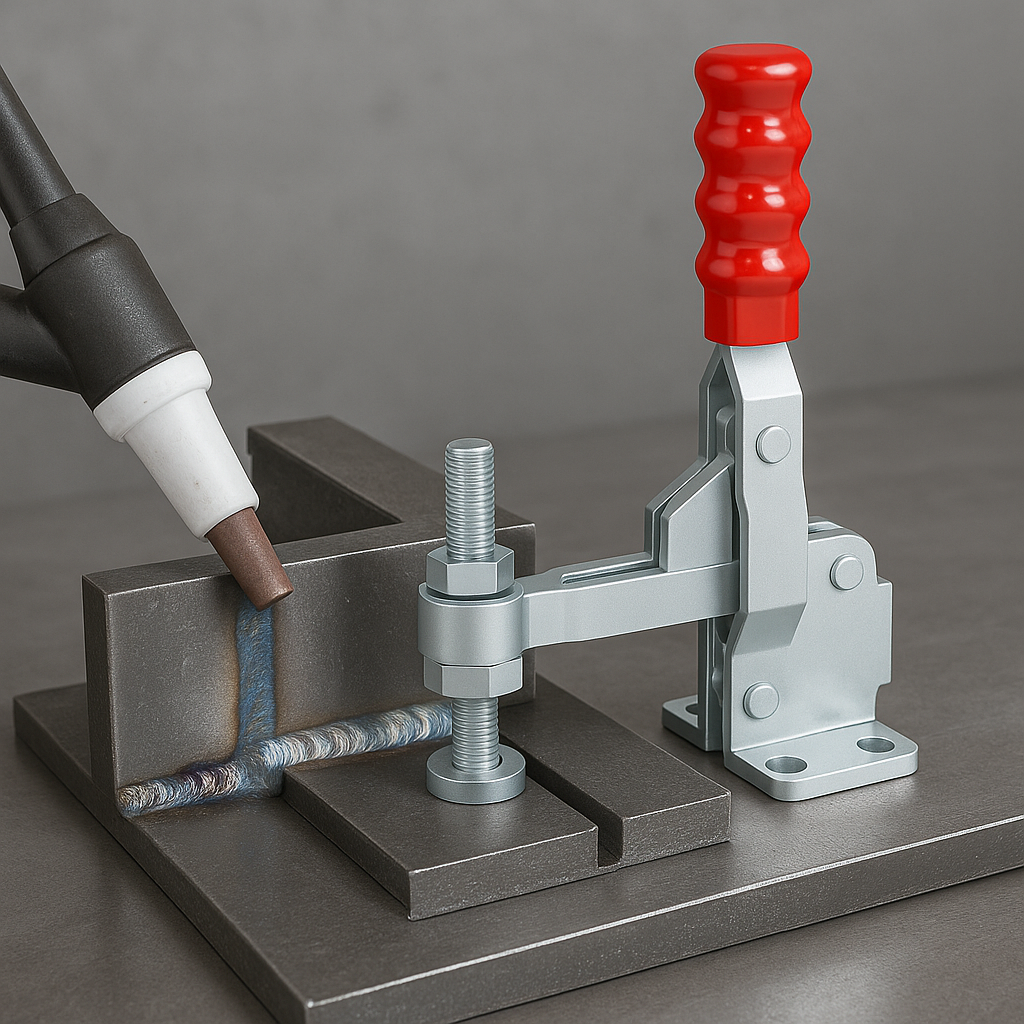

  • Welding fixtures

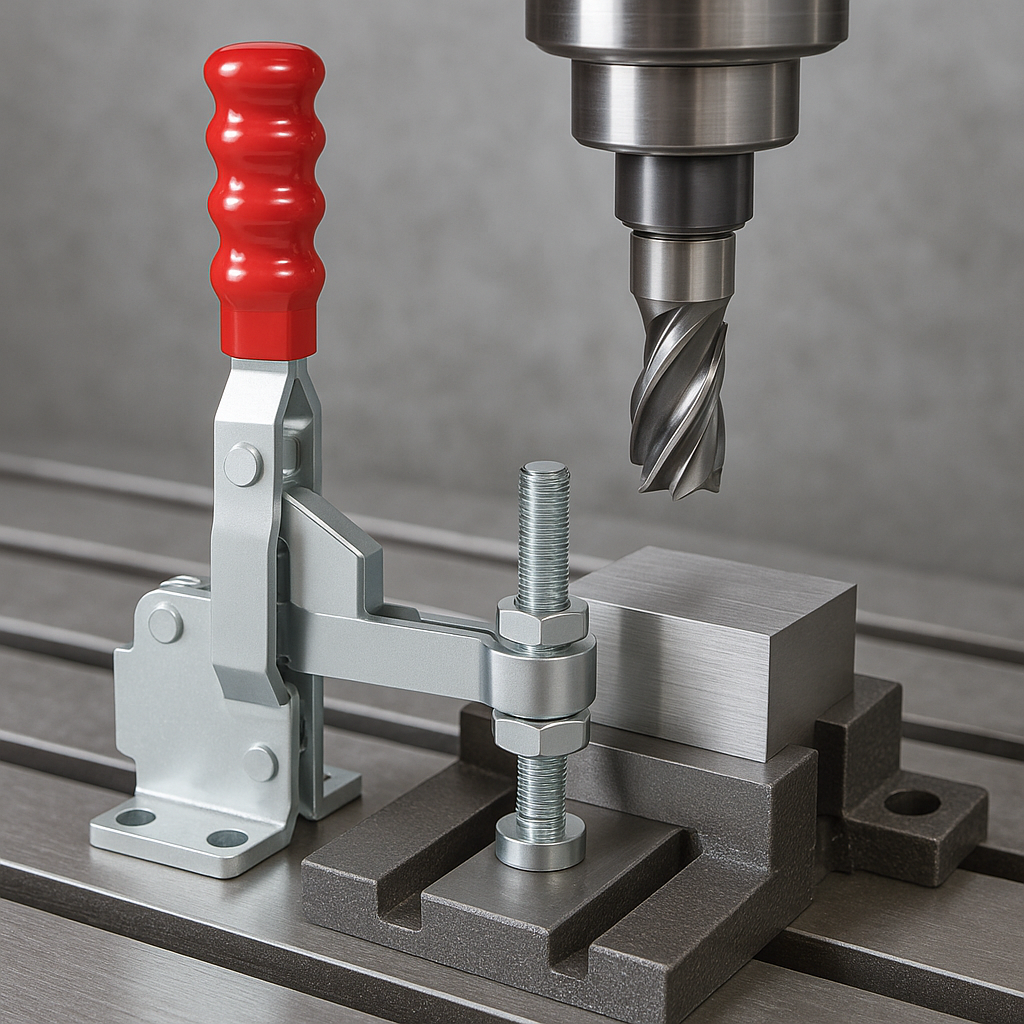

  • Machining and milling jigs

  • Assembly lines (automotive, electronics)

  • Inspection & testing setups

  • Plastic & composite molding

  • Laboratory prototyping fixtures

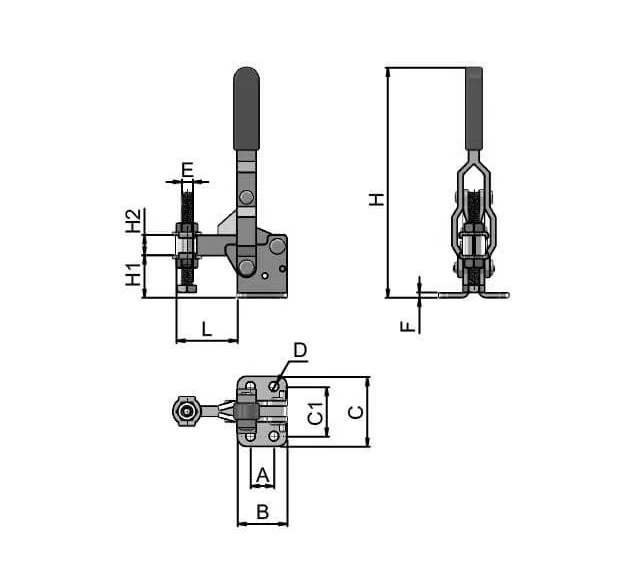

📐 Parameter Size Chart

Parameter Size 1 Size 2 Size 3
Weight (kg) 0.16 0.19 0.39
A (Clamp Height) 12.7 12.7 19
Arm Opens 100° 95° / 185° 90° / 150°
B 25.4 27 35
C 39.7 37.8 47
C1 27 26.8 32
Clamp Opens 100° 95°–185° 90°–150°
D 5.1 5.1 7.1
E (Thread Size) M6 M6 M8
F (Holes) 3 3 3
H 101 123 175
H1 23 23 32
H2 10 11 17.5
Holding Capacity 90 kg 150 kg 250 kg
Holding Force Range Light Duty (0–100 kg) Medium Duty (101–300 kg) Medium Duty (101–300 kg)
L (Base Length) 33 33 53

✅ Summary

This vertical toggle clamp is a versatile and ergonomic fixture tool perfect for high-repeatability operations. Whether in prototyping labs or industrial assembly lines, it provides a balance of strength, precision, and ease of use—making it an essential addition to any toolkit.
