Description

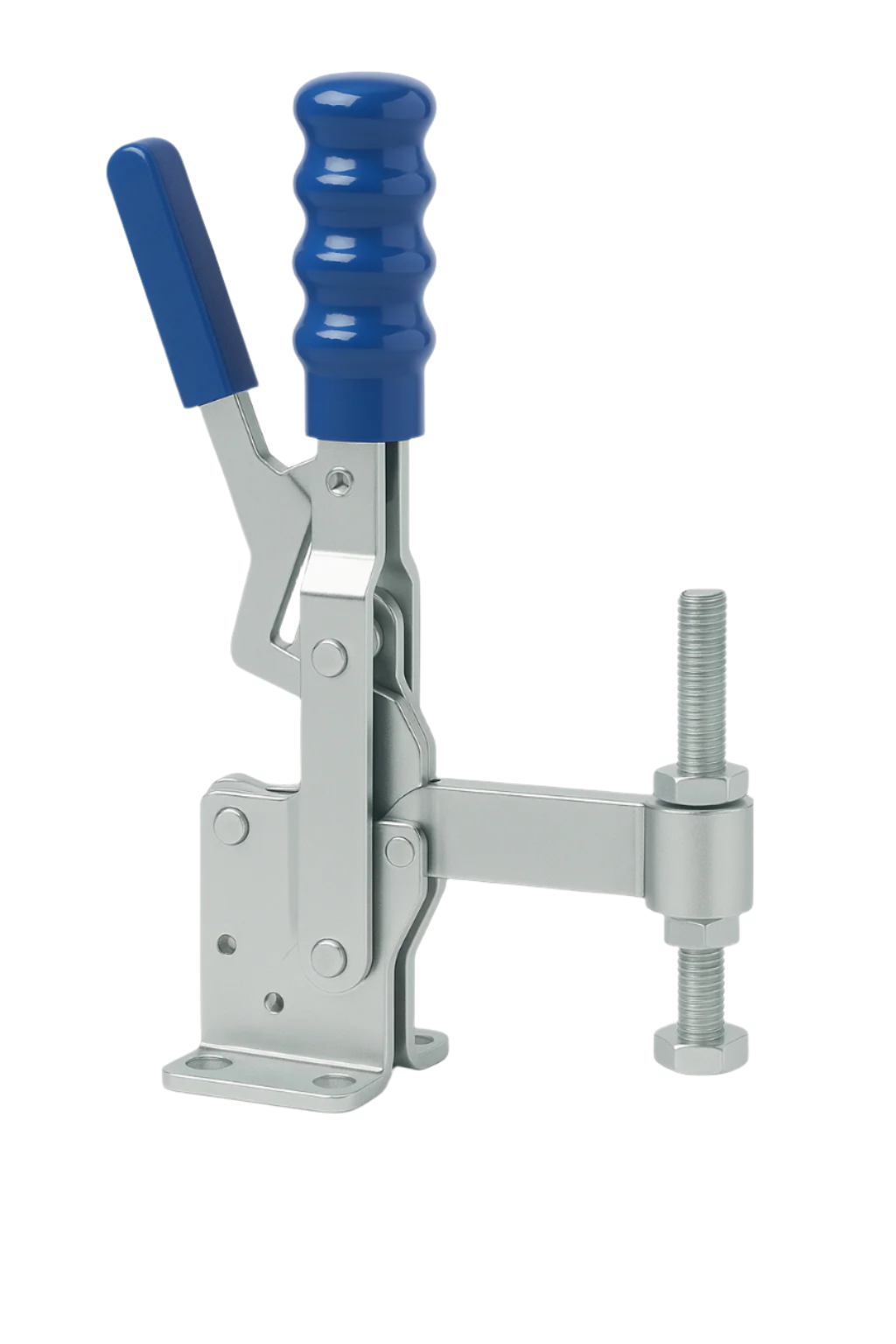

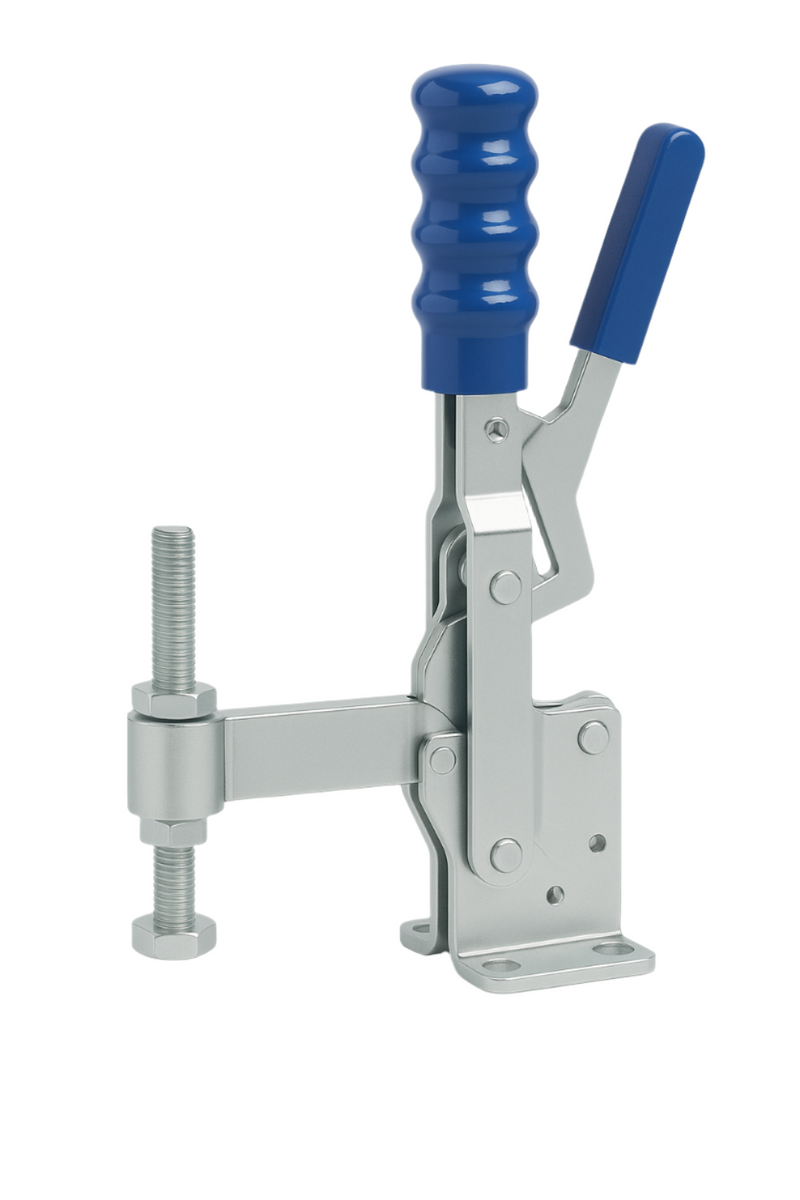

The Locking Toggle Clamp with Vertical Base and Fixed Spindle is an industrial-grade clamping solution engineered for precision holding in medium-duty operations. Crafted from mild steel and finished with a durable zinc plating, this clamp is built to withstand wear, corrosion, and the rigors of high-cycle applications.
🔩 Technical Specifications
-
Material: Mild Steel, Zinc Plated
-
Weight: 0.380 kg
-
Unit Type: Metric
-
Clamp Type: Locking with Fixed Spindle
-
Arm Opening Angle: 125°
-
Action: Locking Toggle

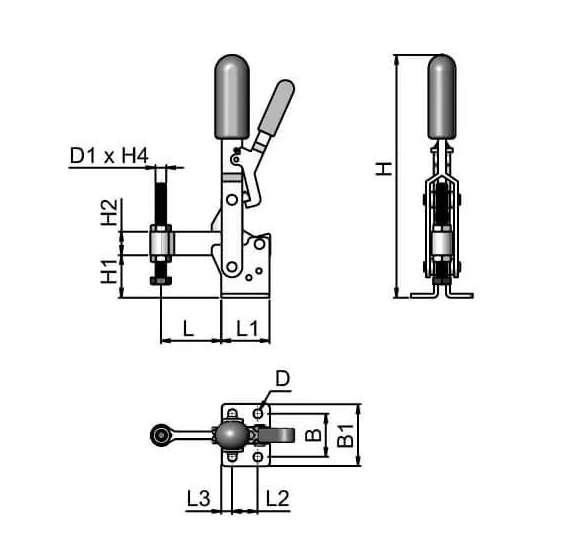

📐 Dimensional Details:
| Parameter | Size (mm) |
|---|---|
| L | 45 |
| L1 | 36 |
| L2 | 19 |
| L3 | 8 |
| B | 32 |
| B1 | 46 |
| D | 6.5 |
| D1 | M8 |
| H | 181 |
| H1 | 31.7 |
| H2 | 17.5 |
| H4 | 60 |
🏗️ Performance
-
Holding Capacity: 245 kg
-
Holding Force Range: Medium Duty (101–300 kg)
-
Max Holding Force: 245 kg
This clamp offers excellent clamping strength while ensuring quick release and re-locking, ideal for production-line environments.
⚙️ Common Applications
-
Welding Fixtures: Maintains part alignment under heat and vibration
-
CNC Machining & Milling: Secures workpieces for precision cutting
-
Inspection Stations: Holds components steady during quality checks
-
Assembly Lines: Enables safe, repeatable part positioning
📏 Size Chart Summary
| Description | Value |
|---|---|
| Vertical Height (H) | 181 mm |
| Arm Opening Angle | 125° |
| Base Mount Diameter (D) | 6.5 mm |
| Spindle Thread Size | M8 |
| Holding Capacity | 245 kg |
This toggle clamp is a must-have tool for professionals seeking reliable work-holding in fabrication, assembly, and industrial inspection environments.
