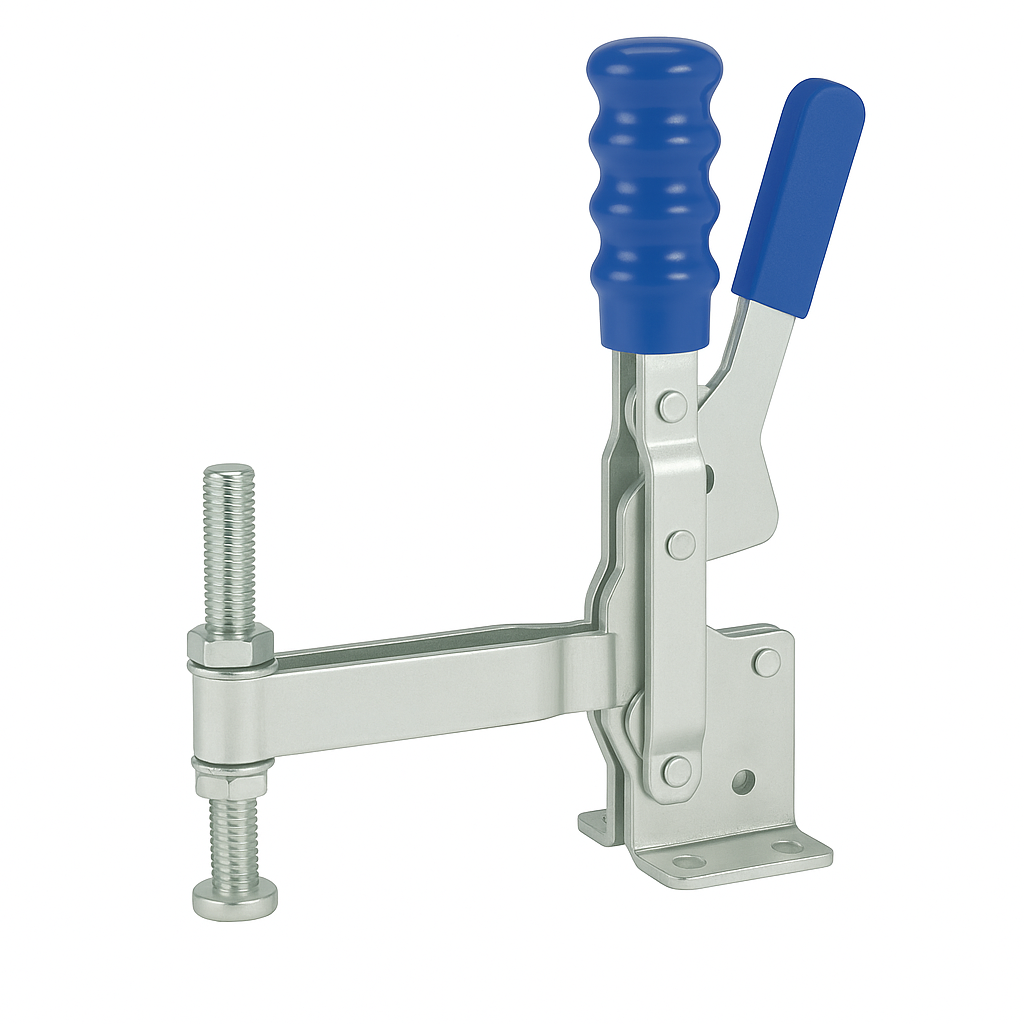

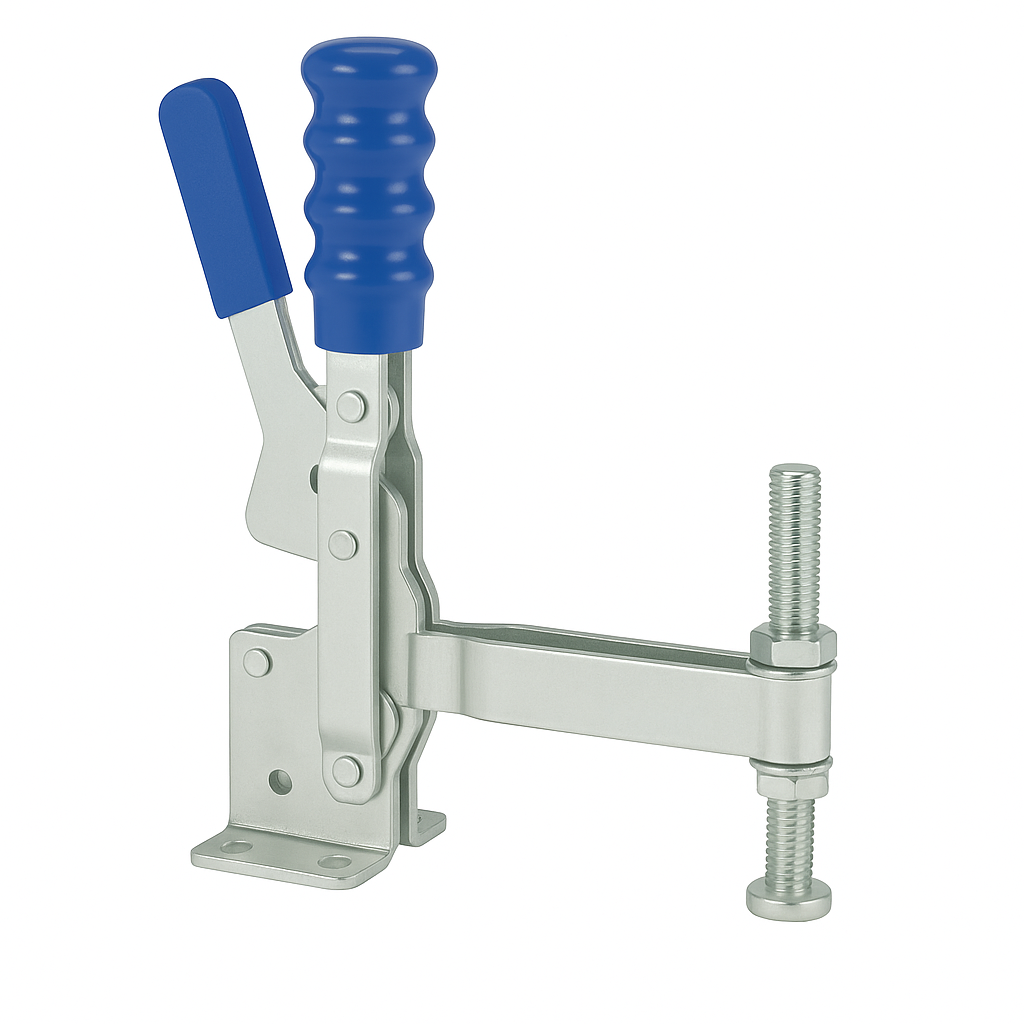

Description
The Locking Toggle Clamp with Vertical Base and Adjustable Spindle is a compact yet robust holding solution engineered for repeatable, high-precision clamping across various industrial settings. Designed to ensure stability and safety during machining, welding, assembly, or inspection tasks, this clamp delivers reliability in a sleek, ergonomically enhanced form.
🛠️ Material & Build Quality
Crafted from mild steel with a zinc-plated finish, this toggle clamp provides excellent resistance to corrosion, ensuring durability even in demanding workshop conditions. The steel construction offers a balanced trade-off between strength and affordability, making it ideal for medium-duty clamping applications.
📏 Technical Specifications
| Feature | Value |
|---|---|
| Material | Mild Steel, Zinc Plated |
| Unit Type | Metric |
| Weight | 0.380 kg |
| Holding Capacity | 245 kg |
| Holding Force Range | Medium Duty (101–300 kg) |
| Clamp Action | Locking |
| Arm Opening Angle | 125° |

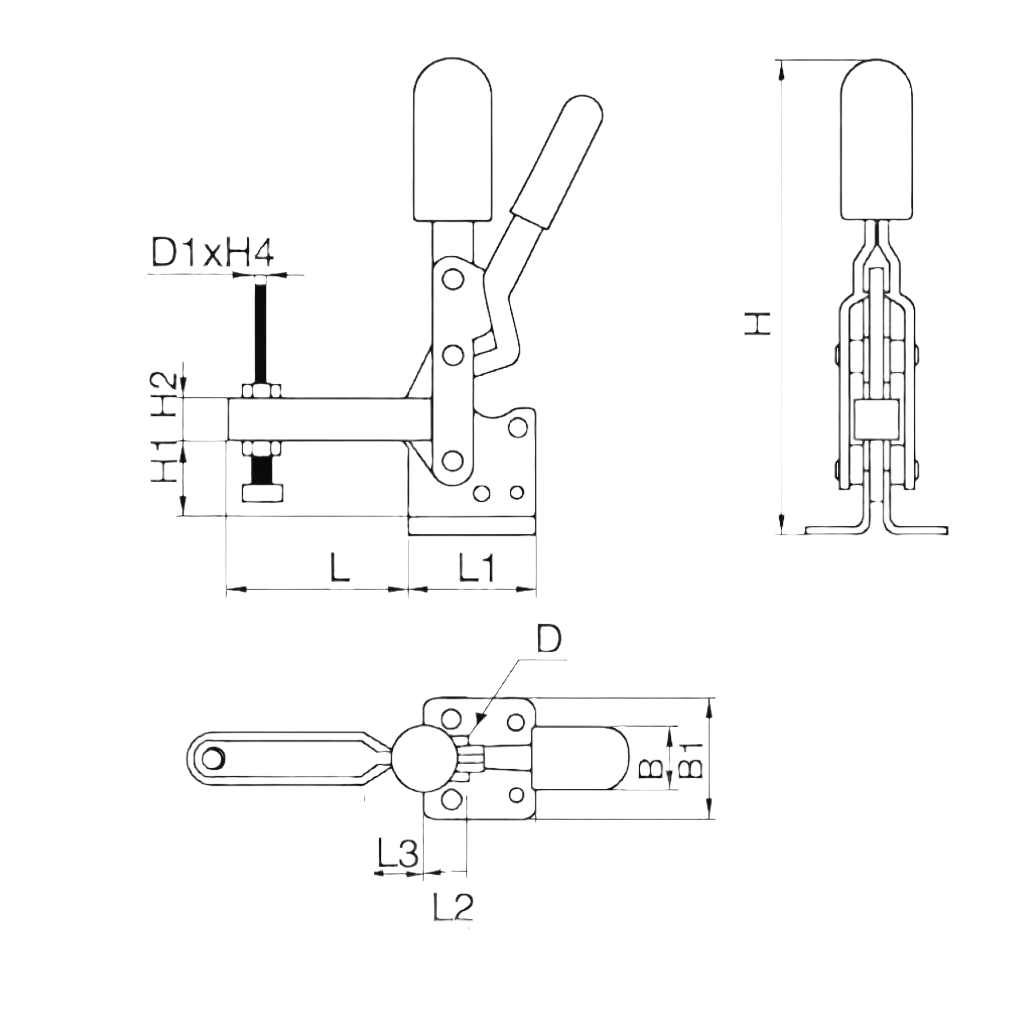

📐 Size Chart
| Dimension | Value (mm) | Dimension | Value (mm) | |
|---|---|---|---|---|
| L | 74 | L1 | 36 | |
| L2 | 19 | L3 | 8 | |
| H4 | 60 | H2 | 17.5 | |
| B | 32 | B1 | 46 | |
| D | 6.5 | D1 | M8 | |
| H | 181 | H1 | 31.7 |
These dimensions provide essential fitting and fixture compatibility data for precise jig or fixture design.
✅ Applications
This toggle clamp is commonly deployed in:
-

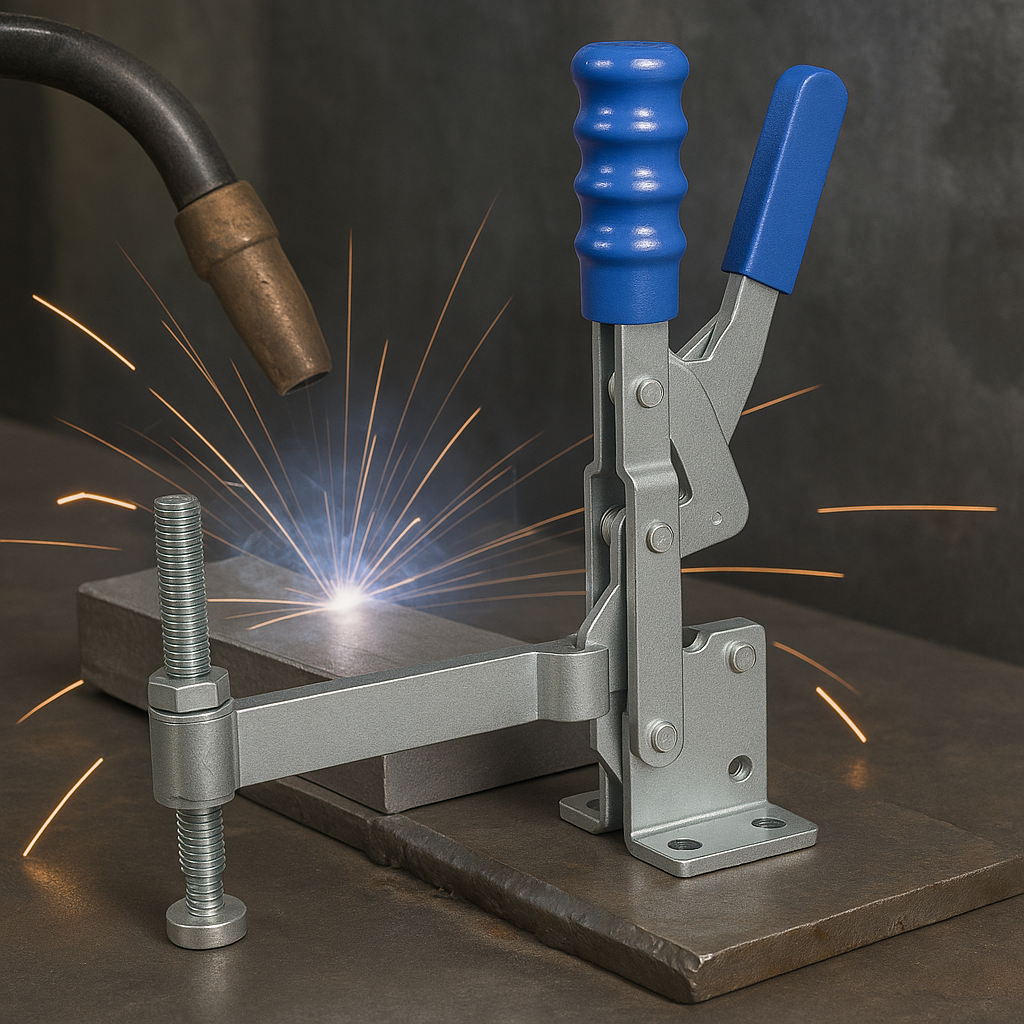

Welding Fixtures: Secures sheet metal and fabricated parts for consistent welds.
-

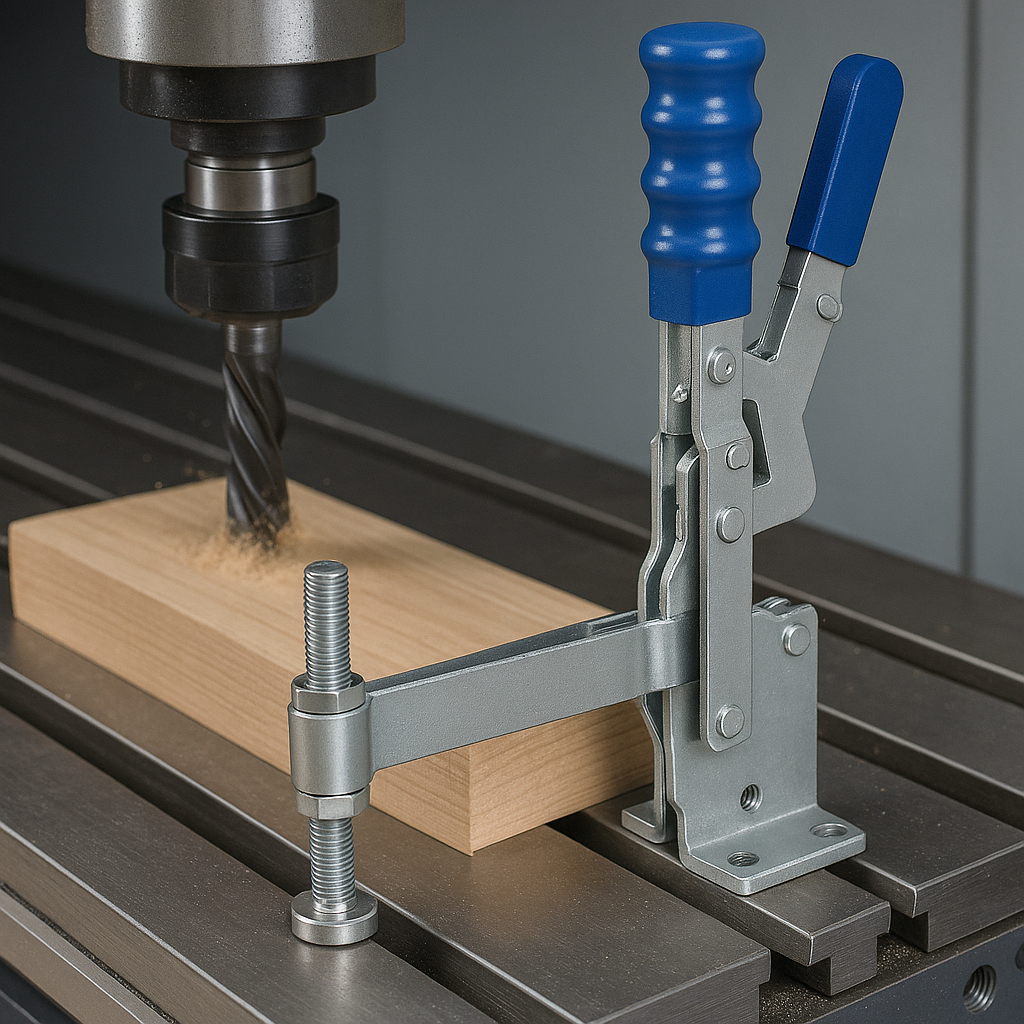

Machining Operations: Holds workpieces during milling, drilling, or tapping on CNC or manual machines.
-

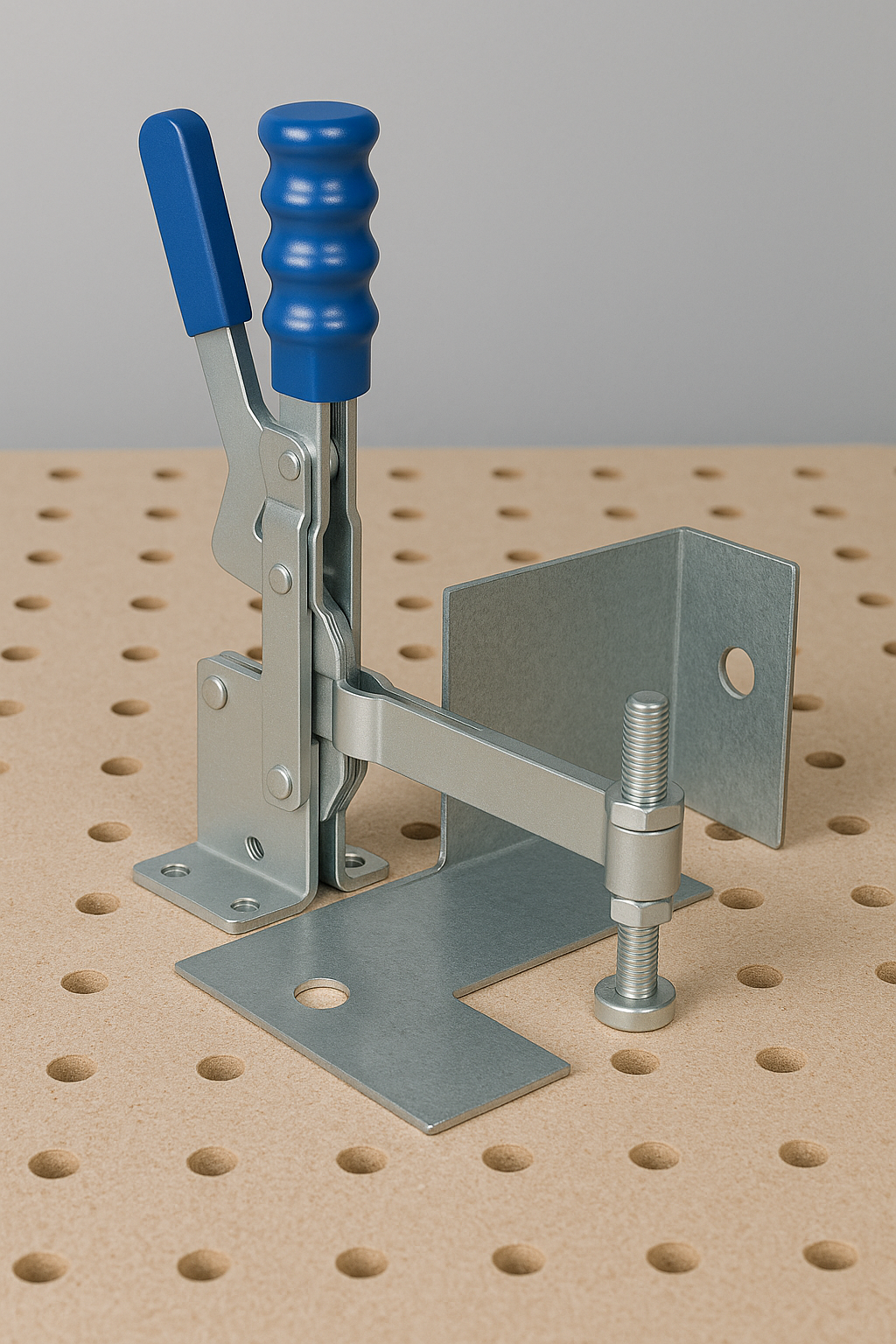

Assembly Jigs: Keeps components in place during mechanical or electronic part installations.
-
Inspection Fixtures: Ensures steady, repeatable positioning for accurate measurement and testing.
Whether you're building high-volume production jigs or a one-off precision fixture, the Locking Toggle Clamp – Vertical Base with Adjustable Spindle delivers versatility, ergonomic efficiency, and reliable holding performance.
