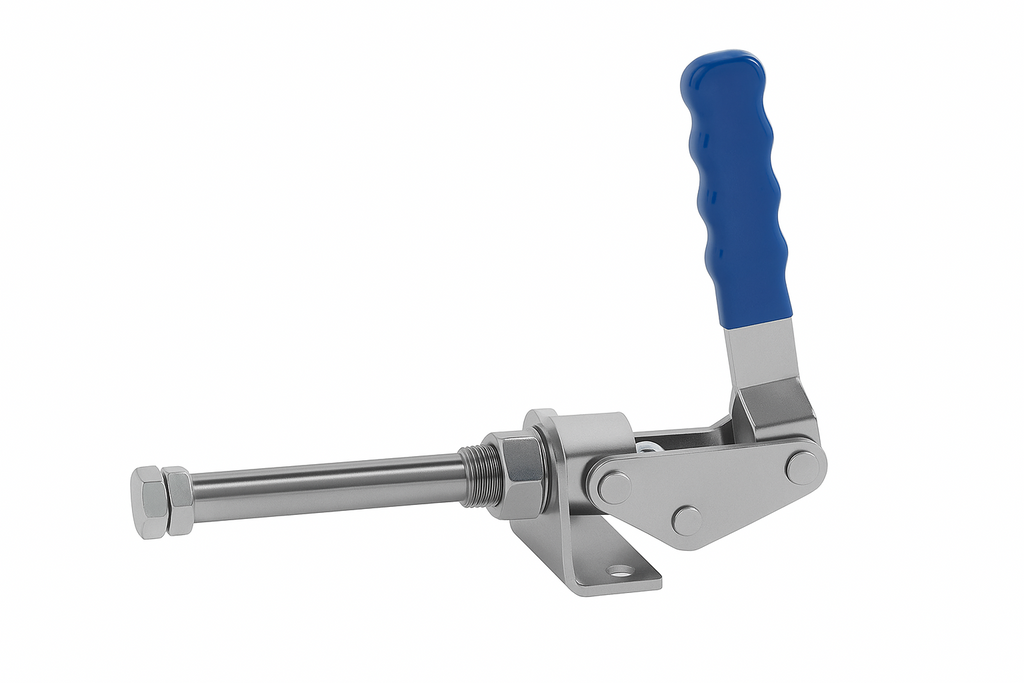

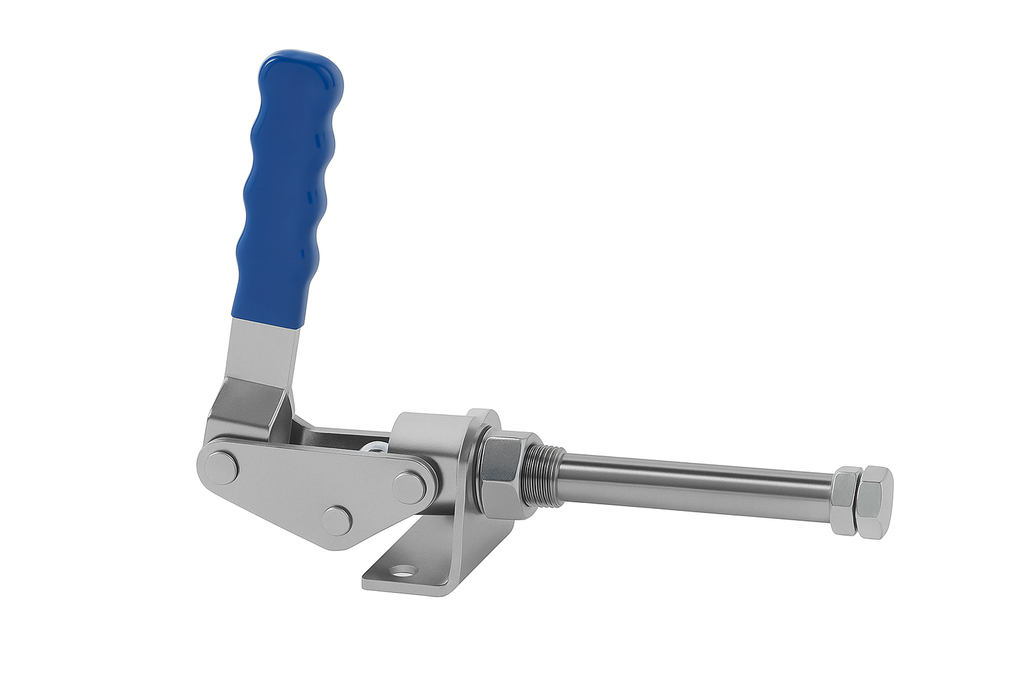

Description

The Heavy Duty Push-Pull Toggle Clamp – Short Stroke is engineered for industrial applications that demand high clamping force, precision, and durability in confined spaces. With a compact profile and powerful mechanism, it is ideal for securing components in welding fixtures, CNC machining setups, vibration testing rigs, and assembly jigs.

🔧 Technical Specifications

  • Material: Stainless Steel BS.304 S15 – corrosion-resistant, ideal for industrial environments.

  • Stroke Type: Short stroke – quick engagement and minimal arm travel for rapid cycling.

  • Holding Force: 400 kg – reliable and rigid hold under heavy load conditions.

  • Thread Size: M10x35 set screw and M24x1.5 threaded shaft for precise adjustment.

  • Weight: 0.8 kg – compact yet robust for easy fixture integration.

  • Unit Type: Metric

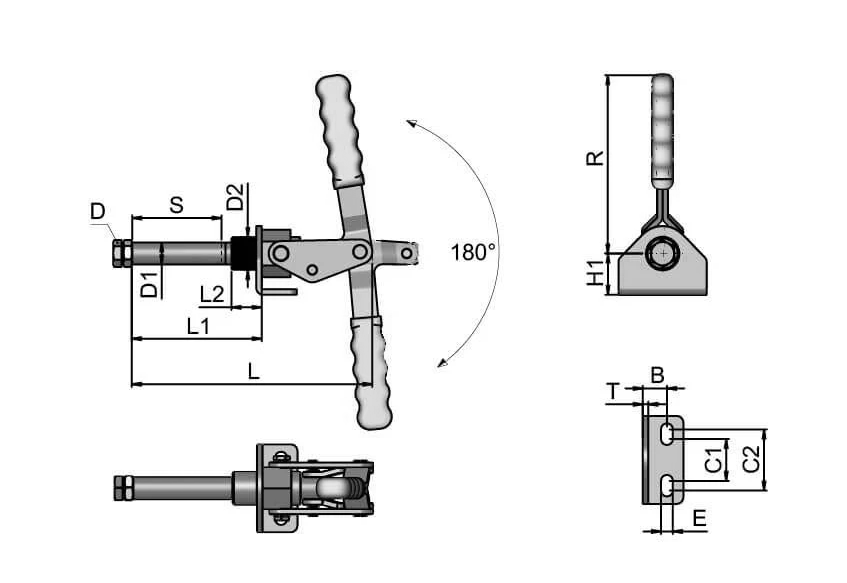

📏 Dimensional Overview (mm)

Parameter Value Parameter Value
L 175 L1 93
L2 22 H1 30
T 4 S 68
R 130 C1 64
C2 44 B 17.5
D M10x35 D1 16
D2 M24x1.5 E 8.6

🛠 Applications

This toggle clamp excels in:

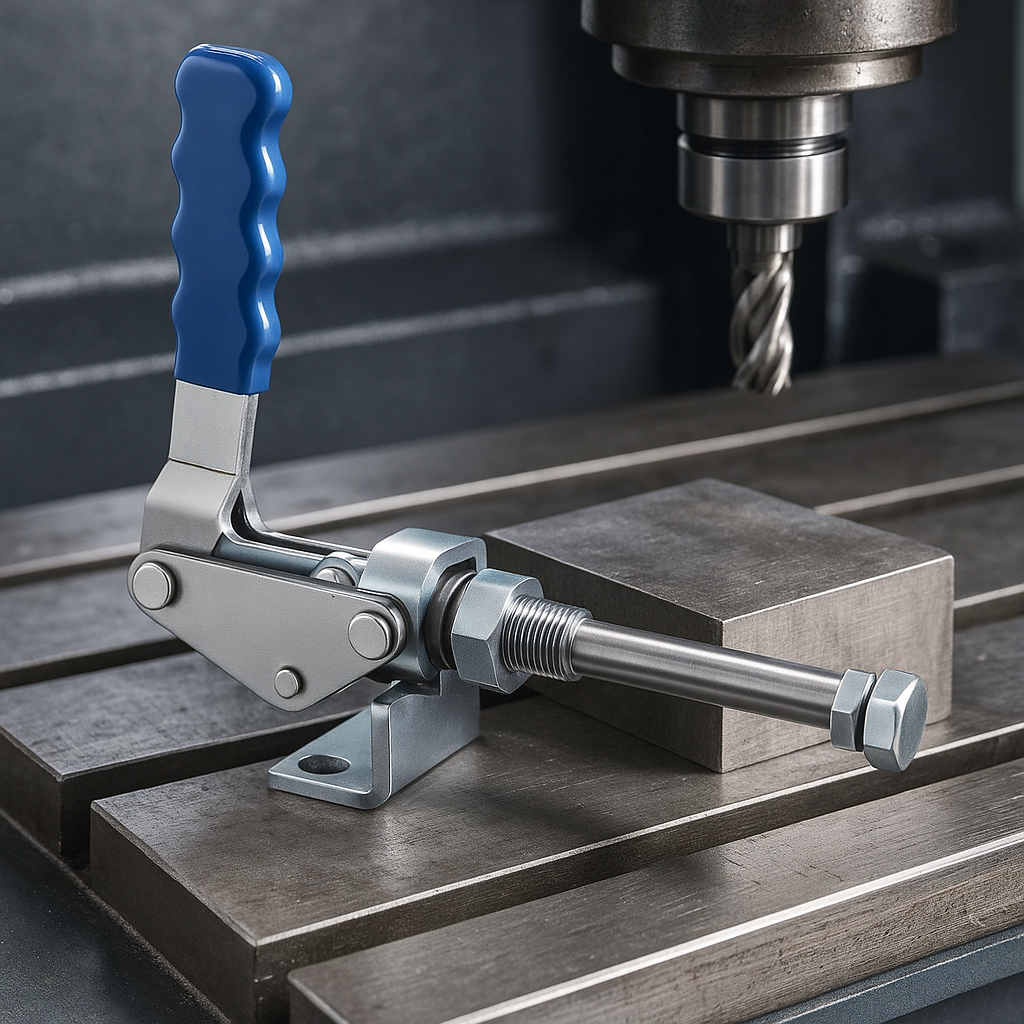

  • CNC and milling operations: holding workpieces securely without vibration.

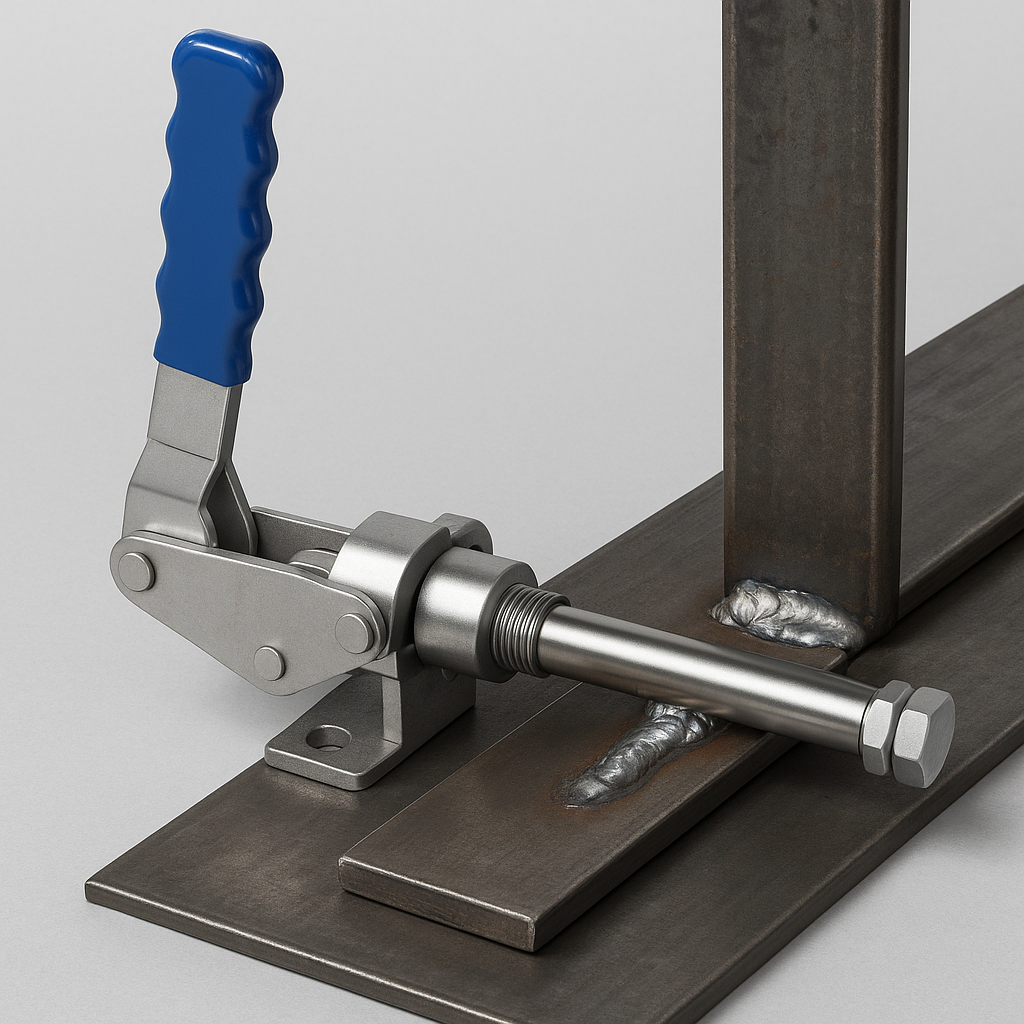

  • Welding and fabrication fixtures: maintaining alignment during high-heat processes.

  • Assembly lines: improving precision and repeatability in fastening or bonding tasks.

  • Prototyping setups: enabling fast positioning and rework without tool changeovers.

  • Vibration and shipping simulations: clamping components for dynamic testing.

Built to last and perform, this Heavy Duty Push-Pull Toggle Clamp is a dependable workholding solution that meets the needs of high-precision industrial workflows.
