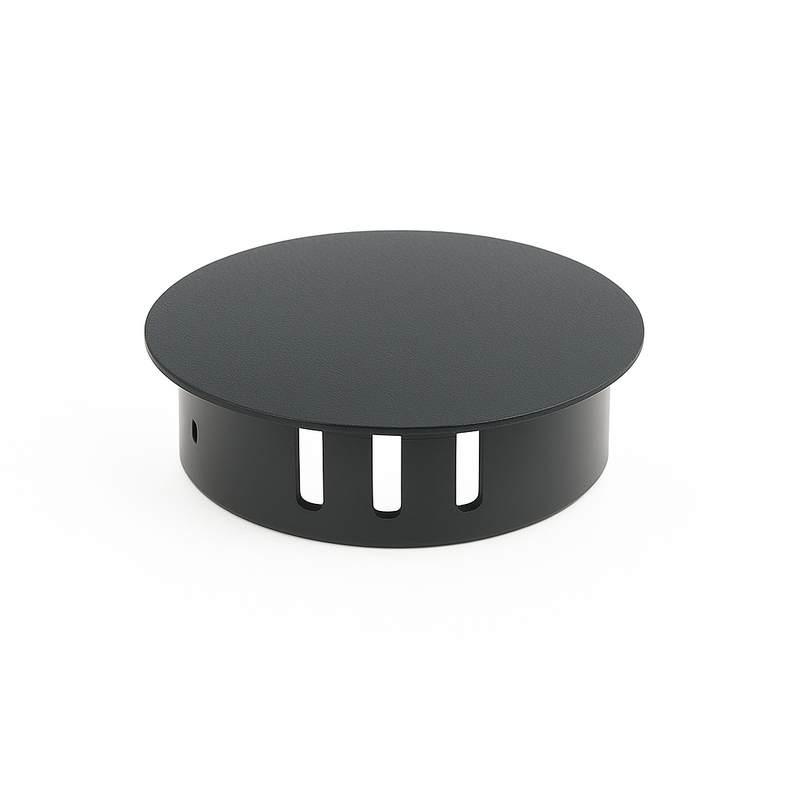

Professional Blanking Plugs Sealing Solution For Industrial Applications - 25Pack


Price:
Sale price£34.99

Our Clients

Description

In the world of industrial applications, ensuring that panel holes and access points are effectively sealed is crucial for maintaining both safety and functionality. Professional Blanking Plugs offer an ideal solution for these needs, combining durability with ease of use. Here's a comprehensive look at these essential components.
Key Features
Manufactured From Nylon 6/6:
These blanking plugs are made from high-quality Nylon 6/6, known for its excellent mechanical properties. This material ensures strength, resilience, and resistance to impact, making it suitable for demanding industrial environments.
Available in Black or White Finish:
The plugs come in two versatile colors, black and white, allowing them to blend seamlessly with a variety of panel finishes. This aesthetic flexibility ensures that they can be used in different applications without compromising the visual appeal of the installation.
Built-In Locking Fingers:
Equipped with locking fingers, these plugs provide a secure fit, preventing them from dislodging or falling out. This feature is especially important in high-vibration environments where stability and reliability are paramount.
Thin Domed Head:
The design includes a thin domed head that not only contributes to a sleek appearance but also allows for easy removal and insertion. This design element is particularly useful in applications where frequent access to the panel is required.
Commonly Used For
Blanking Off or Finishing Excess Panel Holes: One of the primary applications of these plugs is to cover and seal off unused or excess holes in panels. This prevents dust, dirt, and other contaminants from entering sensitive areas, thus maintaining the integrity and cleanliness of the equipment.
Cable Threading Ports for Access Holes:
They can also serve as cable threading ports, providing a clean and professional finish to access holes used for cable routing. This helps in organizing and protecting cables, enhancing both safety and aesthetics.
Usage:
Ideal for industrial panels, these plugs are used to seal off unnecessary holes and manage cable access, enhancing both functionality and safety in industrial settings.
Specifications
To Fit Hole Diameter
Max Panel Thickness
Head Diameter
Length

Size Chart and Specifications

Code To Fit Hole Diameter Max Panel Thickness Head Diameter Length Colour Locking Position Material
MK020 19.1mm 1.6mm 23.8mm 6.4mm White 0.5, 0.8, 1.0, 1.2, 1.6mm Nylon
MK021 19.6mm 6.4mm 25.9mm 22.4mm Black Multiple Nylon
MK022 19.6mm 6.4mm 25.9mm 22.4mm White Multiple Nylon
MK023 19.8mm 1.6mm 22.6mm 6.4mm Black Single Nylon
MK024 19.8mm 1.6mm 22.6mm 6.4mm White Single Nylon
MK025 20mm 4.1mm 22.6mm 10.3mm Black Multiple Nylon
MK026 20mm 4.1mm 22.6mm 10.3mm White Multiple Nylon
MK027 20.0mm 2.5mm 22.6mm 11.5mm Black Single Nylon
MK028 20.6mm 3.2mm 25.1mm 10.3mm Black Multiple Nylon
MK029 20.6mm 3.2mm 25.1mm 10.3mm White Multiple Nylon
MK030 22mm 4.1mm 25.9mm 11.5mm Black Multiple Nylon
MK031 22mm 4.1mm 25.9mm 11.5mm White Multiple Nylon
MK032 22mm 3.0mm 25.1mm 10.3mm Black Multiple Nylon
MK033 22.2mm 3.2mm 25.8mm 11.5mm White Multiple Nylon
MK034 22.2mm 3.2mm 25.8mm 11.5mm Black Multiple Nylon
MK035 22.2mm 6.4mm 25.8mm 14.3mm Black Multiple Nylon
MK036 22.2mm 6.4mm 25.8mm 14.3mm White Multiple Nylon
MK037 22.2mm 1.6mm 24.6mm 6.4mm Black 0.5, 0.8, 1.0, 1.2, 1.6mm Nylon
MK038 22.2mm 1.6mm 24.6mm 6.4mm White 0.5, 0.8, 1.0, 1.2, 1.6mm Nylon
MK039 22.2mm 3.2mm 25.8mm 11.3mm Black Nylon
MK040 25mm 4.1mm 29.8mm 11.5mm Black Multiple Nylon
MK041 25mm 4.1mm 29.8mm 11.5mm White Multiple Nylon
MK042 25.4mm 3.2mm 29mm 11.6mm Black Multiple Nylon
MK043 25.4mm 6.4mm 30.6mm 14.3mm Black Multiple Nylon
MK044 25.4mm 6.4mm 30.6mm 14.3mm White Multiple Nylon
MK045 25.4mm 3.2mm 30.6mm 11.5mm Black Multiple Nylon
MK046 25.4mm 3.2mm 30.6mm 11.5mm White Multiple Nylon
MK047 25.4mm 1.6mm 30.5mm 6.4mm Black Single Nylon
MK048 25.4mm 1.6mm 30.5mm 6.4mm White Single Nylon
MK049 25.5mm 6.4mm 27.5mm 11.5mm Black Nylon
MK050 27.8mm 1.6mm 31mm 6.4mm Black Single Nylon
MK051 27.8mm 1.6mm 31mm 6.4mm White Single Nylon
MK052 27.8-28.6mm 3.2mm 30.9mm 11.5mm Black Multiple Nylon
MK053 27.8-28.6mm 3.2mm 30.9mm 11.5mm White Multiple Nylon
MK054 27.8-28.6mm 6.4mm 30.9mm 14.3mm Black Multiple Nylon
MK055 27.8-28.6mm 6.4mm 30.9mm 14.3mm White Multiple Nylon
MK056 28mm 4.1mm 31.2mm 11.5mm Black Multiple Nylon
MK057 28mm 4.1mm 31.2mm 11.5mm White Multiple Nylon
MK058 30.1mm 3.2mm 34.5mm 12mm Black Multiple Nylon
MK059 30.1mm 3.2mm 33.8mm 11.5mm Black Multiple Nylon
MK060 30.1mm 3.2mm 33.8mm 11.5mm White Multiple Nylon
MK061 30.1mm 6.4mm 33.3mm 14.3mm Black Multiple Nylon
MK062 30.1mm 6.4mm 33.3mm 14.3mm White Multiple Nylon
MK063 31.7mm 6.4mm 34.9mm 14.3mm Black Multiple Nylon
MK064 31.7mm 6.4mm 34.9mm 14.3mm White Multiple Nylon
MK065 31.7mm 3.2mm 34.9mm 11.5mm White Multiple Nylon
MK066 31.7mm 3.2mm 34.9mm 11.5mm Black Multiple Nylon
MK068 32mm 4.1mm 35.3mm 11.5mm Black Multiple Nylon
MK069 32mm 4.1mm 35.3mm 11.5mm White Multiple Nylon

Conclusion
Professional Blanking Plugs are an essential component for any industrial setup requiring reliable and aesthetically pleasing hole seals. Their robust construction, ease of use, and versatile design make them a valuable addition to any panel assembly. Whether you need to blank off excess holes or create clean cable threading ports, these plugs deliver superior performance and durability.
