Description

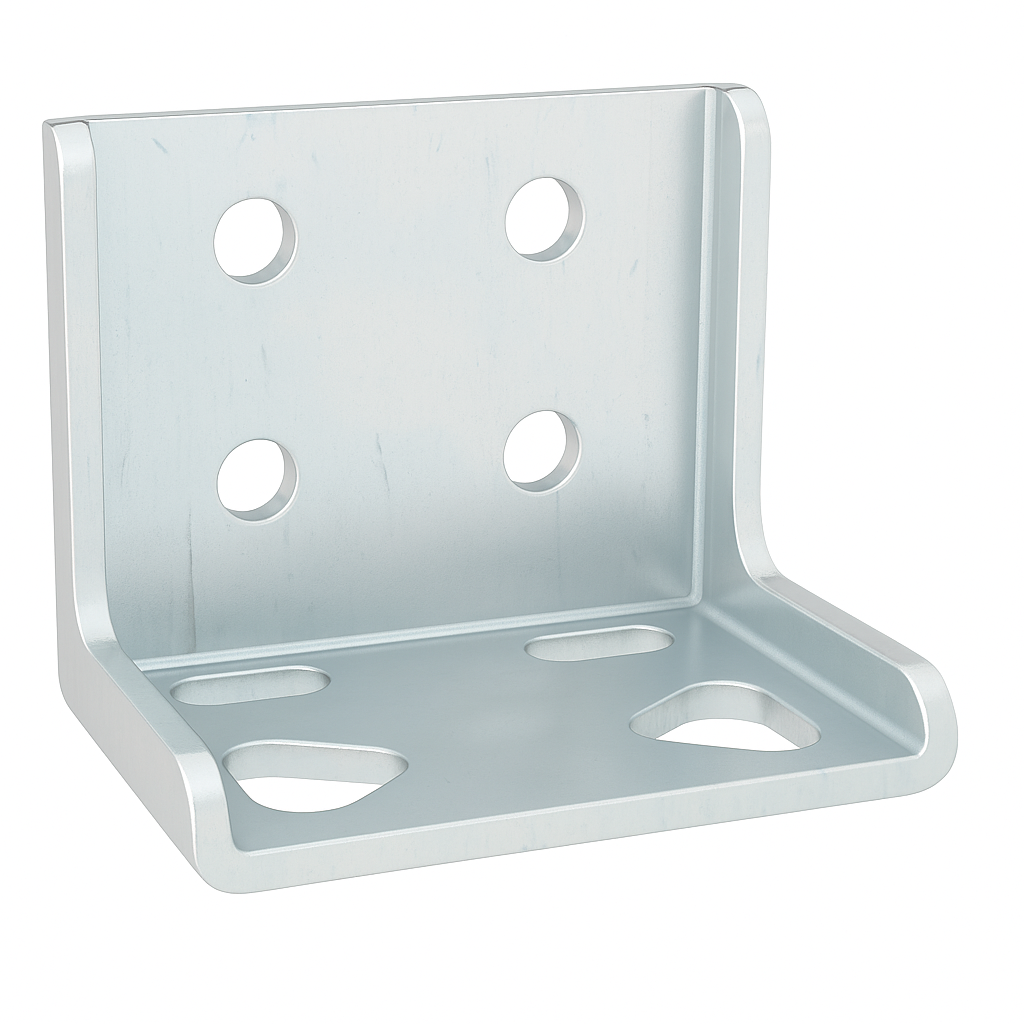

The Steel Mounting Bracket is an essential component engineered for securely installing toggle clamps across various industrial setups. Crafted from high-grade steel, this bracket offers exceptional durability, resistance to deformation, and dependable structural support in demanding clamping applications.
🔩 Material Composition
-
Material: Cold-rolled or galvanized steel
-
Finish: Typically zinc-plated for corrosion resistance
-
Strength: Designed to withstand repeated load cycles without warping
📏 Unit Type
-
Measurement Standard: Metric
⚙️ Applications
Steel mounting brackets for toggle clamps are used in:
-
Jigs and fixtures in machining setups
-

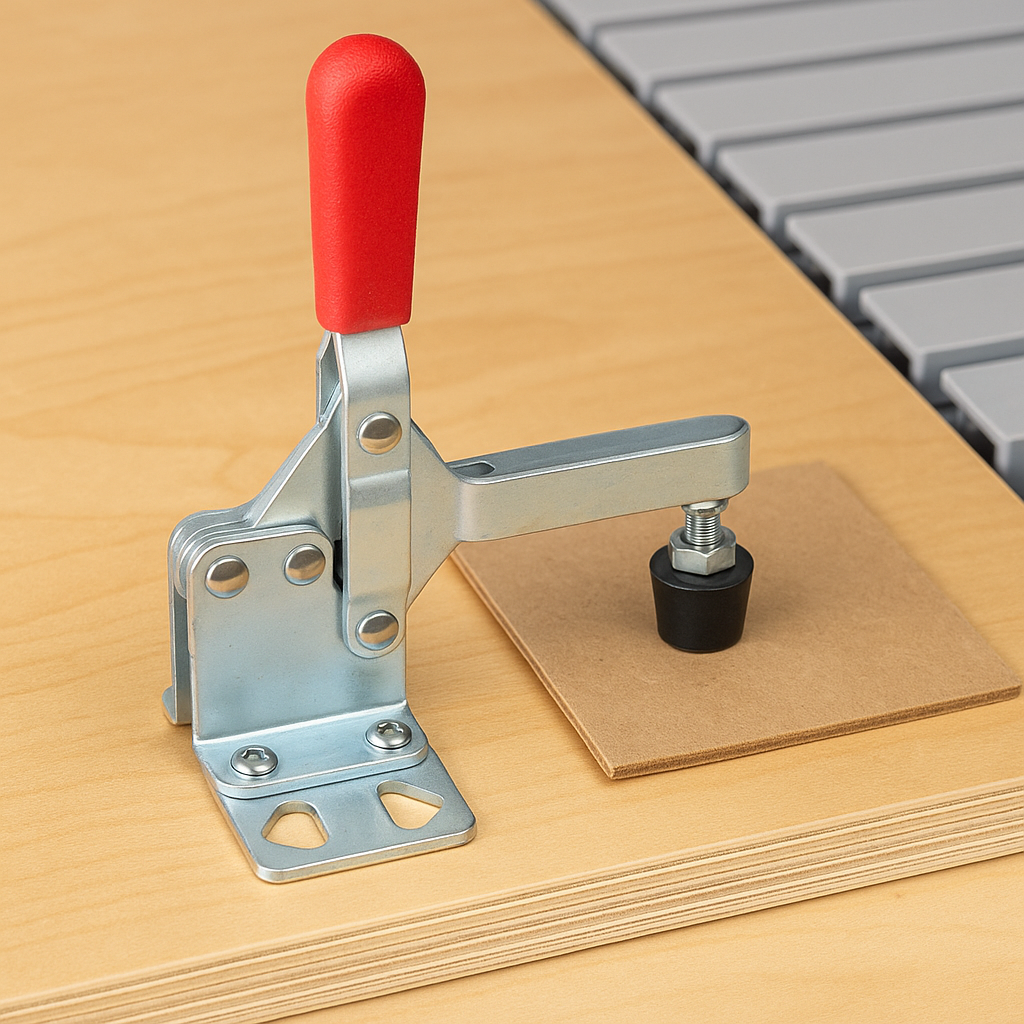

CNC routing tables and woodworking stations
-
Automotive assembly lines for component holding
-

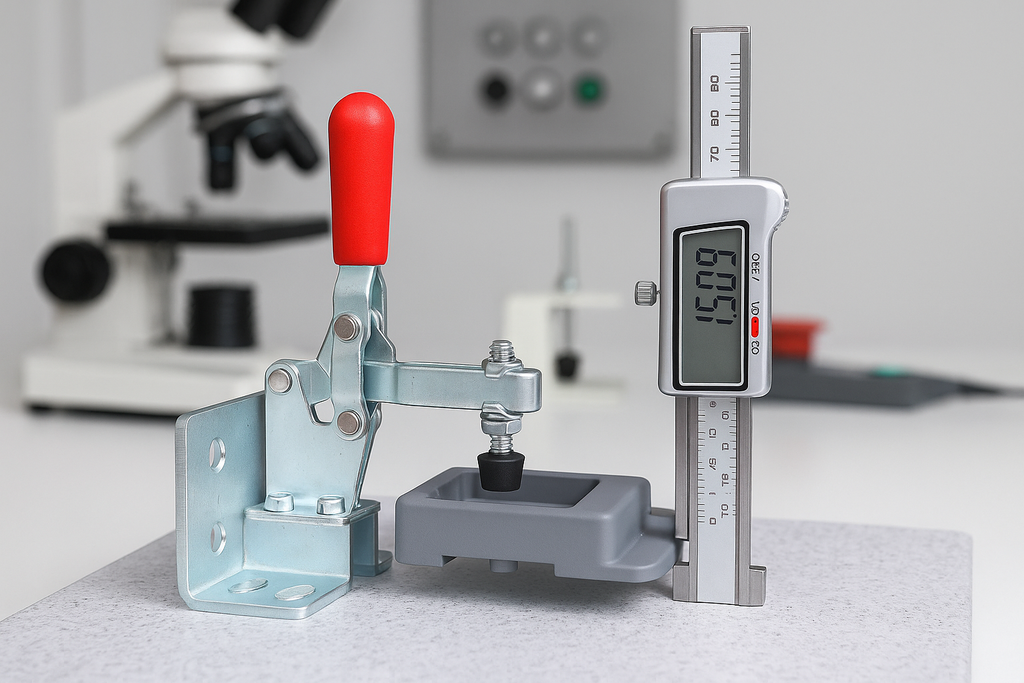

Inspection stations for precise part positioning
-
Packaging setups for fast clamping of boxes or tools

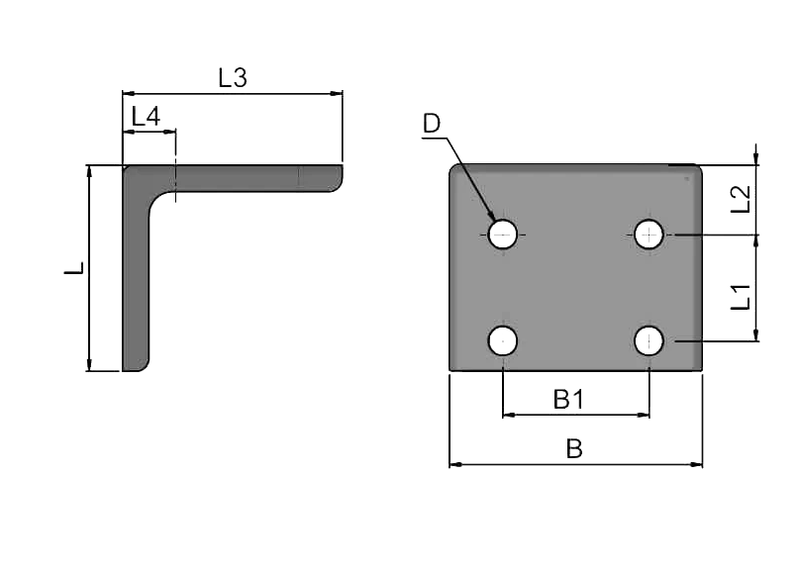

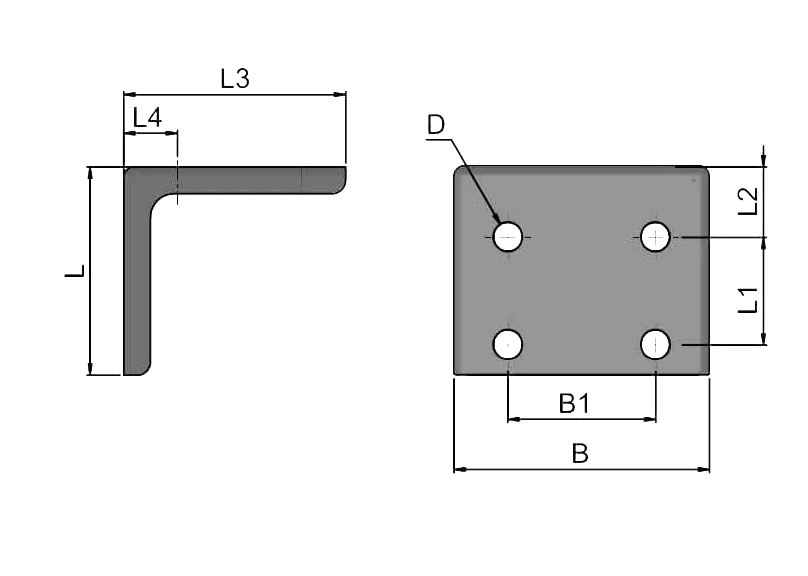

📐 Size Chart (All Dimensions in mm)
| Weight (kg) | B | B1 | D | L | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|---|---|
| 0.01 | 43 | 18 | 5.1 | 37 | 15 | 14 | 30 | 8 |
| 0.01 | 54 | 25.4 | 5.5 | 42 | 19 | 13 | 45 | 11 |
| 0.03 | 76 | 44 | 8.6 | 62 | 32 | 21 | 66 | 16 |
🧲 Key Benefits
-
Robust construction suitable for high-vibration environments
-
Precision-cut slots and holes ensure seamless toggle clamp integration
-
Lightweight yet rugged for mobile workbenches or fixed setups
-
Compatible with vertical or horizontal toggle clamps
This steel mounting bracket is the preferred choice for professionals seeking stability, longevity, and precision in their clamping systems. Whether you're upgrading a production jig or building a custom work fixture, this bracket delivers industrial-level performance you can count on.
