Description

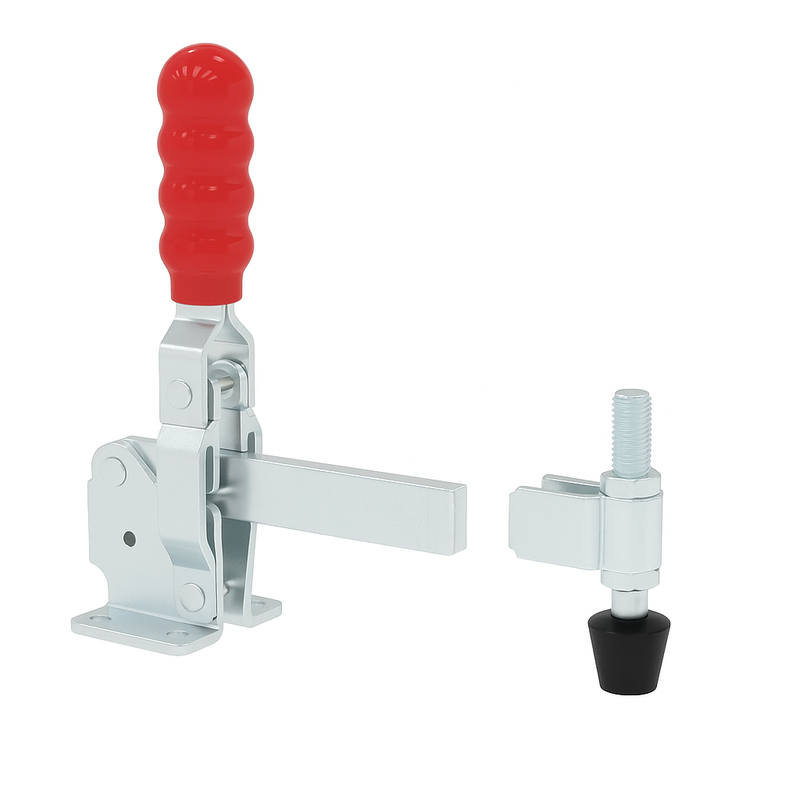

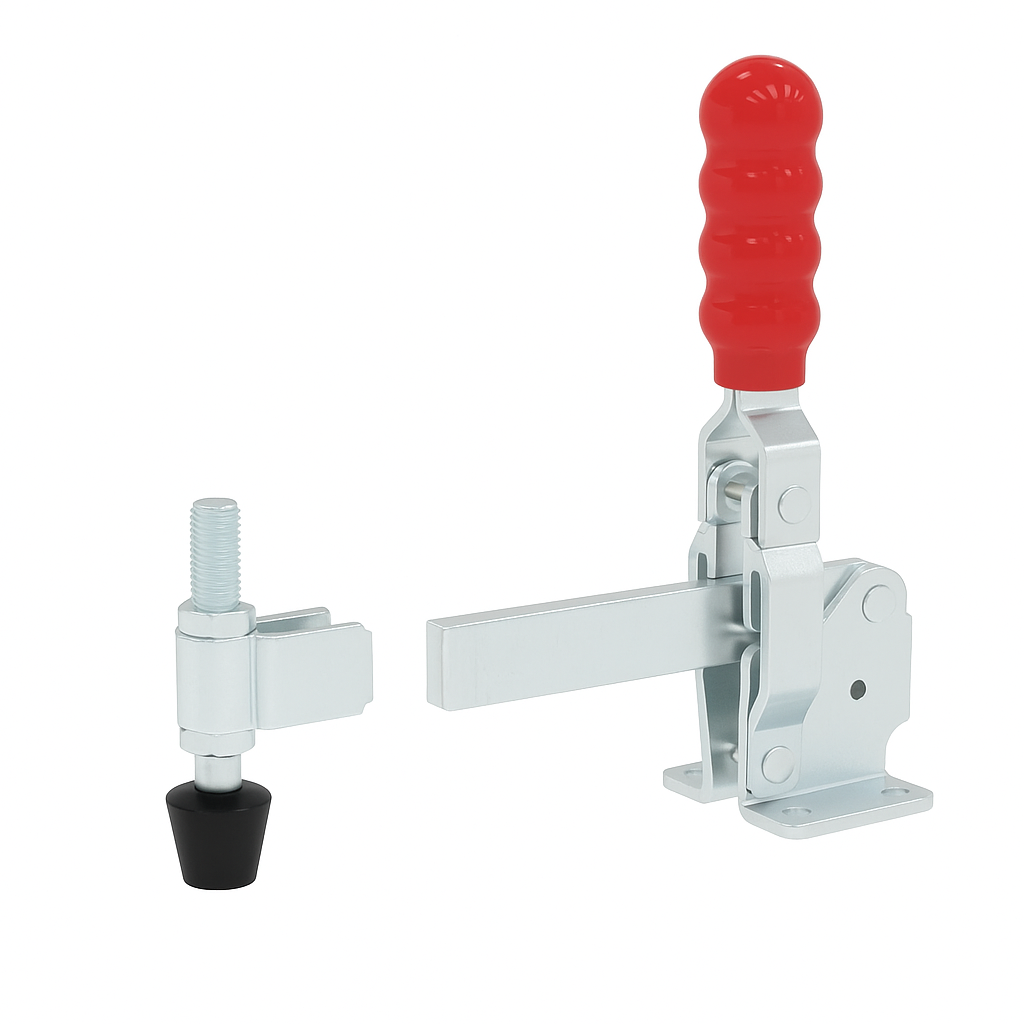

The Vertical Toggle Clamp with Stop is a robust and reliable work-holding solution engineered for precision, stability, and ease of use. Built with a bolt-down base and weldable arm, this clamp is designed to withstand repetitive use in heavy-duty industrial and workshop environments.
🧰 Construction & Materials
-
Clamp Body: Made from zinc-plated mild steel, offering excellent resistance to corrosion and mechanical stress.
-
Hand Grip: Features an oil-resistant red vinyl handle, designed for ergonomic comfort and a secure grip, even in oily or dusty workspaces.
-
Unit Type: Metric-based for standardized compatibility across international workstations.
🔩 Ideal Applications
Toggle clamps like this are invaluable across multiple industries, such as:
-
Aerospace – holding parts during assembly or testing.
-

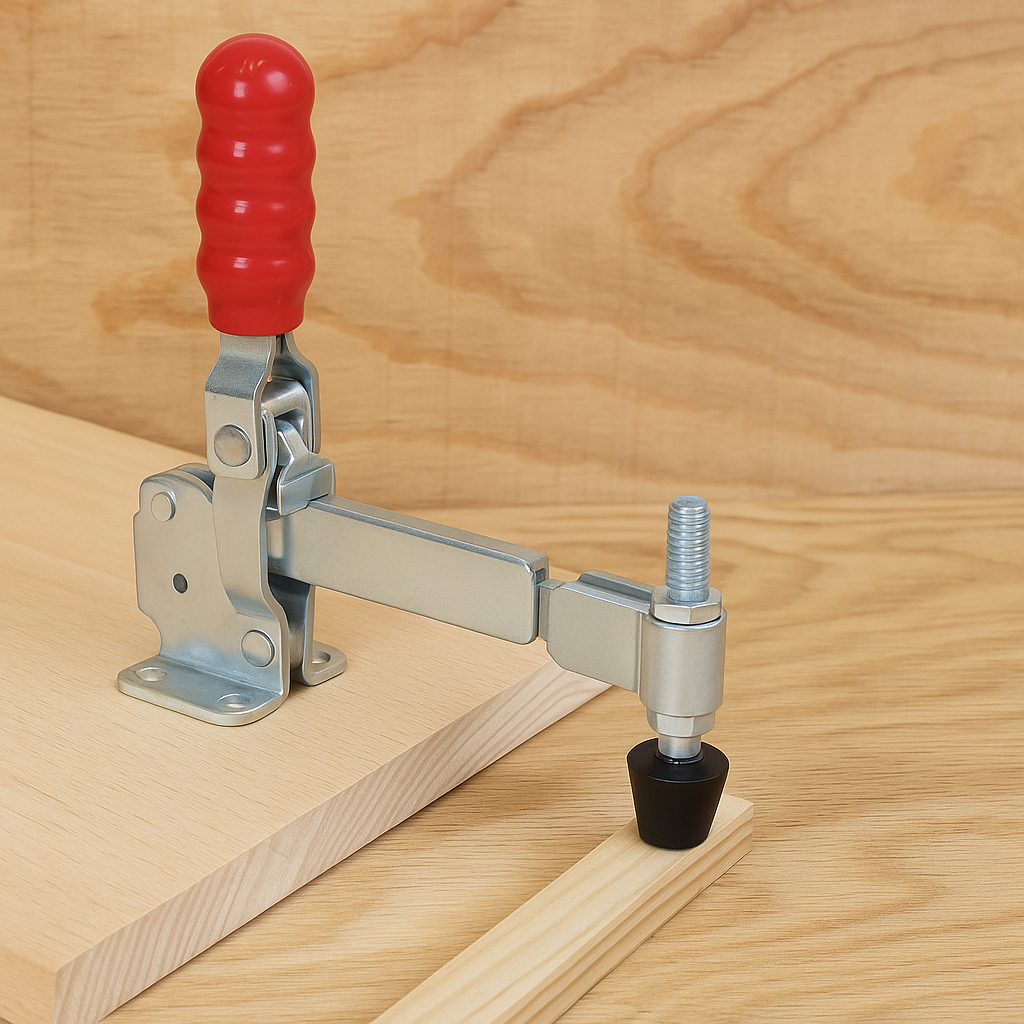

Woodworking – securing panels or fixtures for cutting, routing, or sanding.
-

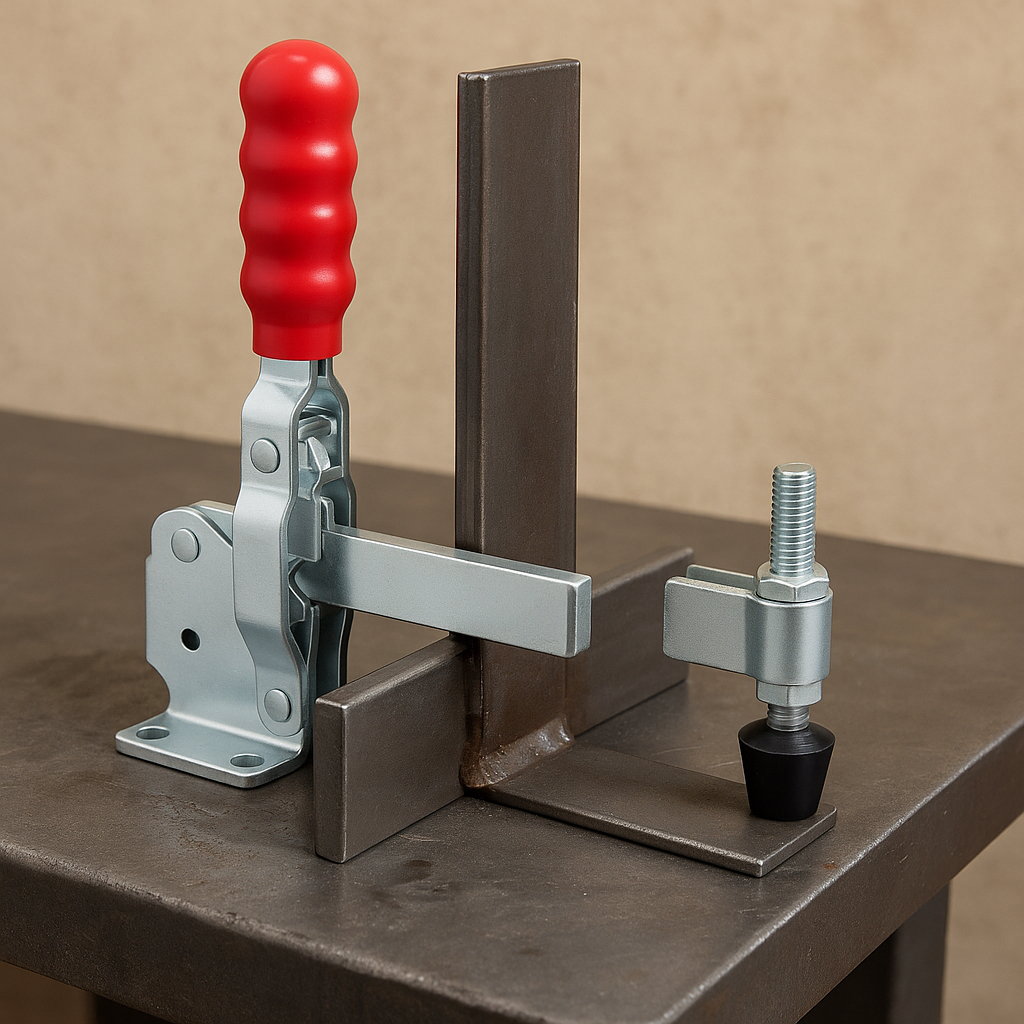

Automotive – welding jigs and custom fabrication.
-
DIY Projects – reliable hold-down solution for hobbyists and makers.

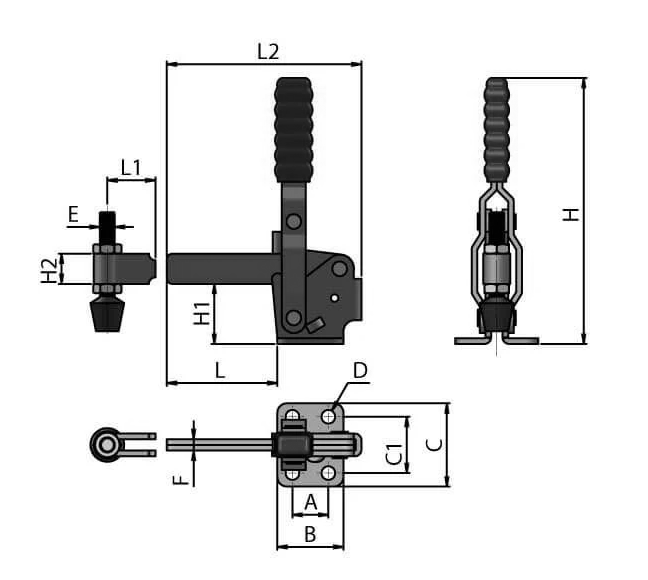

📐 Specifications Table
| Parameter | Size 1 | Size 2 | Size 3 |
|---|---|---|---|
| Weight (kg) | 0.34 | 0.36 | 0.68 |
| A (mm) | 19 | 19 | 31.8 |
| Arm Opens | 100° | 100° | 105° |
| B (mm) | 35 | 35 | 49.2 |
| C (mm) | 46 | 46 | 64.3 |
| C1 (mm) | 31.8 | 31.8 | 45.3 |
| Clamp Opens | 100° | 100° | 105° |
| D (mm) | 7.2 | 7.2 | 8.7 |
| E (Thread Size) | M8 | M8 | M10 |
| F (mm) | 6 | 6 | 8 |
| H (mm) | 144 | 144 | 206 |
| H1 (mm) | 31.8 | 31.8 | 43.4 |
| H2 (mm) | 16 | 16 | 19 |
| Holding Capacity (kg) | 227 | 227 | 340 |
| Holding Force Range | Medium (101–300 kg) | Medium (101–300 kg) | Heavy (300–999 kg) |
| L (mm) | 58.5 | 89.5 | 91 |
| L1 (mm) | 25.5 | 25.5 | 34.3 |
| L2 (mm) | 103 | 134 | 140.2 |
✅ Why Choose This Clamp?
-
Consistent Holding Pressure
-
Quick Action and Repeatability
-
Customizable Weldable Arm
-
Compact Bolt Base for Jig Integration
This toggle clamp is the go-to choice for professionals seeking repeatable clamping strength, especially when space and accuracy matter most.
