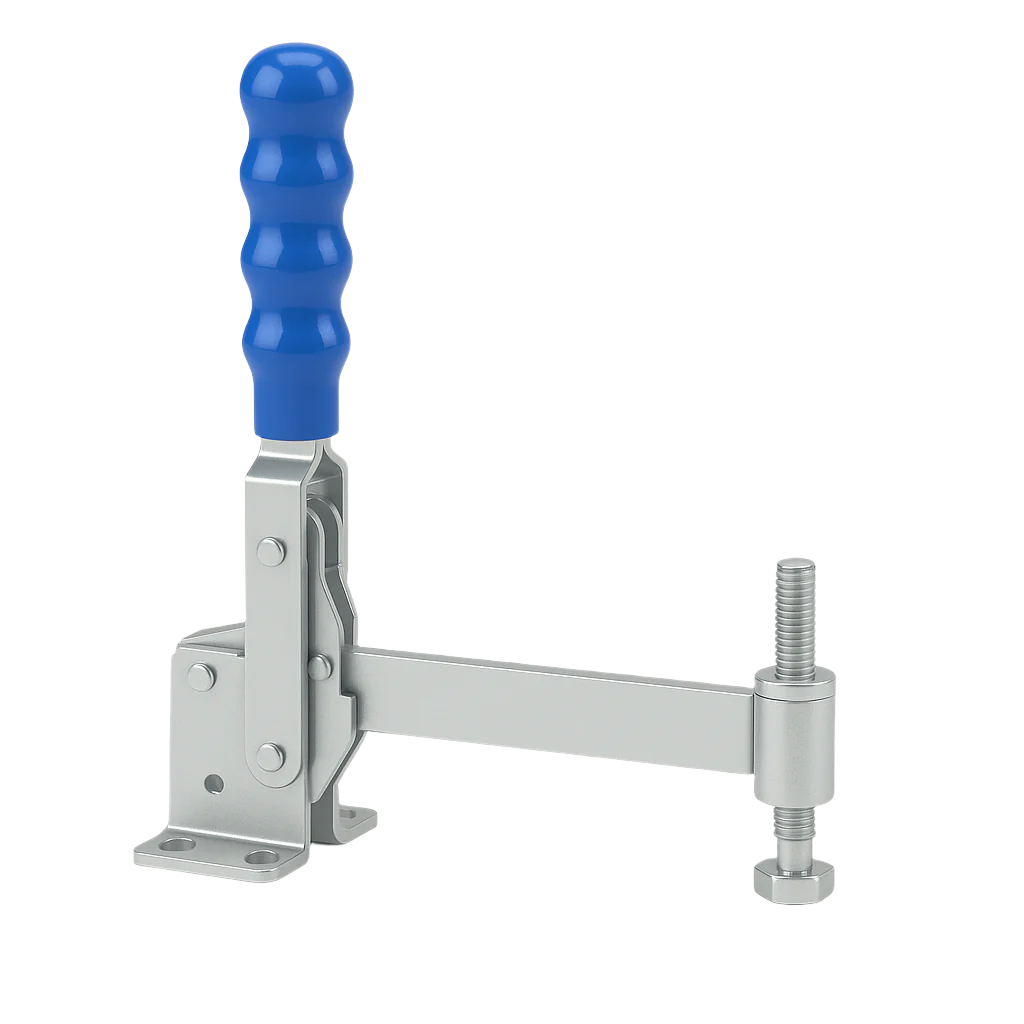

The Heavy-Duty Vertical Toggle Clamp with Solid Arm is engineered for strength, precision, and versatility across a wide range of industrial clamping applications. This robust fixture is a staple in welding setups, machining stations, woodworking jigs, and assembly lines, offering high holding power with ergonomic operation.

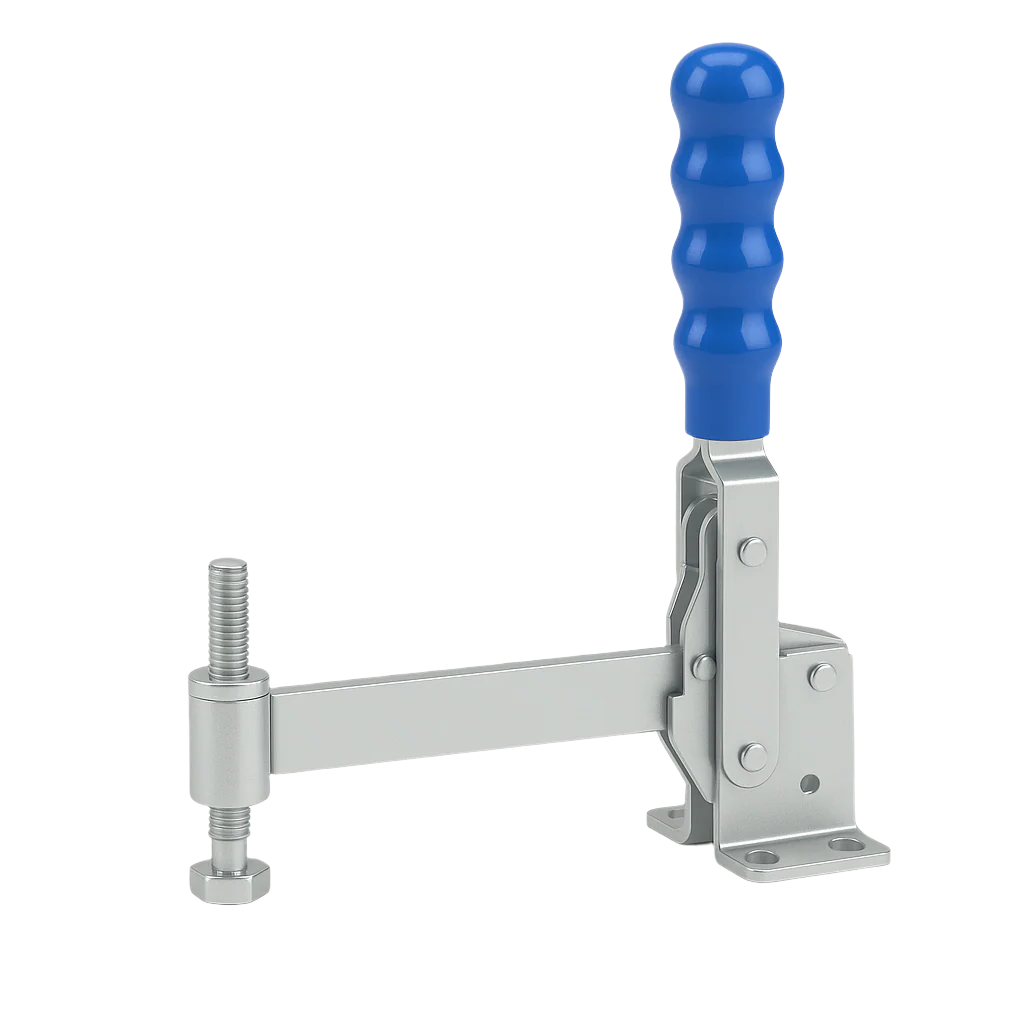

Material & Build Quality

Constructed from zinc-plated and passivated steel, the clamp ensures durability and corrosion resistance in demanding work environments. It features a flanged base for secure mounting and a solid clamping arm for direct and stable contact with workpieces.

Included is a spindle retainer kit, supplied loose, complete with set screw and nuts—perfect for welding into a precise, custom-fit position.

Application Areas

  • Welding Fixtures

  • CNC and Machining Operations

  • Woodworking Jigs

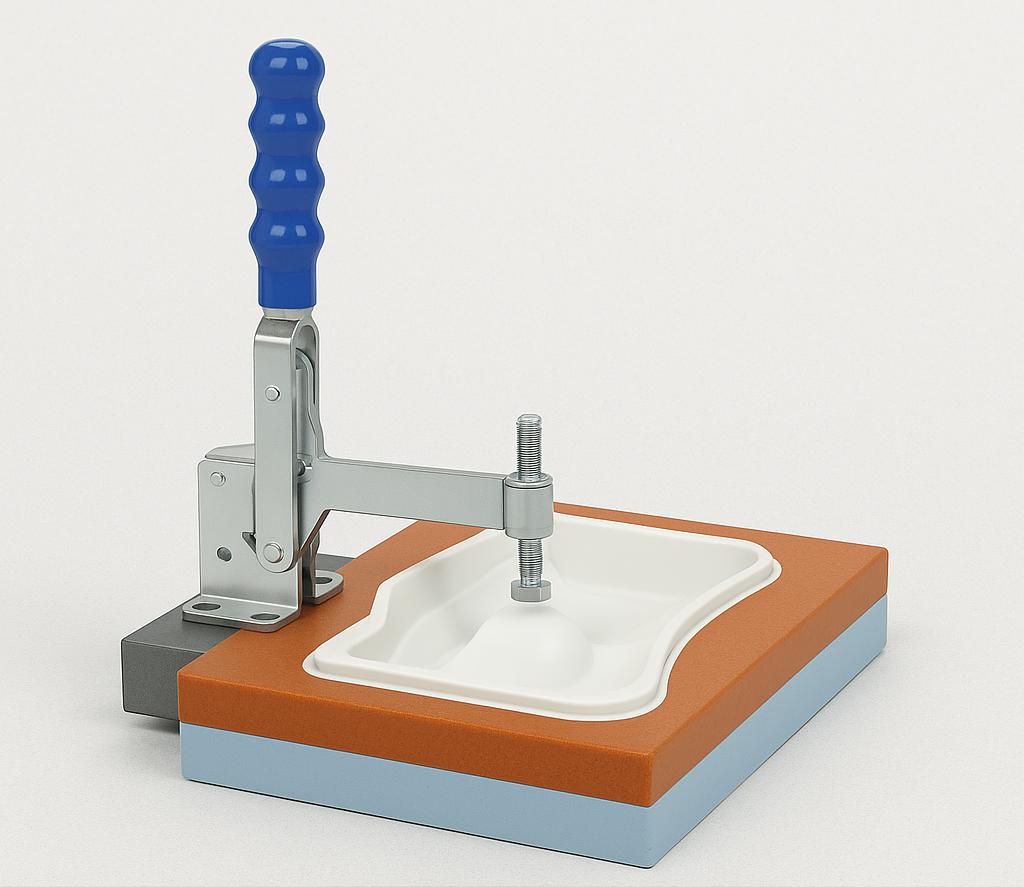

  • Plastic or Composite Molding

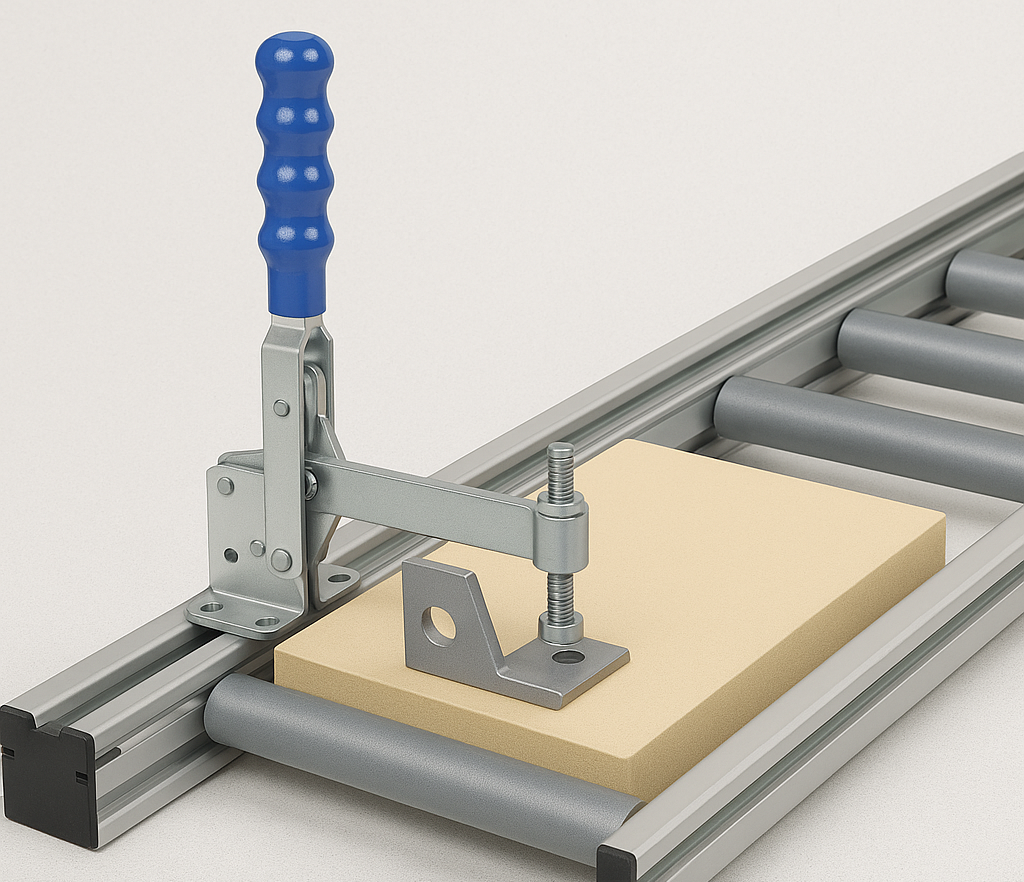

  • Assembly Line Automation

This toggle clamp is designed to meet the needs of professionals requiring reliable and adjustable holding force in vertical clamping tasks.

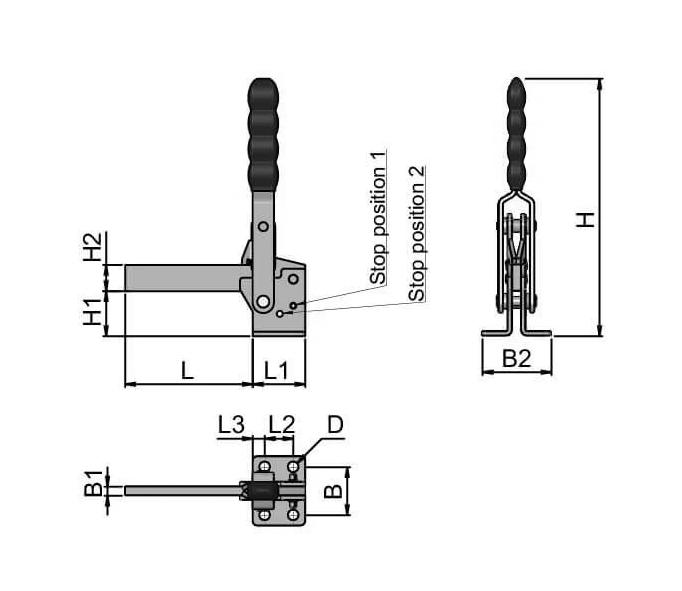

Clamp Specifications – Size Chart

Parameter Size 1 Size 2 Size 3
Weight 0.35 kg 0.60 kg 1.20 kg
Arm Opening Angles 90° / 120° / 160° 90° / 120° / 160° 90° / 120° / 160°
B (Base Width) 32 mm 45 mm 45 mm
B1 (Slot Width) 6 mm 8 mm 10 mm
B2 (Arm Width) 46 mm 63 mm 64 mm
D (Pin Diameter) 7.1 mm 8.3 mm 8.7 mm
H (Handle Height) 175 mm 215 mm 225 mm
H1 (Clamp Height) 30 mm 43 mm 48 mm
H2 (Base to Arm Distance) 18 mm 20 mm 22 mm
Holding Capacity 250 kg 350 kg 450 kg
Holding Force Range 101–300 kg (Med.) 300–999 kg (HD) 300–999 kg (HD)
L (Arm Length) 85 mm 90 mm 127 mm
L1 / L2 / L3 35 / 19 / 8 mm 50 / 32 / 9 mm 53 / 32 / 9 mm
S (Thread Size) M8 M10 M12

Conclusion

Whether for medium or heavy-duty clamping tasks, this Vertical Toggle Clamp with Solid Arm ensures a secure hold, ergonomic use, and reliable performance. It’s the go-to tool for professionals who demand durability and precision in every clamping operation.
