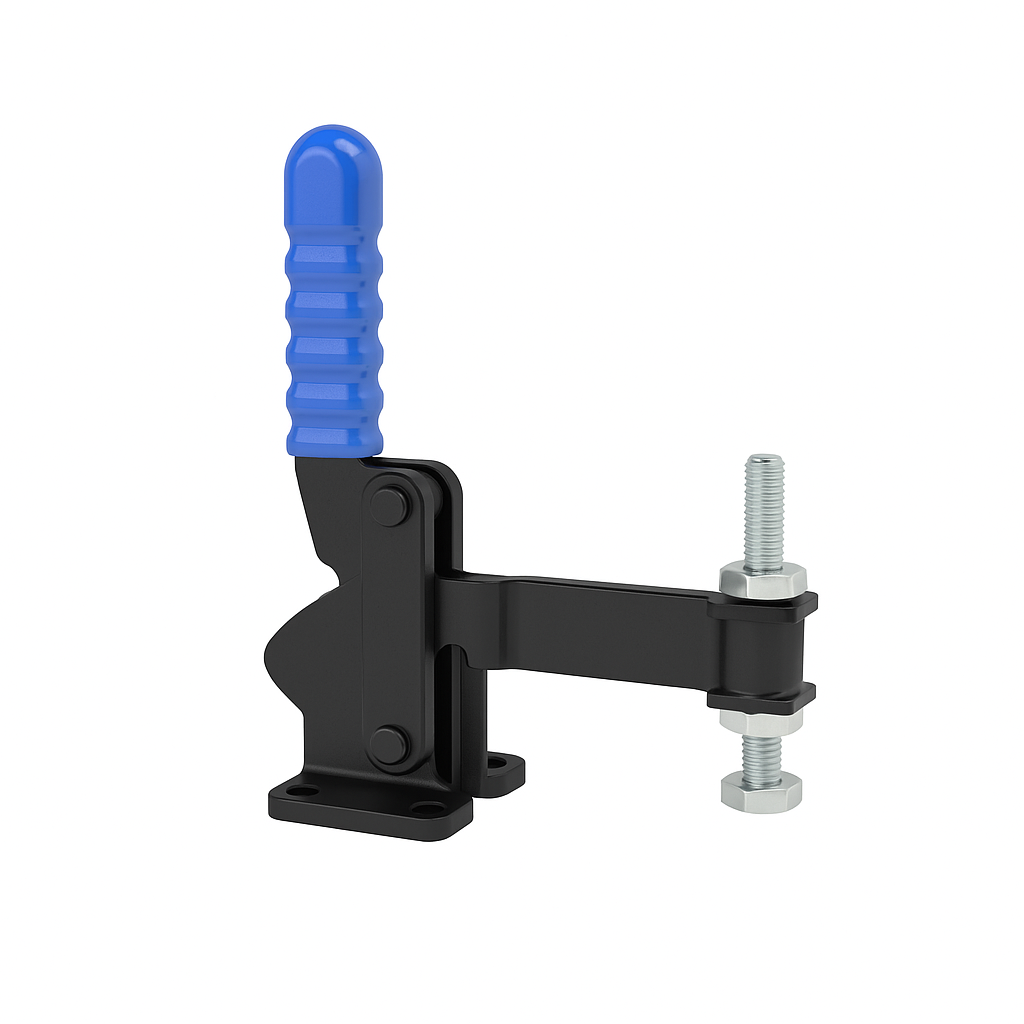

Heavy Duty Vertical Toggle Clamp – Adjustable Spindle

The Heavy Duty Vertical Toggle Clamp with an Adjustable Spindle is a robust and reliable clamping solution engineered for industrial-strength applications. Designed for high performance and precision, this toggle clamp provides exceptional holding power and adjustable functionality in a compact format.

Material & Finish

Crafted from durable steel, this clamp is treated with a chemical black finish for enhanced corrosion resistance and a professional appearance. The flanged base ensures a secure mounting platform, increasing stability during operation.

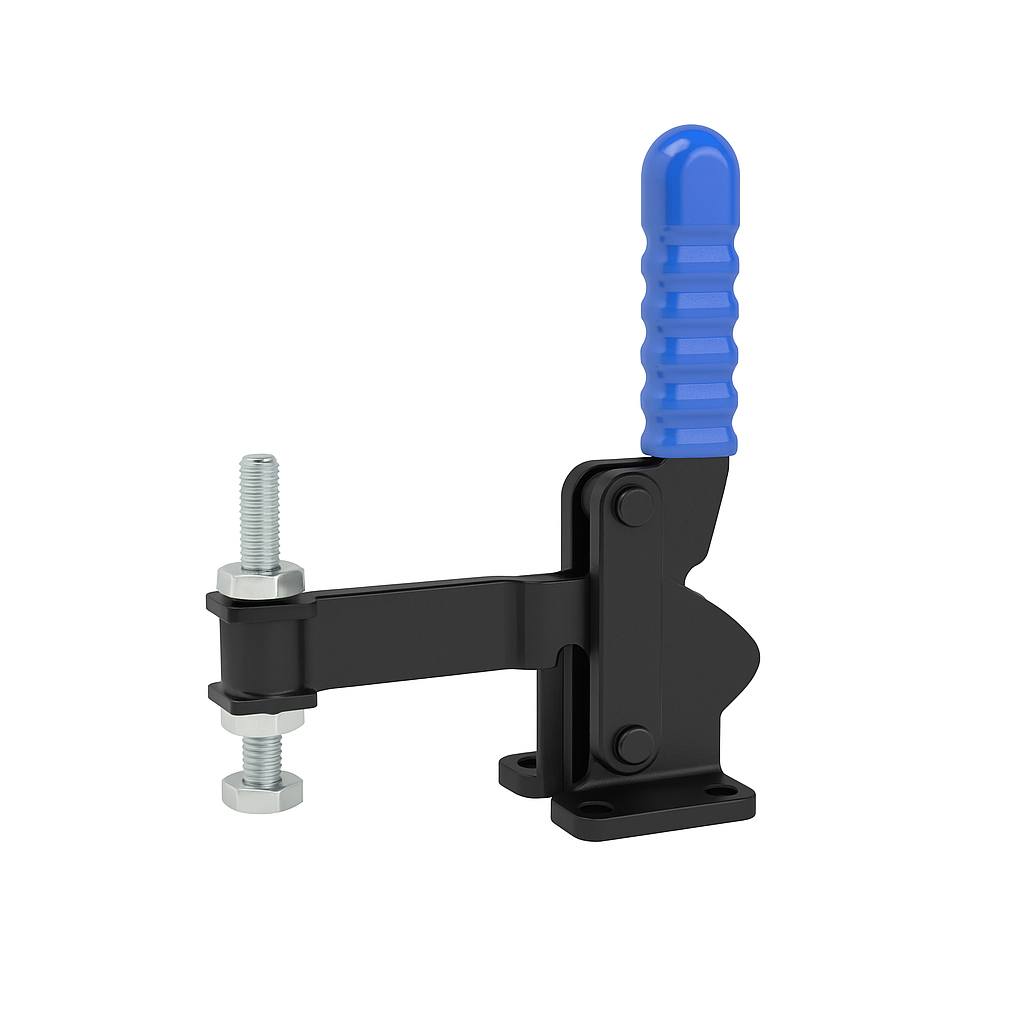

Adjustability & Design

This vertical clamp features an adjustable spindle position, allowing for fine-tuning and flexibility depending on the application. The unit is supplied with set screw nuts and flanged washers for easy installation and optimal load distribution.

The arm opens to 112 degrees, offering a wide access angle and user-friendly operation. Its vertical handle orientation ensures ergonomic and secure usage, particularly in production jigs, fixtures, and assemblies.

Performance & Specifications

• Holding Capacity: 300 kg

• Holding Force: 300 kg (within Heavy Duty 300–999 kg range)

• Unit Type: Metric

• Weight: 0.3 kg

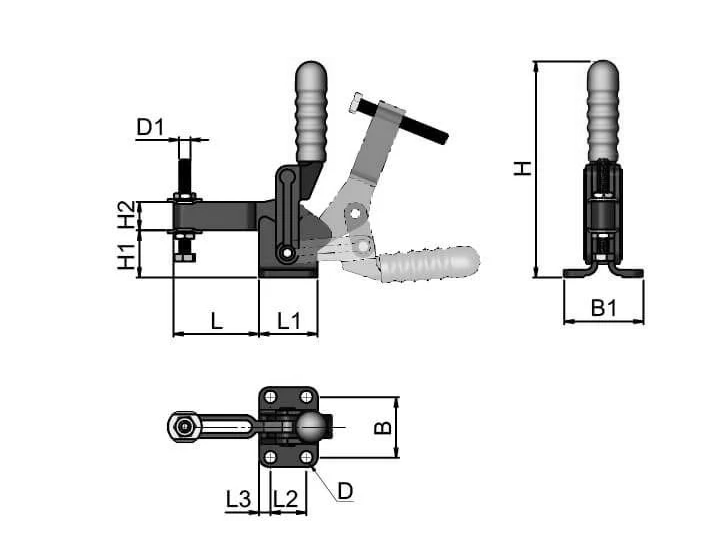

Dimensions (in mm):

• L: 45

• L1: 31

• L2: 19

• L3: 6

• H2: 15

• H: 119

• H1: 25

• B: 32

• B1: 42

• D (Hole Ø): 6.5

• D1 (Thread Size): M6

Applications

Ideal for:

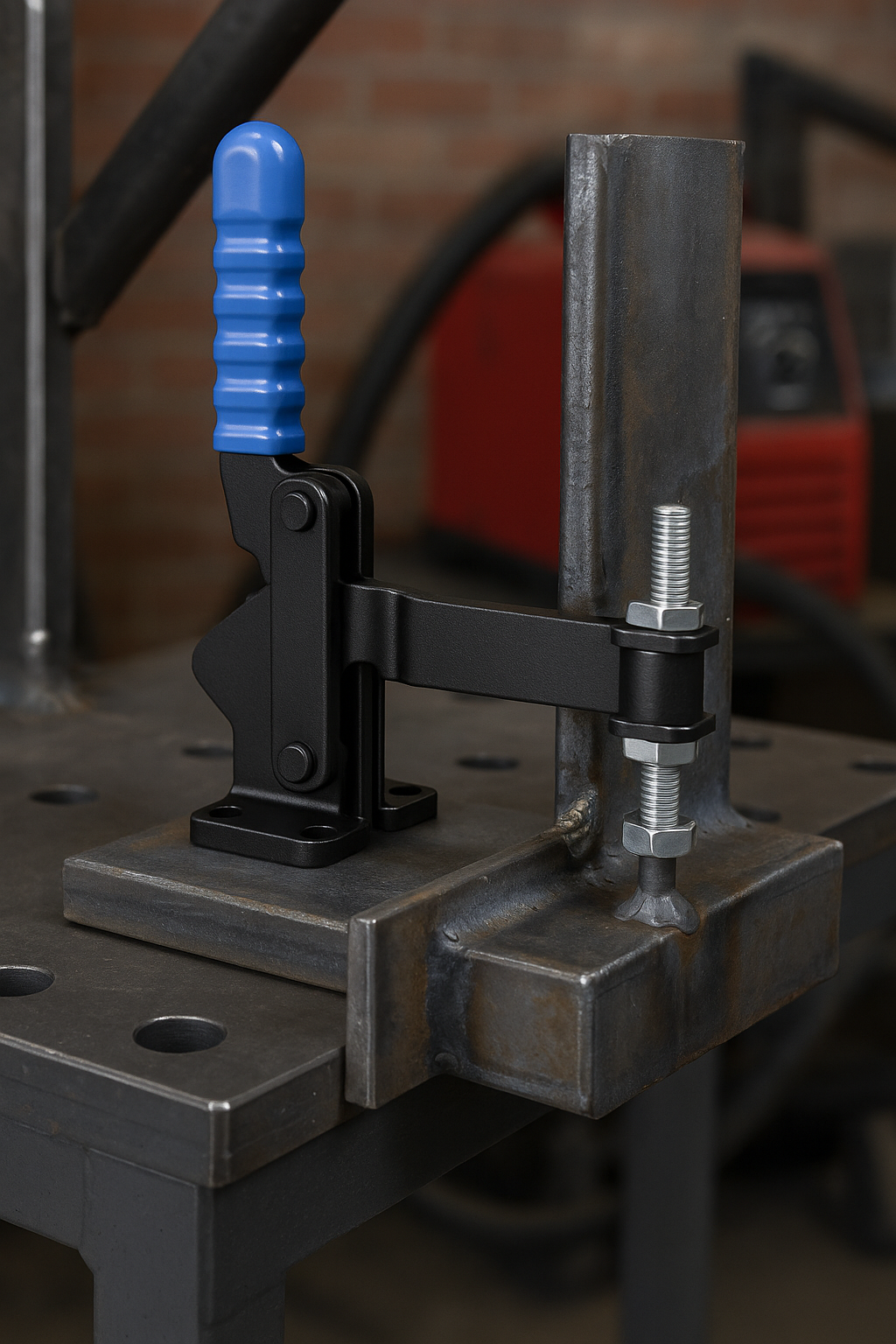

• Welding fixtures

• Assembly operations

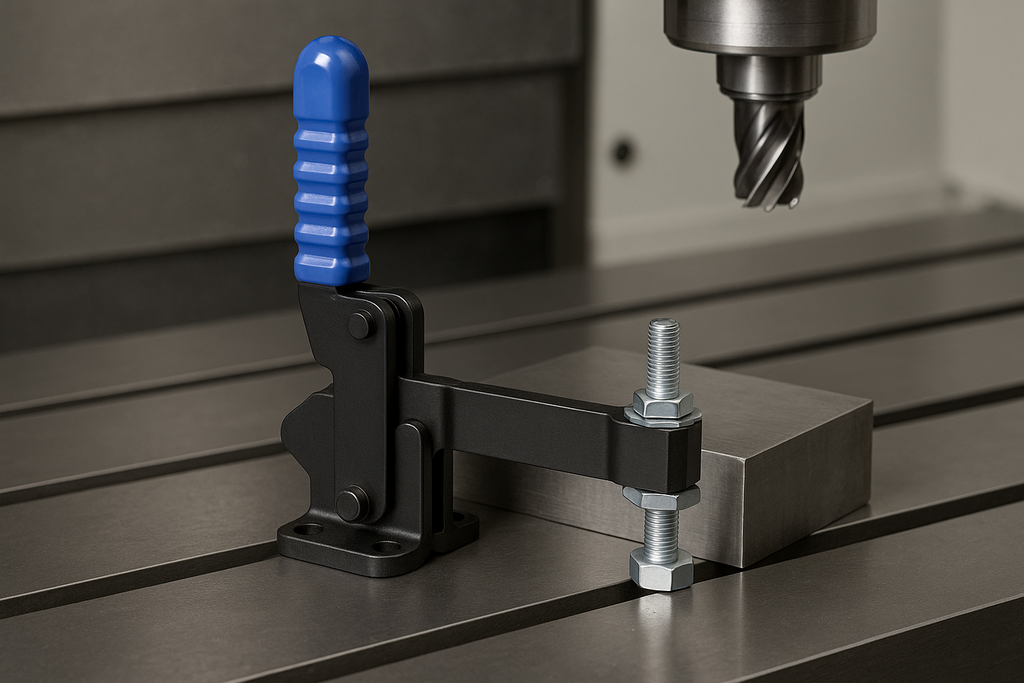

• Machining setups

• Woodworking jigs

• Industrial production lines

This clamp is a perfect choice where secure positioning and high clamping force are essential, delivering stability, reliability, and long service life.
