Description

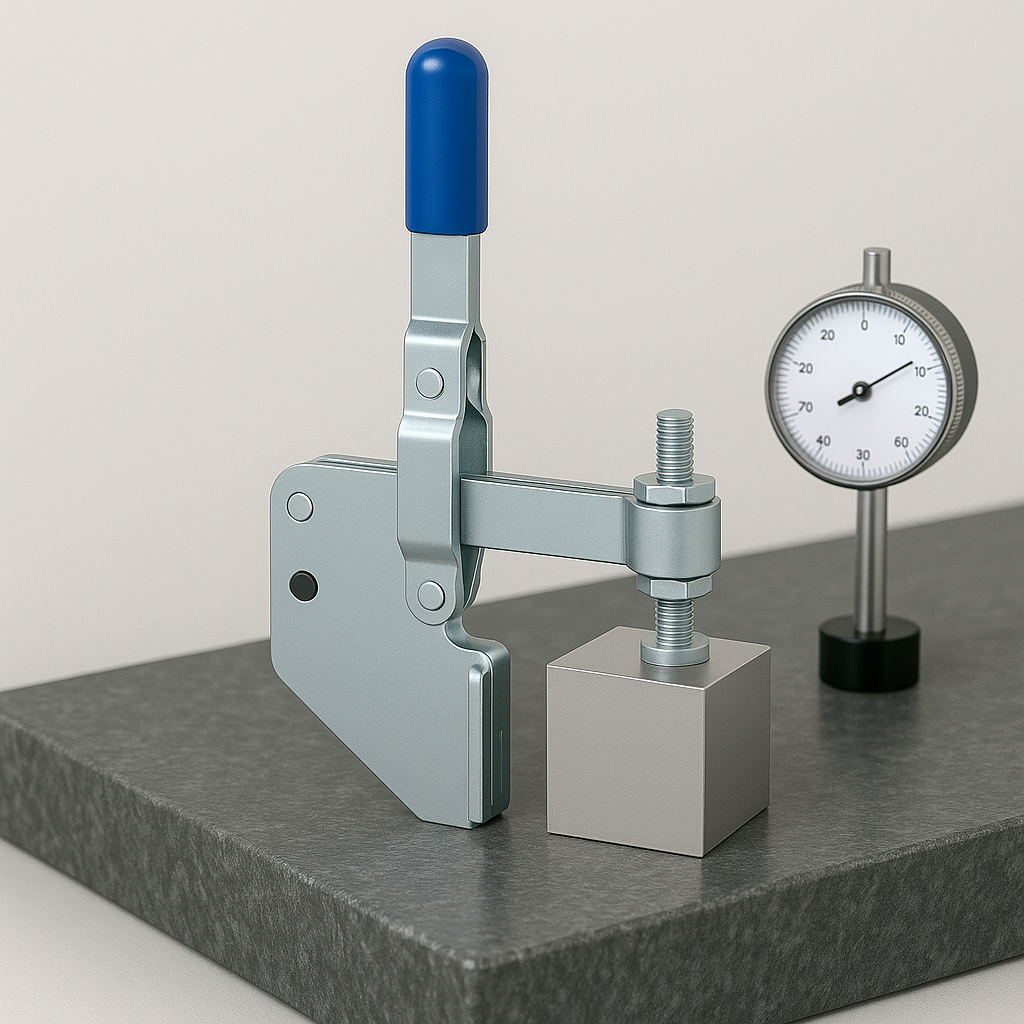

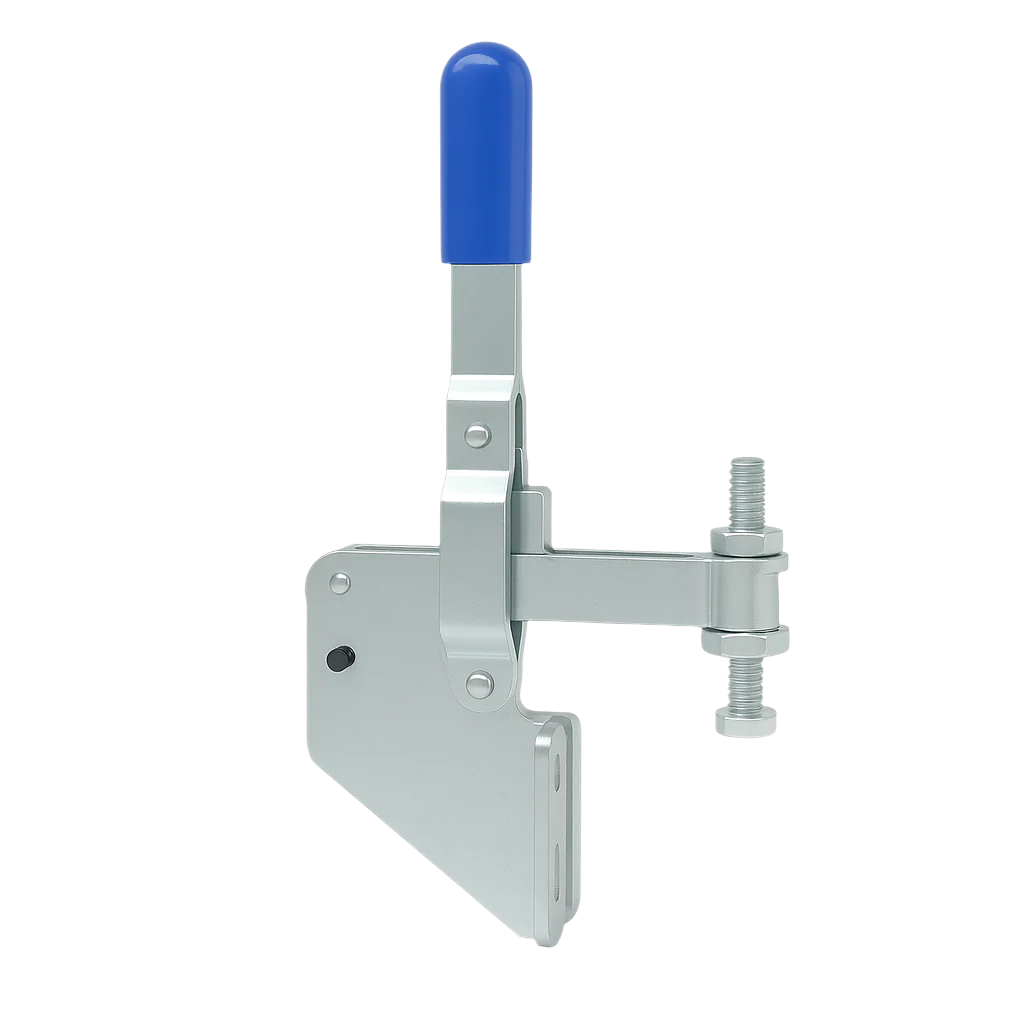

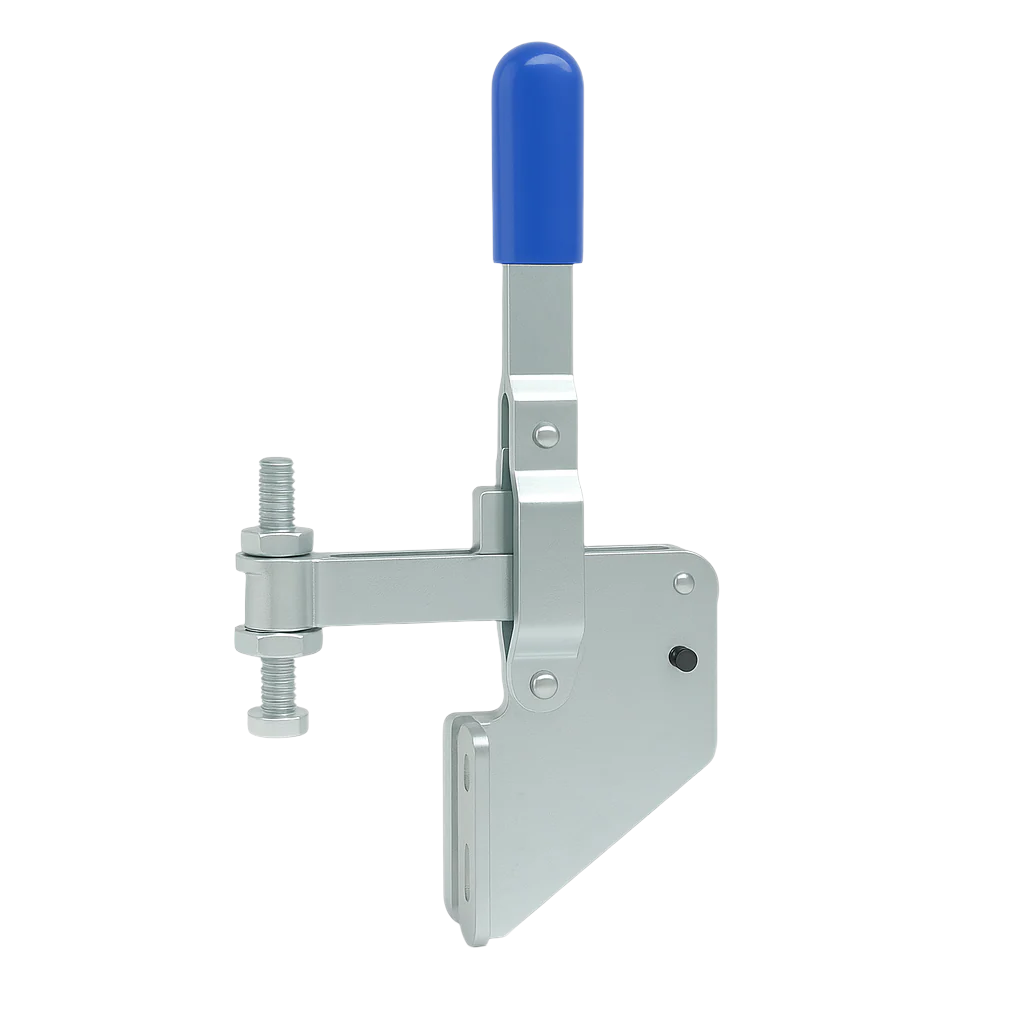

The Vertical Toggle Clamp – Front-Base with Fixed Spindle is a highly reliable workholding tool engineered for precise clamping in industrial, woodworking, and assembly environments. Designed to provide consistent holding force and easy manual operation, this clamp is a staple in jigs, fixtures, and automation setups.
🔩 Construction & Materials
-
Body Material: Steel, zinc-plated and passivated for superior corrosion resistance and durability.
-
Design: Vertical holding orientation with a front base mounting style.
-
Spindle: Fixed-position spindle equipped with a set screw and nuts for secure clamping.
-
Mounting Type: Metric configuration.
⚙️ Key Features
-
Arm Opening: 90 degrees across all sizes for quick, ergonomic operation.
-
Clamping Range: From light-duty (0–100 kg) to heavy-duty (up to 300 kg).
-
Front-Base Design: Allows for easy integration into flat or fixture-based platforms.
-
Included Hardware: Supplied complete with set screw and locking nuts.

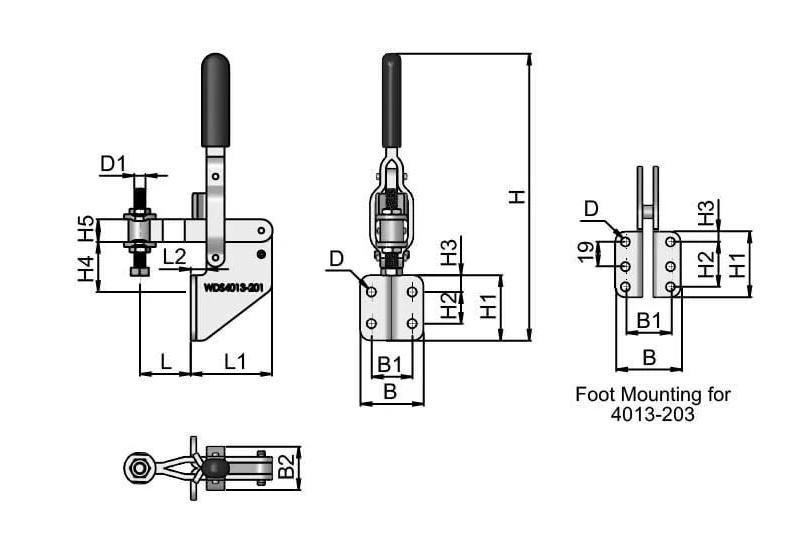

📐 Technical Specifications
| Parameter | Size 1 | Size 2 | Size 3 |
|---|---|---|---|
| Weight (kg) | 0.13 | 0.26 | 0.54 |
| Arm Opens | 90° | 90° | 90° |
| B / B1 / B2 (mm) | 28 / 18 / 19 | 42 / 26 / 21 | 50 / 35 / 23 |
| D / D1 (mm) | 4.1 / M5 | 5.5 / M6 | 6.8 / M8 |
| H to H5 (mm) | 130 / 29 / 14 / 7.5 / 21 / 10 | 175 / 35 / 19 / 8 / 37 / 12 | 210 / 50 / 35 / 8 / 39 / 19 |
| Holding Capacity (kg) | 100 | 200 | 300 |
| Holding Force (kg) | 100 | 200 | 300 |
| Force Range | Light Duty (0–100 kg) | Medium Duty (101–300 kg) | Heavy Duty (300–999 kg) |
| L / L1 / L2 (mm) | 36 / 22.5 / 7 | 45 / 28 / 10 | 55 / 60 / 7 |
🛠 Typical Applications
-
Fixture clamping for CNC machines and drilling stations
-
Precision woodworking, including routing and glue-ups
-

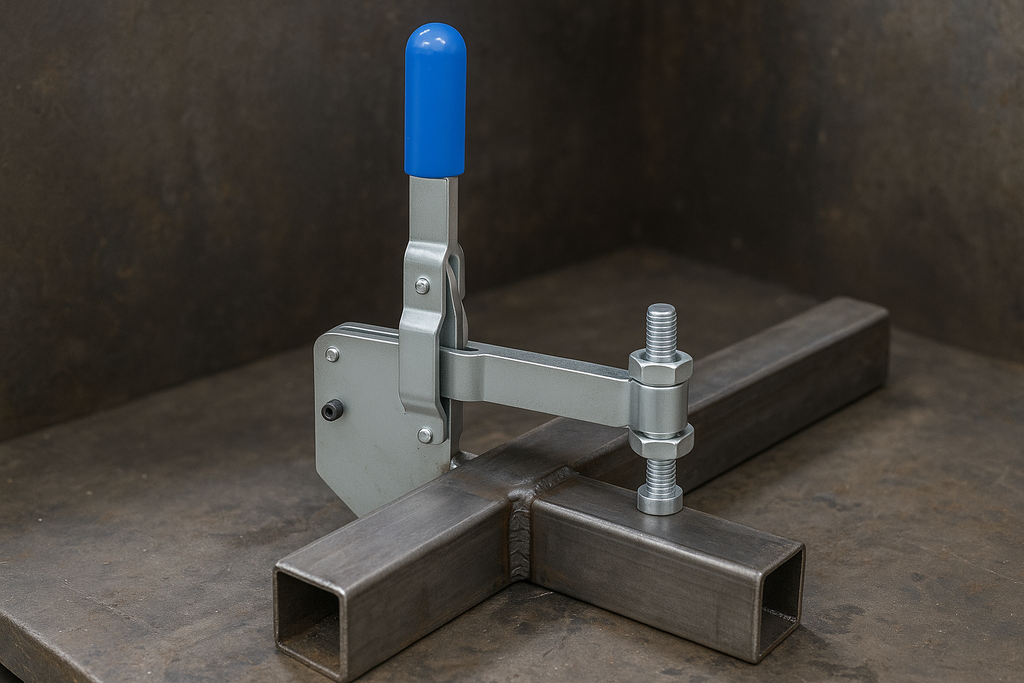

Sheet metal holding during fabrication or inspection
-
Testing and assembly lines for repeatable, safe part placement
This toggle clamp's rugged construction, front-base accessibility, and range of duty levels make it a versatile solution for high-accuracy clamping in a variety of industrial settings.
