Description

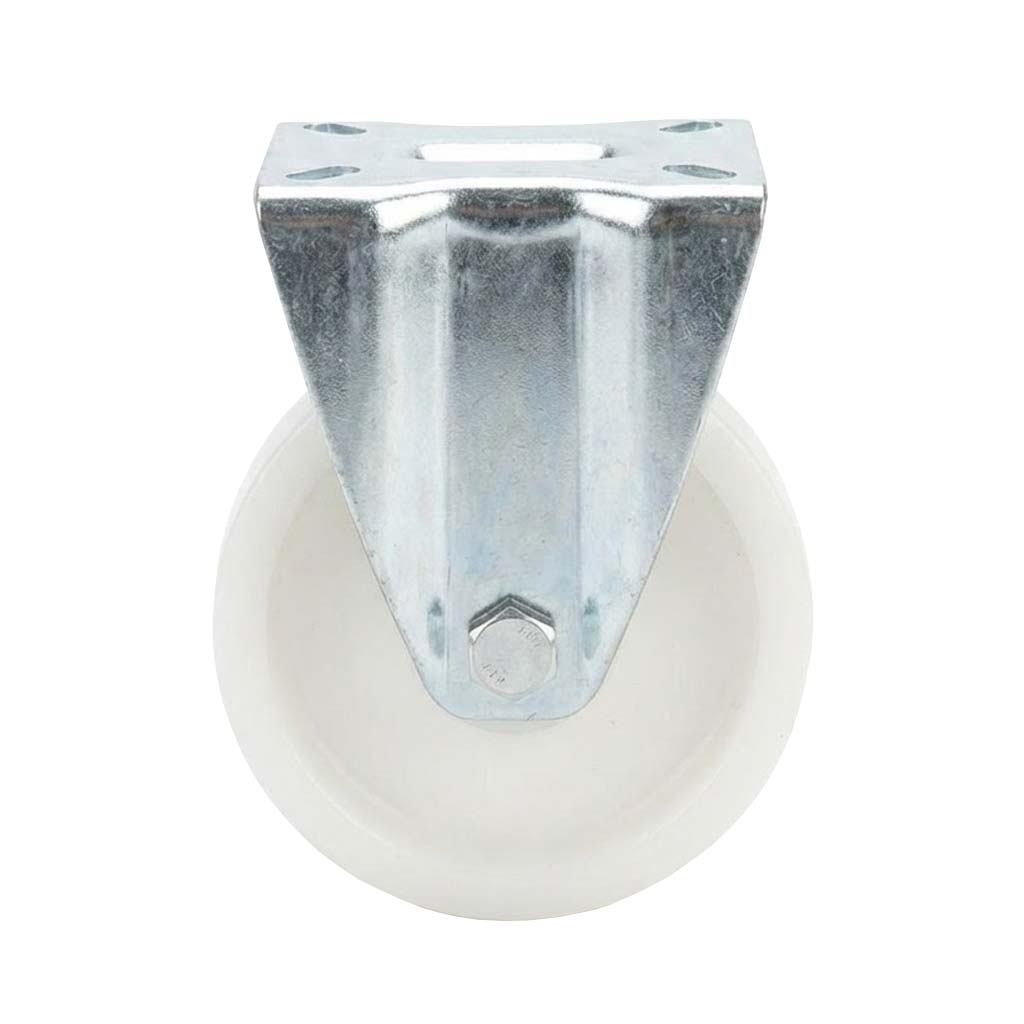

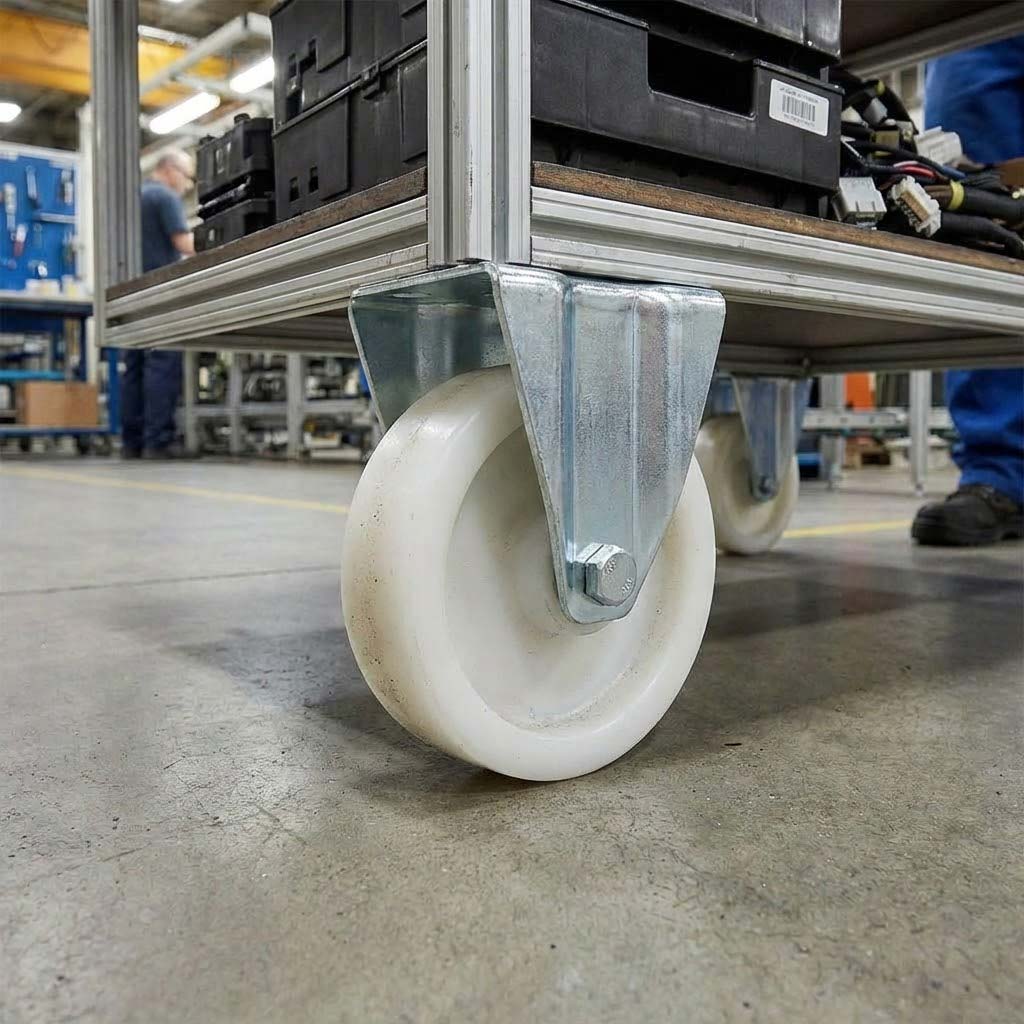

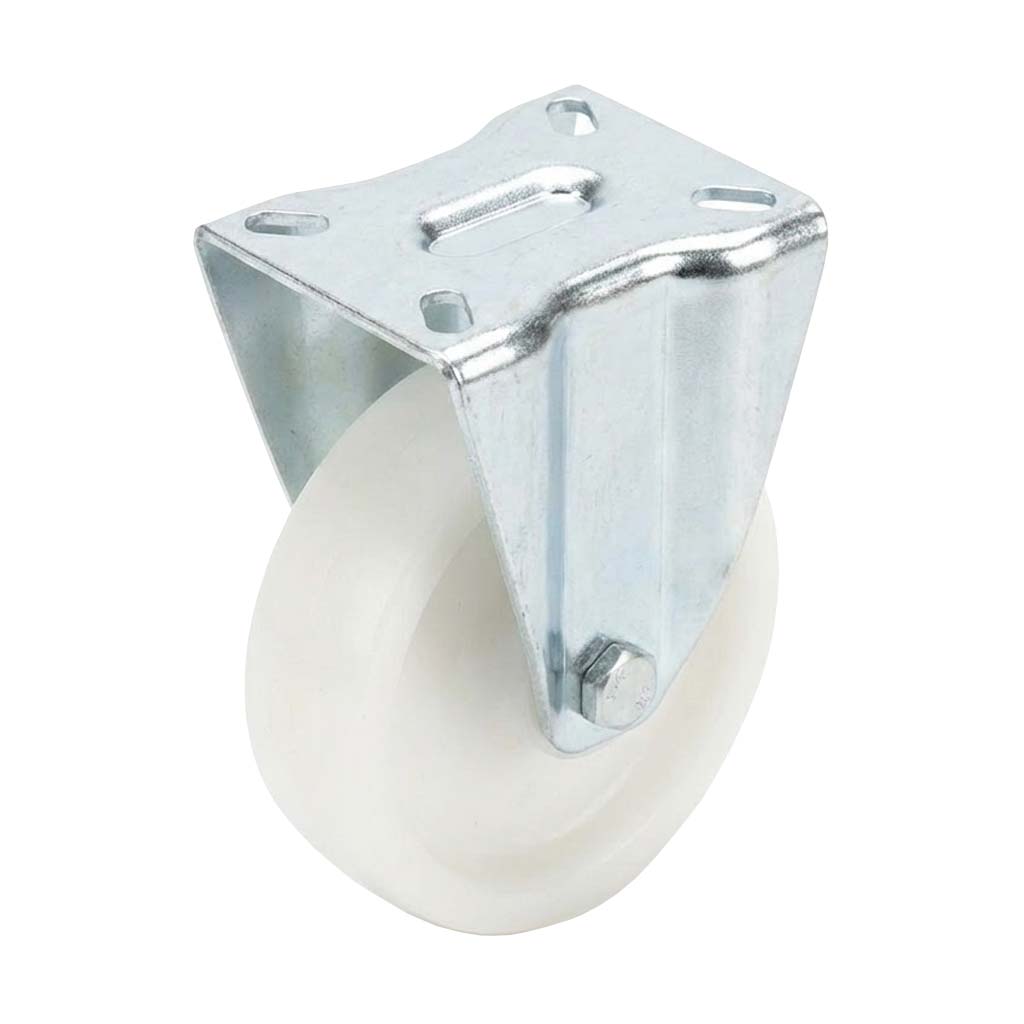

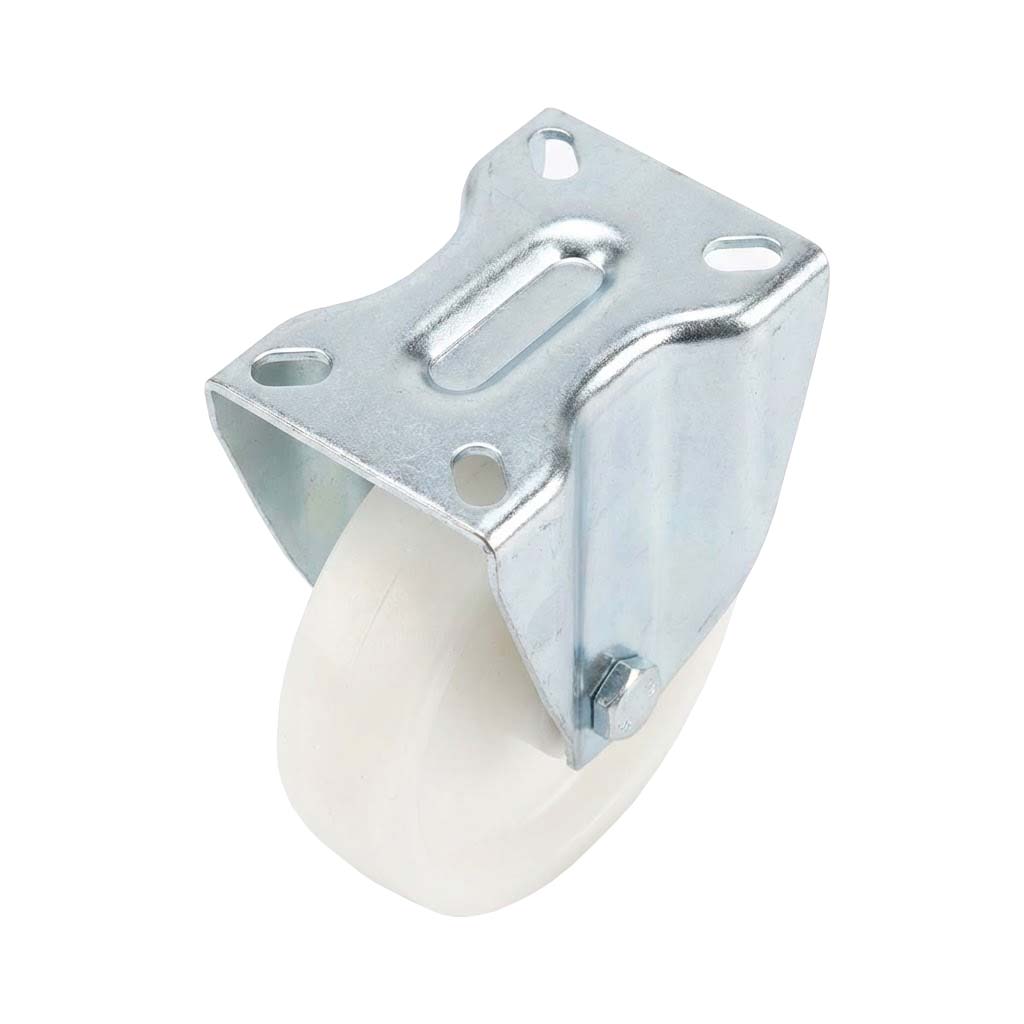

125mm Pressed Steel Fixed Castor with White Nylon Wheel
Heavy-Duty Industrial Mobility Solution - 160kg Load Capacity
Product Overview
This 125mm fixed castor combines robust pressed steel construction with a smooth-rolling white nylon wheel, engineered for demanding industrial and commercial environments. Designed to provide reliable, straight-line movement for heavy equipment, this castor delivers exceptional durability and performance in warehouses, manufacturing facilities, food processing areas, and healthcare settings.
Ideal for trolleys, carts, handling equipment, workbenches, and industrial machinery where directional stability is essential. The non-marking white nylon wheel ensures floor protection while the precision ball bearing system guarantees smooth operation under loads up to 160kg per castor.
Complete Technical Specifications
Castor Configuration
| Castor Type: | Fixed |
| Mounting Type: | Top Plate |
| Bearing Type: | Ball Journal |
| Total Height: | 157mm |
Load Capacity
| Per Castor: | 160kg |
| Set of 4 Castors: | 480kg |
| Application: | Heavy-Duty |
Wheel Specifications
| Wheel Diameter: | 125mm |
| Tread Width: | 37.5mm |
| Wheel Material: | Nylon (White) |
| Tread Hardness: | 85 Shore A |
| Floor Protection: | Non-Marking |
Top Plate Dimensions
| Plate Length: | 100mm |
| Plate Width: | 85mm |
| Number of Holes: | 4 |
| Hole Diameter: | 10mm |
| Hole Centres (Length): | 80mm |
| Hole Centres (Width): | 60mm |
Material Construction
| Frame Material: | Pressed Steel |
| Wheel Material: | White Nylon |
| Finish: | Industrial Grade |
Key Features & Benefits
? Heavy-duty 160kg load capacity per castor
? Precision ball bearing for smooth rolling
? Non-marking white nylon wheel
? Fixed design for directional stability
? Hygienic white finish ideal for clean environments
? Easy installation with 4-hole top plate
? Robust pressed steel construction
? Suitable for food processing and pharmaceutical use
Applications & Industries
Industrial
Warehouse trolleys, material handling carts, workbenches, assembly line equipment
Food Service
Kitchen trolleys, food preparation carts, catering equipment, storage units
Healthcare
Medical carts, hospital equipment, pharmaceutical trolleys, clean room applications
Retail
Display units, stock trolleys, merchandising equipment, mobile fixtures
Manufacturing
Production line carts, tool trolleys, component storage, quality control stations
Hospitality
Housekeeping carts, laundry trolleys, service equipment, banquet furniture
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor has a load capacity of 160kg. When using a set of four castors on a trolley or cart, the total capacity is 480kg. Always ensure weight is evenly distributed across all castors for optimal performance and safety.
What is the difference between fixed and swivel castors?
Fixed castors only move in a straight line, providing directional stability and making them ideal for the rear of trolleys or equipment that needs to travel in straight paths. Swivel castors rotate 360 degrees, offering greater manoeuvrability. Most applications benefit from using fixed castors at the rear and swivel castors at the front.
Will these castors mark my floors?
No, the white nylon wheel is specifically designed to be non-marking, making it safe for use on polished concrete, vinyl, tile, and other finished floor surfaces. The smooth nylon material prevents scuffing and black marks commonly associated with rubber wheels.
How do I install these castors?
Installation is straightforward using the 4-hole top plate. Position the castor on your equipment, mark the four mounting holes (10mm diameter, with centres at 80mm x 60mm), drill pilot holes if needed, and secure with appropriate bolts or screws. Ensure all fixings are tight and check regularly for maintenance.
Are these castors suitable for food processing environments?
Yes, the white nylon wheel and hygienic design make these castors ideal for food processing, commercial kitchens, and pharmaceutical applications. The smooth surfaces are easy to clean and the white colour allows for easy visual inspection of cleanliness.
What is the total height of the castor?
The total height from the floor to the top of the mounting plate is 157mm. This measurement is important when calculating the final height of your trolley or equipment after castor installation.
Can these castors be used outdoors?
While these castors are primarily designed for indoor industrial use, they can handle occasional outdoor use on smooth, dry surfaces. However, for regular outdoor applications or rough terrain, consider castors specifically designed for outdoor conditions with enhanced weather protection.
What maintenance do these castors require?
Regular maintenance includes periodic inspection of mounting bolts for tightness, cleaning debris from the wheel and bearing area, and checking for wear on the nylon wheel. The ball bearing design is generally maintenance-free but should be kept clean for optimal performance. Replace castors if you notice significant wheel wear or reduced rolling performance.
Premium Quality Industrial Castors
Engineered for reliability, designed for performance. This heavy-duty fixed castor delivers the stability and durability your industrial operations demand, backed by precision manufacturing and quality materials.
125mm Pressed Steel Fixed Castor with White Nylon Wheel, 4-Hole Top Plate - 160kg Load Capacity
