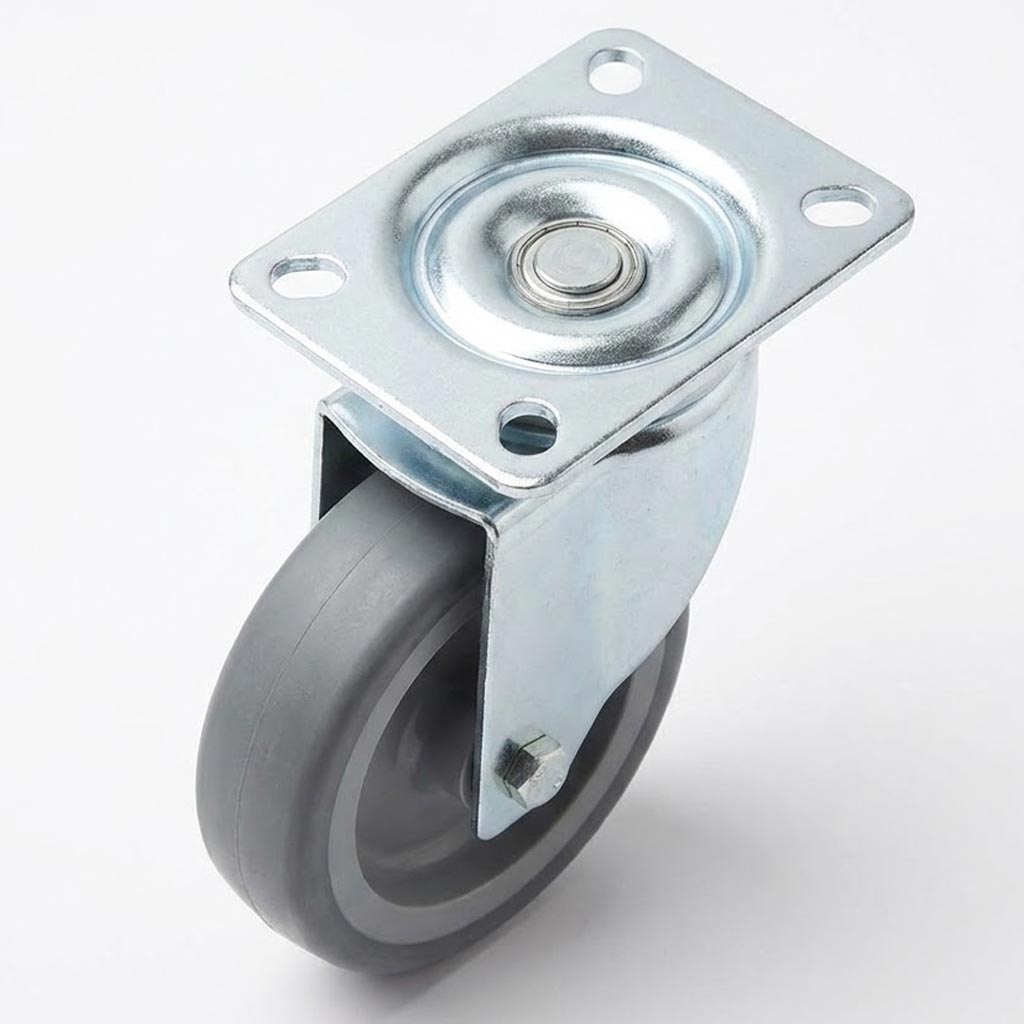

125mm Zinc Plated Swivel Retail Castor Wheel
Premium grey rubber wheel with 4-hole top plate mounting system
Product Overview
This 125mm swivel castor wheel combines robust construction with smooth, quiet operation, making it the ideal mobility solution for retail displays, shop fittings, and commercial equipment. Featuring a thermoplastic grey rubber wheel mounted on a zinc-plated steel frame, this castor delivers reliable performance with a 100kg load capacity per unit. The non-marking rubber tread protects delicate flooring while ensuring effortless manoeuvrability in retail environments, warehouses, and commercial spaces. Designed for easy installation with a standard 4-hole top plate configuration, this castor provides professional-grade mobility for trolleys, display units, furniture, and mobile equipment.
Complete Technical Specifications
Wheel Specifications
| Wheel Diameter | 125 mm |
| Tread Width | 30 mm |
| Wheel Material | Rubber on Polypropylene |
| Wheel Colour | Grey |
| Tread Hardness | 88 Shore A |
Mounting Plate Details
| Plate Length | 95 mm |
| Plate Width | 70 mm |
| Hole Configuration | 4-Hole Top Plate |
| Hole Diameter | 8 mm |
| Hole Centres (L x W) | 70/76 x 50/44.4 mm |
Castor Dimensions
| Total Height | 162 mm |
| Swivel Radius | 104 mm |
| Castor Type | Swivel |
Performance & Construction
| Load Capacity | 100 kg per castor |
| Bearing Type | Plain Bearing |
| Frame Finish | Zinc Plated |
Key Features & Benefits
- 360-Degree Swivel Action: Full rotation capability ensures exceptional manoeuvrability in tight spaces and around corners
- Non-Marking Grey Rubber Tread: Protects floors from scuffs and marks while providing excellent grip and smooth rolling
- Quiet Operation: Thermoplastic rubber wheel minimises noise during movement, ideal for retail and commercial environments
- Zinc Plated Construction: Corrosion-resistant finish ensures long-lasting durability and professional appearance
- 100kg Load Capacity: Robust design supports heavy equipment, displays, and furniture with confidence
- Easy Installation: Standard 4-hole top plate mounting system allows quick and secure attachment
- Plain Bearing System: Low-maintenance design provides reliable performance for everyday use
Ideal Applications
? Retail Display Units
? Shop Fittings & Fixtures
? Mobile Retail Equipment
? Trolleys & Carts
? Commercial Furniture
? Warehouse Equipment
? Storage Solutions
? Industrial Workbenches
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor has a load capacity of 100kg. For optimal performance and safety, calculate the total weight of your equipment and distribute it across the appropriate number of castors. For example, a four-castor trolley can safely support up to 400kg total weight.
Will this castor mark or damage my floors?
No, the grey thermoplastic rubber wheel is specifically designed to be non-marking and floor-safe. It protects delicate surfaces including hardwood, laminate, tile, and polished concrete while providing smooth, quiet operation.
How do I install this castor?
Installation is straightforward using the 4-hole top plate. Simply position the castor plate on your equipment, mark the four mounting holes (8mm diameter), drill pilot holes if needed, and secure with appropriate bolts or screws. Ensure all fixings are tightened securely before use.
What is the difference between swivel and fixed castors?
Swivel castors rotate 360 degrees, allowing easy manoeuvrability and direction changes. Fixed castors only roll in a straight line. For optimal control, many applications use a combination of both types, with swivel castors at one end for steering and fixed castors at the other for stability.
Can these castors be used outdoors?
While the zinc-plated finish provides some corrosion resistance, these castors are primarily designed for indoor retail and commercial environments. For outdoor applications or areas with high moisture exposure, consider castors with enhanced weather-resistant coatings.
What does the swivel radius measurement mean?
The swivel radius (104mm) is the distance from the centre of the mounting plate to the outer edge of the wheel when rotated. This measurement helps you determine the clearance space needed for the castor to rotate freely without obstruction.
How much height will this castor add to my equipment?
The total castor height is 162mm from the base of the wheel to the top of the mounting plate. This is the clearance your equipment will gain when the castors are installed.
Are replacement parts available for this castor?
These castors are designed as complete units. For long-term reliability and consistent performance, we recommend replacing the entire castor when wear becomes evident rather than attempting to replace individual components.
Professional Mobility Solutions
Engineered for reliability, designed for performance. This premium swivel castor delivers the quality and durability your business demands.
125mm Zinc Plated Swivel Retail Castor Wheel - Grey Rubber, 4-Hole Top Plate - 100kg Load Capacity
