Industrial Hardware ? Fixed Castors

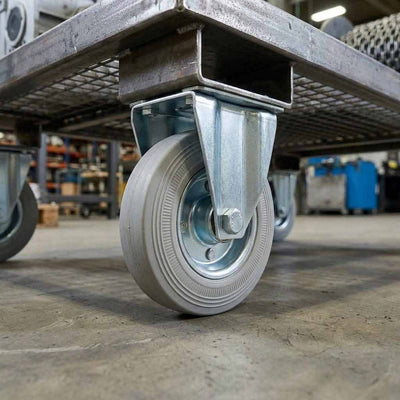

150mm Pressed Steel Fixed Castor Wheel ? Grey Rubber on Pressed Steel ? 130kg Load Capacity
A robust, fixed-position castor engineered for demanding material handling environments. Fitted with a grey rubber tread bonded to a pressed steel centre, this 150mm castor delivers controlled, floor-friendly movement across warehouses, workshops, and industrial facilities ? supporting up to 130kg per unit and up to 390kg across a four-castor configuration.
Product Overview
This fixed castor wheel is designed for applications where directional stability is essential and swivel movement is not required. The pressed steel top plate, finished with a zinc-plated coating for corrosion resistance, mounts securely via four bolt holes to trolleys, carts, equipment bases, and fabricated frames. The grey rubber tread ? rated at 85 Shore A hardness ? absorbs vibration, reduces rolling noise, and protects floor surfaces during transit. Ball journal bearings ensure smooth, low-friction rotation under load, making this castor equally suited to frequent-use and high-cycle environments.
Key Features
| Load Capacity (per castor) | 130 kg |
| Maximum Load (4 castors) | 390 kg |
| Wheel Diameter | 150 mm |
| Wheel Material | Grey Rubber on Pressed Steel |
| Bearing Type | Ball Journal |
| Tread Hardness | 85 Shore A |
| Plate Finish | Zinc Plated |
Technical Specifications
Wheel
| Wheel Diameter | 150 mm |
| Tread Width | 40 mm |
| Wheel Colour | Grey |
| Wheel Material | Rubber on Pressed Steel |
| Tread Hardness | 85 Shore A |
Top Plate
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Plate Finish | Zinc Plated |
| Castor Type | Top Plate (Fixed) |
Bolt Holes
| Number of Bolt Holes | 4 |
| Hole Diameter | 10 mm |
| Hole Centres Width | 60 mm / 80 mm |
Load & Height
| Load Capacity (per castor) | 130 kg |
| Max Load (4 castors) | 390 kg |
| Total Castor Height | 181 mm |
| Bearing Type | Ball Journal |
Typical Applications
This fixed castor is well suited to a wide range of commercial and industrial settings where straight-line movement and load stability are the priority:
| Warehouse Trolleys | Provides directional control when paired with swivel castors on picking and transport trolleys. |
| Workshop Equipment | Ideal for workbenches, tool stands, and mobile storage units requiring stable, guided movement. |
| Industrial Carts | Supports heavy-duty platform and flatbed carts in manufacturing and logistics environments. |
| Retail & Display Fixtures | Suitable for mobile shelving, display units, and point-of-sale fixtures in retail settings. |
| Fabricated Frames & Bases | Compatible with custom-welded or bolted steel frames requiring a reliable fixed-wheel solution. |
Frequently Asked Questions
What is the difference between a fixed castor and a swivel castor?
A fixed castor rolls in one direction only, providing straight-line stability and directional control. A swivel castor rotates 360 degrees, allowing multi-directional movement. For most trolleys and carts, a combination of two fixed castors at the rear and two swivel castors at the front is the recommended configuration for balanced manoeuvrability and control.
How do I know if this castor will fit my existing equipment?
Check the top plate dimensions and bolt hole centres on your existing equipment against the specifications for this castor: plate 100mm x 85mm, hole centres 60mm / 80mm, hole diameter 10mm. If your mounting points match either hole centre measurement, this castor will fit directly. The total installed height is 181mm, which should be factored into any height-sensitive application.
Is this castor suitable for outdoor use?
This castor is primarily designed for indoor industrial and commercial use on smooth to moderately uneven surfaces. The zinc-plated plate offers a degree of corrosion resistance, and the rubber tread performs well on concrete, tile, and sealed floors. For prolonged outdoor exposure or wet environments, consider whether additional protection is required for your specific application.
How many castors do I need, and what is the total load they can support?
Each castor is rated at 130kg. A standard four-castor configuration supports a maximum combined load of 390kg ? note this is not simply 4 x 130kg, as load distribution across castors is rarely perfectly equal. For safety and longevity, it is advisable to select castors with a combined rating that exceeds your maximum expected load by a reasonable margin.
All dimensions are nominal and stated in millimetres unless otherwise indicated. Load ratings are per individual castor under standard operating conditions. For technical queries or volume requirements, please contact our team directly.
