Description

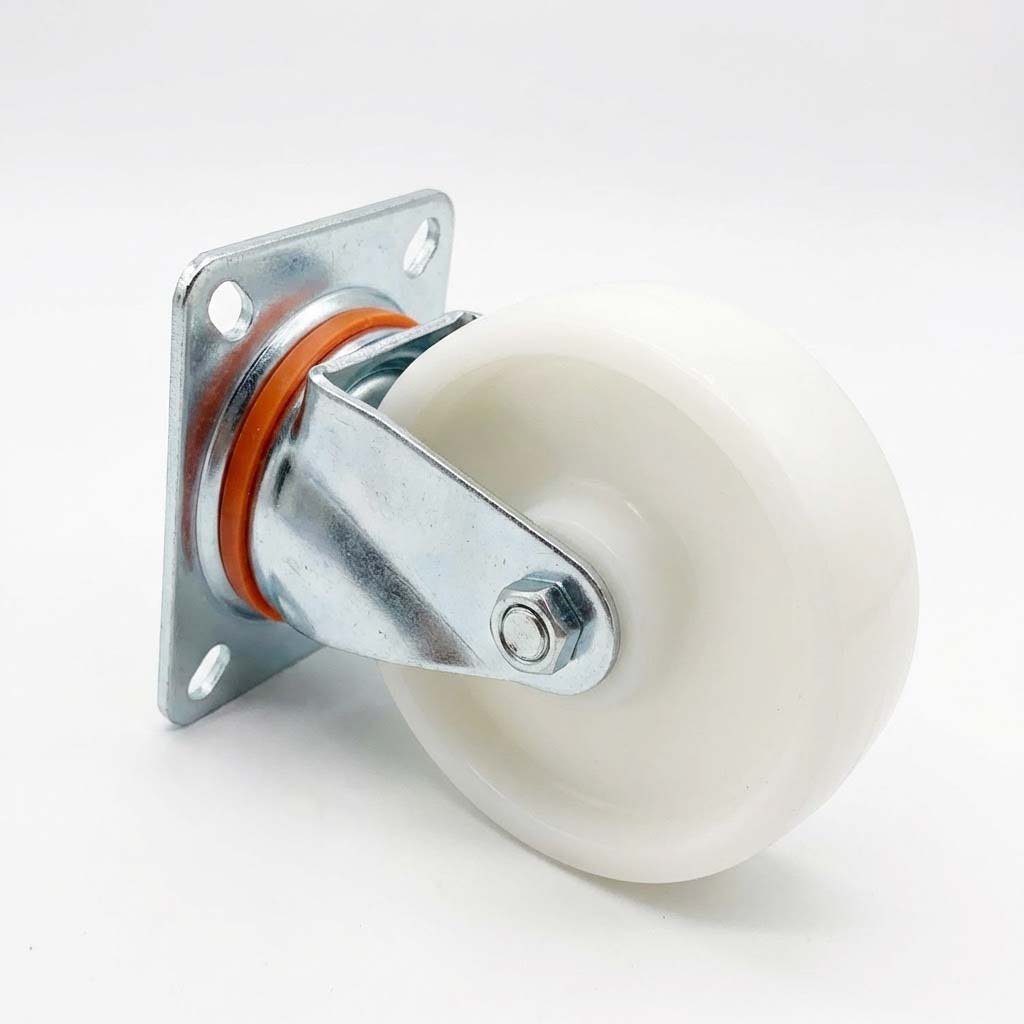

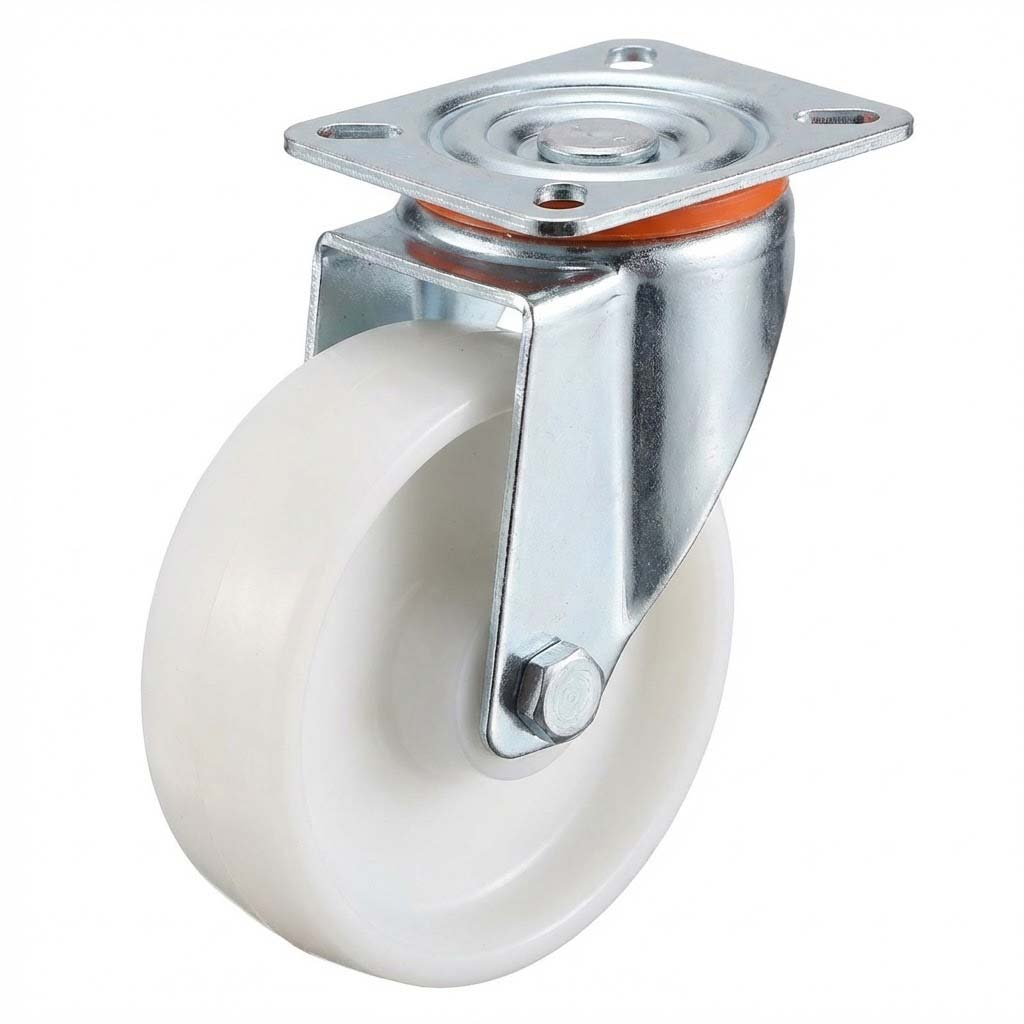

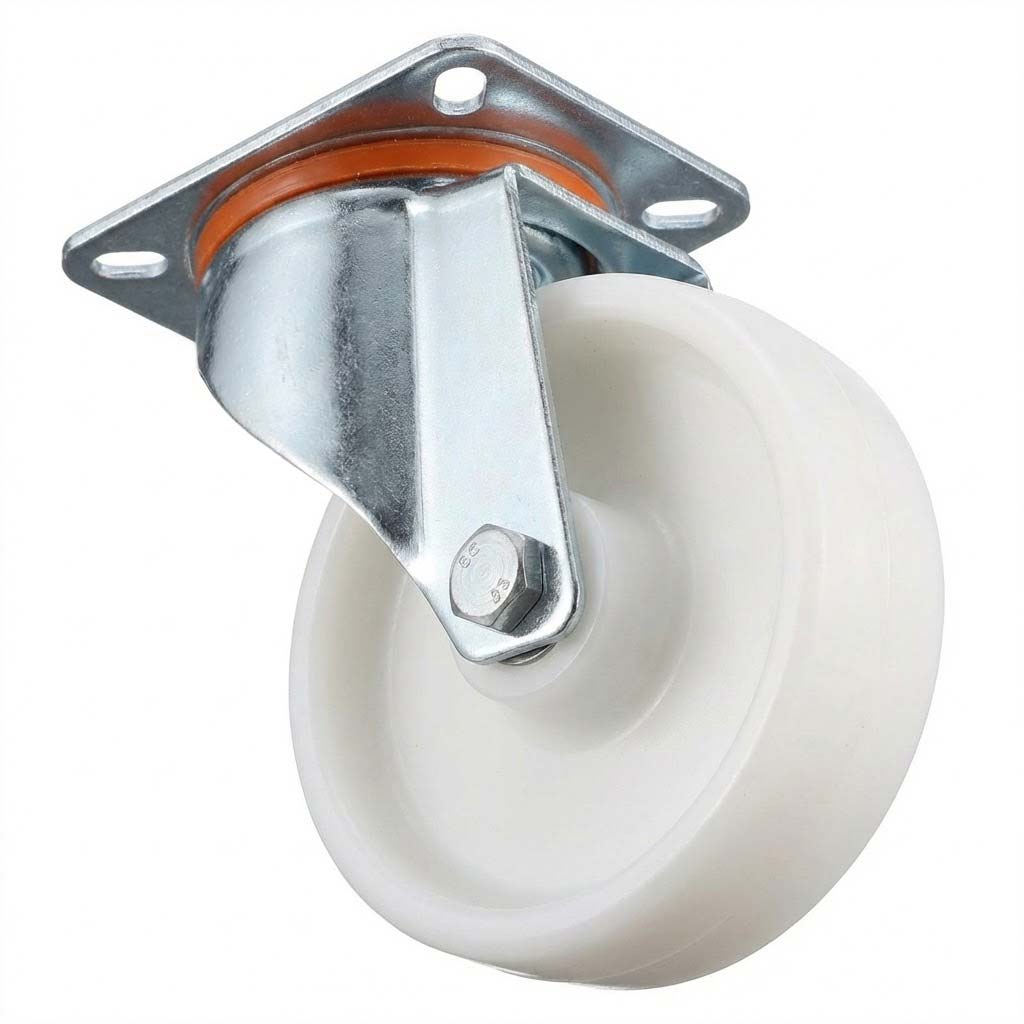

150mm Pressed Steel Swivel Castor with White Nylon Wheel
Engineered for superior manoeuvrability and exceptional load-bearing performance in demanding industrial and commercial environments
This 150mm pressed steel swivel castor with white nylon wheel delivers outstanding manoeuvrability combined with robust load capacity and exceptionally low rolling resistance. The precision-engineered swivel housing enables effortless directional changes, making it the ideal solution for equipment requiring frequent repositioning across industrial and commercial settings.
With an impressive load capacity of 180kg per castor (540kg when using four castors), this heavy-duty model excels on trolleys, carts, and material handling equipment. The integrated ball journal bearing ensures smooth, consistent swivel rotation under load, significantly improving manoeuvrability whilst reducing operator effort during movement.
Performance & Construction
The solid nylon wheel provides exceptional strength, durability, and superior resistance to wear and tear. Its hard rolling surface delivers extremely low rolling resistance, making it particularly well-suited for smooth indoor floors where efficiency, cleanliness, and extended service life are paramount.
The top plate fixing system ensures secure, reliable installation, whilst the 181mm total castor height provides increased ground clearance for demanding applications and uneven surfaces.
Key Features
Smooth 360-degree rotation for effortless manoeuvrability and directional changes
Excellent rolling efficiency with superior obstacle clearance capability
Heavy-duty construction suitable for demanding industrial applications
Hard-wearing material with very low rolling resistance and non-marking properties
Durable, long-lasting material resistant to wear and degradation
Precision bearing system for smooth rotation and enhanced manoeuvrability
Secure and reliable mounting system with 4-hole configuration
Complete Technical Specifications
Castor Specifications
| Castor Type | Swivel, Top Plate |
| Bearing Type | Ball Journal |
| Load Capacity (Per Castor) | 180 kg |
| Maximum Load Capacity (4 Castors) | 540 kg |
| Total Castor Height | 181 mm |
Wheel Specifications
| Wheel Diameter | 150 mm |
| Tread Width | 40 mm |
| Wheel Material | Solid Nylon |
| Wheel Colour | White |
| Hardness of Tread | 85 Shore A |
Top Plate Specifications
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Plate Hole Centres | 60 mm × 80 mm |
| Plate Hole Diameter | 10 mm |
Ideal Applications
This premium swivel castor is commonly specified for:
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor has a load capacity of 180kg. When using four castors together, the maximum combined load capacity is 540kg. Always ensure loads are evenly distributed across all castors for optimal performance and safety.
What type of floors is this castor suitable for?
This castor is specifically designed for smooth indoor floor surfaces such as concrete, tiles, vinyl, and epoxy-coated floors. The white nylon wheel provides non-marking performance and very low rolling resistance on these surfaces, making it ideal for warehouses, workshops, and commercial facilities.
How do I install this top plate castor?
The castor features a 4-hole top plate measuring 100mm × 85mm with 10mm diameter holes. The hole centres are positioned at 60mm × 80mm. Simply align the plate with your equipment base, mark the hole positions, drill pilot holes if necessary, and secure using appropriate bolts or screws (not included). Ensure all fixings are tightened securely before use.
What is the difference between a swivel and fixed castor?
A swivel castor rotates 360 degrees, allowing easy directional changes and manoeuvrability. This makes it ideal for equipment that needs to be steered or repositioned frequently. Fixed castors only roll in one direction and are typically used in combination with swivel castors to provide stability whilst maintaining some manoeuvrability.
Why choose nylon wheels over rubber or polyurethane?
Nylon wheels offer exceptional durability, very low rolling resistance, and excellent load-bearing capacity. They are resistant to many chemicals, oils, and solvents, making them ideal for industrial environments. Nylon wheels are also non-marking and perform well in both hot and cold conditions. However, they provide less shock absorption than rubber or polyurethane wheels.
What is the total height of this castor?
The total height from the floor to the top of the mounting plate is 181mm. This measurement is important when determining ground clearance for your equipment. Always account for this height when designing or modifying trolleys, carts, or other mobile equipment.
Can this castor be used in food or pharmaceutical environments?
Yes, the white nylon wheel and pressed steel construction make this castor suitable for hygienic environments including food processing and pharmaceutical facilities. The smooth surfaces are easy to clean and the materials are resistant to many cleaning agents. The white colour also makes contamination more visible during inspection.
What maintenance does this castor require?
Regular maintenance includes periodic inspection for wear or damage, cleaning to remove debris and contaminants, and checking that all mounting bolts remain secure. The ball journal bearing is designed for long service life but should be checked periodically for smooth operation. Lubrication requirements are minimal due to the bearing design.
Why Choose This Castor
We supply a carefully curated range of castors and wheels selected for exceptional durability, consistent performance, and ease of installation. Our products are sourced from trusted manufacturers to meet the exacting demands of commercial and industrial environments.
This 150mm pressed steel swivel castor with white nylon wheel provides reliable manoeuvrability, impressive load capacity, and extended service life across a comprehensive range of indoor applications. Its combination of robust construction, precision engineering, and low-maintenance design makes it an excellent choice for demanding professional use.
150mm Pressed Steel Swivel Castor Wheel with 4 Hole Top Plate & White Nylon Wheel - 180kg Load Capacity
Dispatch
Checkout
Guaranteed
Returns
Download Spec Sheet
PDF with image, specifications & dimensions
| SKU | RC_IPN1009 |
| Brand | Industrial Products UK |
