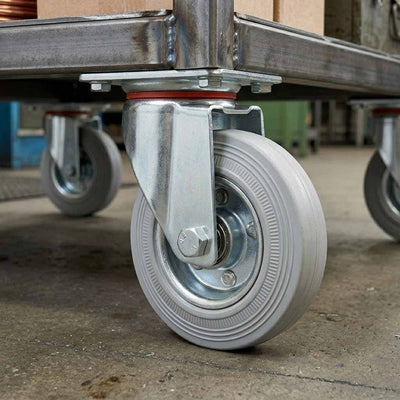

200mm Pressed Steel Swivel Castor with Grey Rubber Wheel
This heavy-duty swivel castor combines a 200mm grey rubber wheel with pressed steel construction, delivering smooth manoeuvrability and reliable performance for industrial trolleys, mobile equipment, and transport applications. With a 180kg load capacity per castor and ball journal bearing for effortless rotation, it's engineered for demanding environments where controlled movement and durability are essential.
Key Performance Features
Heavy-Duty Load Capacity Supports up to 180kg per castor, with a combined capacity of 540kg across four castors for robust industrial applications.
Smooth Swivel Action Ball journal bearing ensures effortless 360-degree rotation, reducing rolling resistance and improving manoeuvrability under load.
Floor-Safe Rubber Wheel Non-marking grey rubber tread with 85 Shore A hardness provides excellent shock absorption, vibration reduction, and quiet operation.
Durable Construction Rubber on pressed steel wheel design delivers impact resistance and long service life in demanding indoor environments.
Secure Top Plate Mounting 4-hole top plate fixing (141mm × 115mm) with 10mm diameter holes ensures reliable installation on trolleys, carts, and equipment bases.
Optimal Ground Clearance 242mm total castor height provides increased clearance for navigating uneven surfaces and obstacles with ease.
Technical Specifications
| Specification | Value |
|---|---|
| Castor Type | Swivel, Top Plate |
| Bearing Type | Ball Journal |
| Load Capacity (Per Castor) | 180 kg |
| Max Load Capacity (4 Castors) | 540 kg |
| Wheel Diameter | 200 mm |
| Wheel Material | Rubber on Pressed Steel |
| Wheel Colour | Grey |
| Tread Width | 50 mm |
| Tread Hardness | 85 Shore A |
| Total Castor Height | 242 mm |
| Top Plate Length | 141 mm |
| Top Plate Width | 115 mm |
| Plate Hole Centres | 80 mm × 105 mm |
| Plate Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 Holes |
Ideal Applications
- Heavy-duty industrial trolleys and transport carts requiring smooth directional control
- Mobile machinery and equipment bases in manufacturing and workshop environments
- Material handling equipment for warehouses and distribution centres
- Service trolleys and mobile workstations in commercial facilities
- Assembly line equipment and production floor applications
- Indoor environments where floor protection, noise reduction, and manoeuvrability are priorities
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor has a load capacity of 180kg. When using four castors together on a trolley or equipment base, the combined maximum load capacity is 540kg. Always ensure the load is evenly distributed across all castors for optimal performance and safety.
Will this castor damage or mark my floors?
No, the grey rubber wheel is specifically designed to be non-marking and floor-safe. The 85 Shore A tread hardness provides excellent floor protection while delivering controlled rolling, shock absorption, and quiet operation on smooth indoor surfaces such as concrete, tile, and epoxy flooring.
How do I install this top plate castor?
The castor features a 4-hole top plate measuring 141mm × 115mm with 10mm diameter fixing holes positioned at 80mm × 105mm centres. Simply align the plate with your equipment base, mark the hole positions, drill pilot holes if needed, and secure using appropriate bolts, washers, and nuts. Ensure all fixings are tightened evenly for a stable, secure mount.
What type of bearing does this castor use and why does it matter?
This castor uses a ball journal bearing, which provides smooth, low-friction rotation even under heavy loads. Ball bearings significantly reduce rolling resistance compared to plain bearings, making it easier to manoeuvre loaded trolleys and equipment while extending the castor's service life through reduced wear and improved load distribution.
