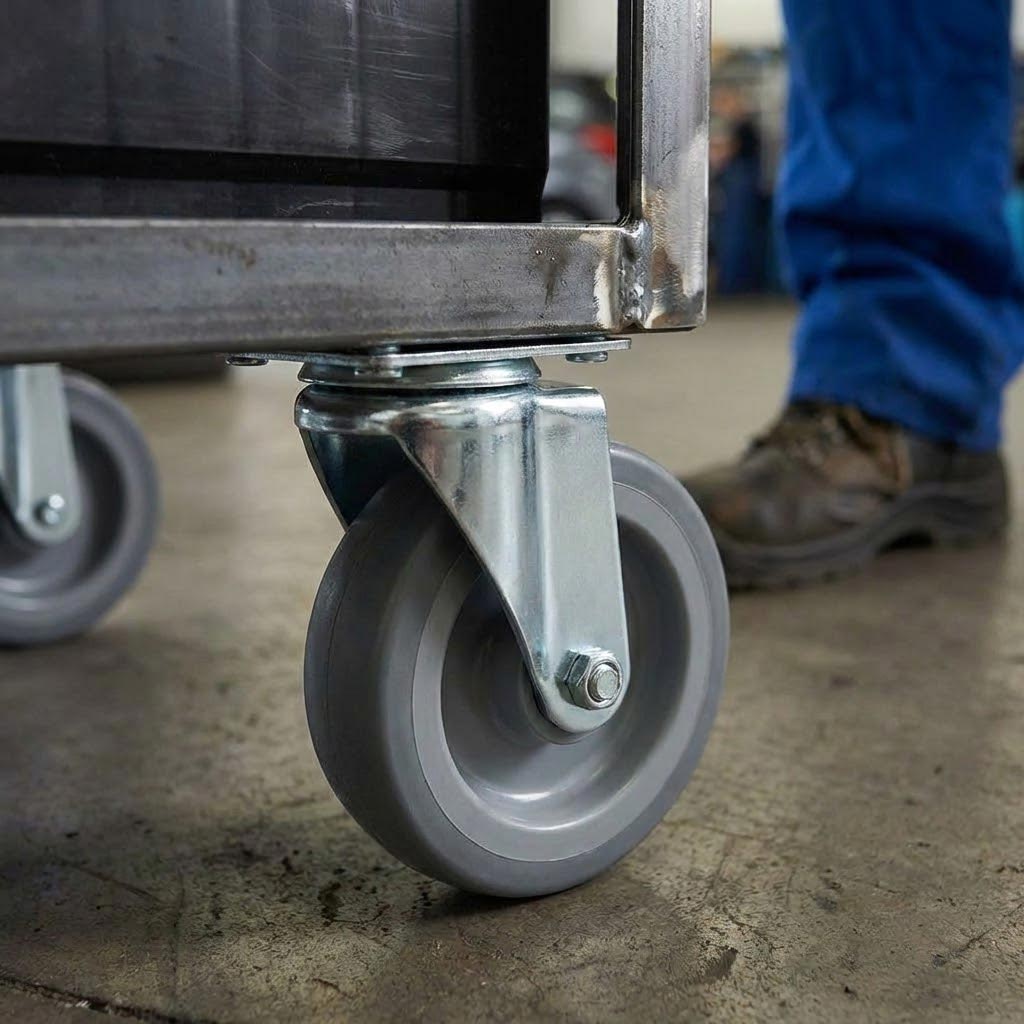

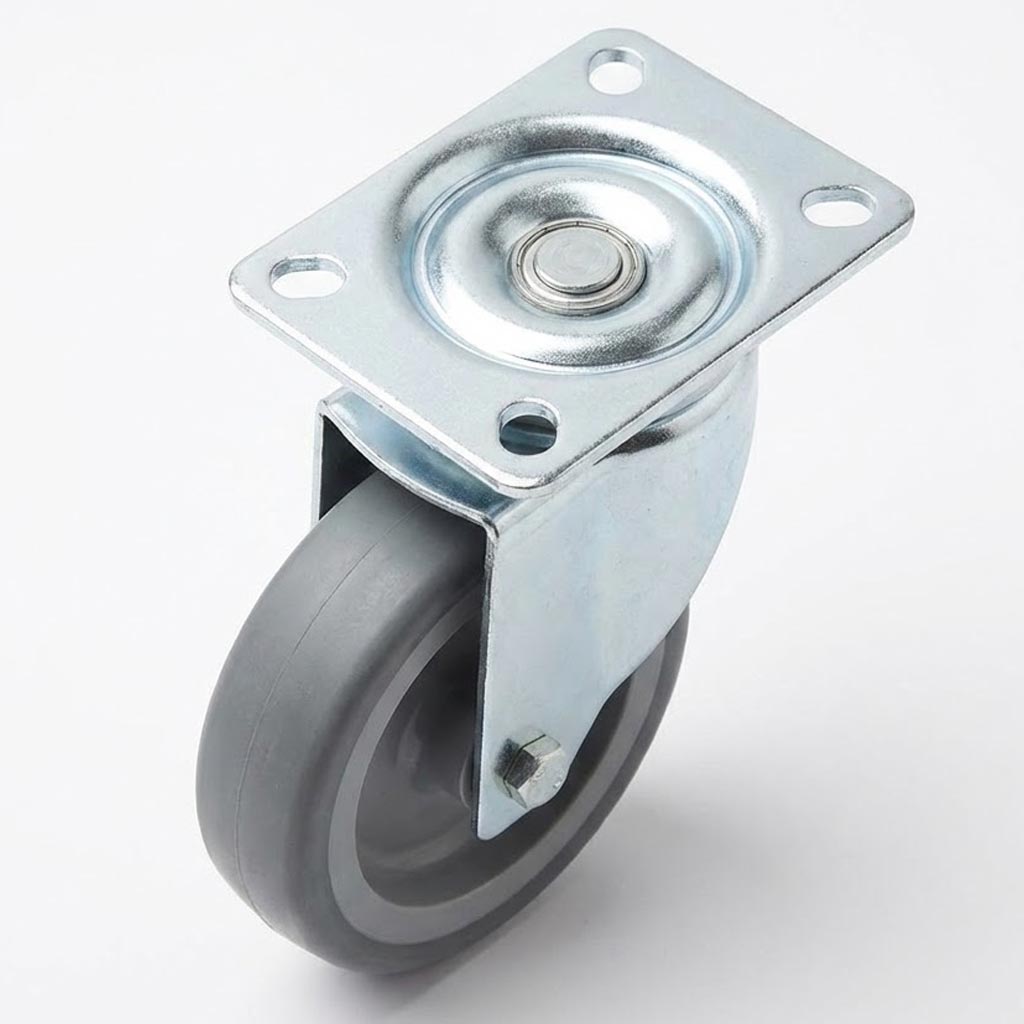

60mm Zinc Plated Swivel Retail Castor Wheel
Premium light-duty mobility solution engineered for retail displays, exhibition stands, and commercial furniture applications. This compact swivel castor combines smooth manoeuvrability with reliable performance, featuring a non-marking grey rubber wheel mounted on a corrosion-resistant zinc plated top plate. Designed for environments requiring easy directional changes and floor protection, this castor delivers dependable service across retail, hospitality, and light industrial settings.
Complete Technical Specifications
Castor Configuration
| Castor Type | Swivel |
| Mounting Type | Top Plate |
| Bearing Type | Plain Bearing |
| Total Height | 87mm |
| Swivel Radius | 57mm |
Load Capacity
| Per Castor | 40kg |
| Set of 4 Castors | 120kg |
Wheel Specifications
| Wheel Diameter | 60mm |
| Tread Width | 22mm |
| Wheel Material | Rubber on Polypropylene |
| Wheel Colour | Grey |
| Tread Hardness | 88 Shore A |
| Floor Protection | Non-Marking |
Top Plate Dimensions
| Plate Length | 65mm |
| Plate Width | 50mm |
| Plate Finish | Zinc Plated |
| Number of Holes | 4 |
| Hole Diameter | 6mm |
| Hole Centres (Length) | 50mm |
| Hole Centres (Width) | 36mm |
Key Features & Benefits
? 360-degree swivel rotation for effortless manoeuvrability
? Non-marking grey rubber protects delicate flooring
? Corrosion-resistant zinc plated finish for durability
? Compact 87mm total height for low-profile applications
? Plain bearing system ensures smooth, quiet operation
? Simple 4-hole top plate mounting for quick installation
Ideal Applications
Perfect for retail display units, exhibition stands, point-of-sale fixtures, mobile shelving systems, light commercial furniture, hospitality trolleys, office equipment, and any application requiring smooth mobility with floor protection. Particularly suited to environments with vinyl, laminate, tile, or polished concrete flooring where non-marking wheels are essential.
Frequently Asked Questions
What weight can this castor support?
Each castor has a load capacity of 40kg. When using a set of four castors, the total capacity is 120kg, making it suitable for light to medium-duty retail and commercial applications.
Will these castors mark my floors?
No, the grey rubber wheel is specifically designed to be non-marking, making it safe for use on vinyl, laminate, tile, polished concrete, and other sensitive floor surfaces commonly found in retail and commercial environments.
How do I mount these castors?
The castor features a 4-hole top plate measuring 65mm x 50mm with 6mm diameter holes. The hole centres are 50mm (length) and 36mm (width). Simply align the plate with your equipment, mark the holes, drill pilot holes if needed, and secure with appropriate fixings.
What is the total height of the castor?
The total height from the base of the wheel to the top of the mounting plate is 87mm. This low-profile design is ideal for applications where minimal height addition is required, such as display units and retail fixtures.
Can the castor rotate 360 degrees?
Yes, this is a full swivel castor with a 57mm swivel radius, allowing complete 360-degree rotation for maximum manoeuvrability. This makes it easy to move equipment in any direction and navigate tight spaces.
What type of bearing does this castor use?
The castor uses a plain bearing system, which provides smooth, quiet operation suitable for light-duty applications. Plain bearings are low-maintenance and ideal for retail environments where noise reduction is important.
Is the castor suitable for outdoor use?
While the zinc plated finish provides some corrosion resistance, this castor is primarily designed for indoor retail and commercial applications. For extended outdoor use or harsh environments, consider castors with enhanced weather protection.
What is the wheel made from?
The wheel features a thermoplastic rubber tread on a polypropylene core with a hardness rating of 88 Shore A. This combination provides excellent floor protection, smooth rolling, and durability for everyday retail use.
Enhance mobility and protect your floors with this professional-grade swivel castor, engineered for reliable performance in demanding retail and commercial environments.
60mm Zinc Plated Swivel Retail Castor Wheel - Grey Rubber, 4-Hole Top Plate - 40kg Load Capacity
Dispatch
Checkout
Guaranteed
Returns
Download Spec Sheet
PDF with image, specifications & dimensions
| SKU | RC_IPN914 |
| Brand | Industrial Products UK |
| Product Type | Castors & Wheels |
| Title | Default Title |
- 60mm Zinc Plated Swivel Retail Castor Wheel - Grey Rubber, 4-Hole Top Plate - 40kg Load Capacity
- VAT invoice for business accounting
- Product documentation (where applicable)
Description
60mm Zinc Plated Swivel Retail Castor Wheel
Premium light-duty mobility solution engineered for retail displays, exhibition stands, and commercial furniture applications. This compact swivel castor combines smooth manoeuvrability with reliable performance, featuring a non-marking grey rubber wheel mounted on a corrosion-resistant zinc plated top plate. Designed for environments requiring easy directional changes and floor protection, this castor delivers dependable service across retail, hospitality, and light industrial settings.
Complete Technical Specifications
Castor Configuration
| Castor Type | Swivel |
| Mounting Type | Top Plate |
| Bearing Type | Plain Bearing |
| Total Height | 87mm |
| Swivel Radius | 57mm |
Load Capacity
| Per Castor | 40kg |
| Set of 4 Castors | 120kg |
Wheel Specifications
| Wheel Diameter | 60mm |
| Tread Width | 22mm |
| Wheel Material | Rubber on Polypropylene |
| Wheel Colour | Grey |
| Tread Hardness | 88 Shore A |
| Floor Protection | Non-Marking |
Top Plate Dimensions
| Plate Length | 65mm |
| Plate Width | 50mm |
| Plate Finish | Zinc Plated |
| Number of Holes | 4 |
| Hole Diameter | 6mm |
| Hole Centres (Length) | 50mm |
| Hole Centres (Width) | 36mm |
Key Features & Benefits
? 360-degree swivel rotation for effortless manoeuvrability
? Non-marking grey rubber protects delicate flooring
? Corrosion-resistant zinc plated finish for durability
? Compact 87mm total height for low-profile applications
? Plain bearing system ensures smooth, quiet operation
? Simple 4-hole top plate mounting for quick installation
Ideal Applications
Perfect for retail display units, exhibition stands, point-of-sale fixtures, mobile shelving systems, light commercial furniture, hospitality trolleys, office equipment, and any application requiring smooth mobility with floor protection. Particularly suited to environments with vinyl, laminate, tile, or polished concrete flooring where non-marking wheels are essential.
Frequently Asked Questions
What weight can this castor support?
Each castor has a load capacity of 40kg. When using a set of four castors, the total capacity is 120kg, making it suitable for light to medium-duty retail and commercial applications.
Will these castors mark my floors?
No, the grey rubber wheel is specifically designed to be non-marking, making it safe for use on vinyl, laminate, tile, polished concrete, and other sensitive floor surfaces commonly found in retail and commercial environments.
How do I mount these castors?
The castor features a 4-hole top plate measuring 65mm x 50mm with 6mm diameter holes. The hole centres are 50mm (length) and 36mm (width). Simply align the plate with your equipment, mark the holes, drill pilot holes if needed, and secure with appropriate fixings.
What is the total height of the castor?
The total height from the base of the wheel to the top of the mounting plate is 87mm. This low-profile design is ideal for applications where minimal height addition is required, such as display units and retail fixtures.
Can the castor rotate 360 degrees?
Yes, this is a full swivel castor with a 57mm swivel radius, allowing complete 360-degree rotation for maximum manoeuvrability. This makes it easy to move equipment in any direction and navigate tight spaces.
What type of bearing does this castor use?
The castor uses a plain bearing system, which provides smooth, quiet operation suitable for light-duty applications. Plain bearings are low-maintenance and ideal for retail environments where noise reduction is important.
Is the castor suitable for outdoor use?
While the zinc plated finish provides some corrosion resistance, this castor is primarily designed for indoor retail and commercial applications. For extended outdoor use or harsh environments, consider castors with enhanced weather protection.
What is the wheel made from?
The wheel features a thermoplastic rubber tread on a polypropylene core with a hardness rating of 88 Shore A. This combination provides excellent floor protection, smooth rolling, and durability for everyday retail use.
Enhance mobility and protect your floors with this professional-grade swivel castor, engineered for reliable performance in demanding retail and commercial environments.
