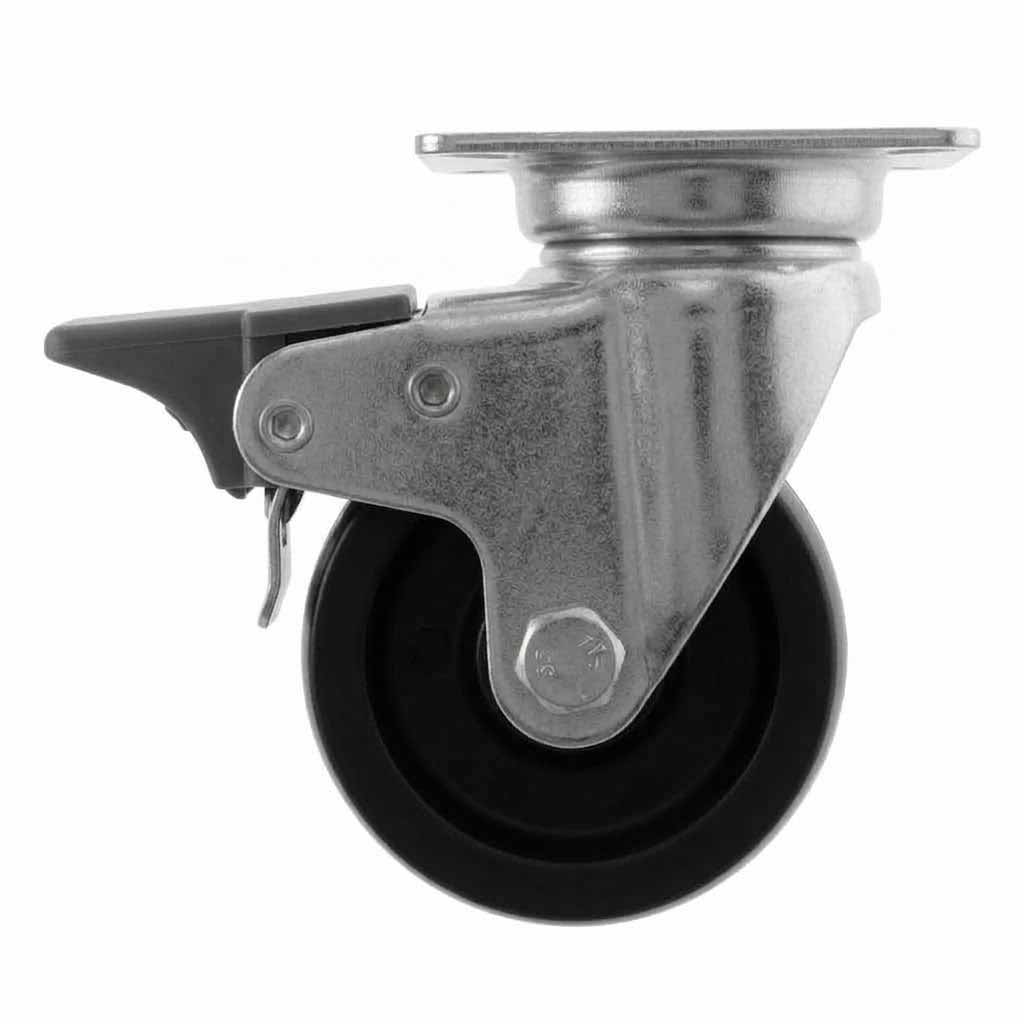

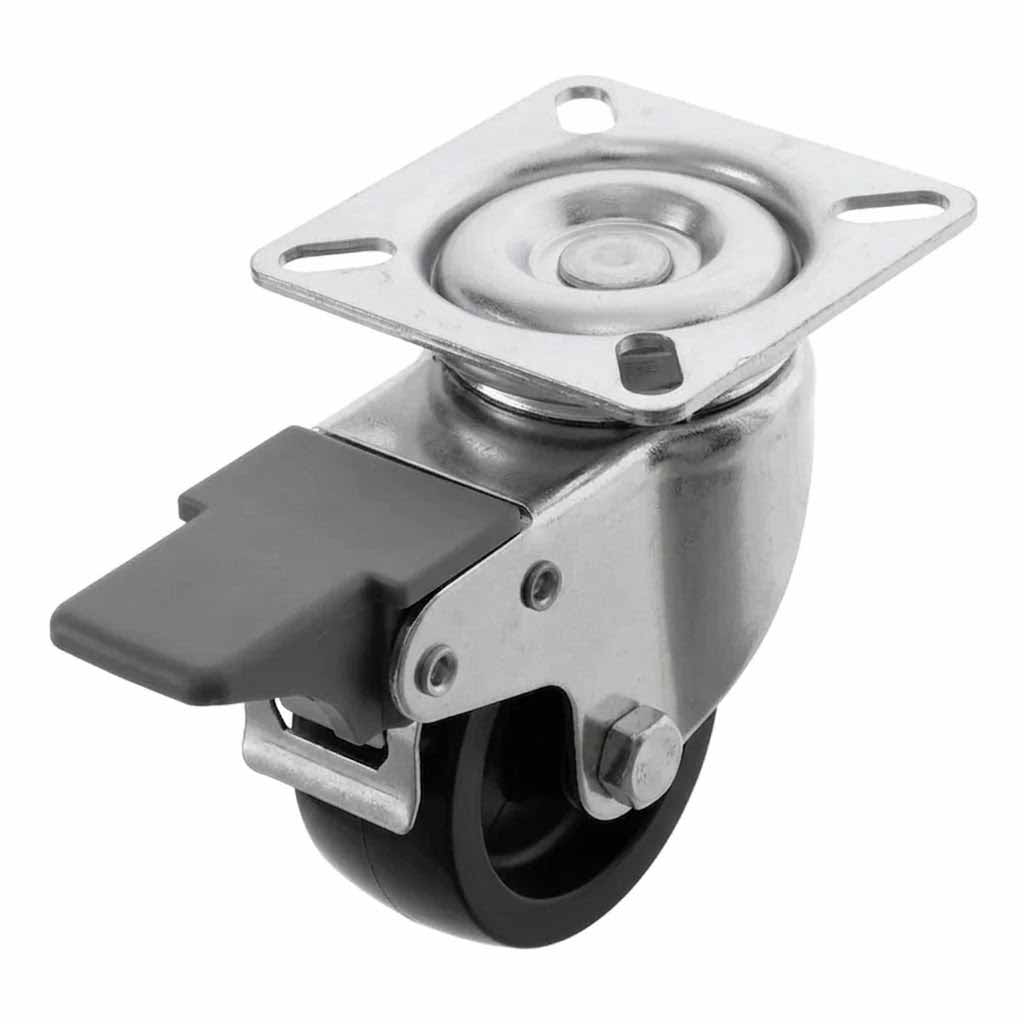

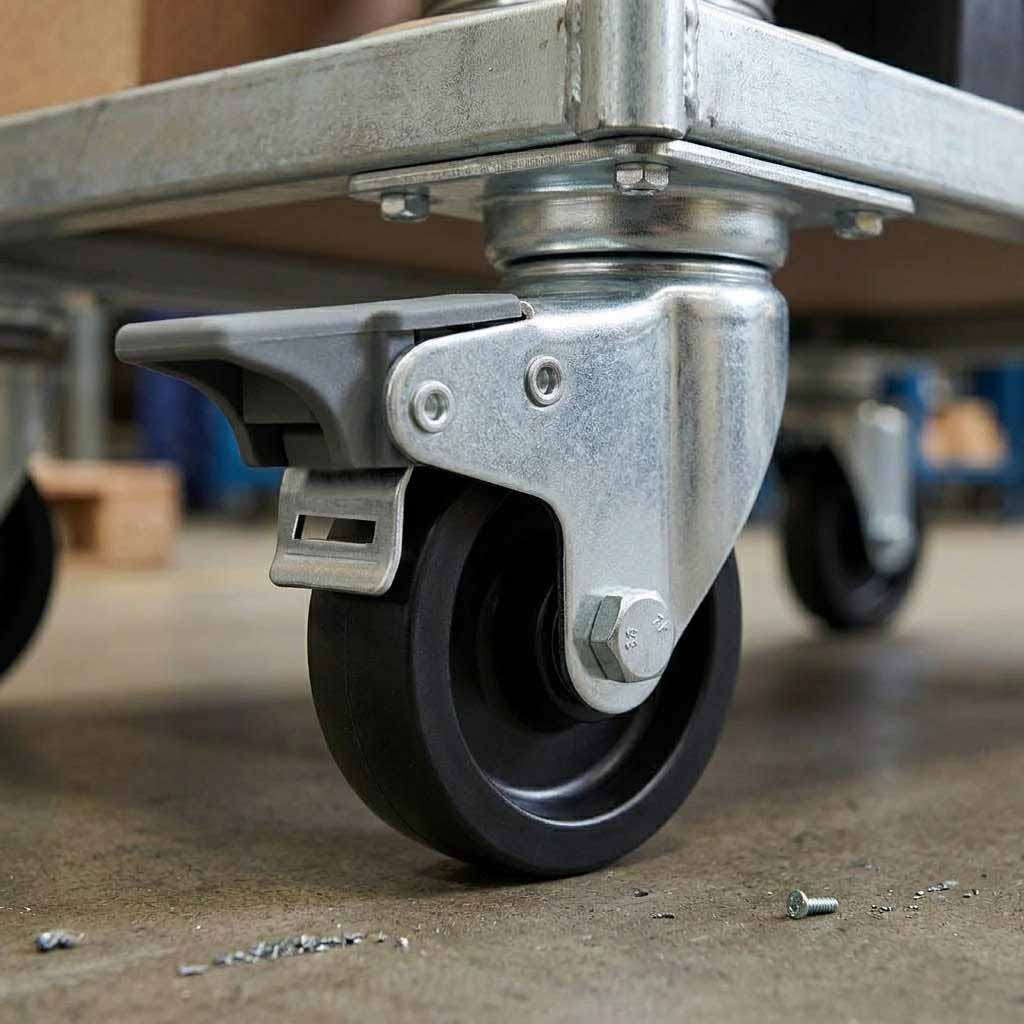

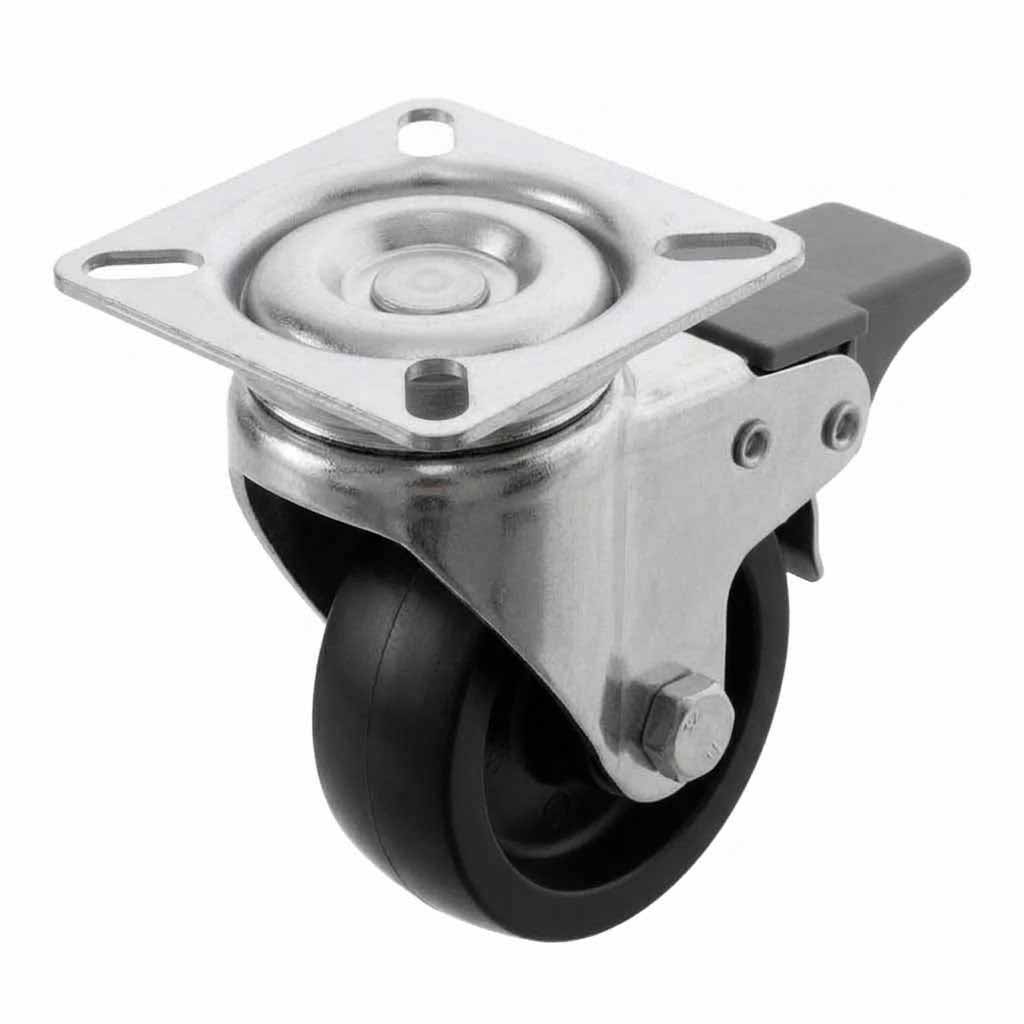

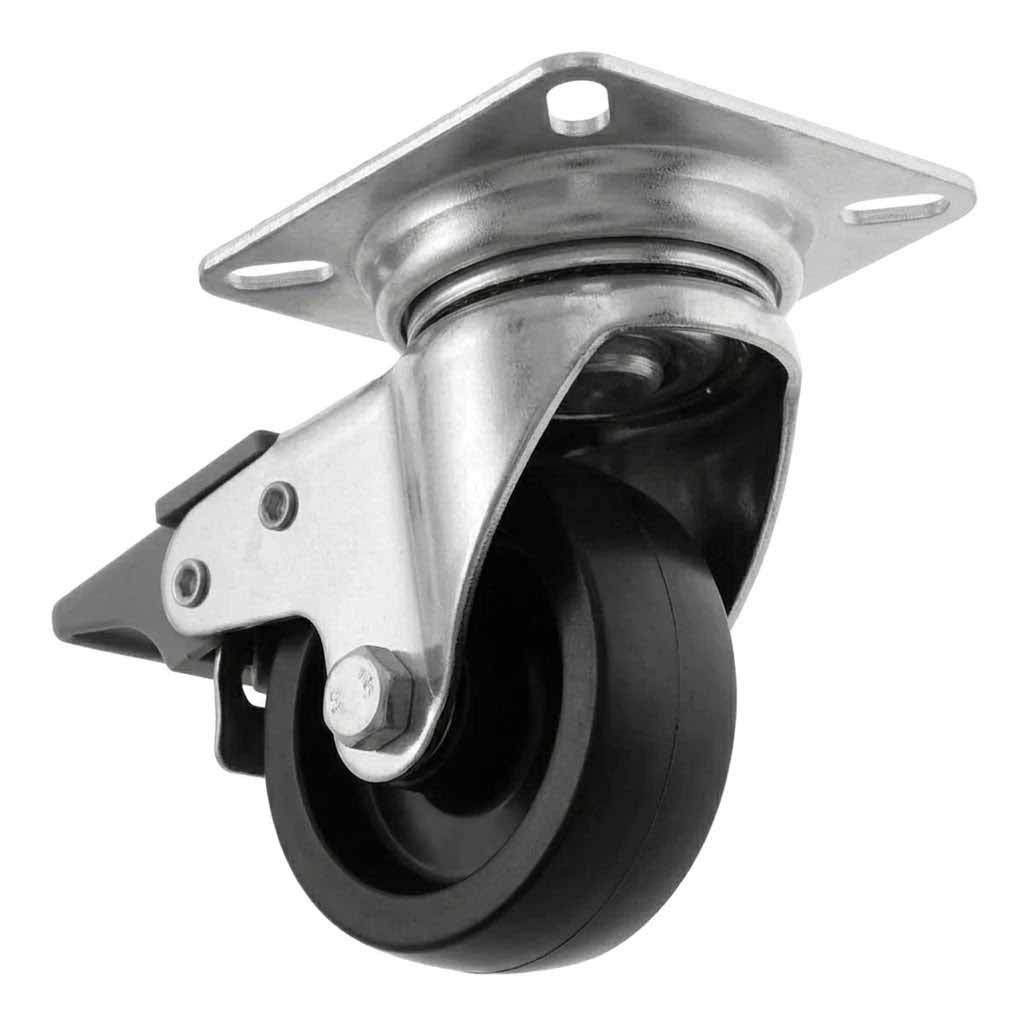

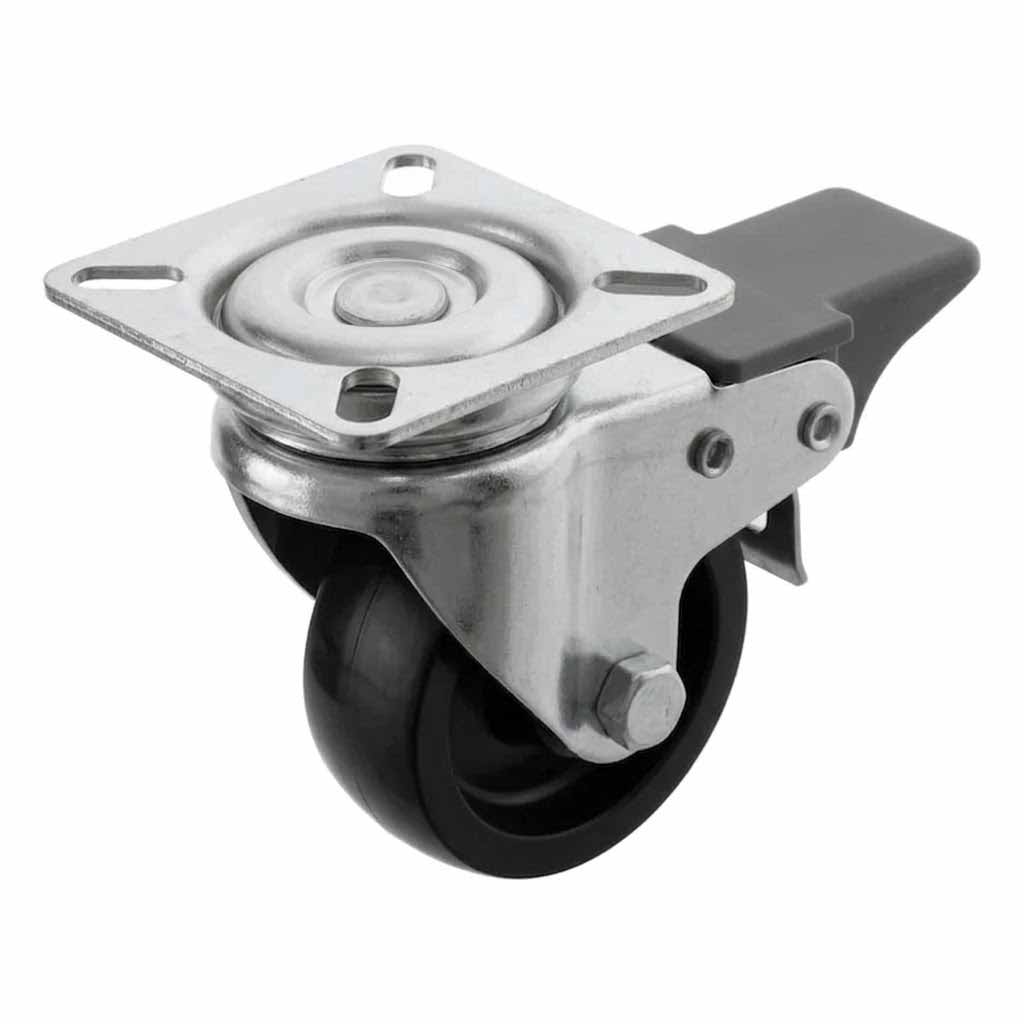

75mm Pressed Steel Swivel Castor Wheel with Brake
Black Polypropylene Wheel | 4-Hole Top Plate | 75kg Load Capacity
This 75mm pressed steel swivel castor is a robust, top-plate-mounted mobility component designed for professional and commercial applications. Fitted with an integrated foot-operated brake and a black polypropylene wheel, it is engineered to provide controlled, reliable movement across smooth and semi-smooth indoor surfaces. With a rated load capacity of 75kg per castor, it is well suited to trolleys, mobile workbenches, retail display units, hospitality equipment, and light industrial fixtures where both manoeuvrability and positional stability are required.
Key Features
| Swivel Action | Full 360-degree swivel rotation with a 92mm swivel radius enables smooth directional changes and effortless navigation in confined spaces. |
| Integrated Brake | Foot-operated brake mechanism locks the wheel securely in position, preventing unintended movement when the unit is stationary. |
| Polypropylene Wheel | Black polypropylene construction delivers a lightweight yet durable wheel that resists impact and performs consistently across a range of indoor environments. |
| Pressed Steel Top Plate | Zinc-plated pressed steel top plate with a standardised 4-hole bolt pattern ensures a secure, stable mounting to compatible equipment frames and bases. |
| 75kg Load Rating | Rated at 75kg per individual castor, supporting a combined maximum load of 225kg across a standard four-castor configuration. |
| Plain Bearing | Plain bearing design provides reliable, low-maintenance rolling performance suited to moderate-duty applications and regular indoor use. |
Technical Specifications
| Specification | Detail |
|---|---|
| Castor Type | Swivel with Brake |
| Wheel Diameter | 75mm |
| Wheel Material | Polypropylene (Plastic) |
| Wheel Colour | Black |
| Tread Width | 22mm |
| Total Castor Height | 100mm |
| Swivel Radius | 92mm |
| Load Capacity (per castor) | 75kg |
| Max Load (4 castors) | 225kg |
| Bearing Type | Plain |
| Mounting Type | 4-Hole Top Plate |
| Plate Dimensions | 60mm x 60mm |
| Plate Hole Centres | 48mm / 38mm |
| Plate Hole Diameter | 6mm |
| Plate Material | Pressed Steel, Zinc Plated |
Typical Applications
| Retail & Shop Fitting | Suitable for display units, shelving trolleys, and mobile retail fixtures that require frequent repositioning. |
| Workshops & Light Industry | Ideal for mobile tool storage, workbenches, and equipment carts in workshop and light manufacturing environments. |
| Hospitality & Catering | Appropriate for service trolleys, catering equipment, and mobile storage units used in hotel, restaurant, and event settings. |
| Office & Furniture | Well suited to mobile office furniture, filing cabinets, and storage units where controlled movement and locking stability are both required. |
Frequently Asked Questions
What is the maximum load this castor can support?
Each individual castor is rated to carry a maximum of 75kg. When four castors are used together on a single unit, the combined maximum load capacity is 225kg. It is important not to exceed the per-castor rating, as uneven load distribution can reduce this figure in practice.
How does the brake mechanism work?
The castor features a foot-operated brake that is engaged by pressing down on the brake lever with your foot and released by lifting it. When engaged, the brake locks the wheel to prevent rolling, keeping the unit securely in place on flat and level surfaces.
What fixings are required to mount this castor?
This castor mounts via a 4-hole top plate measuring 60mm x 60mm, with hole centres of 48mm and 38mm and a hole diameter of 6mm. Standard M6 bolts are typically used. Fixings are not included and should be sourced separately to suit the specific thickness and material of the mounting surface.
Is this castor suitable for outdoor use?
This castor is designed primarily for indoor use on smooth to semi-smooth hard floor surfaces. The polypropylene wheel and plain bearing are optimised for controlled indoor environments. Prolonged exposure to outdoor conditions, moisture, or abrasive surfaces is not recommended and may affect performance and service life.
* Load capacity ratings are provided as a guide under standard operating conditions on level, smooth surfaces. Always assess the specific requirements of your application before installation. Sold individually.
