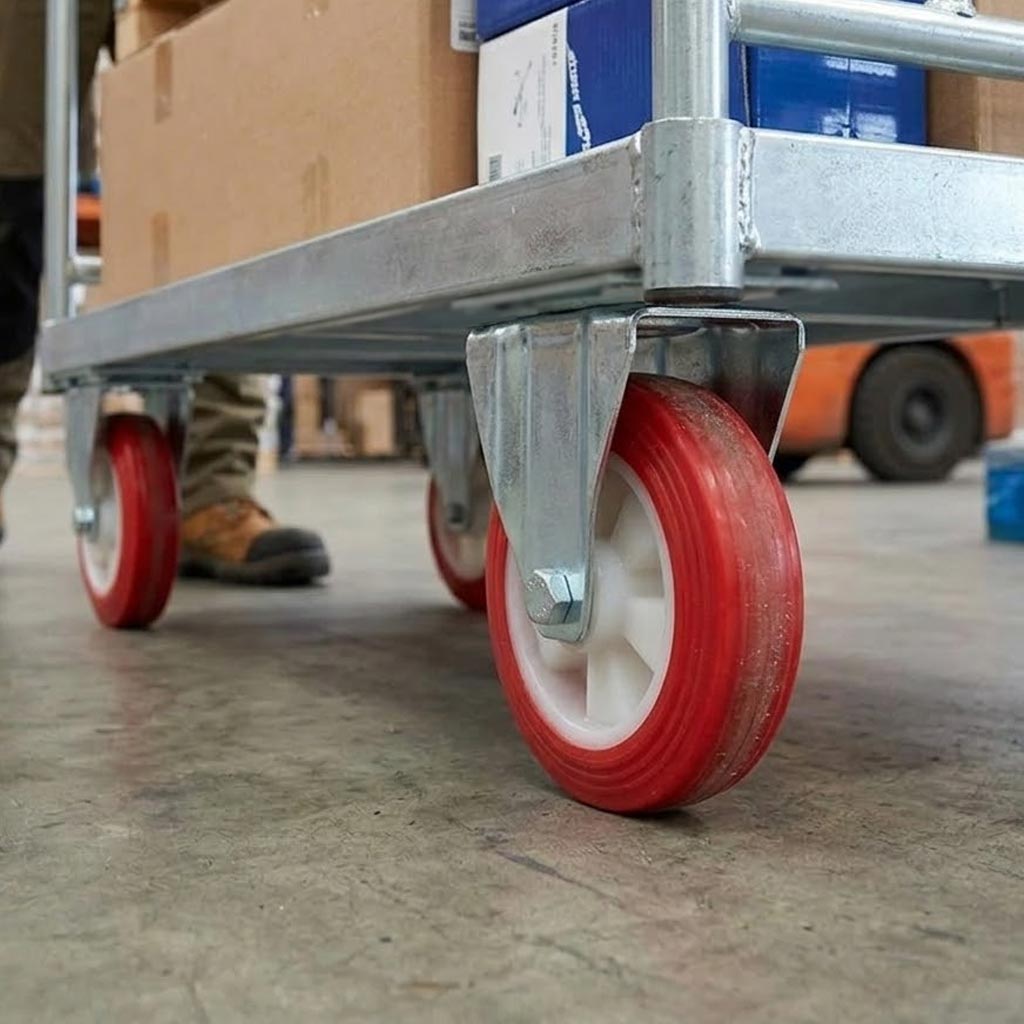

80mm Pressed Steel Fixed Castor Wheel
Red Polyurethane on White Nylon | 90kg Load Capacity | Top Plate Fixing
Product Overview
This 80mm pressed steel fixed castor is a premium industrial mobility solution designed for applications requiring stable, straight-line movement with dependable rolling performance. Engineered with a robust pressed steel housing and a high-quality red polyurethane on white nylon wheel, this castor delivers exceptional durability and smooth operation across indoor environments.
Ideal for light to medium-duty trolleys, mobile workstations, handling equipment, and industrial carts, this fixed castor provides consistent directional travel without the need for steering. The ball journal bearing ensures minimal rolling resistance, while the top plate fixing system guarantees secure, reliable mounting to your equipment.
Technical Specifications
Castor Configuration
| Castor Type | Fixed, Top Plate |
| Bearing Type | Ball Journal |
| Total Castor Height | 106 mm |
| Frame Material | Pressed Steel |
| Frame Finish | Zinc Plated |
Wheel Specifications
| Wheel Diameter | 80 mm |
| Tread Width | 30 mm |
| Wheel Material | Polyurethane on White Nylon |
| Wheel Colour | Red |
| Tread Hardness | 85 Shore A |
| Wheel Centre Material | White Nylon |
Top Plate Dimensions
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Plate Hole Centres (Length) | 80 mm |
| Plate Hole Centres (Width) | 60 mm |
| Plate Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 |
Load Capacity
| Load Capacity per Castor | 90 kg |
| Maximum Load Capacity (4 Castors) | 270 kg |
Key Performance Features
Fixed Castor Design
Provides stable, straight-line movement with consistent directional travel, eliminating the need for steering and ensuring predictable equipment handling.
Premium Polyurethane Tread
The red polyurethane tread on white nylon core delivers exceptional wear resistance, low rolling resistance, and excellent floor protection, making it ideal for smooth indoor surfaces.
Ball Journal Bearing System
Precision ball journal bearing ensures smooth, effortless rolling under load, reducing operator fatigue and improving overall equipment efficiency.
Robust Pressed Steel Construction
Heavy-duty pressed steel frame with zinc plated finish provides superior strength, corrosion resistance, and long-term durability in demanding industrial environments.
Secure Top Plate Fixing
Four-hole top plate mounting system with 10mm diameter holes ensures reliable, stable installation to equipment bases and frames.
Compact Profile
With a total height of just 106mm, this castor is perfect for applications requiring low-profile mobility solutions without compromising load capacity.
Ideal Applications
This 80mm fixed castor is engineered for professional use across a wide range of industrial and commercial applications:
? Light to medium-duty trolleys and carts
? Mobile workstations and equipment stands
? Material handling and transport equipment
? Workshop and industrial machinery
? Warehouse and logistics equipment
? Retail display units and fixtures
? Healthcare and hospitality equipment
? Indoor environments requiring smooth, controlled rolling
Frequently Asked Questions
What is the difference between a fixed castor and a swivel castor?
A fixed castor only moves in a straight line along its mounting axis, providing stable directional movement. A swivel castor rotates 360 degrees, allowing for multi-directional movement and manoeuvrability. Fixed castors are typically used on the rear of equipment for stability, while swivel castors are used on the front for steering.
How much weight can this castor support?
Each castor has a load capacity of 90kg. When using four castors on a single piece of equipment, the maximum recommended load capacity is 270kg. This accounts for uneven weight distribution and ensures safe, reliable operation.
What type of flooring is this castor suitable for?
The polyurethane on nylon wheel is ideal for smooth indoor surfaces including concrete, tile, vinyl, laminate, and sealed wood floors. The 85 Shore A hardness provides excellent floor protection while maintaining low rolling resistance. It is designed for indoor use and performs best on clean, dry surfaces.
How do I install this top plate castor?
The castor features a 100mm x 85mm top plate with four 10mm diameter mounting holes. The hole centres are 80mm (length) x 60mm (width). Simply align the plate with your equipment base, mark the hole positions, drill pilot holes if necessary, and secure using appropriate bolts, nuts, and washers. Ensure all fixings are tightened securely before use.
What is the total height of this castor?
The total castor height from the base of the mounting plate to the bottom of the wheel is 106mm. This measurement is important when determining ground clearance for your equipment.
Does this castor require maintenance?
The ball journal bearing is designed for long-term, low-maintenance operation. For optimal performance, periodically inspect the castor for debris buildup, check mounting bolts for tightness, and ensure the wheel rotates freely. Clean the wheel surface as needed to remove dirt and debris.
Can I use this castor outdoors?
This castor is designed primarily for indoor use. While the zinc plated steel frame offers some corrosion resistance, prolonged exposure to outdoor elements may reduce the lifespan of the castor. For outdoor applications, consider castors specifically designed for exterior environments.
What is Shore A hardness and why does it matter?
Shore A is a measurement scale for the hardness of elastomers like polyurethane. This castor has an 85 Shore A rating, which indicates a relatively hard tread. Harder treads (higher Shore A values) provide better load capacity and durability, while softer treads offer more floor protection and quieter operation. 85 Shore A provides an excellent balance for most industrial applications.
Premium Industrial Mobility Solutions
Engineered for durability, designed for performance. This 80mm fixed castor combines robust pressed steel construction with a premium polyurethane wheel to deliver reliable, long-lasting mobility for your industrial equipment.
