Description
Premium 80mm Swivel Castor with Brake
Professional-Grade Mobility Solution for Retail & Commercial Applications
Product Overview

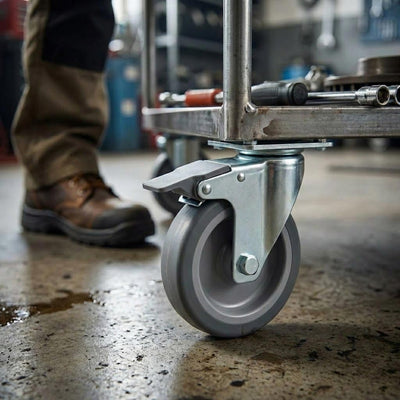

This 80mm swivel castor with brake is engineered for light to medium-duty retail and commercial environments. Featuring a durable grey thermoplastic rubber wheel mounted on a zinc-plated steel frame, this castor delivers smooth, quiet operation while protecting delicate flooring surfaces from scuffs and marks.
Ideal for display units, shop fittings, retail trolleys, mobile storage units, point-of-sale displays, and lightweight commercial equipment requiring controlled mobility and secure positioning.
Complete Technical Specifications
Wheel Specifications
| Wheel Diameter: | 80mm |
| Wheel Material: | Grey Thermoplastic Rubber |
| Wheel Core: | Polypropylene |
| Tread Hardness: | 88 Shore A |
| Wheel Width: | 22mm |
Top Plate Dimensions
| Plate Type: | 4-Hole Top Plate |
| Plate Material: | Zinc Plated Steel |
| Plate Length: | 60mm |
| Plate Width: | 60mm |
| Fixing Hole Diameter: | 8.5mm |
Overall Castor Dimensions
| Overall Height: | 105mm |
| Mounting Height: | 105mm (from floor to underside of plate) |
| Swivel Radius: | 85mm |
| Castor Type: | Swivel with Brake |
| Brake Type: | Directional Brake (locks wheel rotation) |
Load Capacity & Performance
| Load Capacity: | 50kg per castor |
| Recommended Use: | Light to Medium Duty |
| Floor Protection: | Non-Marking |
| Operating Temperature: | -20°C to ?°C |
Key Features & Benefits
? Non-Marking Wheels: Grey thermoplastic rubber protects all floor types including polished concrete, tile, vinyl, and hardwood
? Directional Brake: Foot-operated brake locks wheel rotation for secure positioning
? 360° Swivel Action: Full rotation capability for exceptional manoeuvrability in tight spaces
? Corrosion Protection: Zinc-plated steel construction resists rust and extends service life
? Quiet Operation: Thermoplastic rubber wheel reduces noise during movement
? Easy Installation: Standard 4-hole top plate fits most retail and commercial equipment
Ideal Applications
Retail Displays
Shop fittings, product displays, merchandising units
Storage Solutions
Mobile shelving, storage carts, filing cabinets
Point of Sale
POS stations, checkout counters, display stands
Workshop Equipment
Tool carts, workbenches, equipment stands
Healthcare Facilities
Medical carts, equipment trolleys, supply units
Food Service
Service trolleys, prep stations, mobile units
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor has a load capacity of 50kg. For optimal performance and safety, calculate the total weight of your equipment plus contents, then divide by the number of castors. Always ensure you stay within the rated capacity per castor.
Will these castors mark or damage my floors?
No, the grey thermoplastic rubber wheel is specifically designed to be non-marking and floor-safe. It's suitable for all commercial flooring types including polished concrete, vinyl, tile, laminate, and hardwood without leaving scuffs or marks.
How does the brake mechanism work?
This castor features a directional brake that locks the wheel rotation when engaged via the foot pedal. Press down to lock the wheel in place, preventing rolling movement. The swivel function remains active, allowing the castor to rotate. To release, simply lift the brake pedal with your foot.
What fixings do I need to install these castors?
The 4-hole top plate has 8.5mm diameter fixing holes arranged in a 60mm x 60mm pattern. We recommend using M8 bolts or screws with appropriate washers and nuts. Ensure fixings are suitable for your equipment material and are tightened securely.
Can these castors be used outdoors?
While the zinc-plated steel construction offers corrosion resistance, these castors are primarily designed for indoor retail and commercial environments. For outdoor use, consider the operating temperature range (-20°C to °C) and protect from prolonged exposure to moisture and harsh weather conditions.
What's the difference between swivel and fixed castors?
Swivel castors rotate 360 degrees, providing excellent manoeuvrability and allowing equipment to move in any direction. Fixed castors only roll forward and backward. For optimal control, many applications use a combination: swivel castors at one end for steering and fixed castors at the other for stability.
How do I maintain these castors for long-term performance?
Regular maintenance is simple: periodically remove debris from the wheel and swivel mechanism, check that all mounting bolts remain tight, inspect the brake function, and ensure the wheel rotates freely. Wipe clean with a damp cloth as needed. Avoid using harsh chemicals or solvents on the rubber wheel.
Are these castors suitable for food preparation areas?
Yes, these castors are suitable for food service environments. The thermoplastic rubber material is food-grade compliant, and the smooth surfaces are easy to clean and maintain hygienic standards. The non-marking wheels won't leave residue on floors.
Professional Quality ? Floor Safe ? Easy Installation ? Reliable Performance
80mm Zinc Plated Swivel Retail Castor Wheel with Brake - Grey Rubber & 4-Hole Top Plate, 50kg Load
Dispatch
Checkout
Guaranteed
Returns
Download Spec Sheet
PDF with image, specifications & dimensions
| SKU | RC_IPN873 |
| Brand | Industrial Products UK |
| Product Type | Castors & Wheels |
| Title | Default Title |
- 80mm Zinc Plated Swivel Retail Castor Wheel with Brake - Grey Rubber & 4-Hole Top Plate, 50kg Load
- VAT invoice for business accounting
- Product documentation (where applicable)
Description
Premium 80mm Swivel Castor with Brake
Professional-Grade Mobility Solution for Retail & Commercial Applications
Product Overview
This 80mm swivel castor with brake is engineered for light to medium-duty retail and commercial environments. Featuring a durable grey thermoplastic rubber wheel mounted on a zinc-plated steel frame, this castor delivers smooth, quiet operation while protecting delicate flooring surfaces from scuffs and marks.
Ideal for display units, shop fittings, retail trolleys, mobile storage units, point-of-sale displays, and lightweight commercial equipment requiring controlled mobility and secure positioning.
Complete Technical Specifications
Wheel Specifications
| Wheel Diameter: | 80mm |
| Wheel Material: | Grey Thermoplastic Rubber |
| Wheel Core: | Polypropylene |
| Tread Hardness: | 88 Shore A |
| Wheel Width: | 22mm |
Top Plate Dimensions
| Plate Type: | 4-Hole Top Plate |
| Plate Material: | Zinc Plated Steel |
| Plate Length: | 60mm |
| Plate Width: | 60mm |
| Fixing Hole Diameter: | 8.5mm |
Overall Castor Dimensions
| Overall Height: | 105mm |
| Mounting Height: | 105mm (from floor to underside of plate) |
| Swivel Radius: | 85mm |
| Castor Type: | Swivel with Brake |
| Brake Type: | Directional Brake (locks wheel rotation) |
Load Capacity & Performance
| Load Capacity: | 50kg per castor |
| Recommended Use: | Light to Medium Duty |
| Floor Protection: | Non-Marking |
| Operating Temperature: | -20°C to ?°C |
Key Features & Benefits
? Non-Marking Wheels: Grey thermoplastic rubber protects all floor types including polished concrete, tile, vinyl, and hardwood
? Directional Brake: Foot-operated brake locks wheel rotation for secure positioning
? 360° Swivel Action: Full rotation capability for exceptional manoeuvrability in tight spaces
? Corrosion Protection: Zinc-plated steel construction resists rust and extends service life
? Quiet Operation: Thermoplastic rubber wheel reduces noise during movement
? Easy Installation: Standard 4-hole top plate fits most retail and commercial equipment
Ideal Applications
Retail Displays
Shop fittings, product displays, merchandising units
Storage Solutions
Mobile shelving, storage carts, filing cabinets
Point of Sale
POS stations, checkout counters, display stands
Workshop Equipment
Tool carts, workbenches, equipment stands
Healthcare Facilities
Medical carts, equipment trolleys, supply units
Food Service
Service trolleys, prep stations, mobile units
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor has a load capacity of 50kg. For optimal performance and safety, calculate the total weight of your equipment plus contents, then divide by the number of castors. Always ensure you stay within the rated capacity per castor.
Will these castors mark or damage my floors?
No, the grey thermoplastic rubber wheel is specifically designed to be non-marking and floor-safe. It's suitable for all commercial flooring types including polished concrete, vinyl, tile, laminate, and hardwood without leaving scuffs or marks.
How does the brake mechanism work?
This castor features a directional brake that locks the wheel rotation when engaged via the foot pedal. Press down to lock the wheel in place, preventing rolling movement. The swivel function remains active, allowing the castor to rotate. To release, simply lift the brake pedal with your foot.
What fixings do I need to install these castors?
The 4-hole top plate has 8.5mm diameter fixing holes arranged in a 60mm x 60mm pattern. We recommend using M8 bolts or screws with appropriate washers and nuts. Ensure fixings are suitable for your equipment material and are tightened securely.
Can these castors be used outdoors?
While the zinc-plated steel construction offers corrosion resistance, these castors are primarily designed for indoor retail and commercial environments. For outdoor use, consider the operating temperature range (-20°C to °C) and protect from prolonged exposure to moisture and harsh weather conditions.
What's the difference between swivel and fixed castors?
Swivel castors rotate 360 degrees, providing excellent manoeuvrability and allowing equipment to move in any direction. Fixed castors only roll forward and backward. For optimal control, many applications use a combination: swivel castors at one end for steering and fixed castors at the other for stability.
How do I maintain these castors for long-term performance?
Regular maintenance is simple: periodically remove debris from the wheel and swivel mechanism, check that all mounting bolts remain tight, inspect the brake function, and ensure the wheel rotates freely. Wipe clean with a damp cloth as needed. Avoid using harsh chemicals or solvents on the rubber wheel.
Are these castors suitable for food preparation areas?
Yes, these castors are suitable for food service environments. The thermoplastic rubber material is food-grade compliant, and the smooth surfaces are easy to clean and maintain hygienic standards. The non-marking wheels won't leave residue on floors.
Professional Quality ? Floor Safe ? Easy Installation ? Reliable Performance
