Description
Enhanced Performance for Steel & Copper Pipe Systems

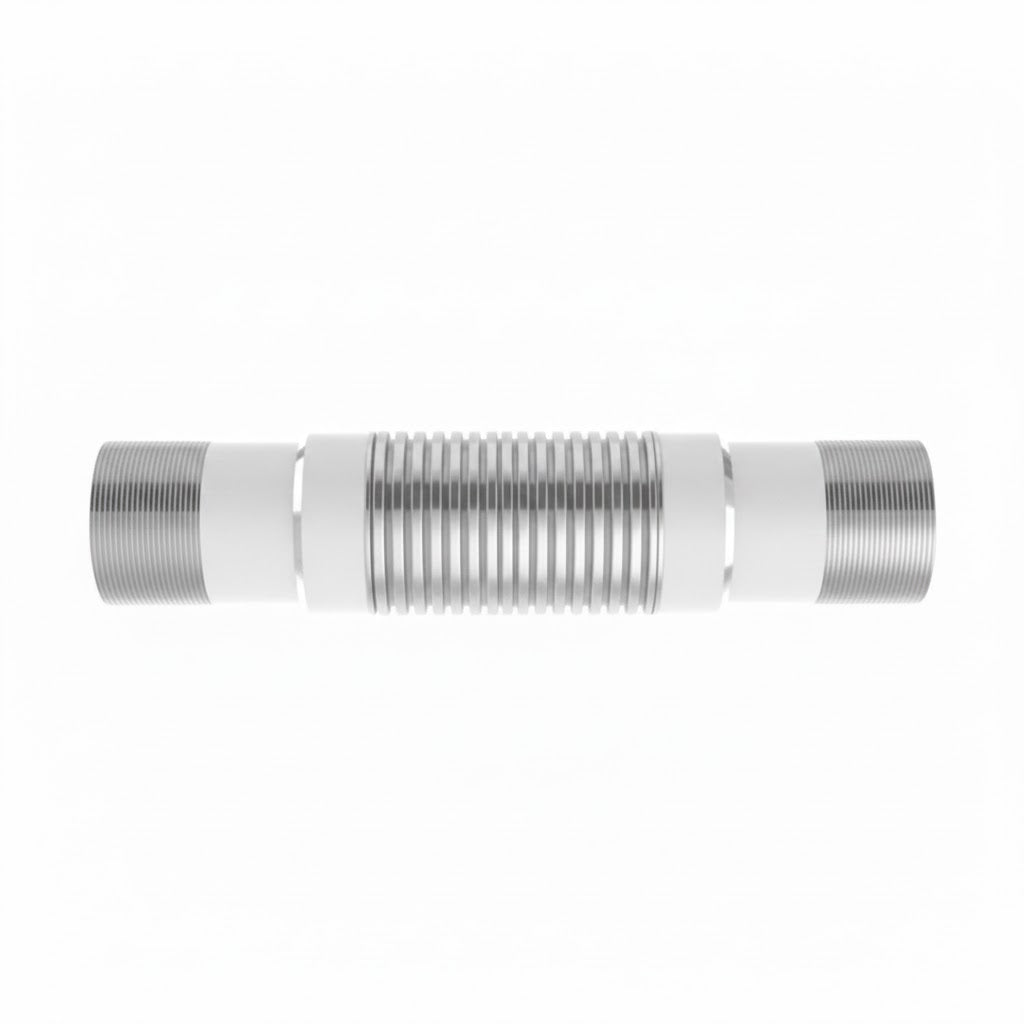

The Premium Screwed Axial Bellow is designed to accommodate linear expansion in steel and copper pipe systems, providing superior flexibility and pressure control. Engineered for reliability, it ensures efficient thermal movement absorption, reducing stress on pipework and extending system lifespan.
Key Features
- Optimised Expansion Control – Effectively compensates for axial pipe movement, preventing strain on installations.
- Pre-Cold Drawn Bellows – Manufactured to enhance durability and operational efficiency.
- Internal Flow Liner as Standard – Minimises turbulence and prolongs system performance.
- CE Certified Where Applicable – Compliant with EU PED regulations for safety and quality assurance.
- Robust Material Composition – Constructed from premium-grade stainless steel for high resistance to corrosion and wear.
Technical Specifications
| Size (mm) | Axial Compression (mm) | Installed Length (mm) | Effective Area (cm²) | Force to Compress (N/mm) |
|---|---|---|---|---|
| 15 | 25 | 200 | 3 | 3.9 |
| 20 | 25 | 200 | 6 | 7.8 |
| 25 | 25 | 200 | 9 | 12.7 |
| 32 | 25 | 210 | 13 | 17.2 |
| 40 | 25 | 220 | 20 | 19.6 |
| 50 | 25 | 250 | 30 | 19.6 |
| 65 | 25 | 273 | 50 | 25.0 |
| 15 | 50 | 300 | 3 | 3.9 |
| 20 | 50 | 300 | 6 | 7.8 |
| 25 | 50 | 300 | 9 | 12.7 |
| 32 | 50 | 310 | 13 | 17.2 |
| 40 | 50 | 320 | 20 | 19.6 |
| 50 | 50 | 350 | 30 | 19.6 |
Material Composition
- Flow Liner: 304 Stainless Steel
- Nipples: 304L Stainless Steel
- Convolutions: 316 Stainless Steel
FAQ
- What is the purpose of the axial bellow? It accommodates linear expansion in pipe systems, providing flexibility and reducing strain.
- What materials are used in the construction? The bellow is made of premium-grade stainless steel for durability and corrosion resistance.
- Is it CE certified? Yes, it complies with EU PED regulations for safety and quality assurance.
Premium Screwed Axial Bellow for Steel & Copper Pipe Systems - Enhanced Flexibility and Pressure Control
★★★★★
Excellent on Trustpilot
£129.17
Incl. VAT£172.23
SAVE 25%
Exc. VAT: £107.64
In Stock
Dispatch in 24hrs
UK Delivery
Fast
Dispatch
Dispatch
Secure
Checkout
Checkout
Quality
Guaranteed
Guaranteed
14 Day
Returns
Returns
Download Spec Sheet
PDF with image, specifications & dimensions
Specifications
| SKU | BI_IP1527 |
| Brand | Industrial Products UK |
| Product Type | Industrial Hardware > Fixings & Fasteners |
| Axial Compression (mm) | 25mm |
| Size (mm) | 20mm |
What's Included
- Premium Screwed Axial Bellow for Steel & Copper Pipe Systems - Enhanced Flexibility and Pressure Control
- VAT invoice for business accounting
- Product documentation (where applicable)
