Product Overview
This Heavy Duty Round Aluminium Shoring Bar is designed to provide reliable support and stability in various applications. Constructed from high-quality aluminium, this shoring bar is approximately 40% lighter than its steel equivalent, making it easier to handle without compromising strength.
Key Features
- Adjustable length from 2385mm to 2760mm to fit various needs.
- End pegs designed to suit 25mm round hole anchor track for secure installation.
- Main tube diameter of ø42mm with a robust wall thickness of 5.0mm.
- Sprung loaded end for easy adjustment and secure anchoring.
- Maximum load capacity of 400kgs when the load is evenly distributed.
Technical Specifications
| Specification | Measurement |
|---|---|
| Length | 2385mm - 2760mm |
| Main Tube Diameter | ø42mm |
| Wall Thickness | 5.0mm |
| Maximum Load Capacity | 400kg |
Usage Instructions

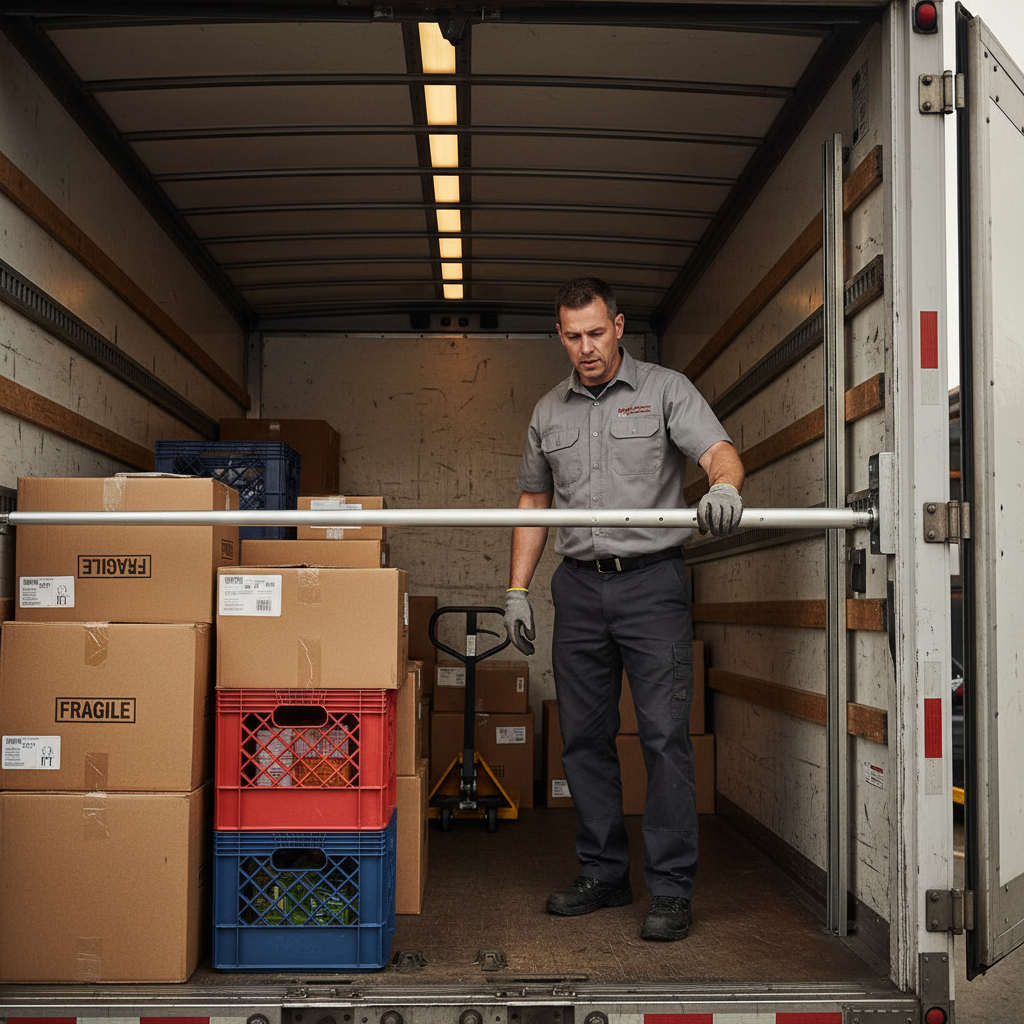

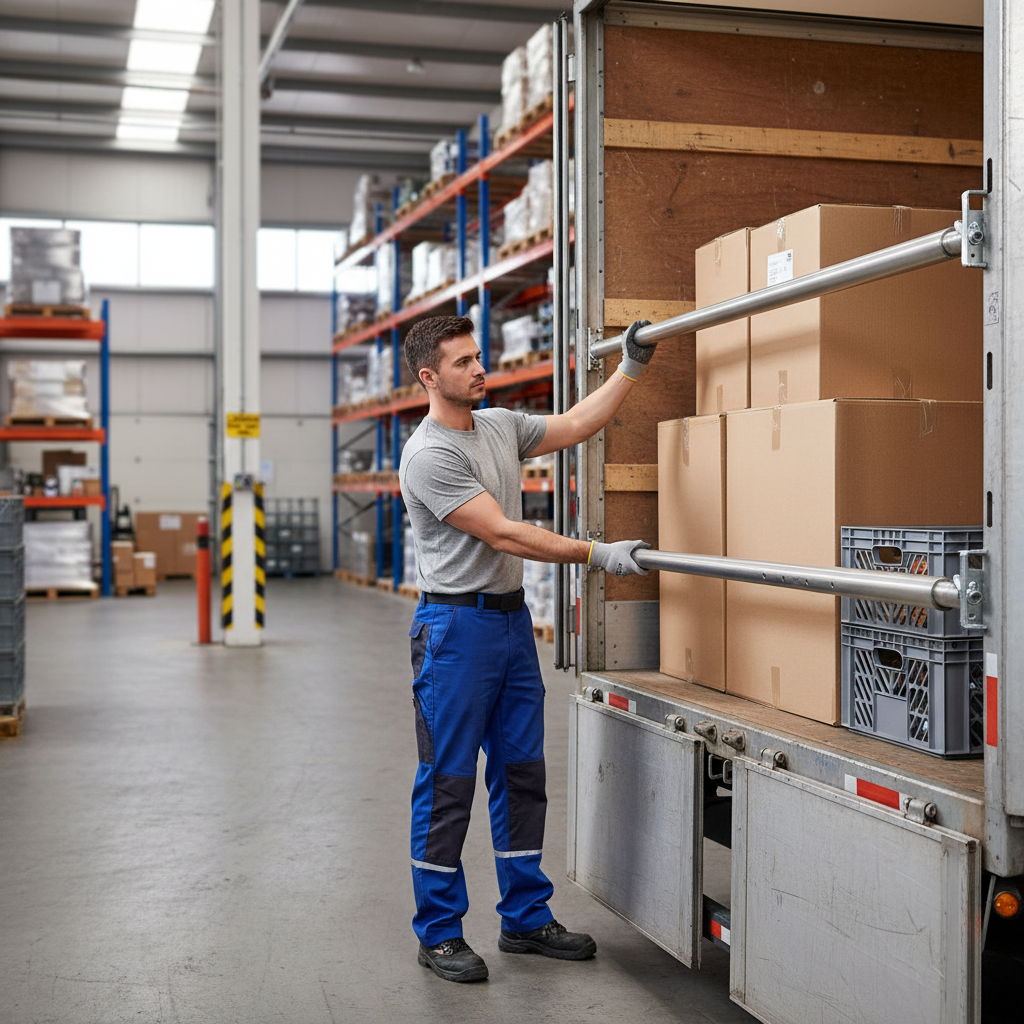

The shoring bar should be installed into a compatible anchor track with 25mm round holes for optimal performance. Ensure that the maximum load capacity is not exceeded and that the load is evenly distributed across the bar.
Safety Information
Please note that the overall strength and stability of the shoring bar also depend on the installation quality in the vehicle and the construction and rigidity of the vehicle body.
FAQ
1. What materials are used in the shoring bar?
The shoring bar is made of high-quality aluminium, which is lighter than steel but maintains high strength.
2. Can the length be adjusted easily?
Yes, the shoring bar features a sprung loaded end for easy adjustment to the desired length.
3. What is the maximum load capacity?
The shoring bar can support a maximum load of 400kg when the load is evenly distributed.
Heavy Duty Round Aluminium Shoring Bar with Adjustable Length 2385mm to 2760mm and Maximum Load Capacity of 400kg
