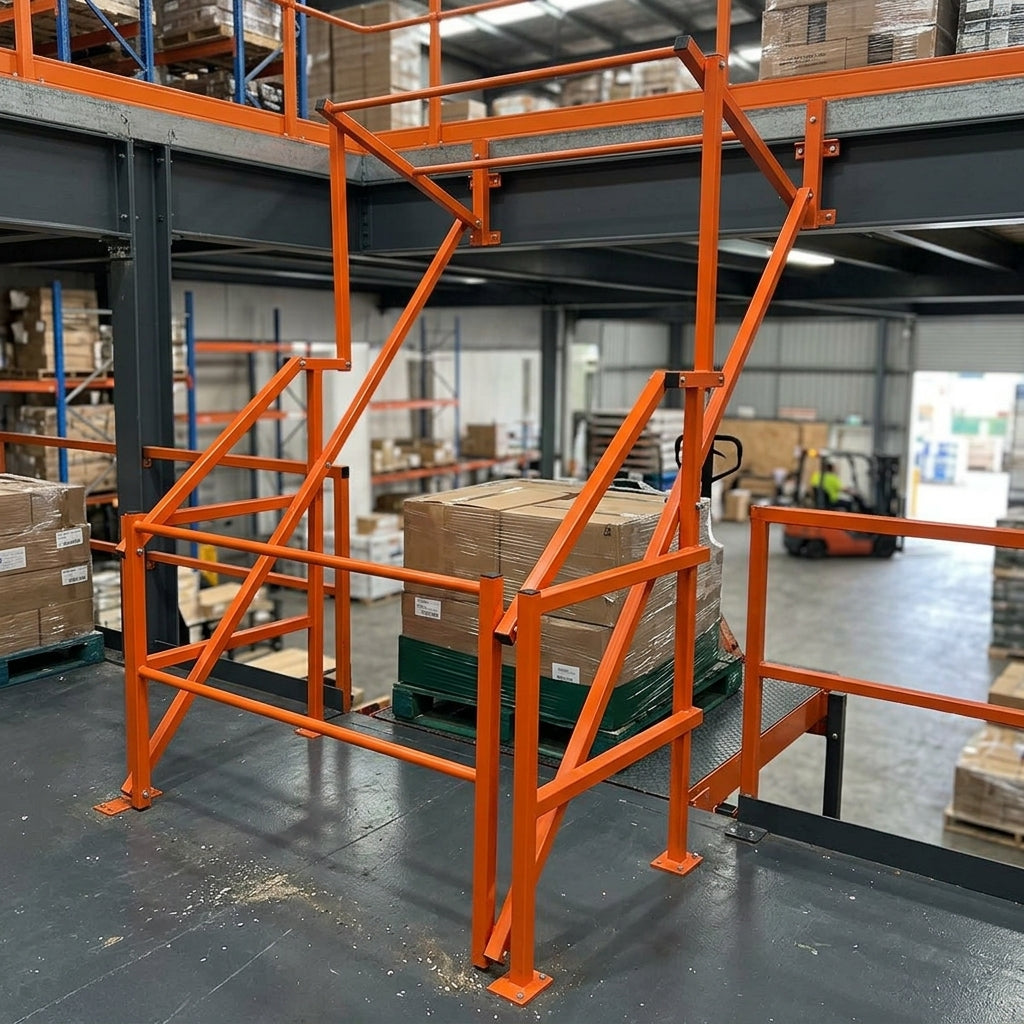

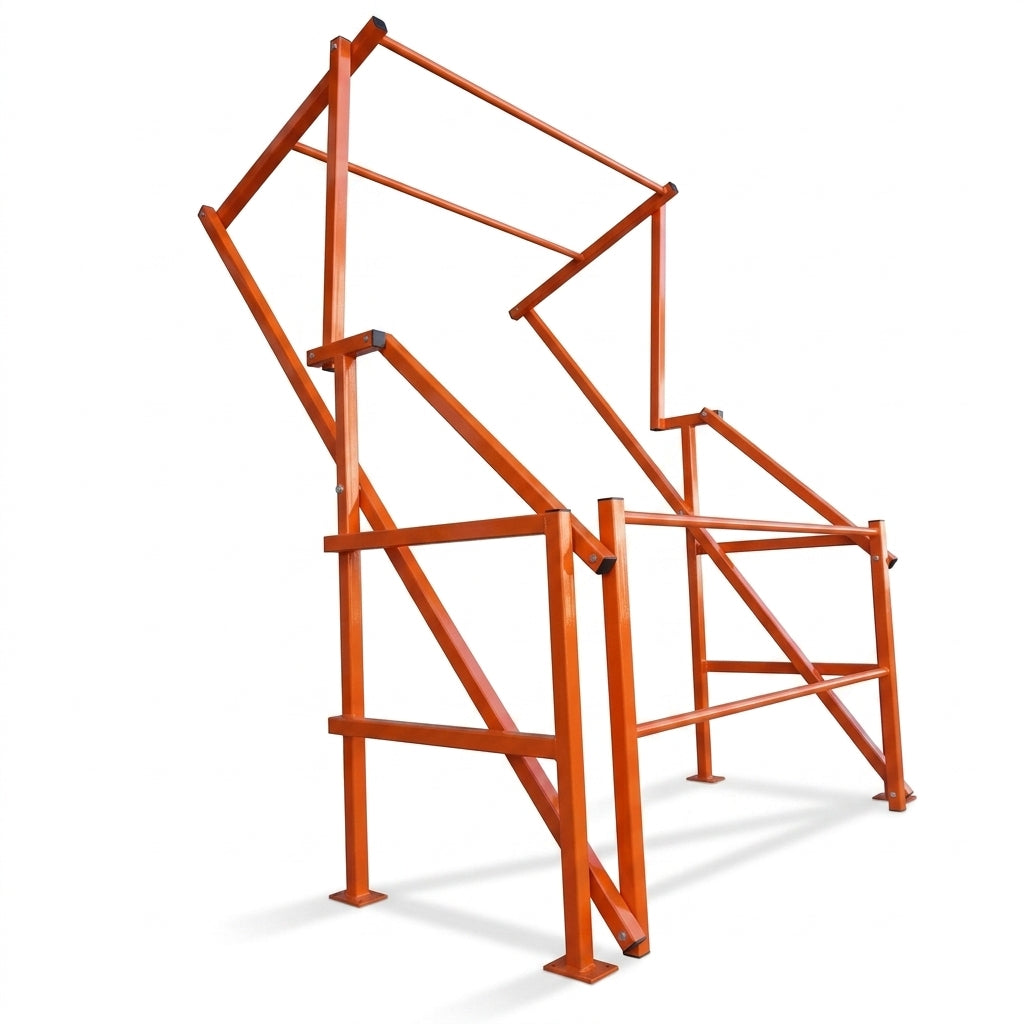

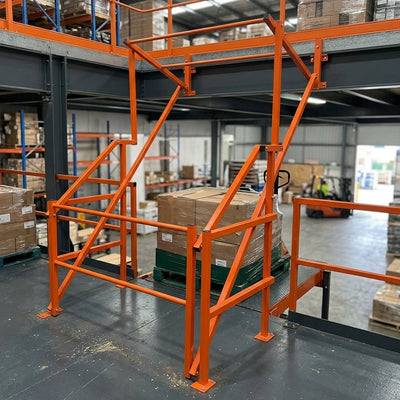

The High Safety Pallet Gate is a robust mezzanine safety barrier designed for loading areas that handle tall palletised goods. Its pivoting design means the loading edge is always protected: when the outer gate is open for a forklift to place a pallet, the inner gate is closed – so operators are never exposed to an open edge.

Key Features

• Accepts tall pallet loads up to 1700mm wide × 1500mm deep × 2300mm high
• Pivot/swing gate system – one side is always closed, keeping the mezzanine edge guarded at all times
• Heavy-duty frame built from 50mm O/D steel tubing
• Powder-coated in RAL 2004 Alert Orange for maximum visibility and long-lasting durability
• Generous 1800mm clear entry width for easy pallet placement

Technical Specifications

• Maximum pallet size: 1700mm (W) × 1500mm (D) × 2300mm (H)
• Overall gate size: 2170mm (W) × 1905mm (D) × 3000mm (H)
• Clear entry width: 1800mm
• Minimum headroom required: 3000mm overall (2550mm at the edge)
• Frame: 50mm O/D steel tubing
• Finish: RAL 2004 Alert Orange powder coating
• System type: Pivot/swing gate

Installation

Supplied flat-packed with all floor fixings and clear assembly instructions – a straightforward self-installation taking approximately 2 hours. Professional installation is also available on request for full safety compliance.

Maintenance

• Inspect the gate regularly for signs of wear, paying particular attention to the pivot points
• Keep pivot points lubricated for smooth operation
• Check floor fixings periodically and re-tighten if needed
• Clean with a damp cloth and mild detergent

Delivery

Normally stocked and pre-packed for fast dispatch within 3–5 working days. Delivered on a pallet – a forklift is required for offloading.
