Description
Advanced Expansion Compensation for Pipe Systems

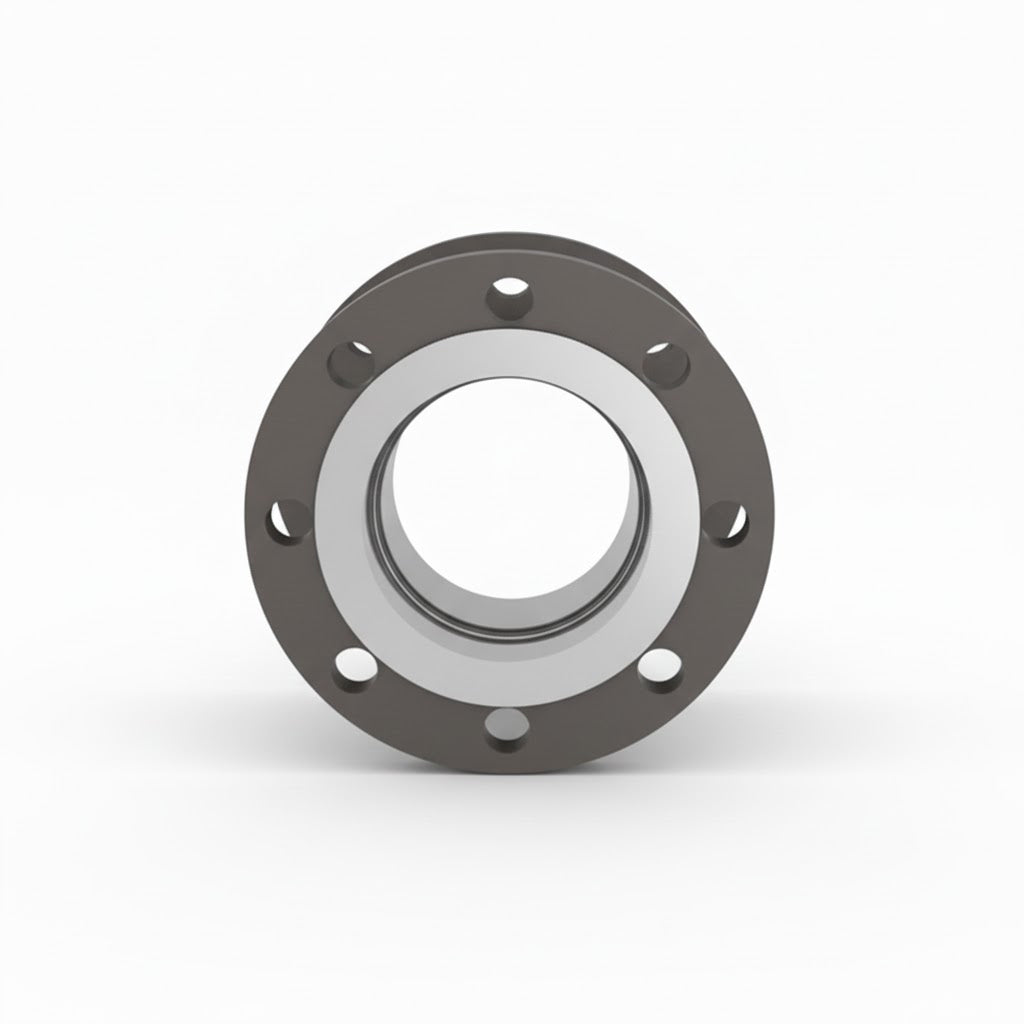

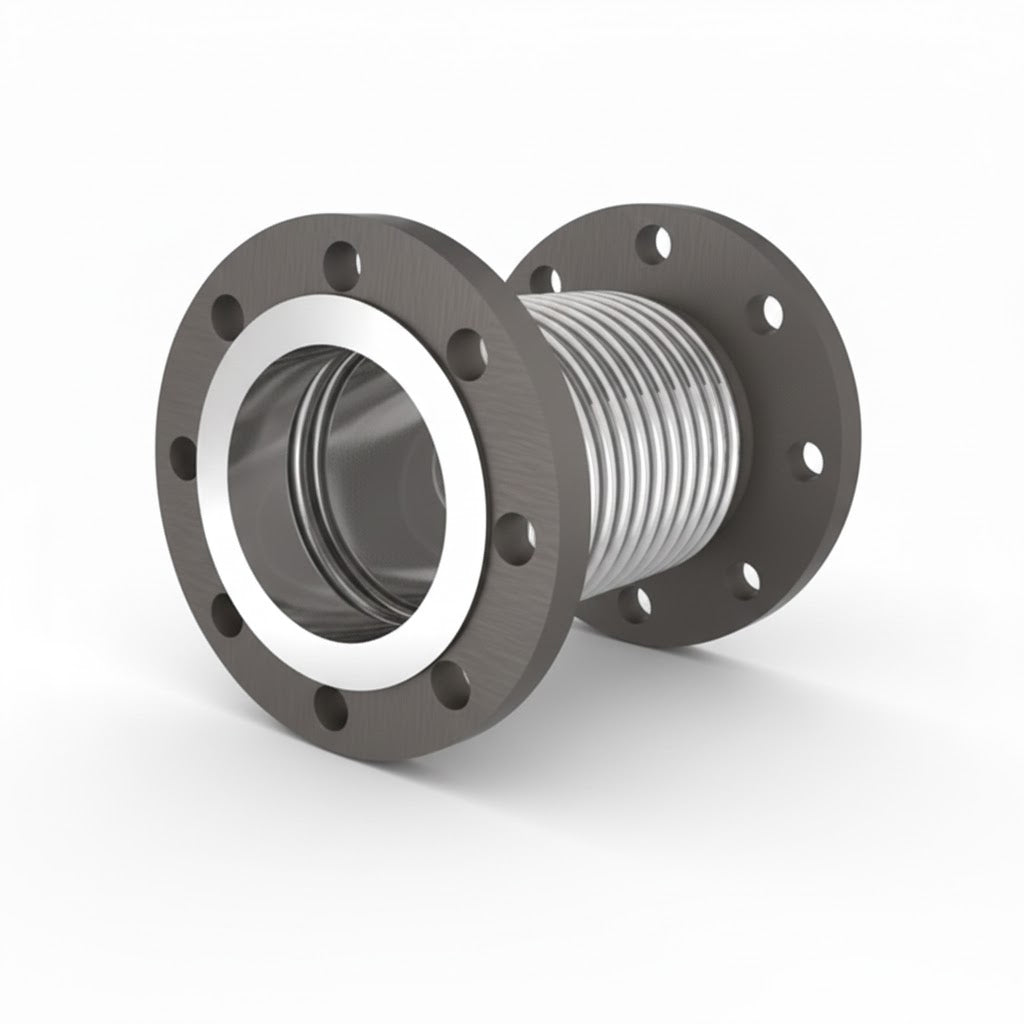

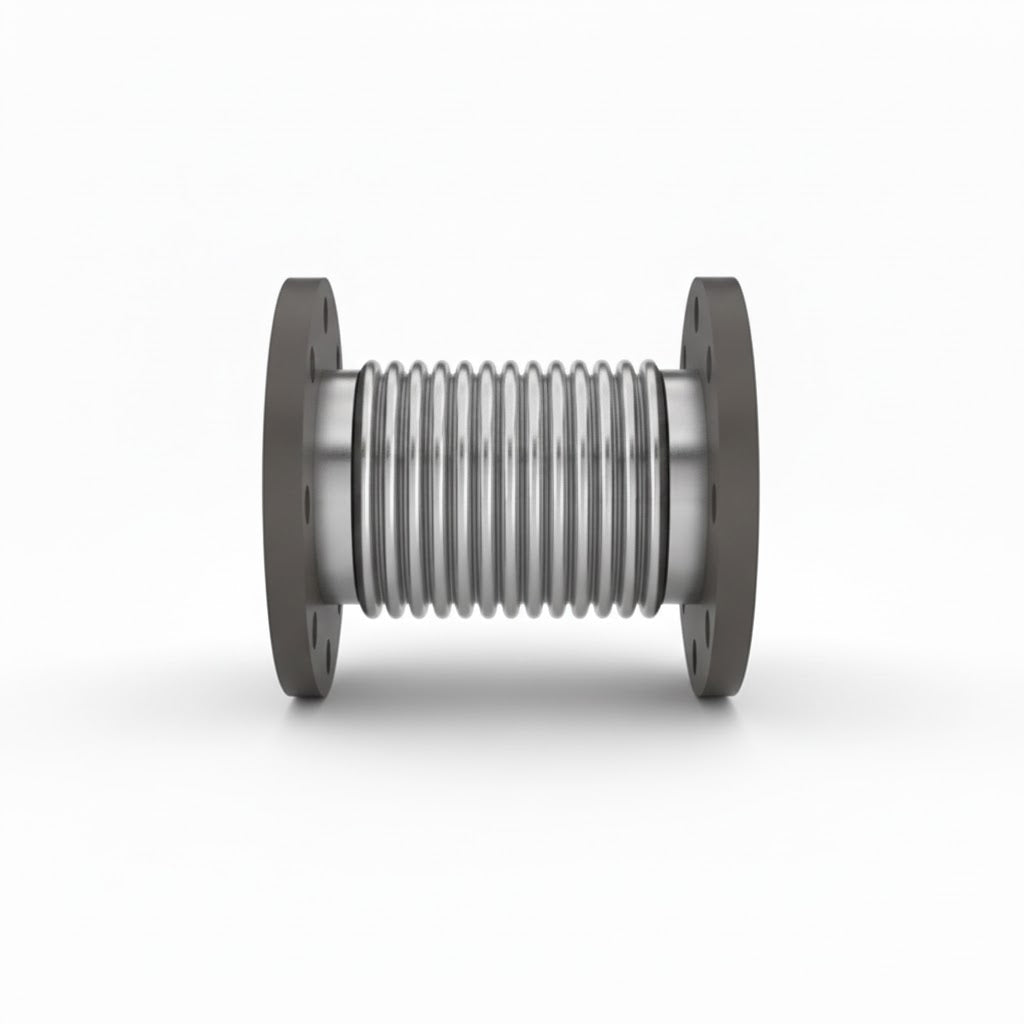

The Premium Flanged Axial Bellow is an expertly designed solution for managing thermal expansion in copper and stainless steel pipe systems. Engineered for durability and performance, this axial expansion compensator effectively absorbs linear pipe movement, reducing stress on the system while maintaining structural integrity.
Manufactured to the highest standards, the unit is pre-cold drawn and supplied with an internal flow liner as standard, ensuring smooth operation and long-term reliability. It is available for a wide range of temperature and pressure requirements and is CE-certified where applicable.
Key Features
- Designed for Linear Expansion – Accommodates thermal expansion in stainless steel and copper pipe systems.
- Pre-Cold Drawn Bellows – Enhances flexibility and longevity by reducing internal stress.
- High-Strength Construction – Features 316 stainless steel convolutions and internal sleeve for superior corrosion resistance.
- Flow Efficiency – Internal flow liner as standard, preventing turbulence and improving system performance.
- CE Certification – Compliant with EU PED regulations, ensuring safety and reliability.
- Multiple Size Options – Available in a range of sizes to suit different system requirements.
Applications
- Heating and cooling systems requiring controlled thermal expansion.
- Industrial processing plants with high-pressure piping.
- Commercial and residential plumbing installations.
Technical Specifications
| Size (mm) | Axial Compression (mm) | Installed Length (mm) | Effective Area (cm²) | Force to Compress (N/mm) |
|---|---|---|---|---|
| 32nb / 35cu | 30 | 130 | 12.8 | 37 |
| 40nb / 42cu | 30 | 130 | 19.0 | 37 |
| 50nb / 54cu | 50 | 225 | 35.6 | 55 |
| 65nb / 67cu | 50 | 225 | 46.5 | 87 |
| 80nb / 76cu | 50 | 230 | 61.7 | 90 |
| 100nb / 108cu | 50 | 230 | 103.2 | 116 |
| 125nb / 133cu | 60 | 240 | 177.5 | 118 |
| 150nb / 159cu | 60 | 240 | 253.6 | 166 |
FAQ
- What materials are used in the construction? The bellow is made of 316 stainless steel for superior corrosion resistance.
- Is this product CE certified? Yes, it is compliant with EU PED regulations.
- Can it be used in residential plumbing? Yes, it is suitable for both commercial and residential applications.
