Description
Professional Irrigation Sprinkler Kit

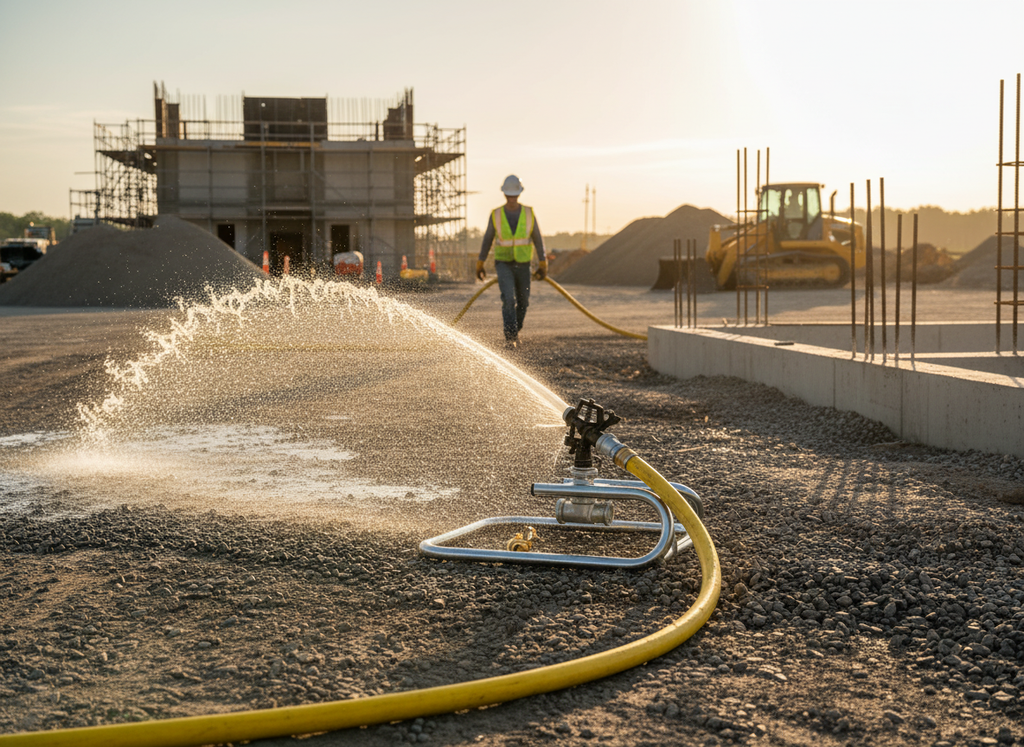

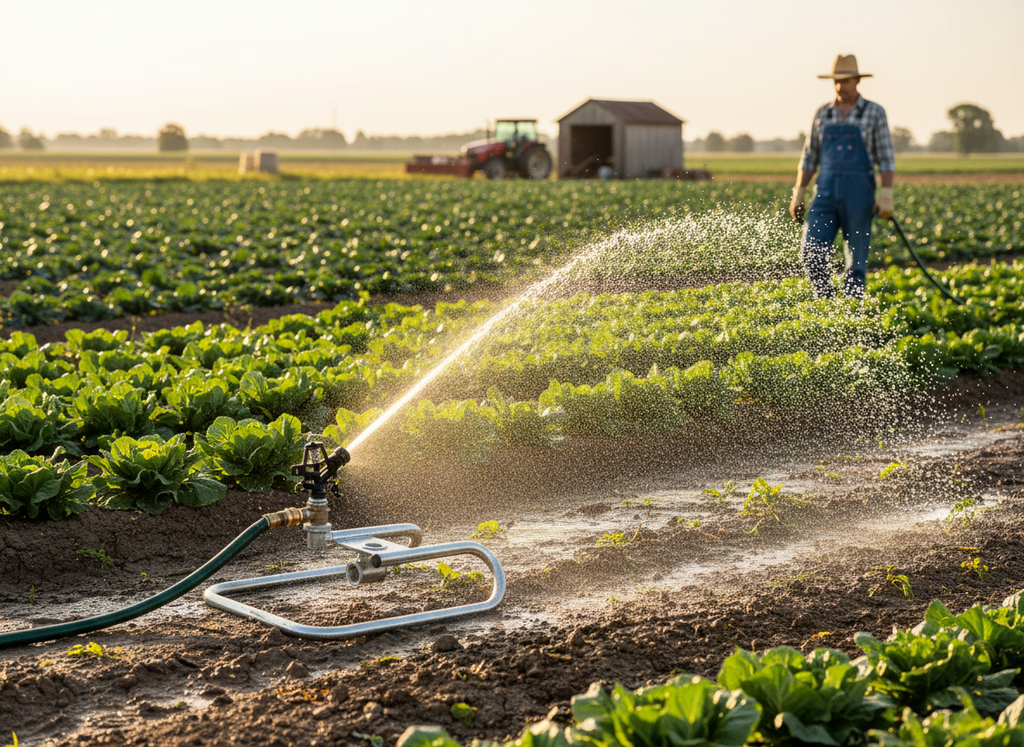

The Premium Irrigation Sprinkler Kit comes complete with an adjustable impact sprinkler head that can deliver water over a full or part circle depending on requirements. The sprinkler and riser are mounted on a sled base, making it easily portable. This feature allows it to be a great addition to existing irrigation systems, enabling the user to focus irrigation on a particular area. It can also be used as a standalone product wherever required.
The Premium Irrigation Sprinkler Kit is available in two sizes to suit existing irrigation equipment and output requirements. The smaller size has a 12.5 mm inlet diameter and can be operated from water pressures of 2-4 bar. The impact sprinkler head provides water coverage over an area of 18-28 m. The larger sprinkler has a 19 mm inlet diameter and can be operated from water pressures of 2.5-4.5 bar. The dome style impact sprinkler head provides water coverage over an area of 25-28 m.
Product Components
| Standard (12.5 mm inlet) | Superior (19 mm inlet) | |
|---|---|---|
| Base | Sled style Zinc plated tubular steel |
Sled style Zinc plated tubular steel |
| Riser | 30 cm height 12.5 mm bore Galvanised steel |
30 cm height 19 mm bore Galvanised steel |
| Sprinkler head | Standard part circle sprinkler head | Dome style part circle sprinkler head |
| Hose connection | 12.5 mm GEKA style coupling | 19 mm GEKA style coupling |
Assembly is quick and easy. A roll of PTFE tape is provided free with the kit to ensure friction-free connections and a watertight seal.
Product Specifications
| Standard (12.5 mm inlet) | Superior (19 mm inlet) | |||
|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | |
| Pressure | 2 bar | 4 bar | 2.5 bar | 4.5 bar |
| Flow rate | 0.46 m³ / h | 1.18 m³ / h | 0.69 m³ / h | 1.89 m³ / h |
| Coverage diameter | 18 m | 28 m | 25 m | 28 m |
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Inlet Diameter | 12.5 mm / 19 mm |
| Height of Riser | 30 cm |
FAQ
- Can this kit be used with existing irrigation systems? Yes, it can easily be integrated into existing systems.
- Is assembly difficult? No, assembly is quick and easy with included instructions.
- What materials are used for the construction? The kit is made from durable zinc plated tubular steel and galvanised steel.
Premium Irrigation Sprinkler Kit with Adjustable Impact Sprinkler Head for Efficient Watering and Coverage
Dispatch
Checkout
Guaranteed
Returns
Download Spec Sheet
PDF with image, specifications & dimensions
| SKU | 190705 |
| Brand | Sprinkler Unit |
| Product Type | Bundles > Equipment > Irrigation and Water Management > Static Sprinklers |
| Model | Standard (12.5 mm inlet) |
- Premium Irrigation Sprinkler Kit with Adjustable Impact Sprinkler Head for Efficient Watering and Coverage
- All components as described
- VAT invoice for business accounting
- Product documentation (where applicable)
